Vial Filling and Capping Machine: Buying Guide

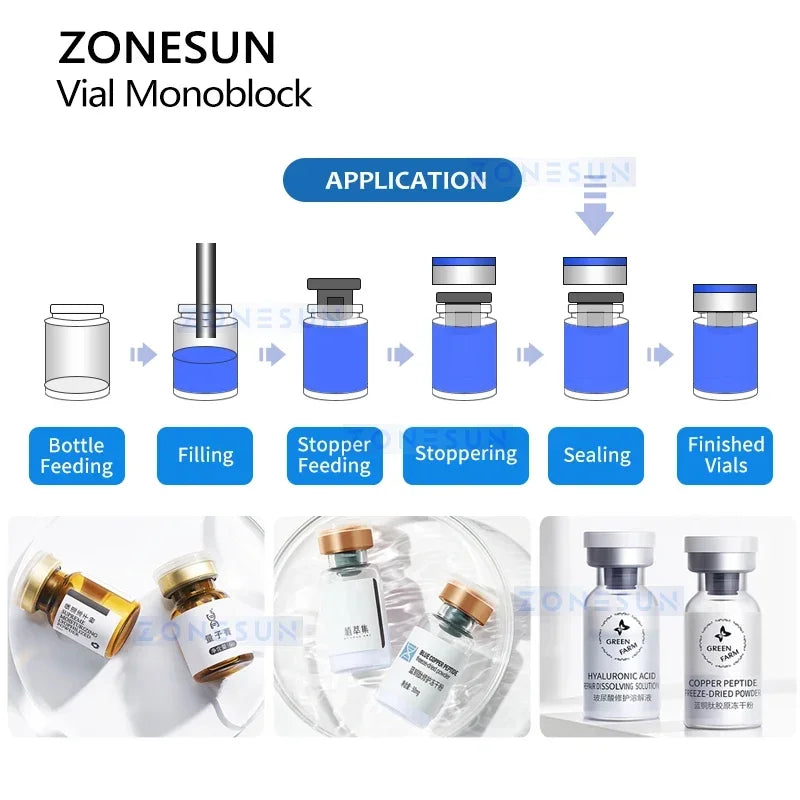

The machine executes three critical, consecutive phases:

1.Precision Dosing: Vials are fed onto a transport track where automated nozzles dispense exact micro-volumes of liquids or milligrams of dry powders.

2.Rubber Stoppering: Vibratory bowls automatically align and deliver rubber stoppers (or freeze-drying plugs), which a mechanical pick-and-place arm inserts into the bottle neck to create an immediate seal.

3.Aluminum Capping (Crimping): Aluminum or flip-off caps are oriented and pressed over the stopper, where a specialized crimping head permanently rolls or locks the metal skirt under the vial flange to guarantee a gas-tight, tamper-evident finish.

Before investing in a monoblock machine, you must define your production needs based on three distinct mechanical engineering criteria:

• Material Phase (Liquid vs. Powder): Low-viscosity liquids (serums, reagents) require zero-contact fluid paths to prevent contamination. Dry powders (lyophilized powders, antibiotics) require specialized vertical feeding to prevent clumping and static cling.

• Transport Architecture (Linear vs. Rotary): Linear track systems offer straightforward maintenance and easier adjustments for varying vial heights. Rotary star wheel configurations offer precise positioning and a compact footprint for tighter cleanroom spaces.
• Containment & Sterility Levels: High-stakes injection lines require integrated Laminar Flow Hoods (LAF) and isolation glove ports to meet GMP standards, while topical cosmetics can utilize standard acrylic dust enclosures.




Types of the Vial Filling and Capping Machine

1. ZONESUN ZS-AFC39B: The All-in-One Sterile Monoblock
2.

• Core Architecture: Compact Rotary Star Wheel + Integrated Laminar Flow Hood (Class 100).
• Dosing System: High-accuracy Peristaltic Pump.
• Production Speed: 30–60 bottles/min (BPM).
• Best For: Advanced cosmeceuticals, premium essential oils, and clinical freeze-dried media requiring a strict sterile barrier and isolation gloves

2. ZONESUN : The High-Volume Linear Workhorse

• Core Architecture: Continuous Linear Intermittent Track.
• Dosing System: Multi-head Peristaltic Pump.
• Production Speed: Up to 720 bottles/hour (BPH) with high duty-cycle stability.
• Best For: Commercial mass production lines where rapid changeovers between different vial diameters are required without replacing entire star wheel molds.




3. ZONESUN : The High-Throughput Laboratory Micro-Filler



•  Core Architecture: Ultra-compact Benchtop Rotary Monoblock.
• Dosing System: Multi-head micro-peristaltic dispensing (Accuracy: ±1–2%)
• Best For: Diagnostic kit manufacturing, R&D pilot plants, and low-dose vaccine sampling where cleanroom space is limited.

4. ZONESUN: The Desktop Micro-Powder Doser



• Core Architecture: Compact Desktop Rotary Star Wheel.
• Dosing System: Servo-driven Micro-Auger Filler (0.15g to 5g range).
• Production Speed: 15–20 bottles/min (BPM).
• Best For: Startup skincare brands and compounding labs dealing with hyaluronic acid powder, collagen powder, or small-batch active ingredients.

5. ZONESUN ZS-FJFC2: The Dual-Station Industrial Powder Line



•  Core Architecture: Heavy-duty Dual-Station Floor-Standing Platform.
• Dosing System: High-torque dual servo-controlled augers.
• Production Speed: 30–60 bottles/min (BPM) with a capping success rate of ≥99.9%.
• Best For: Scale-up contract manufacturing organizations (CMOs) and large pharmaceutical plants requiring continuous, multi-shift powder filling.

Core differences in design details

1. The Mechanical Showdown: Rotary Star Wheel vs. Linear Track The Star Wheel

  Design of ZS-AFY1 & ZS-AFC20F:These models feature custom star wheels machined from pharmaceutical-grade POM (polyoxymethylene) or nylon, with micro-polished edges. The greatest advantage of a rotary drive is "rigid alignment." Vials are locked securely into place by the mold at every single station (filling, stoppering, and capping), completely eliminating physical displacement. For tiny 2ml–10ml vials that tip over easily, this provides an absolute guarantee of high precision.



The Linear Indexing Design of ZS-AFC41:By eliminating the circular rotary table, this system achieves intermittent positioning through linear side belts and bottle-blocking pneumatic cylinders. This design offers a much higher tolerance for error. If you need to accommodate vials with significant size variations in the future, you won't need to replace an entire expensive star wheel; instead, you simply adjust the guide rail spacing, drastically reducing future changeover and tooling costs.

Liquid Pumps (ZS-AFC41 / ZS-AFY1):Driven by brushless motors, these peristaltic pump heads support quick-connect and quick-release removal. The silicone tubing is crafted from sanitary-grade materials and tolerates repeated autoclave steam sterilization, specifically engineered to prevent bacterial growth in biological reagents and single-dose cosmetics.

Powder Augers (ZS-AFC20F / ZS-FJFC2):The biggest challenges in powder dispensing are "moisture absorption/clumping" and "electrostatic adhesion." ZONESUN’s augers are made from ultra-polished 316L mirror stainless steel treated with ultrasonic micropore polishing. Paired with a low-amplitude vertical vibration motor built into the hopper, it ensures that powders—even extremely light, lyophilized raw powders—flow as smoothly as water, with errors strictly controlled at the milligram level.
