ZONESUN ZS-DCS50 Automatic 5-50kg Granule & Powder Bagging Line | Industrial Large Bag Weighing & Packing Machine
ZONESUN ZS-DCS50 Automatic 5-50kg Granule & Powder Bagging Line | Industrial Large Bag Weighing & Packing Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Description

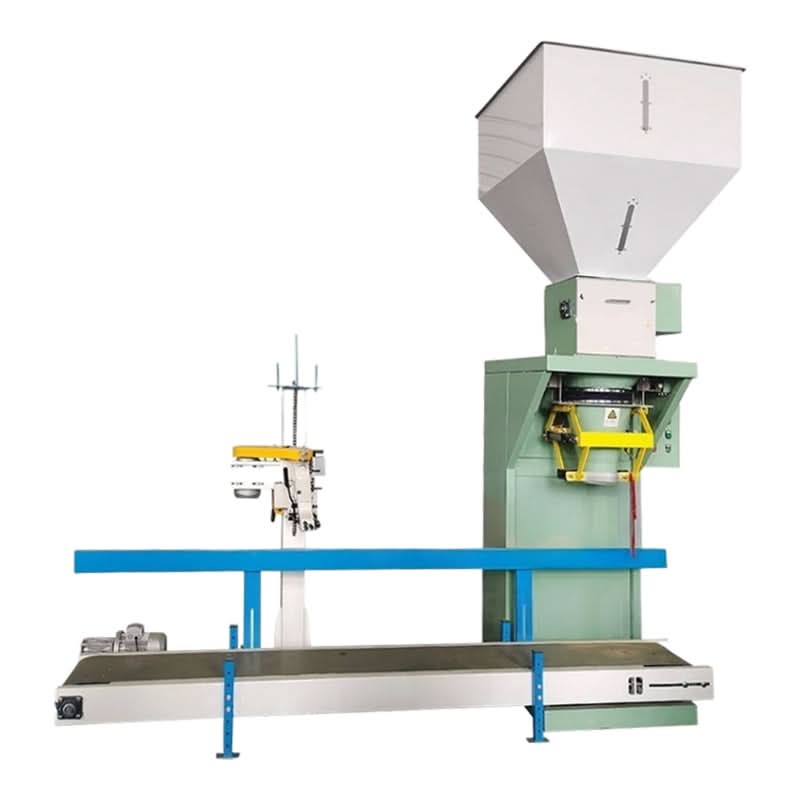

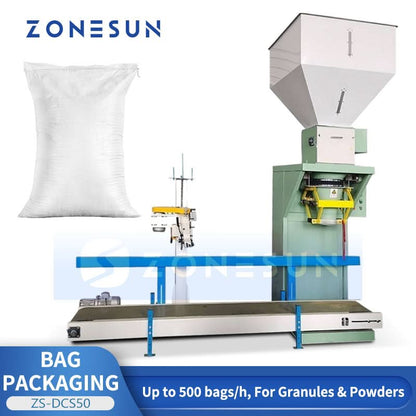

The ZONESUN ZS-DCS50 is a fully automatic large bag packing machine for granules and powders, with a throughput of up to 500 bags per hour. Built with SUS304 contact parts and PLC control, it ensures precise weighing, dust‑free filling, and secure sealing. Common packaging ranges include 15 kg, 25 kg, and up to 50 kg. The machine integrates automatic feeding, weighing, bag clamping, filling, and stitching or heat‑sealing into one streamlined workflow, delivering efficient, consistent, and hygienic performance for feed, fertilizer, grains, quartz sand, and chemical materials.
Parameter
- Model: ZS‑DCS50A
- Type: Single Work Station
- Material: SUS304 contact parts
- Gross Weight: 870 kg
- Packing Capacity: 150–300 bags/h
- Packing Range: 5–50 kg (customizable)
- Packing Accuracy: ±0.2%
- Power: 5.0 kW
- Voltage: AC 220 V / 380 V, 50 Hz, 1P/3P (customizable)
- Air Source: 0.4–0.6 MPa, 0.36 m³/min
Parameter

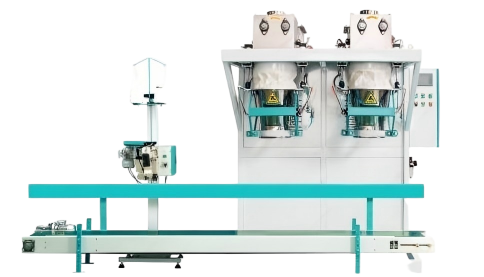

- Model: ZS‑DCS50B
- Type: Double Work Station
- Material: SUS304 contact parts
- Gross Weight: 960 kg
- Packing Capacity: 350–500 bags/h
- Packing Range: 5–50 kg (customizable)
- Packing Accuracy: ±0.2%
- Power: 7.0 kW
- Voltage: AC 220 V / 380 V, 50 Hz, 1P/3P (customizable)
- Air Source: 0.4–0.6 MPa, 0.36 m³/min
Applications
1. Applicable Material Types
- Granular Materials: Pellets, grains, seeds, plastic granules, resin, fertilizer granules, quartz sand, rubber particles, feed pellets, salt, and sugar.
- Powder Materials: Chemical powders, organic fertilizer powder, mineral powder, mortar, dry cement mix, animal feed powder, and flour additives.
2. Suitable Bag Types & Materials Equipped with a pneumatic bag clamping mechanism and adaptable stitching/heat-sealing stations, this machine supports various open-mouth large bags (5–50 kg):
- Woven PP / PE bags (Polypropylene)
- Multi-layer Kraft paper bags
- Plastic film bags & laminated bags
- Jute / Hessian bags
3. Key Application Industries
- Agriculture & Grain Processing: Efficient bulk bagging for rice, wheat, corn, seeds, beans, and animal feed manufacturing.
- Chemical & Petrochemical Industry: Dust-free packaging for plastic resin pellets, chemical raw materials, and specialized mineral powders.
- Fertilizer & Soil Conditioning: High-throughput bagging for NPK compound fertilizers, organic fertilizers, and urea granules.
- Construction & Building Materials: Precision weighing and packing for quartz sand, dry-mix mortar, tile adhesive, and cement additive powders.

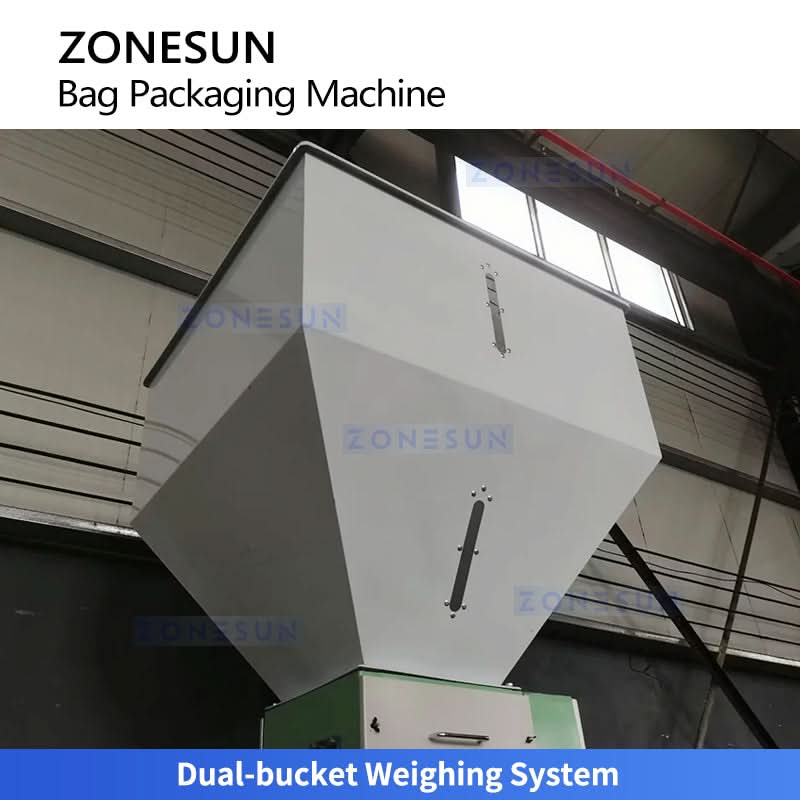

DUAL-BUCKET WEIGHING
Enables alternating measurement and cyclic filling, significantly shortening cycle times and achieving a throughput of over 600 bags per hour.

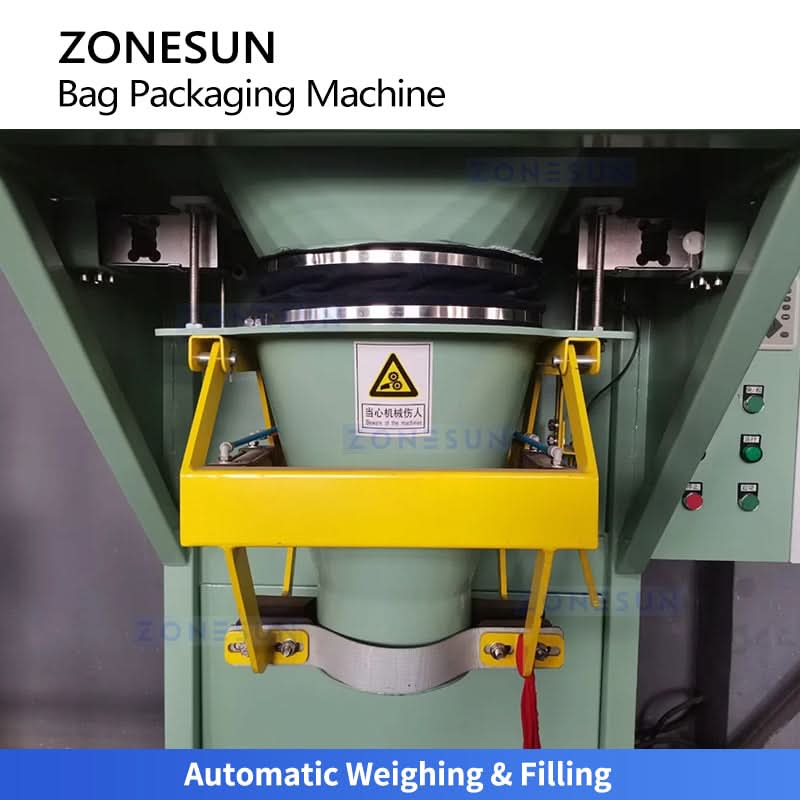

WEIGHING & FILLING
Automatic weighing of bulk materials according to preset targets and accurately fills them into bags via the clamping device, ensuring a dust-free filling process.

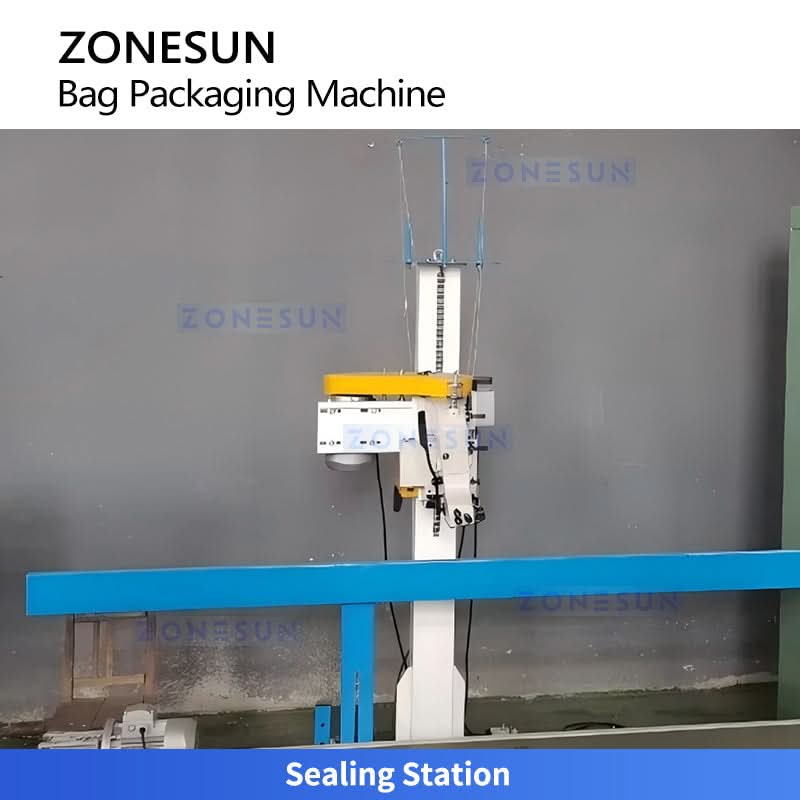

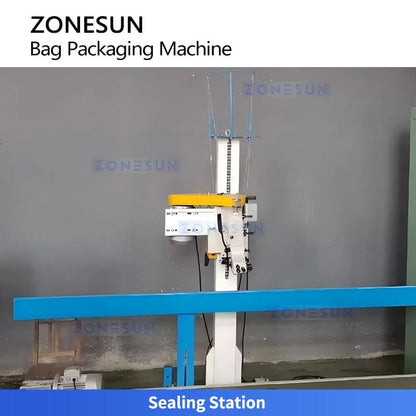

SEALING STATION
After filling, bags are automatically conveyed to the sealing station for stitching or heat-sealing, ensuring large bags are neatly sealed and securely closed.

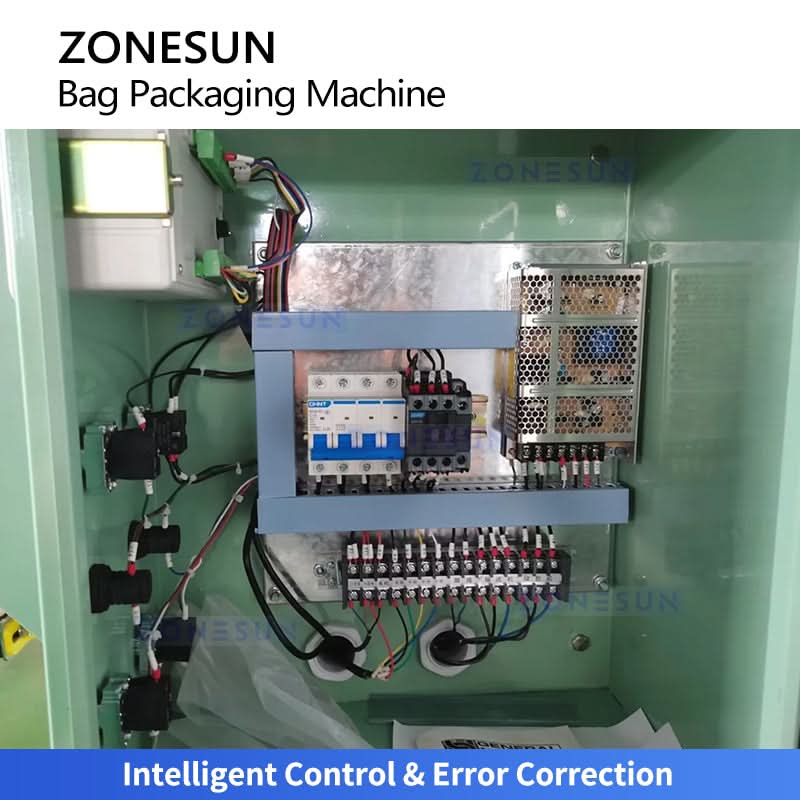

INTELLIGENT CONTROL
Real-time adjustment of feeding speeds based on material flow and automatic correction of weighing deviations ensure consistent weight for every bag.

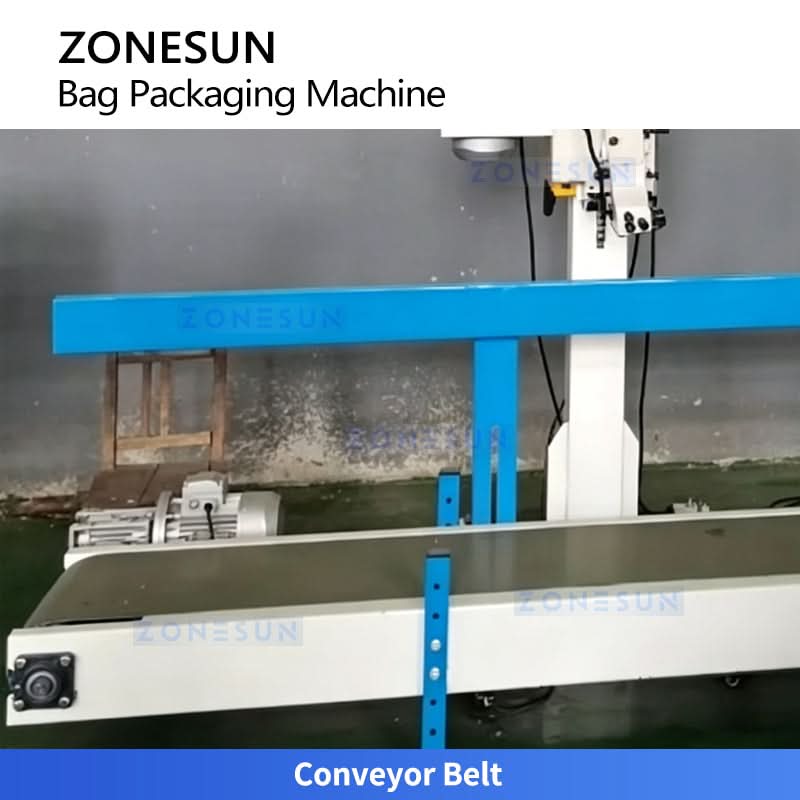

CONVEYOR BELT
Transfers filled bags smoothly and steadily to the sealing station, ensuring continuous operation and reliable downstream processing.
