DESCRIPTION

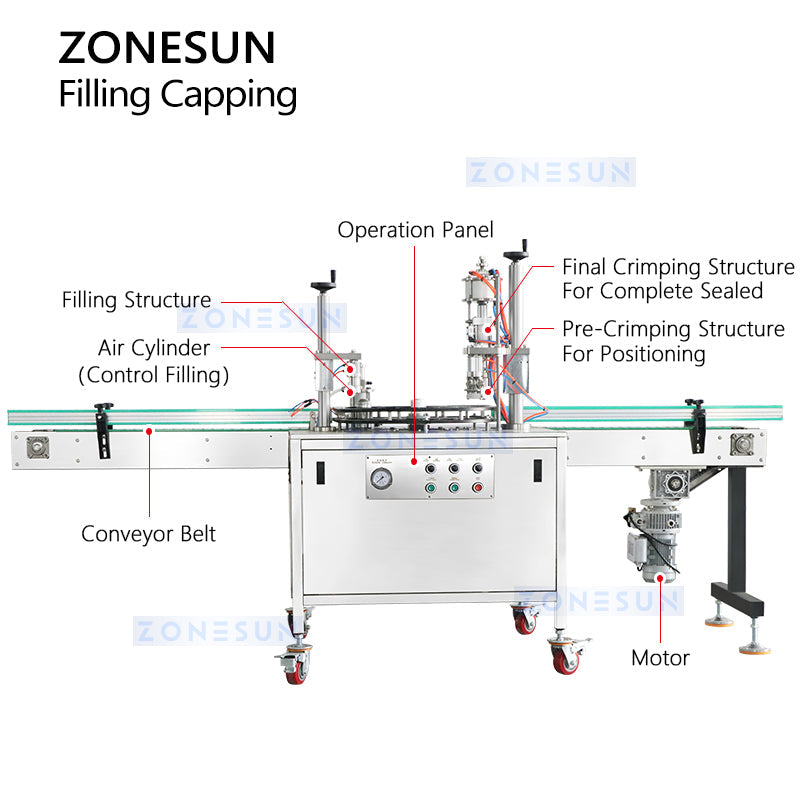

The ZONESUN ZS-QW1600 Automatic Spray Can Aerosol Liquid Filling Capping Machine is a high-efficiency packaging solution designed to fill and seal spray cans with precision. Equipped with a conveyor belt and pneumatic cylinders, it ensures accurate liquid dosing and secure sealing. Suitable for a wide range of products including home cleaning sprays, personal care aerosols, and automotive maintenance items, this machine streamlines production, boosts productivity, and delivers consistent, professional packaging results.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
|
Machine model |
ZS-QW1600 |
|
Valve size |
Customized |
|
Filling range |
50-500ml |
|
Working capacity |
About 20 bottles/min |
|
Working air pressure |
0.5-0.8MPa |
|
Suitable aerosol can diameter |
35-69mm |
|
Suitable aerosol can height |
70-330mm |
|
Machine size |
About 3050*1100*1650mm |
|
Package size |
About 1120*1100*1650mm (Machine) About 1120*300*800mm (Conveyor Belt 1) About 2050*410*360mm (Conveyor Belt 2) |
|
Package weight |
About 397kg (Machine)+56kg (Conveyor Belt 1) About 33kg (Conveyor Belt 2) |
ATTENTION
This machine should work with a further processing propellant gas filling device, which is sold separately.
