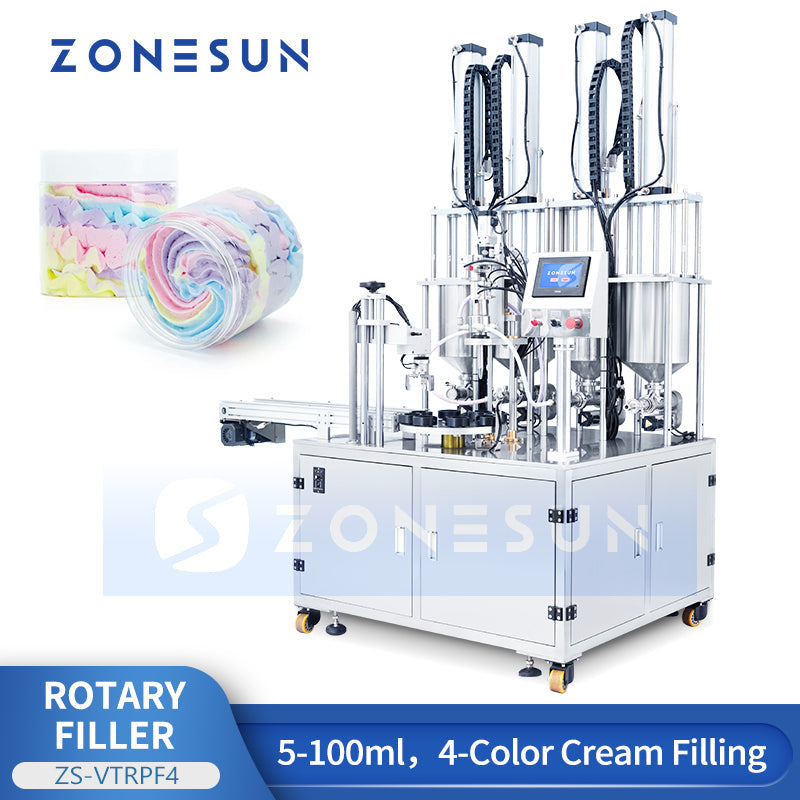

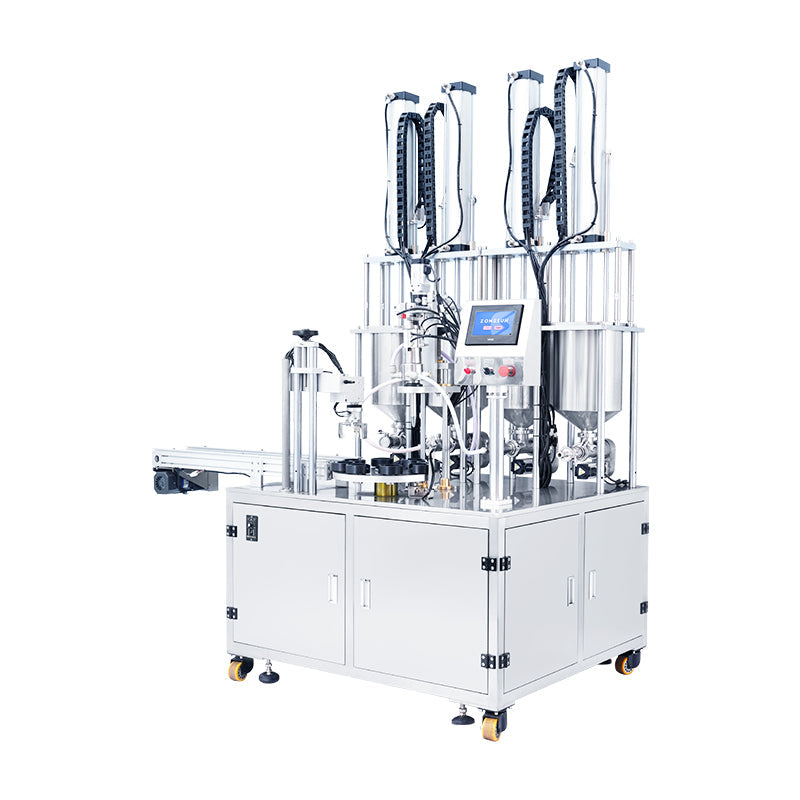

ZONESUN ZS-RSV4 Automatic Rotary 4-Color Cream Swirl Filling Machine for Cosmetic Jars & Bottles
ZONESUN ZS-RSV4 Automatic Rotary 4-Color Cream Swirl Filling Machine for Cosmetic Jars & Bottles
Normaler Preis
$37,000.00 USD
Normaler Preis
$0.00 USD
Verkaufspreis
$37,000.00 USD
Stückpreis
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
The ZONESUN ZS-RSV4 is a fully automatic rotary filling system equipped with four color-coded heads for precise and vibrant multi-color cream filling. Designed for versatility, it delivers smooth, uniform filling into jars, making it ideal for cosmetics, body care, and food applications. This machine streamlines production and enhances visual appeal for branded products.
| Model | ZS-RSV4 |
|---|---|
| Power Supply | 220V / 50Hz |
| Total Power | 4 kW |
| Air Pressure | 0.5–0.6 MPa |
| Filling Accuracy | ≤0.5% |
| Filling Pump Type | Lobe Pump + Piston Pump |
| Suitable Bottle Height | 30–120 mm |
| Suitable Bottle Diameter | 15–100 mm (Outer Diameter) |
| Filling Volume Range | 5–100 ml |
| Stainless Steel Hopper | 22L × 4 |
| Filling Capacity | 960 bottles/hour (varies with volume and material) |
| Machine Dimensions (L×W×H) | 1870 × 1100 × 2500 mm |
Applications
Elevate your product presentation with stunning multi-color swirl and layered visual effects. This automatic 4-color filler is engineered to handle high-viscosity pastes, creating highly demanding aesthetic patterns that attract today's consumers.
- Rainbow Swirl Body Butters: Perfectly fills multi-colored, whipped body butters and face creams with sharp, non-blending boundaries and a beautiful top swirl.
- Multicolor Makeup & Skincare: Ideal for 3-in-1 color-correcting primers, multi-phase gels, layered facial masks, and gradient cosmetics.
- Vibrant Bath & Body Scrubs: Efficiently processes whipped shower soaps, rainbow sugar scrubs, and decorative hair treatment creams.

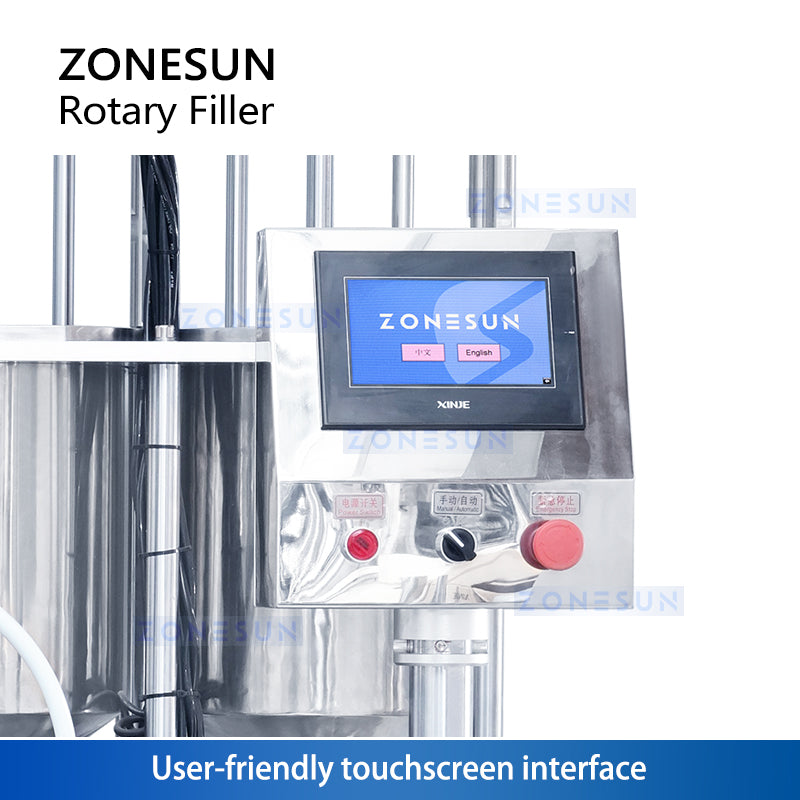

Control Panel
- Smart Touchscreen: Intuitive PLC control with instant English/Chinese bilingual switching.
- Precise Control: Easy on-screen adjustment of filling volume, speed, and parameters.
- Safety First: Built-in dedicated power switch, indicator light, and emergency stop button.
HOPPER
- 4-Compartment Storage: Stores four distinct colored materials simultaneously without mixing.
- Continuous Feeding: Supplies the filling systems uninterruptedly for stable, smooth operation.
- Premium Stainless Steel: Crafted from high-grade stainless steel, ensuring hygiene and easy cleaning.

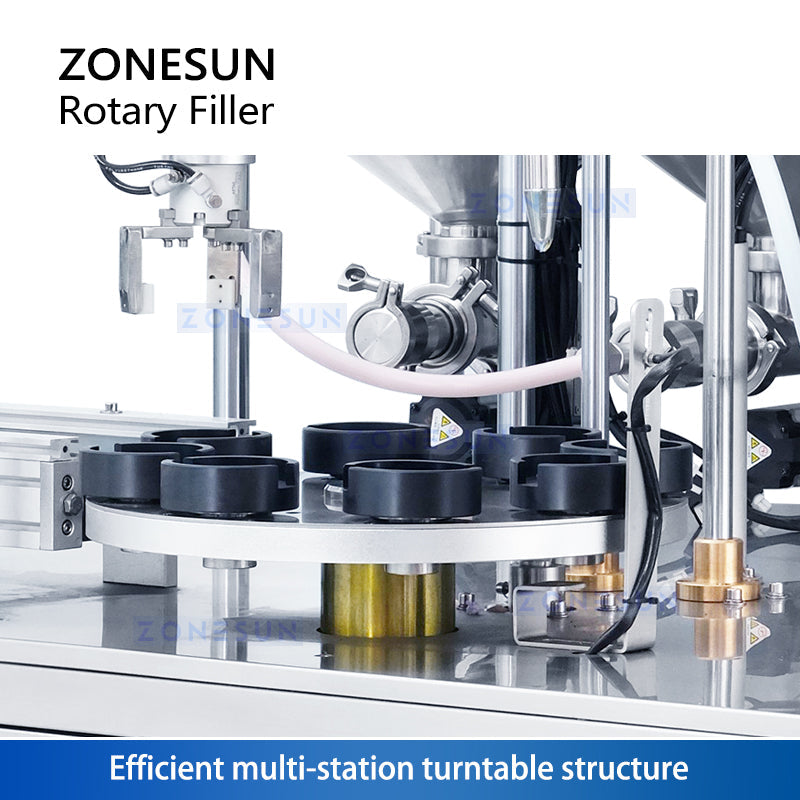

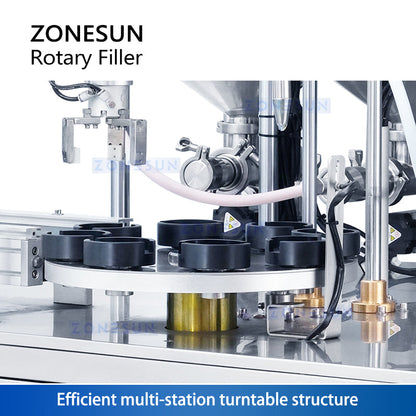

TURNTABLE
- Continuous Filling: Automatically holds and moves containers smoothly through filling stations.
- Interchangeable Molds: Quick-change mold design, easily adaptable to various container sizes.
- Stable & Precise: Heavy-duty rotary system ensures accurate positioning and prevents spills.

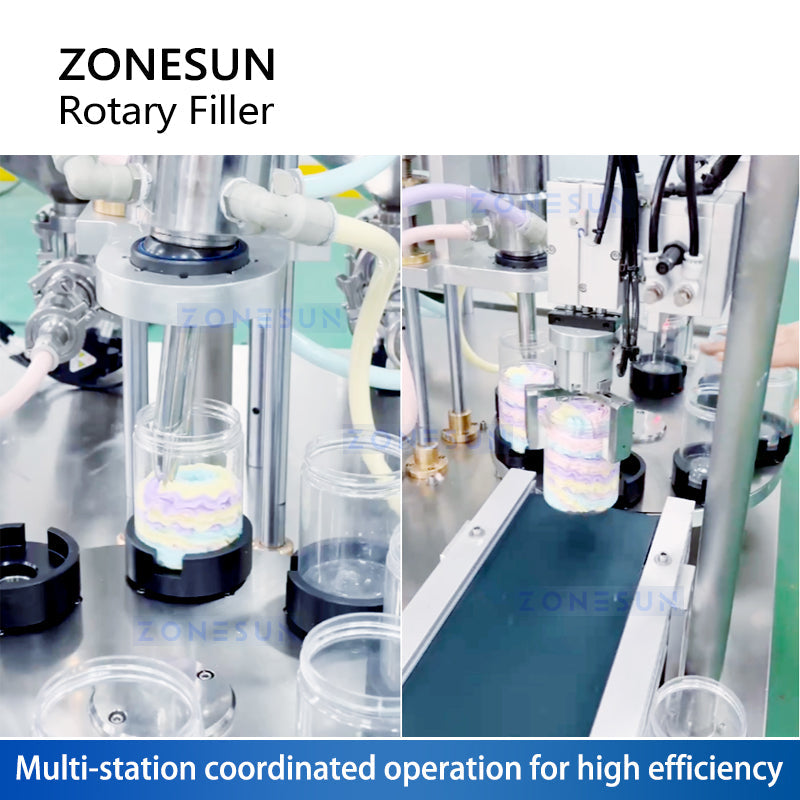

FILLING OUTPUT SYSTEM
- Even Spiral Filling: Advanced spiral filling head ensures four colors are filled beautifully and uniformly.
- Pneumatic Auto-Discharge: Equipped with a pneumatic gripper that automatically removes finished products.
- High-Efficiency Integration: Seamless transition from filling to output, maximizing production line speed.

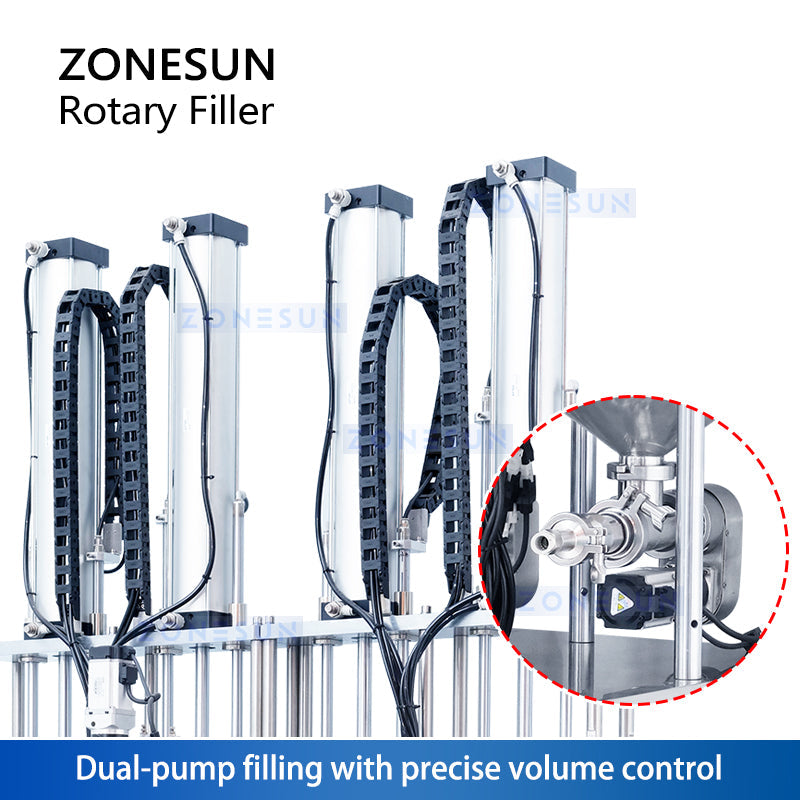

PUMP
- Dual Pump System: Combines piston and lobe pumps for flexible, highly precise paste filling.
- Fast Color Change: Smart design allows for quick color switching, reducing batch downtime.
- Easy to Clean: Simple to disassemble and wash, ensuring hygiene and preventing cross-contamination.
CONVEYER BELT
- Smooth Conveying: Safely transfers filled containers out of the station without tipping or spilling.
- Seamless Integration: Connects perfectly with capping or labeling machines for a fully automated line.
- Speed Control: Equipped with an independent speed regulator to match your production pacing.
