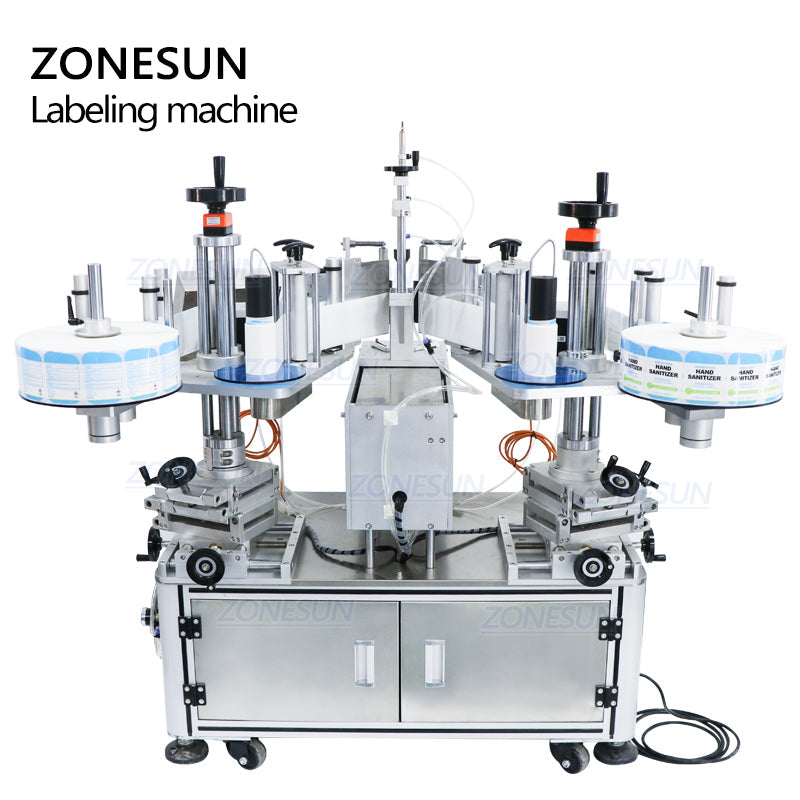

ZONESUN XL‑T806 Semi‑Auto Double‑Side Square Bottle Labeler

ZONESUN XL‑T806 Semi‑Auto Double‑Side Square Bottle Labeler

Κανονική τιμή $7,020.00 USD
Κανονική τιμή Τιμή έκπτωσης $7,020.00 USD
Έκπτωση Εξαντλήθηκε
Τα έξοδα αποστολής υπολογίζονται κατά την ολοκλήρωση της αγοράς.
Type

Description

The ZONESUN XL‑T806 is a semi‑automatic double‑side labeling machine designed for square bottles, flat bottles, packaging boxes, and other side‑label applications. By changing the labeling mechanism, it can also handle uneven surfaces such as concave planes, circular planes, or oval bottles. Equipped with adjustable fixtures, it ensures precise positioning and labeling accuracy of ±0.5 mm. Optional ribbon printer or inkjet printer integration allows simultaneous printing of batch numbers, production dates, expiration dates, and other variable data during labeling — completing both processes in one step to significantly improve efficiency. Ideal for cosmetics, personal care, food, beverage, and chemical packaging lines requiring high‑quality, consistent labeling.

Notice

1.It need to custom the fixture to apply to the labeling of various irregular work pieces.(please send you thing or measure your thing size )
2.We can custom the machine to apply your label and bottle . please contact with us


Parameter

Labeling Error

± 0.5mm

Labeling Speed

15-30pcs/min

Suitable Bottle Size

H 50mm-350mm

W 20mm-200mm

Suitable Label Size

L 15mm-300mm

W 15mm-180mm

Power Supply

220V/50Hz

Machine Weight

65kg

Machine Size

1270x1160x1250mm

Label Inner Diameter

76mm

Label Outer Diameter

300mm
