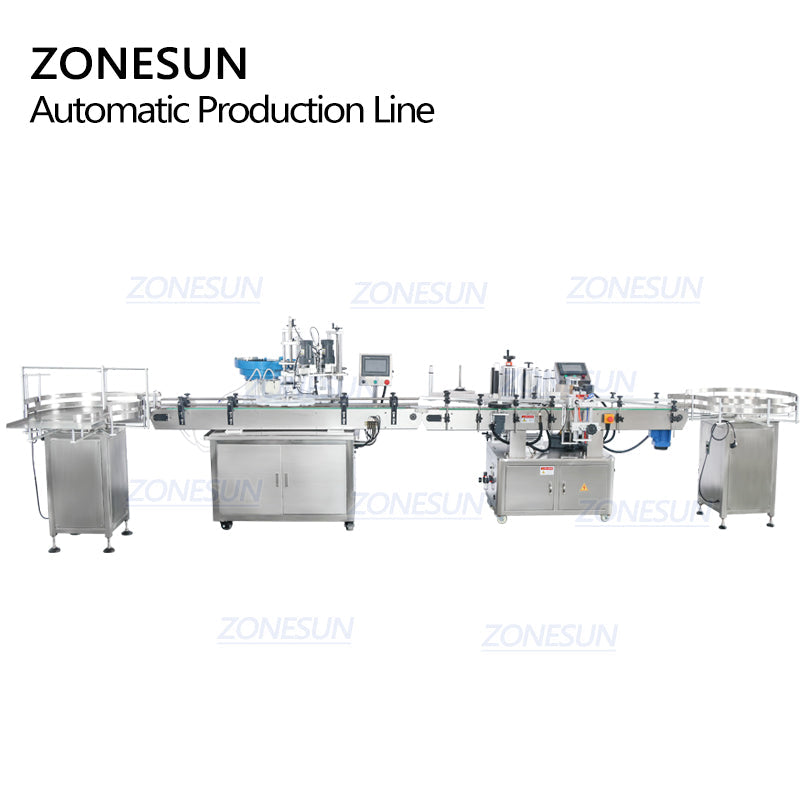

ZONESUN ZS-FAL180A8 Auto Liquid Filling Capping Labeling Machine
ZONESUN ZS-FAL180A8 Auto Liquid Filling Capping Labeling Machine
Δεν ήταν δυνατή η φόρτωση της διαθεσιμότητας παραλαβής
Description
The ZONESUN ZS-FAL180A8 is a fully automatic 3-in-1 packaging solution that integrates liquid filling, bottle capping, and labeling into one streamlined system. Equipped with magnetic pumps, it ensures precise filling of low-viscosity liquids such as perfume, juice, vinegar, and sauces. Each nozzle’s speed can be independently controlled for flexible operation. The high-quality capping head accommodates various cap shapes, while the cap feeder arranges and delivers caps automatically, reducing labor costs. Its positioning-based labeling system supports single or double-sided labeling on round bottles. With a PLC control panel and durable chain conveyor belt, this machine offers smooth, stable performance and easy parameter adjustment. Widely used in pharmaceutical, cosmetic, and daily chemical industries, it can be customized to meet specific production needs.
Parameter
| Item | Specification |
|---|---|
| Machine model | ZS-AFC1 |
| Machine voltage | AC220V/110V 50–60HZ |
| Bottle diameter | 25–50mm (Can Customize) |
| Bottle height | 50–350mm |
| Working speed | 0–40 bottles/min (depending on liquid, bottle and caps) |
| Max power | 300W |
| Air pressure | 0.4–0.6MPa |
| Capping torsion | 4–9kgf/cm |
| Conveyor size | About 2000×100mm (L×W) |
| Machine size | About 1015×880×1560mm |
| Machine weight | About 341kg |
| Package size | About 1980×980×1740mm |
| Package weight | About 411kg |
