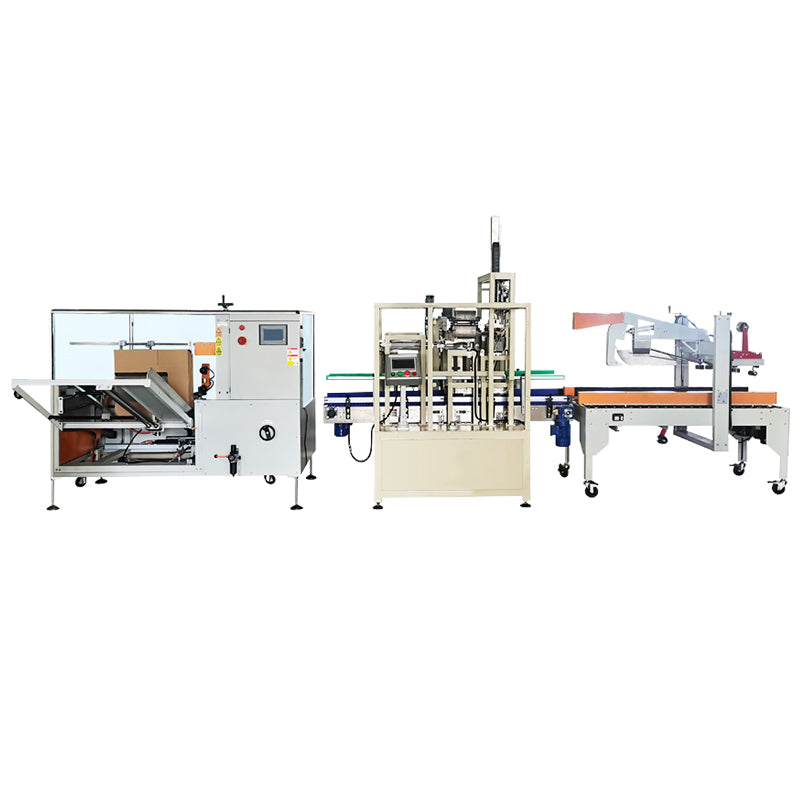

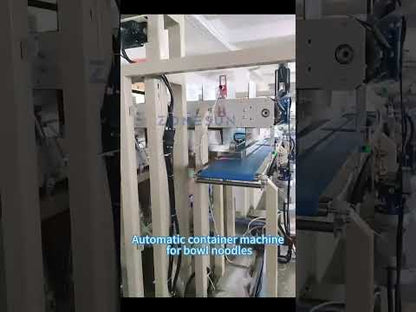

ZONESUN ZS-KFXL3 Automatic Case Packing Sealing Machine Carton Box Packing Line

DESCRIPTION

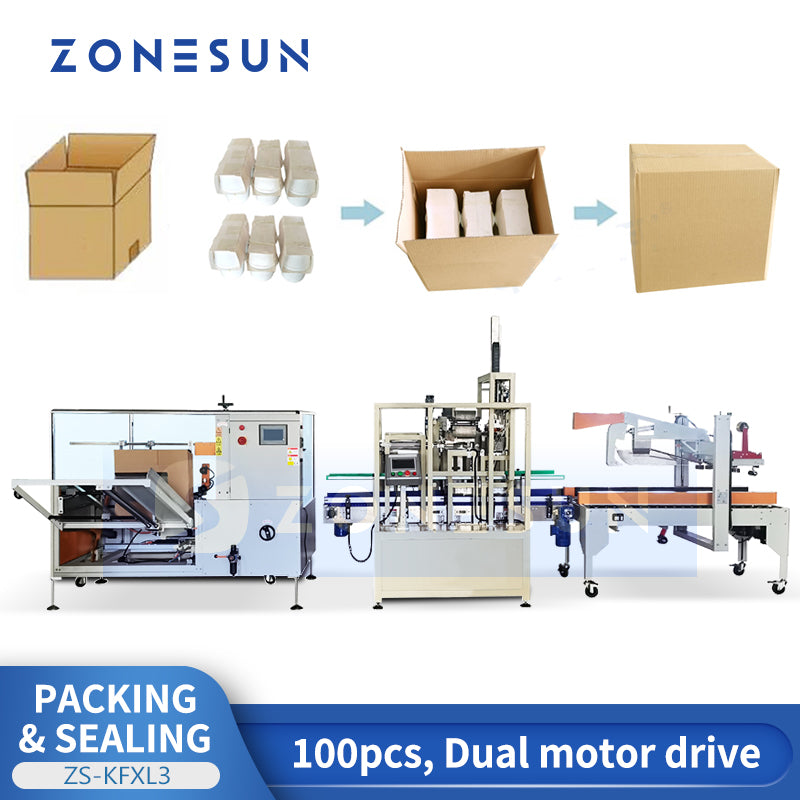

Streamline your end-of-line packaging with the ZONESUN ZS-KFXL3 Automatic Case Packing & Sealing Machine. This fully automatic cartoning and sealing production line integrates case erecting, product loading, and carton sealing into one seamless system. Designed for efficiency and reliability, it can handle up to 100pcs per minute with dual motor drive for enhanced stability and speed. Ideal for bottle, pouch, or box-packed products, this carton box packing line significantly reduces manual labor, boosts productivity, and ensures consistent packaging quality. Perfect for businesses seeking a smarter, faster, and more automated packaging solution.


Parameters

• Model: ZS-KXM40E
• Speed: 12 cartons/min
• Applicable Carton Size (Max): L450 × W400 × H400 mm
• Applicable Carton Size (Min): L250 × W150 × H100 mm
• Power Supply: 110/220V, 50/60Hz, Single Phase
• Power Consumption: 240 W
• Adhesive Tape Width: 48 / 60 / 75 mm
• Carton Storage Capacity: 80–100 pcs (800–1000 mm)
• Air Consumption: 450 NL/min
• Air Pressure Requirement: 6 kg/cm² / 0.6 MPa
• Table Height: 620 ± 30 mm
• Machine Dimensions: L2100 × W2100 × H1450 mm
• Machine Weight: 450 kg

• Model: ZS-FXM50P
• Applicable Carton Size: L150–500 mm × W120–500 mm × H130–500 mm
• Transfer Speed: 20 m/min
• Equipment Size: L1800 × W980 × H1420 mm
• Packing Size: L2000 × W1180 × H1730 mm
• Power Supply: 220/380V, 50Hz
• Air Pressure Requirement: 6 kgf/cm²
• Max Power Consumption: 0.4 kW
• Tape Width: 48 / 60 / 75 mm
• Net Weight: 236 kg
• Gross Weight
