Zonesun ZS‑TBRH100 Horizontal Tube Labeler with Tray Loading
Zonesun ZS‑TBRH100 Horizontal Tube Labeler with Tray Loading
Κανονική τιμή
$15,799.00 USD
Κανονική τιμή
Τιμή έκπτωσης
$15,799.00 USD
Τιμή μονάδας
ανά
Τα έξοδα αποστολής υπολογίζονται κατά την ολοκλήρωση της αγοράς.
Δεν ήταν δυνατή η φόρτωση της διαθεσιμότητας παραλαβής

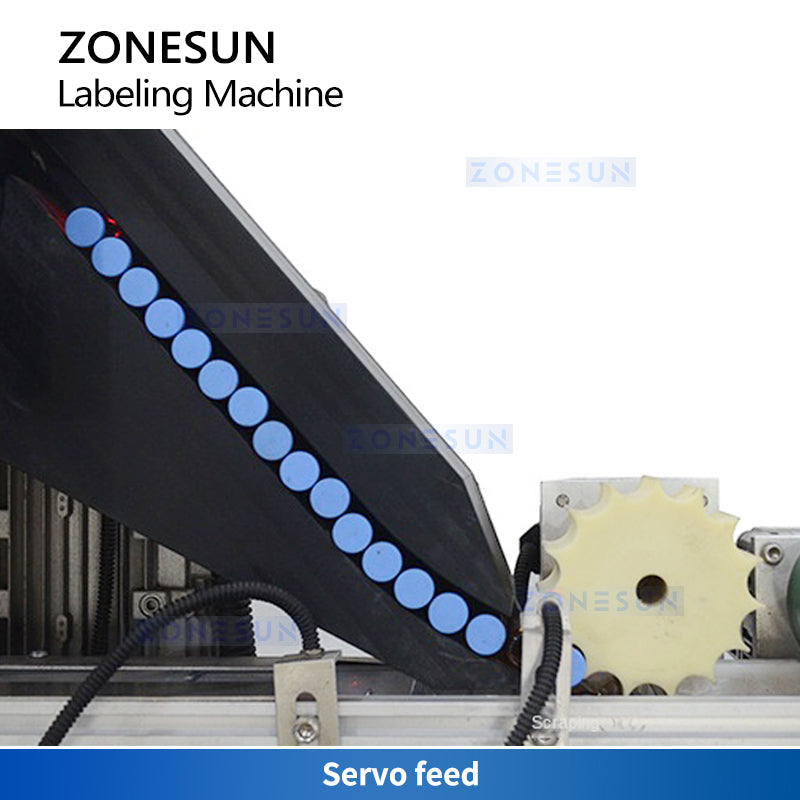

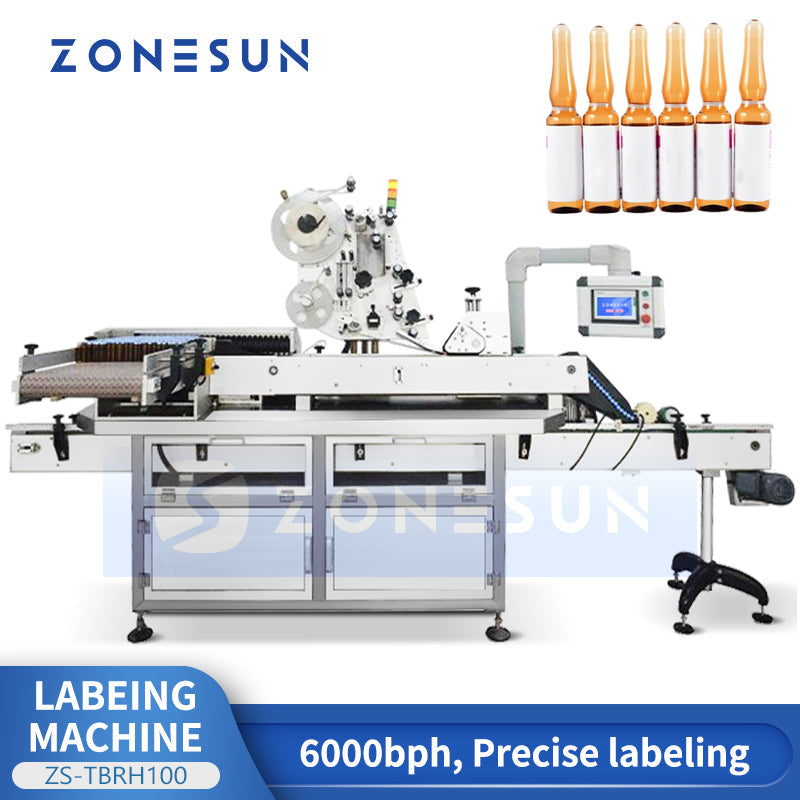

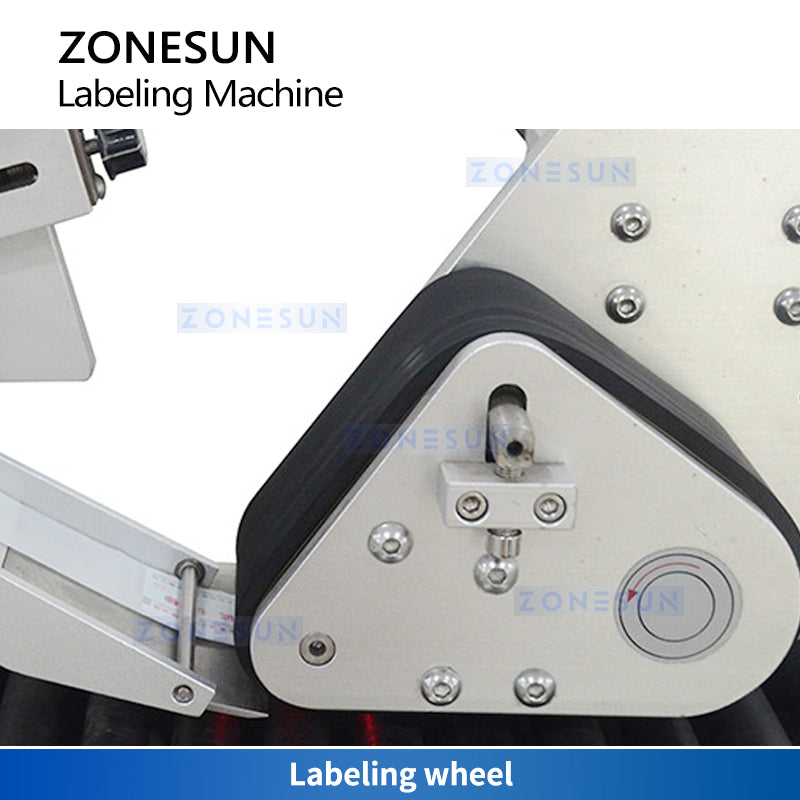

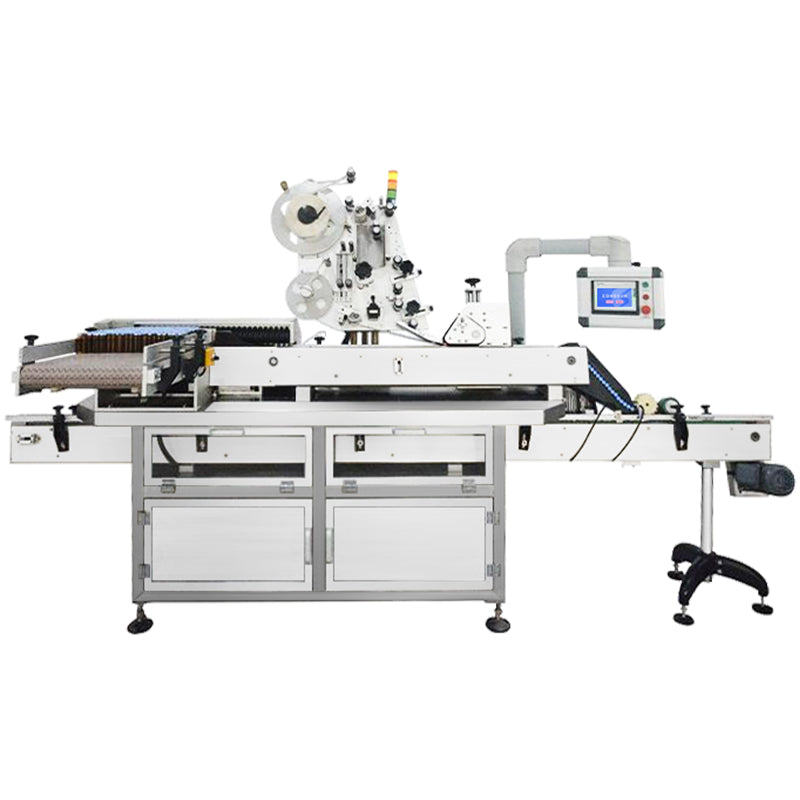

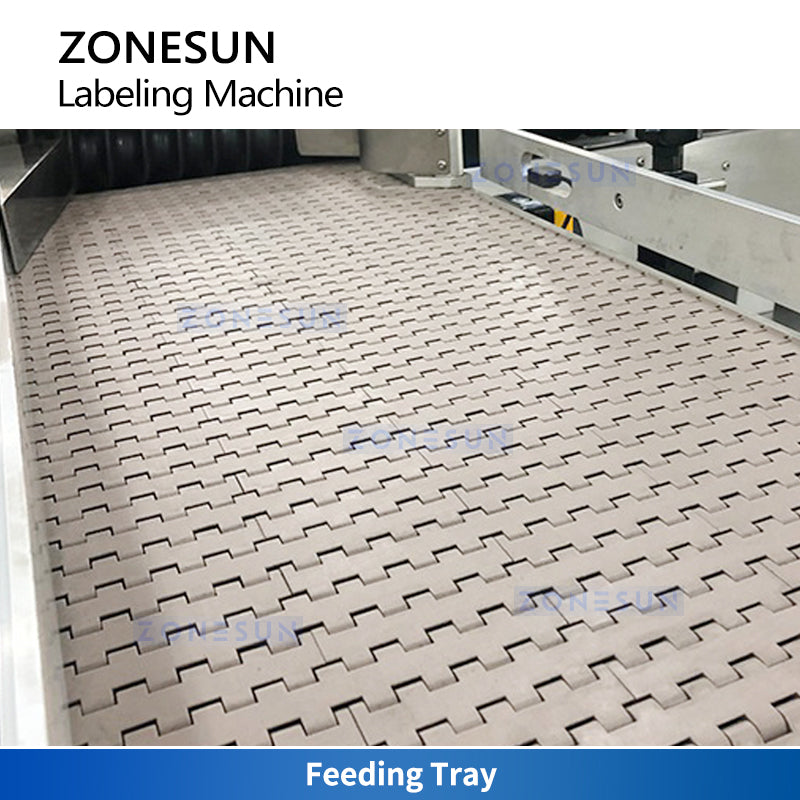

The Zonesun ZS‑TBRH100 Horizontal Tube Labeler with Traying System is an innovative labeling solution designed to handle upright bottles with care and precision. Its specialized infeed mechanism gently inverts containers for smooth transfer onto a horizontal roller conveyor, ensuring accurate label application. After labeling, a diverting system guides products onto a lower conveyor with trays, where a motor‑driven starwheel positions each item neatly for packing. Built for efficiency and consistent results, it streamlines labeling and tray‑loading in one integrated process.
| Model | ZS‑TBRH100 |
|---|---|
| Voltage Spec. | AC 220 V 50/60 Hz |
| Power Consumption | 1.5 kW |
| Labeling Speed | 0 – 100 bottles/min |
| Labeling Accuracy | ± 1 mm (excluding the error between the bottle and the label itself) |

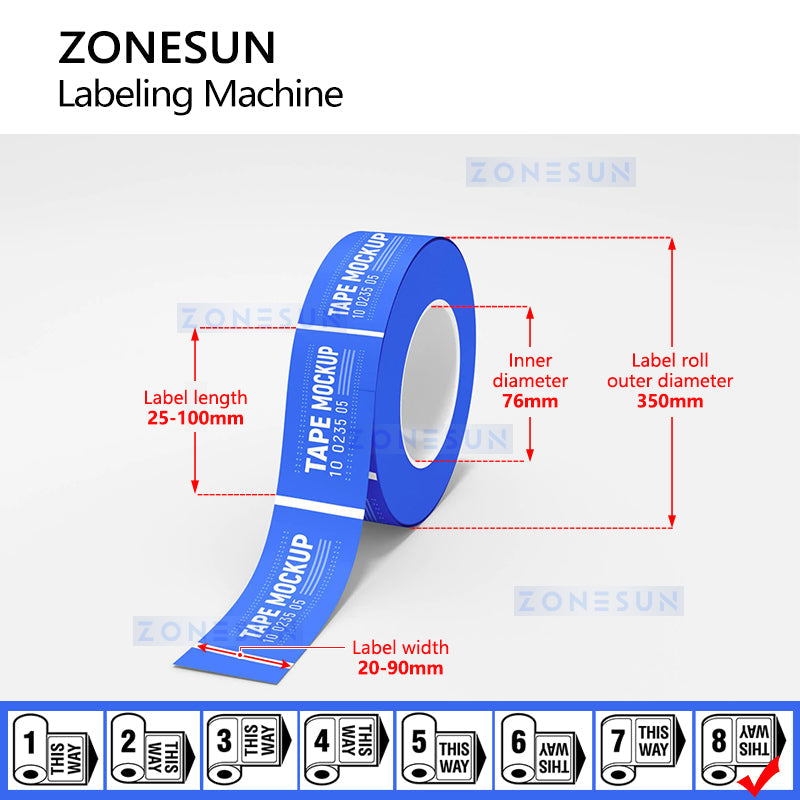

| Label Supply | Diameter 350 mm; inner diameter of paper roll 76 mm |
| Printer Speed | 0 – 400 times/min (synchronized with labeling) |
| Applicable Tags | Height 20 – 90 mm; length 25 – 100 mm |
| Applicable Containers | Length 25 – 120 mm; diameter 10 – 30 mm |
