ZONESUN ZS-FAL180A7 Paste Liquid Filling Capping Machine with Feeder
ZONESUN ZS-FAL180A7 Paste Liquid Filling Capping Machine with Feeder
Impossible de charger la disponibilité du service de retrait
Description

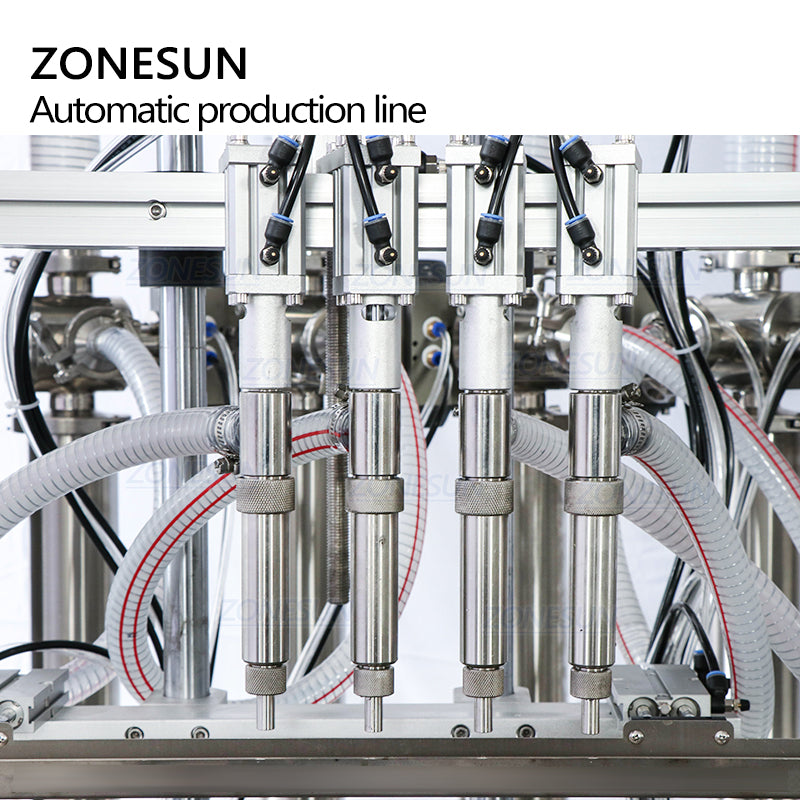

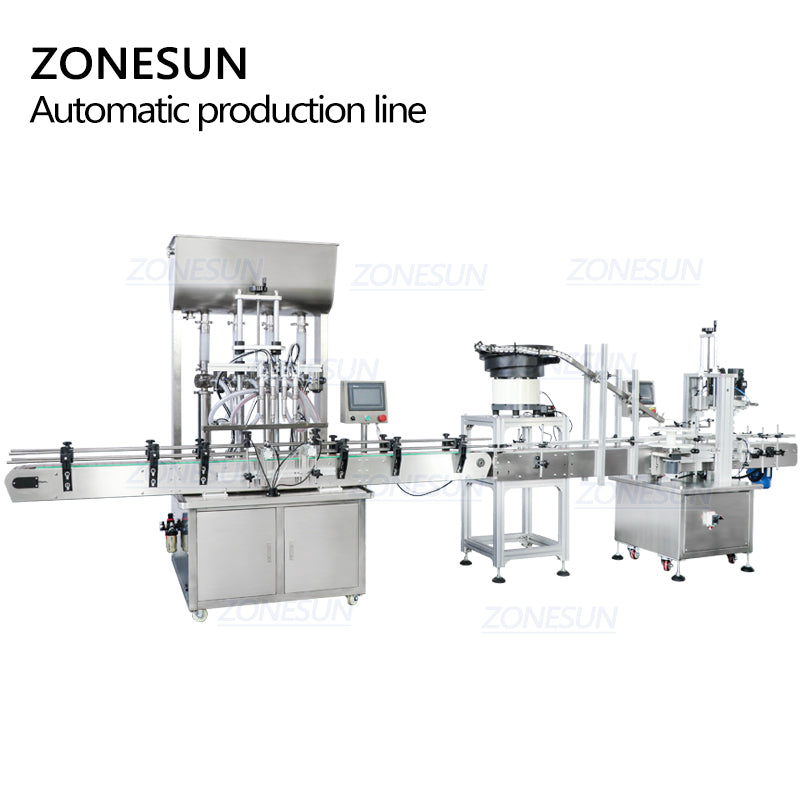

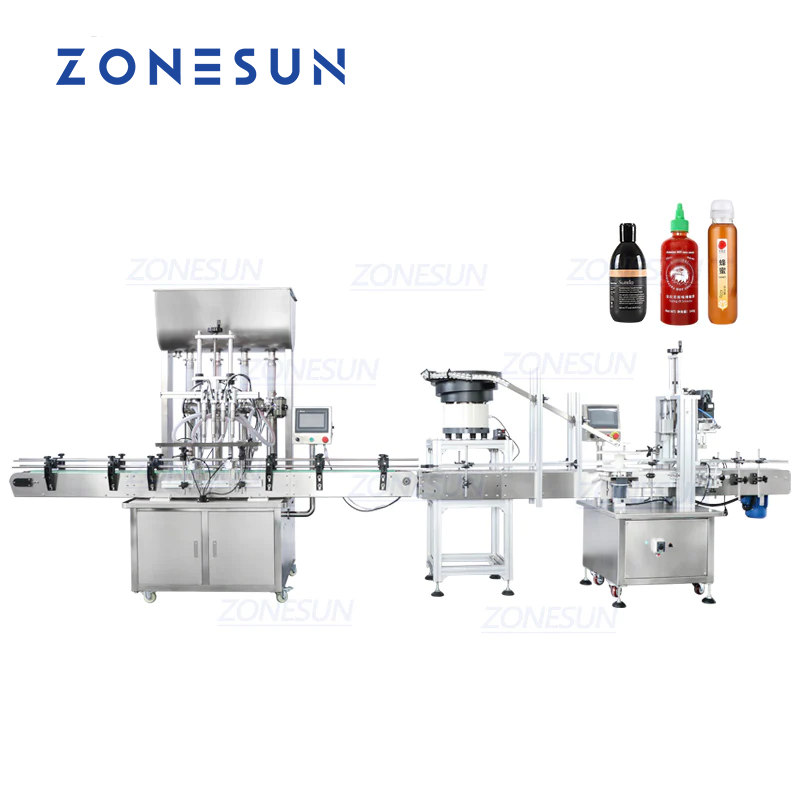

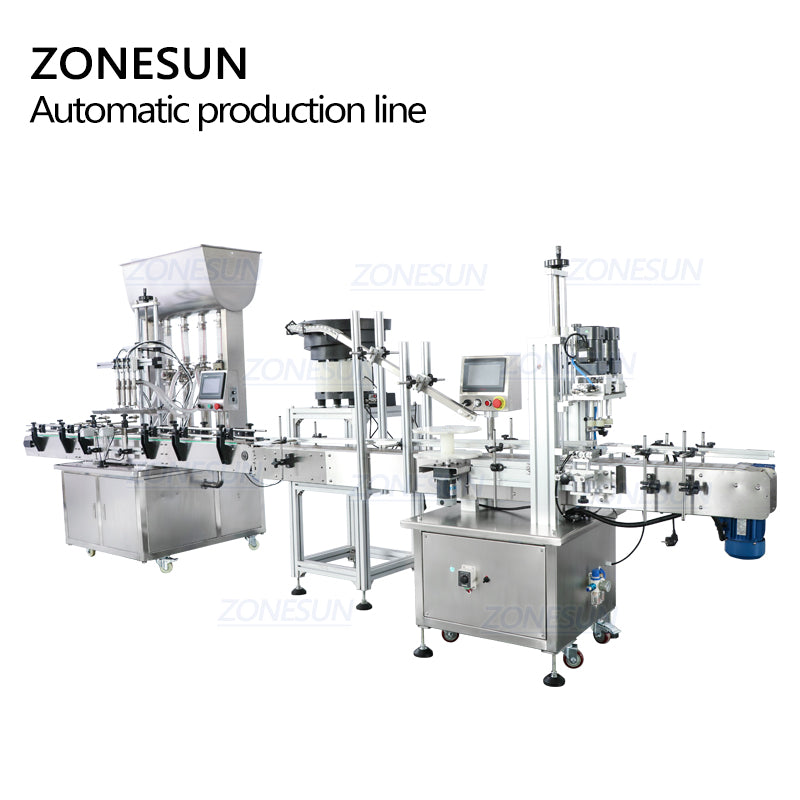

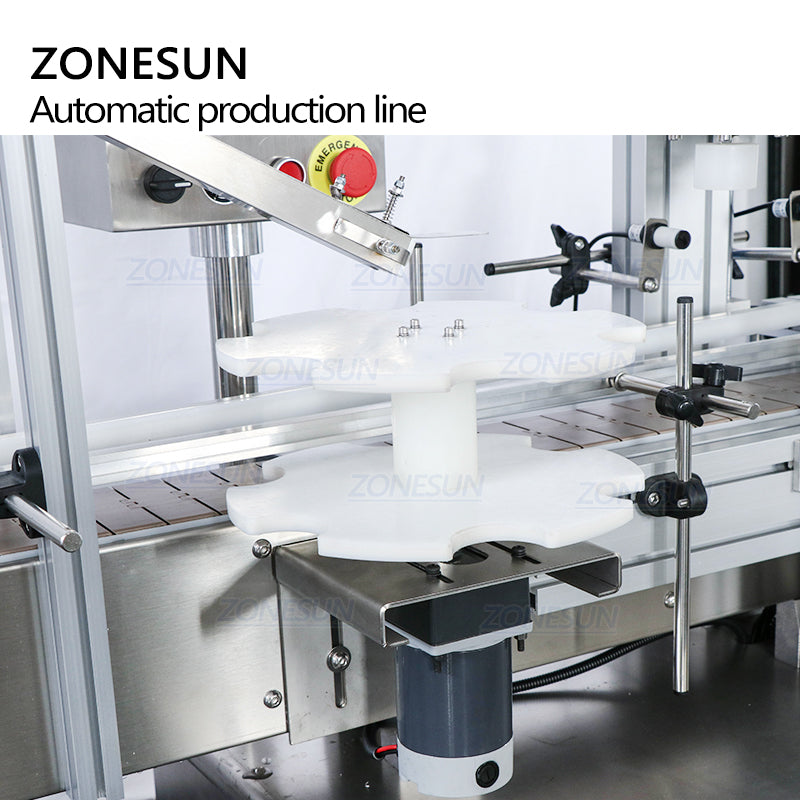

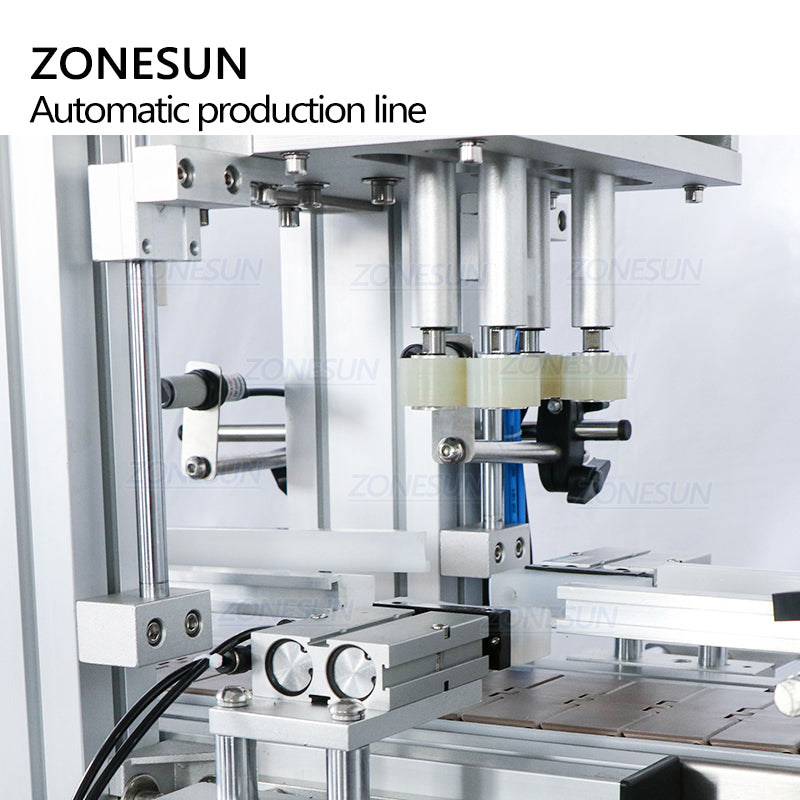

The ZONESUN ZS-FAL180A7 is a high-performance automatic filling and capping machine designed for viscous liquids and pastes. Equipped with pneumatic filling heads and a PLC control panel, it offers precise parameter settings and smooth operation. Its robust chain conveyor belt ensures stable transport of large-volume containers, while the electric eye sensor enables accurate bottle detection and intelligent control. The vibratory cap feeder arranges and delivers caps automatically, enhancing efficiency. Compatible with automatic labeling machines, this system supports fully automated production. Ideal for filling shampoo, cream, honey, beverages, and more, it suits a wide range of industries including cosmetics, pharmaceuticals, beverages, and daily chemicals.
Attention
These machines can be customized as needed. Please contact us if you need.
Parameter
| Item | Specification |
|---|---|
| Model | ZS-YT4T-4P |
| Voltage | 110/220V 50-60HZ 800W |
| Filling Range | 5-100ml / 10-300ml / 50-500ml / 100-1000ml / 500-3000ml / 1000-5000ml |
| Working Speed (base on liquid) | About 30-70 bottles/min |
| Filling Accuracy | ≤±1% |
| Conveyor Size | About 2500110mm (LW) |
| Size of filling nozzle | φ10mm |
| Size of air compressor connector | φ10mm |
| Machine size | About 19109801970mm |
| Package size | About 139312162130mm |
| Net weight/Gross weight | About 291kg / 335kg |
