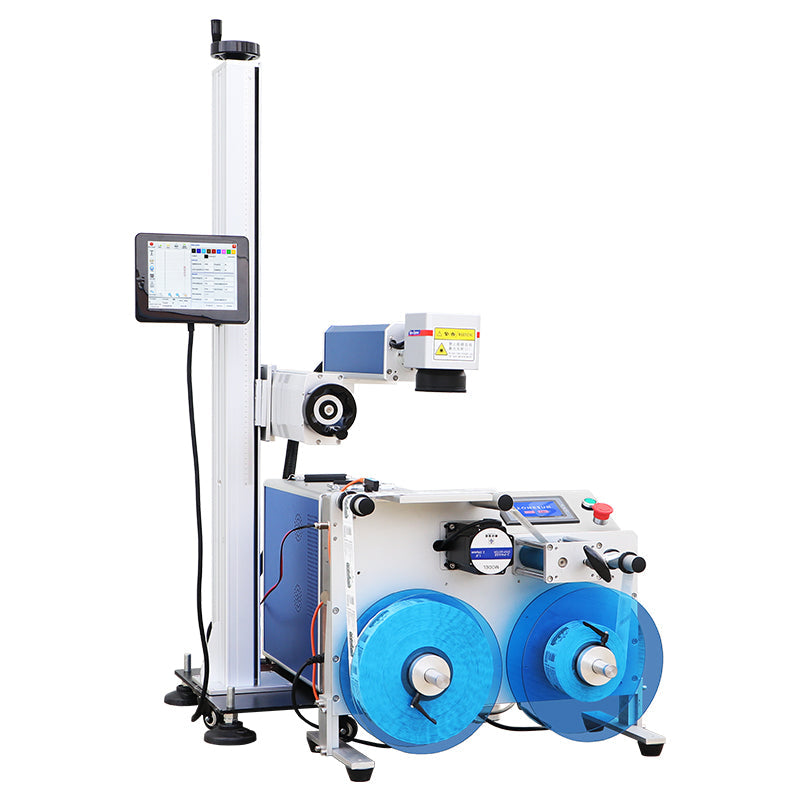

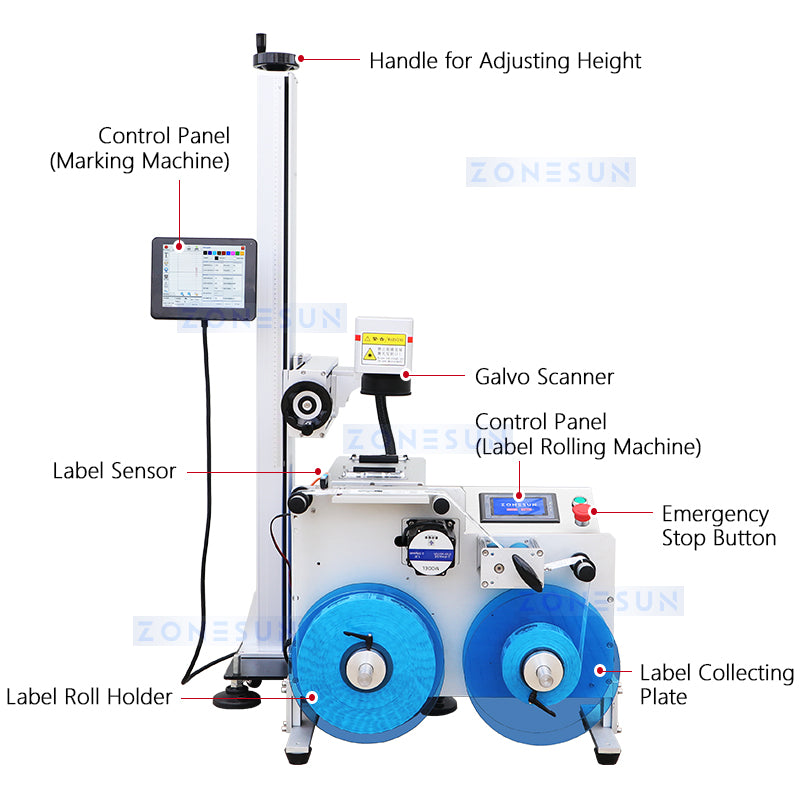

Zonesun ZS‑LMR1 Roll to Roll Label Rewinder with Laser Coding System

The Zonesun ZS‑LMR1 Roll to Roll Rewinder and Laser Coder combines high‑speed label rewinding with precision laser coding in a single, streamlined system. Designed for demanding, high‑volume production environments, it delivers crisp, permanent markings on a wide range of label materials while ensuring smooth, efficient roll handling. This integrated solution reduces manual work, minimizes errors, boosts productivity, and enhances product traceability.

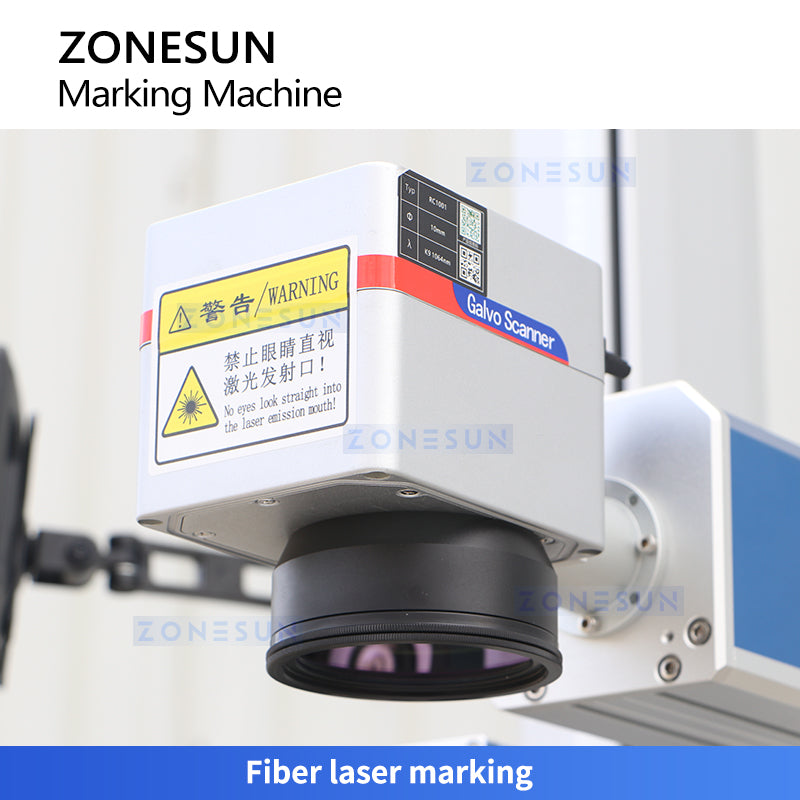

Machine Name	Fiber Laser Marking Machine
Voltage	220 V / 110 V  50‑60 Hz
Power Consumption	≤ 500 W
Laser Wavelength	1064 nm
Laser Output Power	20 W
Modulation Frequency	20 kHz – 180 kHz
Beam Quality	< 1.5
Marking Speed	5000 mm/s
Marking Depth	0.01 – 2 mm
Minimum Character Height	0.15 mm
Minimum Focus Spot	0.005 mm
Lifting Stroke of Laser	500 mm
Applicable Labels	Laminated Label
Graphics Formats	AI, BMP, PLT, DXF, DST
Marking Area	110 × 110 mm
Cooling Method	Air Cooling
Packaging Size	About 1310 × 640 × 660 mm
Gross Weight	About 111 kg

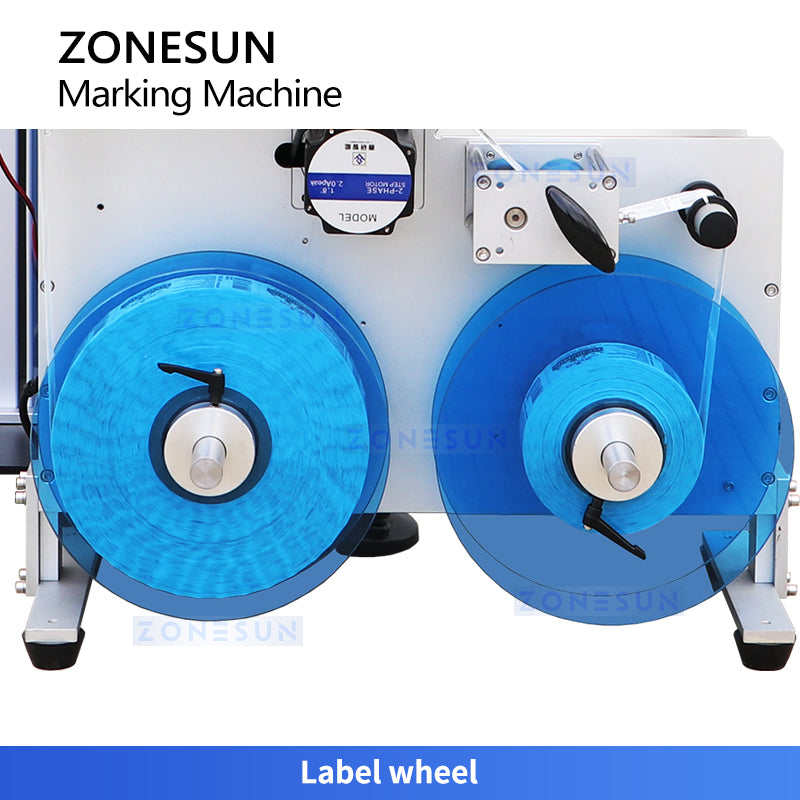

Machine Model	ZS‑RM2
Voltage	220 V / 110 V  50‑60 Hz
Power	400 W
Rolling Speed	0 – 20 m/min
Applicable Label Width	≤ 120 mm
Label Roll Inside Diameter	76 mm
Label Roll Outer Diameter	Max 250 mm
Rolling Direction	Positive direction
Machine Size	About 660 × 400 × 510 mm
Packaging Size	About 760 × 500 × 650 mm
Net Weight / Gross Weight	About 30 kg / 40 kg
