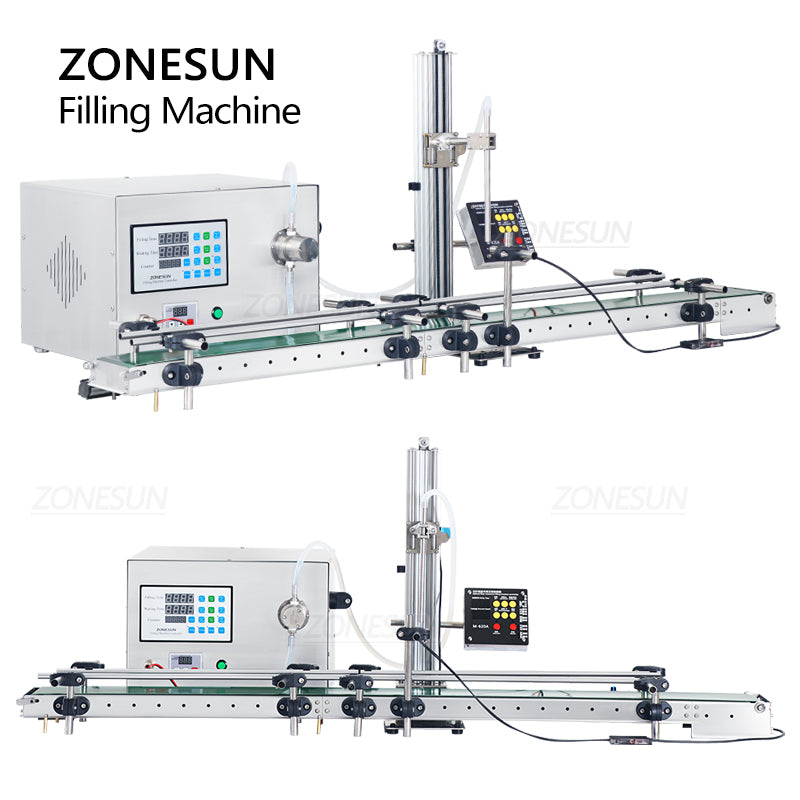

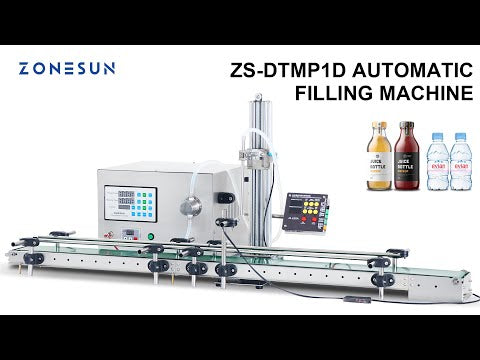

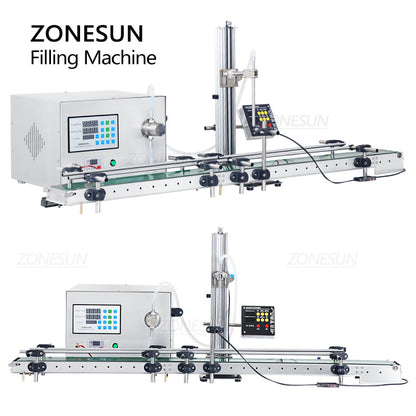

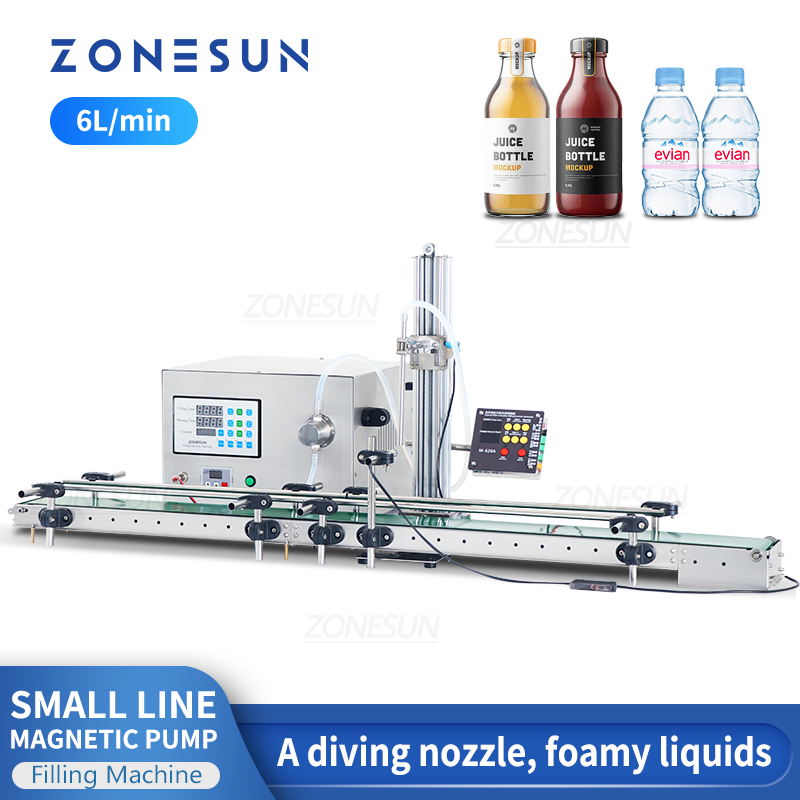

ZONESUN ZS-DTMP1D Magnetic Pump Liquid Filling Machine with Conveyor
ZONESUN ZS-DTMP1D Magnetic Pump Liquid Filling Machine with Conveyor
Impossible de charger la disponibilité du service de retrait
DESCRIPTION
The ZONESUN ZS-DTMP1D Single Diving Nozzle Magnetic Pump Liquid Filling Machine with Conveyor is a compact production line designed for precise filling of small-volume products. Equipped with a 316 stainless steel magnetic pump, it ensures high accuracy and is suitable for corrosive liquids such as insecticide solutions. Ideal for perfumes, essential oils, beverages, cosmetics, food, and daily chemical products, it offers stable performance and easy integration into manufacturing workflows.
PARAMETER
|
Model |
ZS-DTMP1D |
|
Voltage |
220V/110V 185W |
|
Pump |
316L Stainless Steel Magnetic Pump |
|
Filling Range |
10-600ml |
|
Max Flow Rate |
6L/min (based on water) |
|
Filling Speed |
About 8-15bottles/min (depend on 110ml water) |
|
Bottle Height |
40mm-210mm |
|
Bottle Body Diameter |
≤80mm |
|
Bottle Opening Diameter |
>15mm |
|
Nozzle Diameter (OD) |
10mm |
|
Conveyor Size |
1200mm*100mm(L*W) |
|
Conveyor Load |
6kg |
|
Machine Weight |
About 13.5kg |
|
Machine Size |
About 350*300*265mm |
PRODUCT DETAILS

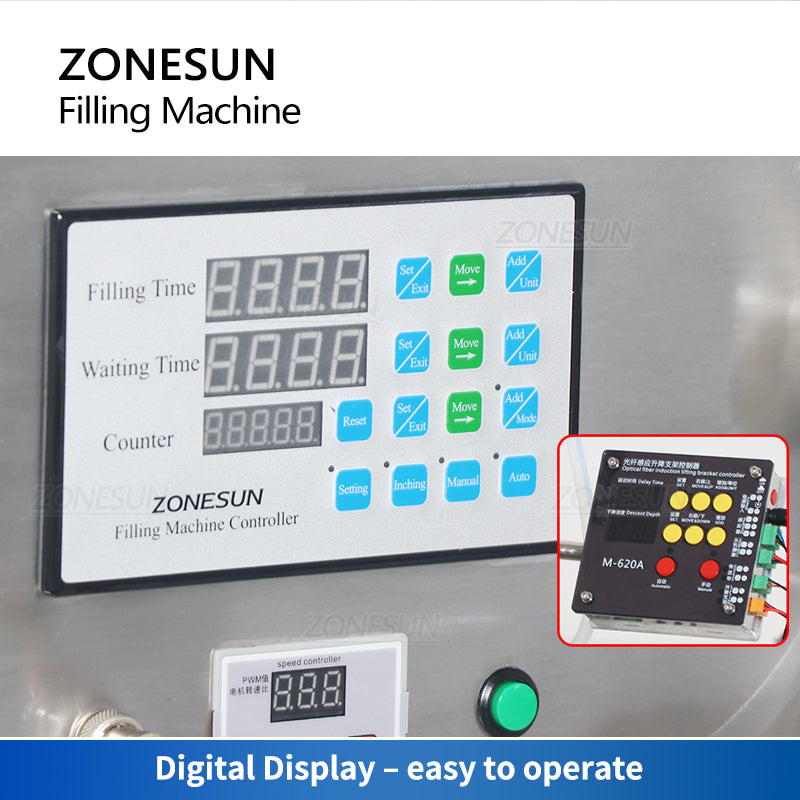

Digital display, easy to set the parameters and operate the machine.

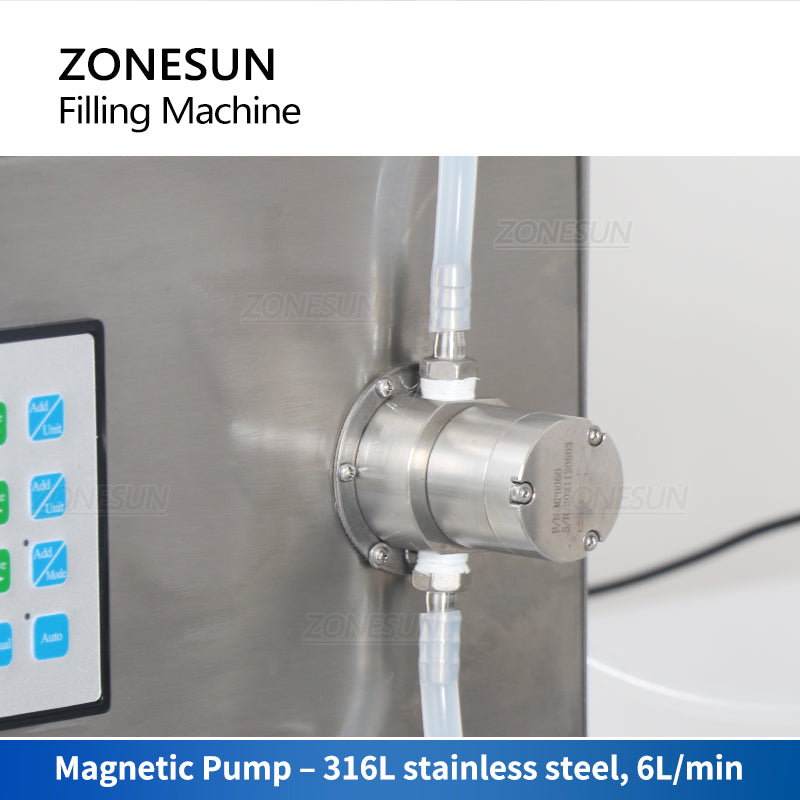

MAGNETIC PUMP
Made of 316L stainless steel, 2≤PH≤12, corrosive thin liquids, 6L/min

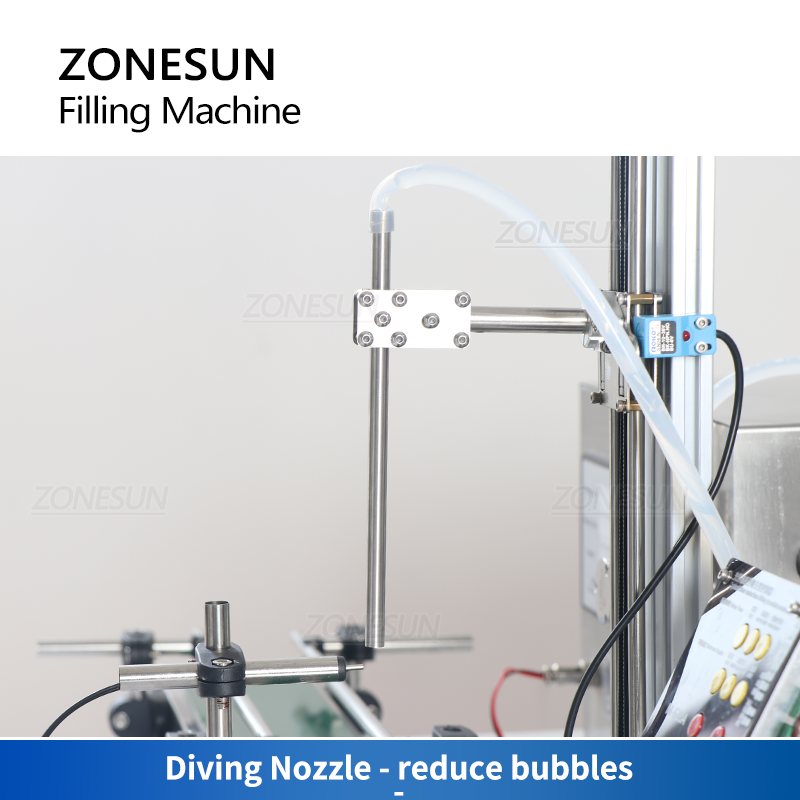

DIVING NOZZLE
This device helps reduce bubbles during filling liquids, which makes it suitable for foamy liquids.

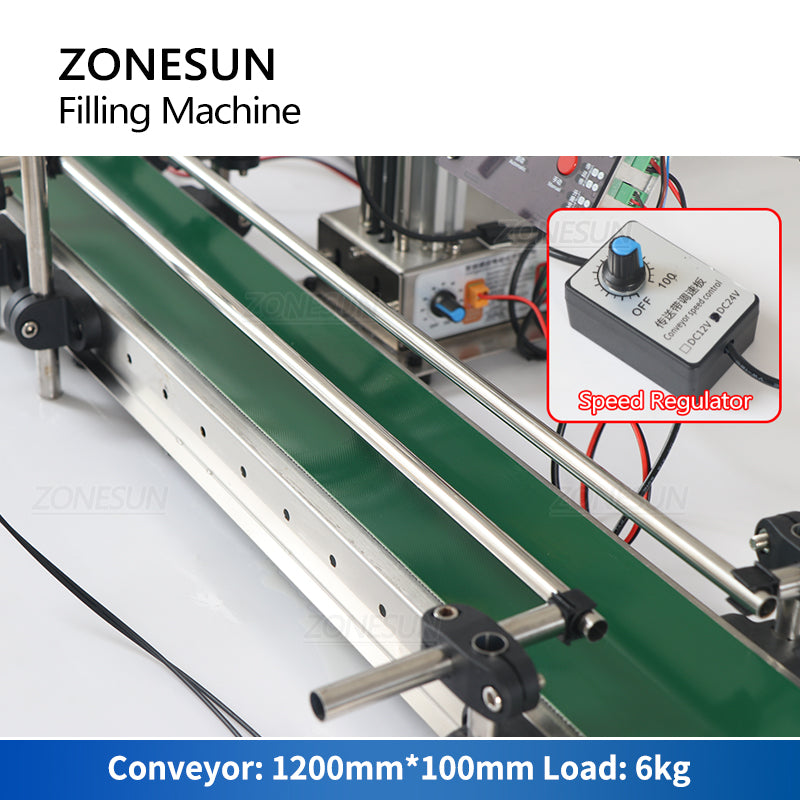

CONVEYOR
1200mm*100mm, Load: 6kg, Adjustable speed.
