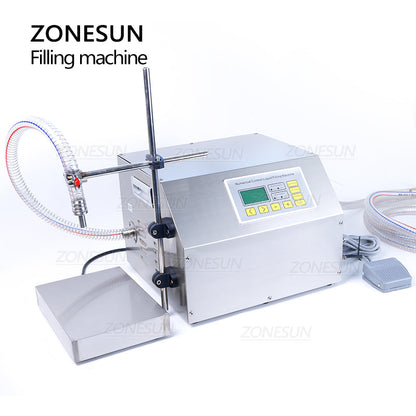

ZONESUN ZS-GP261W Semi-Automatic Oil Weighing Filling Machine
ZONESUN ZS-GP261W Semi-Automatic Oil Weighing Filling Machine
Couldn't load pickup availability
Description
The ZONESUN ZS-GP261W is a semi-automatic gear pump liquid filling machine designed for precise and efficient filling of oils such as edible oil, engine oil, and hydraulic oil. With a maximum flow rate of 18L/min and integrated weighing functionality, it ensures accurate dosing with minimal waste. Operators can easily set the desired filling weight via the control panel, making the machine user-friendly and highly productive. Widely used in catering, cosmetic, and chemical industries, it’s an ideal solution for medium to large-scale oil packaging operations.
Parameter
|
Machine Model |
ZS-GP261W |
|
Machine Power |
220V/110V 550W |
|
Machine Pump |
Gear Pump |
|
Max Flow Rate |
18L/min |
|
Filling Range |
150mL-18L |
|
Weighing Range |
150g-100kg |
|
Repetitive Error |
≤±10g |
|
Filling Nozzle Diameter |
Φ12mm&Φ19mm |
|
Hose Diameter |
19mm(ID)/25mm(OD) |
|
Hose Length |
3m(inlet)/1m(outlet) |
|
Max Suction Distance |
4m |
|
Suitable Liquid Temperature |
＜90℃ |
|
Memory Function without Electricity |
Available |
|
Weighing Device Size |
250mm*180mm*42mm |
|
Machine Weight |
14.5kg |
|
Machine Size |
350mm*343mm*250mm(L*W*H) |
|
Package Weight |
16kg |
|
Package Size |
500mm*410mm*320mm (machine) 400mm*370mm*200mm(weighing device) |
Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
