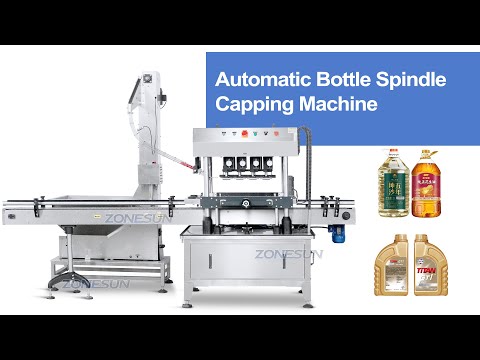

ZONESUN ZS-XG440B Automatic Screw-On Capping Machine for Milk Bottles Detergent Bottles
ZONESUN ZS-XG440B Automatic Screw-On Capping Machine for Milk Bottles Detergent Bottles
Couldn't load pickup availability
Description
Parameter
- Machine Model: ZS-XG440B
- Voltage: 220V/110V 50-60Hz
- Power: 2 kW
- Production Capacity: 3000-5000 BPH(depending on bottle & cap size)
- Suitable Bottle Diameter: 35-120 mm(Can be customized)
- Suitable Bottle Height: 60-200 mm (Can be customized)
- Machine Size: About 2000*900*1600 mm(Only Capper) About 3453*1393*2243 mm(Capper with cap elevator)
- Machine Weight: About 300 kg(Only Capper)
- Package Size: 2060*1100*1840 mm(Only Capper) 2340*890*1400 mm(Cap elevator)
- Package Weight: 600 kg(Only Capper)+219 kg(Cap elevator)
Control Panel
Upgraded touch screen control panel makes parameter settings more convenient, intuitive, and efficient.
Advanced Capping Structure
High-performance capping head design delivers an exceptional output of 3,000–5,000 BPH (bottles per hour). The number of capping heads can be fully customized to meet your specific production requirements.
Guiding Conveyor System
Designed for maximum precision, the integrated guiding conveyor safely transports and clamps bottles in place during the capping process, significantly enhancing capping accuracy and stability.
Optional Cap Elevator System
Boost your productivity with the automated cap elevator, engineered to continuously feed bottle caps in real time to maintain non-stop high-speed operation. Fully customizable to fit a wide range of cap sizes.
Heavy-Duty Chain Conveyor
Built for maximum durability and load capacity, this customizable chain conveyor features adjustable length and width to suit your line layout. Designed for seamless integration with filling and labeling equipment to build a fully automated production system.
