ZONESUN ZS-YPWM1 Mobile Robotic Pallet Wrapper Automatic Battery Stretch Wrapping Machine
ZONESUN ZS-YPWM1 Mobile Robotic Pallet Wrapper Automatic Battery Stretch Wrapping Machine
Couldn't load pickup availability
Description

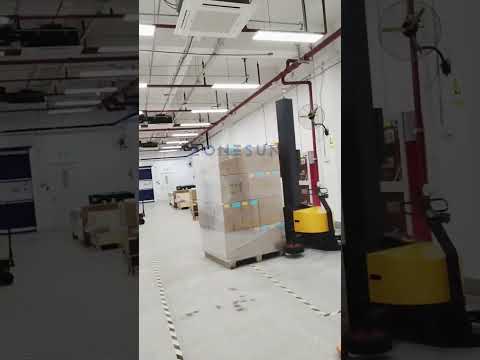

The ZONESUN ZS-YPWM1 is a mobile robotic stretch wrapper designed to streamline pallet wrapping operations. Ideal for securing goods for transport, it offers consistent wrapping performance and reduces the risk of damage during shipping. Its autonomous mobility and long battery life make it a flexible solution for warehouses, logistics hubs, and manufacturing environments. With smooth operation and reliable film tension, this robot enhances packaging efficiency and ensures stable load containment.
| Item | Specification |
|---|---|
| Model | ZS-YPWM1 |
| Voltage | AC 100–240V, 1 Phase, 50/60Hz |
| Max Packaging Height | 2.4 m (Optional: 2.8 m or 3 m) |
| Moving Speed | 90 m/min |
| Film Roll Compatibility | Width ≤ 500 mm, Inner Ø = 76 mm, Outer Ø ≤ 250 mm |
| Pallet Size Range | Min: L600 × W600 mm, Max: Unlimited |
| Machine Weight | 450 kg |
| Package Dimensions | 166 × 122 × 291 cm |
CONTROL PANEL
Adopts a PLC control panel, allowing parameters to be easily set and modified for flexible operation and precise system management.
FILM STENT
Reliable film conveying system ensures PE film is evenly and smoothly distributed during wrapping, guaranteeing stable packaging quality.
INDUCTION GUIDE WHEEL
Height can be adjusted according to packaging needs, facilitating flexible machine movement and stable operation.
INTERNAL BATTERY
Provides stable power supply for the mobile wrapping machine, enabling cordless operation and ensuring continuous performance in various working environments.
STEERING ARM
Controls the movement direction of the mobile wrapping machine, enabling flexible steering and safe maneuvering during operation.
