Zonesun ZS-AFC42 Automatic Dual-Head Perfume Filling & Capping Machine Rotary Star Wheel Bottling Monoblock for Spray Bottles

Zonesun ZS-AFC42 Automatic Dual-Head Perfume Filling & Capping Machine Rotary Star Wheel Bottling Monoblock for Spray Bottles

通常価格 $11,499.00 USD
通常価格 $0.00 USD セール価格 $11,499.00 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。
Type

Description

The Zonesun ZS‑AFC42 Perfume Filling Capping Monoblock is a high‑speed, precision solution for semi‑automated perfume packaging. Its star wheel rotary design with dual‑head filling achieves an output of up to 2100 bottles per hour, while the peristaltic pump ensures accurate, consistent fills. The cam‑driven press head at the sealing station automatically secures spray heads onto bottles as they arrive, ensuring a tight, reliable seal. With manual cap placement after filling, this robust system offers a streamlined process that increases throughput and enhances production efficiency.

Need customized star wheels or custom filling ranges for non-standard bottles? Contact our engineering team for personalized solutions!



Machine Model ZS-AFC42
Voltage 110 / 220 V   50 – 60 Hz   5 A
Filling Accuracy ± 1 %
Filling Range 30 ml (customizable)
Filling Pump Peristaltic Pump
Filling Heads Qty 2
Working Capacity 35 BPM
Machine Size About 1800 × 1310 × 780 mm
Machine Weight About 400 kg
Package Size About 1820 × 850 × 1470 mm (L×W×H)
Package Weight About 436 kg


Zonesun ZS-AFC42 Perfume Filling Capping MonoblockZonesun ZS-AFC42 Perfume Filling Capping Monoblock Application

Applications

The Zonesun ZS-AFC42 is an industrial-grade packaging monoblock engineered for liquid filling and atomizer spray head pressing. It is widely applied across the cosmetics, fragrance, personal care, and pharmaceutical packaging industries.

Suitable Products:

  •  Fragrances & Perfumes: Colognes, perfume mists, body sprays, fragrance oils, and eau de toilette (EDT/EDP).
  •  Cosmetics & Personal Care: Facial toners, setting sprays, hair mist sprays, and body mists.
  •  Pharmaceuticals & Health: Liquid antiseptics, alcohol spray solutions, oral sprays, and topical liquid remedies.

Bottle & Closure Compatibility:

  •  Container Types: Glass or rigid plastic bottles in round, square, or customized shapes (standard 30ml range, customizable for other sizes).
  • Closure Types: Crimp-top or press-on perfume spray pumps, mist nozzles, and spray atomizers.
Zonesun ZS-AFC42 Perfume Filling Capping Monoblock ParameterZonesun ZS-AFC42 Perfume Filling Capping Monoblock StructureZonesun ZS-AFC42 Perfume Filling Capping Monoblock Operation Panel

OPERATION PANEL

  • Simplified Machine Operation: Engineered with a premium XINJE industrial touch screen that drastically flattens the learning curve and simplifies routine machine debugging.
  • Highly Intuitive Parameter Setup: All critical packaging metrics and production data are completely digitalized, making real-time parameter setting and adjustment more intuitive than ever.
Zonesun ZS-AFC42 Perfume Filling Capping Monoblock Star Wheel

STARWHEEL

  • Fully Customizable Design: The starwheel can be fully customized based on your specific bottle shapes and sizes, ensuring an immaculate physical fit for round, square, or unique container contours.
  • Elevated Working Accuracy: Engineered with precision-machined indexing pockets to guide containers flawlessly through processing zones, eliminating shifting and improving overall working accuracy.
Zonesun ZS-AFC42 Perfume Filling Capping Monoblock Filling Head

FILLING STRUCTURE

  • Adjustable Working Height: The vertical support rod features a smooth, flexible lock mechanism, allowing operators to adjust the working height effortlessly based on specific bottle sizes and container heights.
  • Scalable Multi-Head Configuration: Outfitted with premium stainless steel filling needles, with flexible options where multi filling nozzles are available to match your specific production capacity and target throughput.
Zonesun ZS-AFC42 Perfume Filling Capping Monoblock Filling Pump

FILLING PUMP

  • Immaculate Fluid Isolation: The advanced peristaltic pump ensures that the filling liquid only passes through the dedicated hose, never touching the pump hardware. Changing materials is as simple as replacing the tube, completely eliminating cross-contamination.
  • Elevated Production Quality & Accuracy: Driven by precision rollers to deliver smooth, low-pulsation fluid transfer, drastically improving dosing accuracy and batch-to-batch product consistency.
  • Ergonomic Quick-Change Setup: Specially engineered to fit 1.6mm wall thickness high-elasticity hoses, offering a tool-free maintenance experience that simplifies your daily factory workflows.

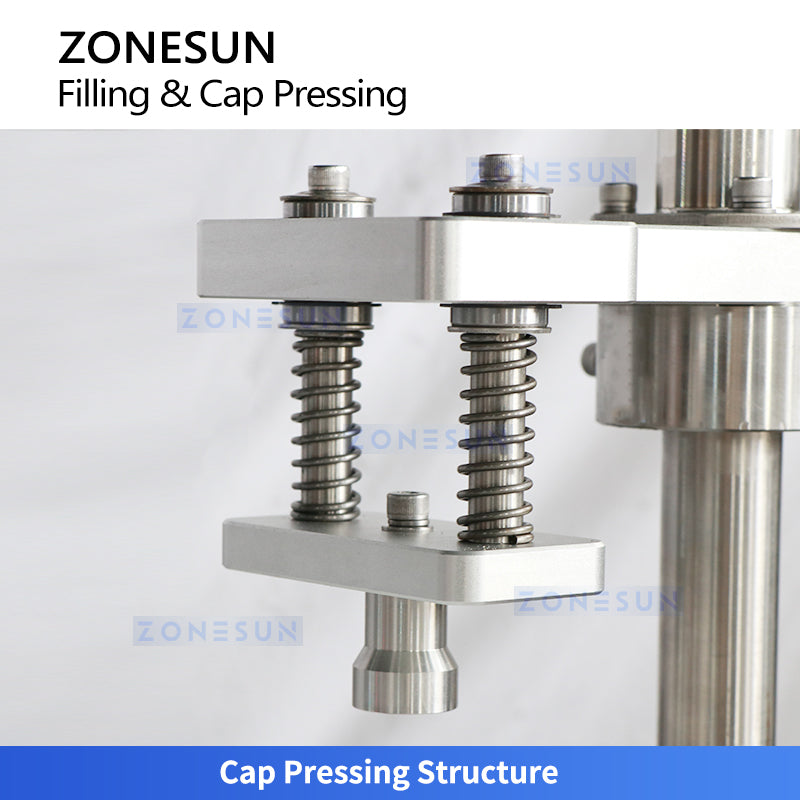

Zonesun ZS-AFC42 Perfume Filling Capping Monoblock Cap Pressing Mechanism

CAP PRESSING

  • Engineered for Snap/Press Caps: Specifically designed to master pressing type caps (such as snap-ons and push-downs), delivering uniform downward stroke pressure for a leak-proof finish.
  • Customizable Component Nests: The press head tool can be fully customized based on your unique cap sizes and geometric profiles, ensuring a perfect physical fit.
Zonesun ZS-AFC42 Perfume Filling Capping Monoblock Conveyor

CONVEYOR

  • Exceptional Weight Capacity: Engineered with high-strength, anti-wear industrial chain plates to offer a larger weight capacity, ensuring absolute stability under continuous high-volume production.
  • Fully Customizable Layout: Both the width and length of the conveyor system are fully customizable to fit your specific factory floor layout, bottle dimensions, and unique workflow.
  • Smooth Material Alignment: Outfitted with adjustable parallel guide rails to protect containers from surface scratching or tipping, delivering a seamless material flow between stations.
Zonesun ZS-AFC42 Perfume Filling Capping MonoblockZonesun ZS-AFC42 Perfume Filling Capping Monoblock
