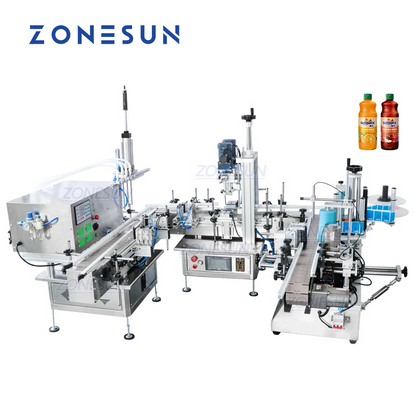

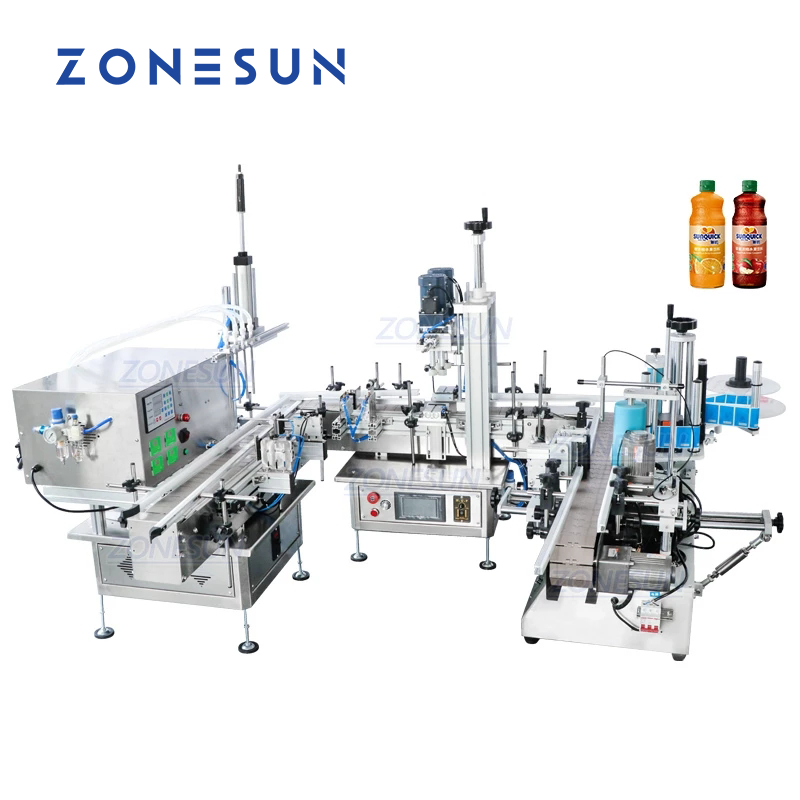

ZONESUN ZS-FAL180C7 U-Shape Liquid Filling Capping Labeling Machine
ZONESUN ZS-FAL180C7 U-Shape Liquid Filling Capping Labeling Machine
受取状況を読み込めませんでした
Description

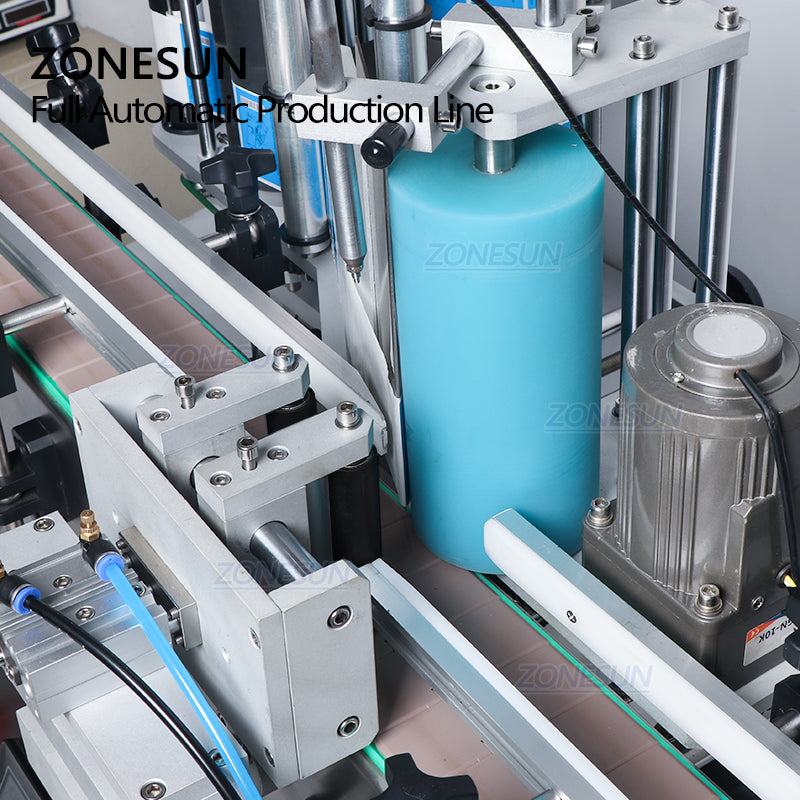

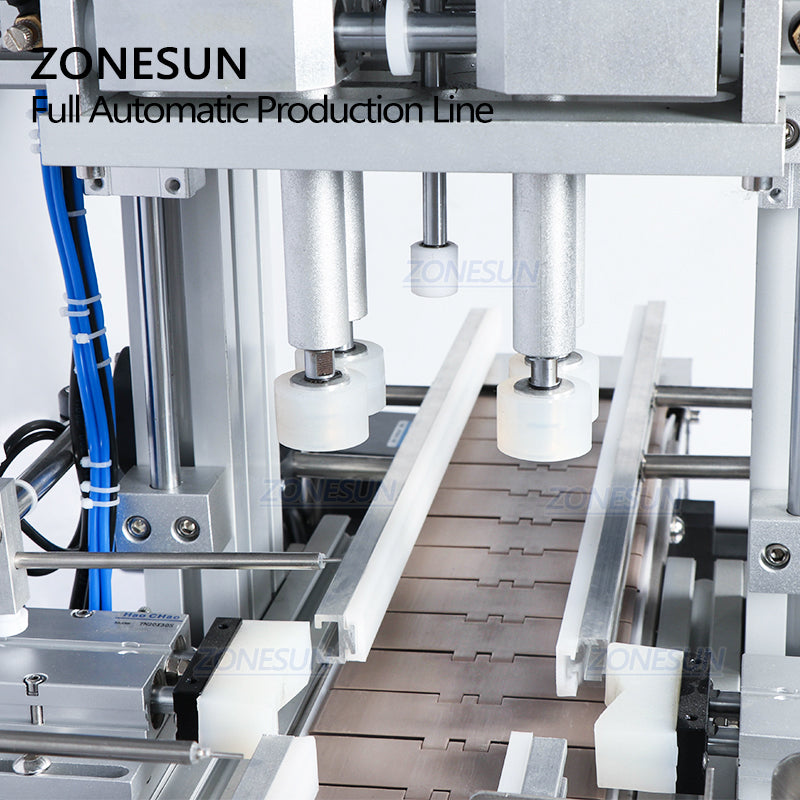

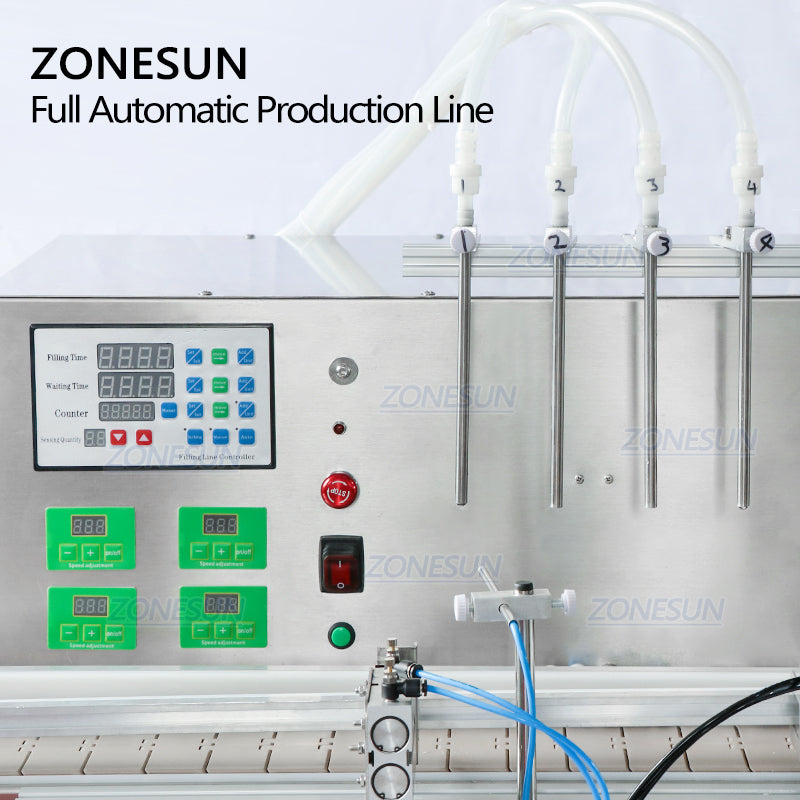

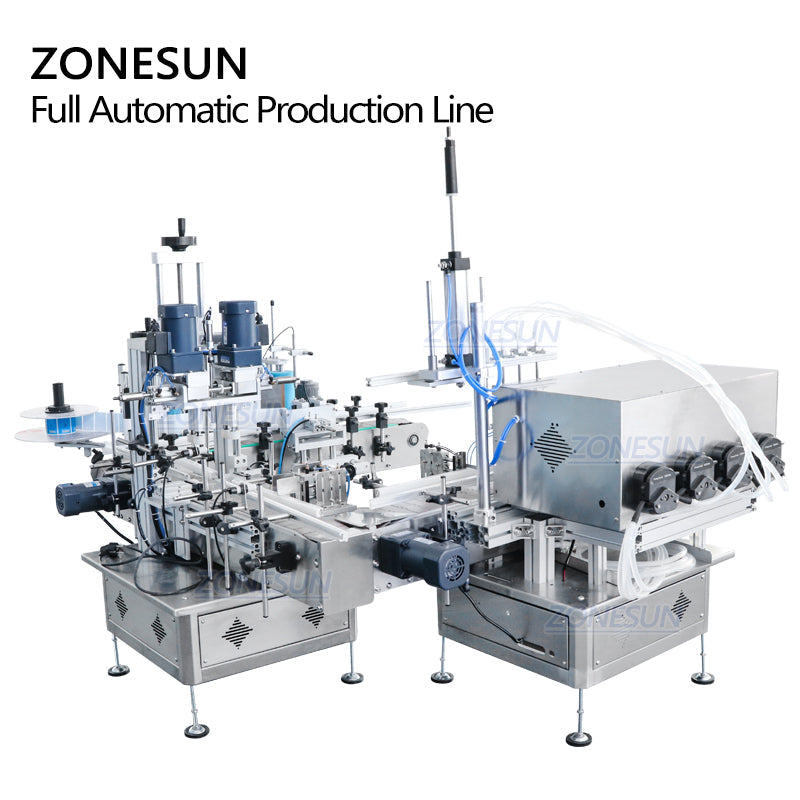

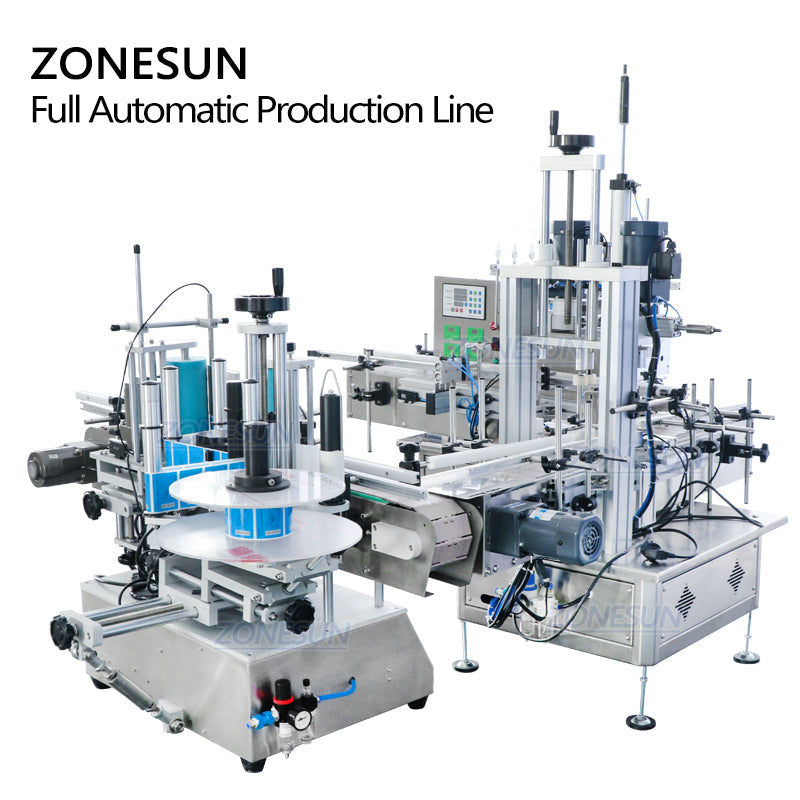

The ZONESUN ZS-FAL180C7 is a compact U-shaped automatic production line integrating liquid filling, capping, and labeling functions. Its space-saving design is ideal for small workshops and limited factory layouts. Equipped with four peristaltic pumps and diving nozzles, it ensures hygienic and accurate filling—even for foamy liquids like milk, juice, essential oils, and ink. Each nozzle’s speed is independently adjustable for flexible operation. The capping unit accommodates various cap shapes, while the labeling system uses precise positioning for single or double-sided labeling on round bottles. Compatible with bottle unscramblers and sorting machines, it supports fully automated, labor-free production. Widely used in cosmetics, pharmaceuticals, beverages, and catering industries.
Attention
This machine can be customized as needed. Please contact us if you need.
Parameter
| Item | Specification |
|---|---|
| Machine model | ZS-DTTP4D |
| Power supply | AC110V/220V 50Hz~60Hz 60W (Each Pump) |
| Filling range | 5ml–2500ml |
| Maximum flow | 2500ml/min for each nozzle (based on water) |
| Filling nozzles | 4 (we can customize the nozzles based on your demands) |
| Working speed | 30–50 bottles/min (based on bottles and liquids) |
| Air pressure | 0.3–0.4MPa |
| Filling accuracy | ≤±1% (for water) |
| Diameter of filling nozzles | 6/8mm |
| Delay range | 0.01–999.9s |
| Belt length | 1.0m |
| Size of air compressor connector | OD8mm |
| Package size | About 1150770840mm |
| Package weight | About 110kg |
