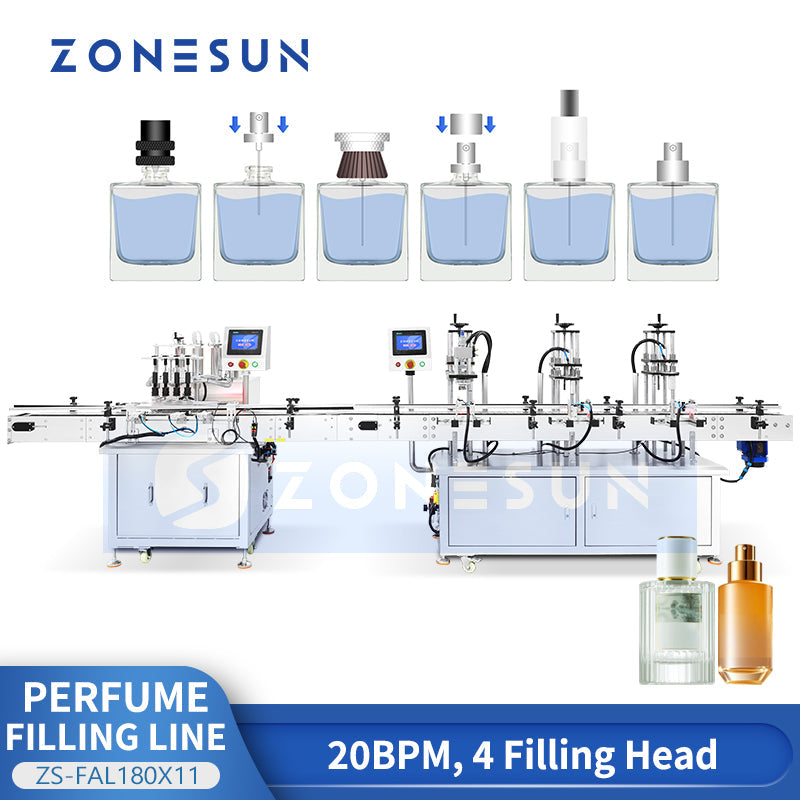

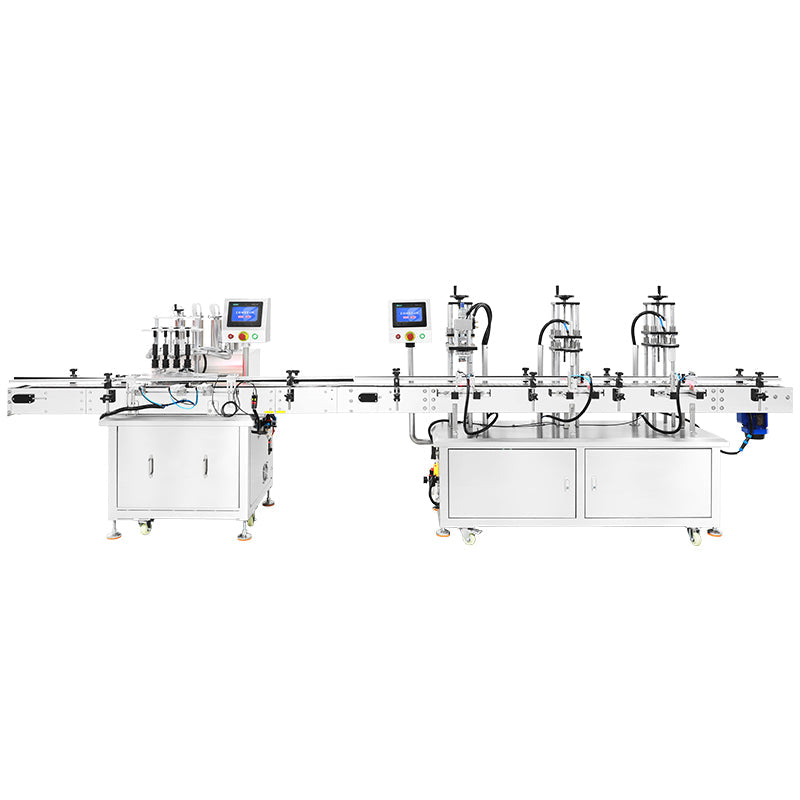

ZONESUN ZS-FAL180X11 Automatic Perfume Bottle Filling & Crimping Production Line

ZONESUN ZS-FAL180X11 Automatic Perfume Bottle Filling & Crimping Production Line

通常価格 $19,999.00 USD
通常価格 $0.00 USD セール価格 $19,999.00 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。
Voltage

Description

The ZONESUN Perfume Bottle Filling and Crimping Production Line is a fully automatic system designed for precise filling and tight sealing of perfume bottles. It integrates filling, crimping, and optional capping or labeling processes, ensuring efficiency and consistency. Built with durable stainless steel and vacuum pump technology, it is widely used in cosmetic, fragrance, and personal care industries. Ideal for perfume factories aiming for high-end, leak-free packaging solutions.


Parameter

Machine Model: ZS-VTZL4A

Parameter Detail
Machine Model ZS-VTZL4A
Filling Head 4 Head
Air Pressure 0.5–0.8 MPa
Liquid Level Accuracy ±1 mm
Viscosity Range Max applicable viscosity: 20 Cps (static viscosity)
Working Speed 20–40 Bottles/Minute
Bottle Height ≤250 mm
Bottle Opening Size ≤φ8 mm – φ28 mm
Adjustable Liquid Level (from mouth) 15–50 mm
Pumping Rate 5.5 L/Min
Machine Size About 2020 × 800 × 1410 mm
Package Size About 1330 × 2105 × 1670 mm
Package Weight About 335 kg

Machine Model: ZS-YG11U

Parameter Detail
Machine Model ZS-YG11U
Voltage 220V/110V 50–60Hz
Power 1.5 kW
Capping Speed About 20 bottles/min (Depending on the bottle and cap size)
Suitable Bottle Height 50–200 mm
Bottle Cap Diameter 15–22 mm
Bottle Mouth Diameter 14–20 mm
Suitable Bottle Diameter 40–110 mm
Machine Size About 2050 × 690 × 1590 mm
Weight About 345 kg





Applications

1. Primary Industries:

  • Perfume & Fragrance Manufacturing
  • Luxury Cosmetics & Skincare
  • Personal Care & Beauty Brands
  • Essential Oils & Aromatherapy Production
  • Contract Packaging & Laboratory Pilot Plants

2. Suitable Containers:

  • Glass perfume bottles of varying shapes and heights (up to 250 mm)
  • Crimp-neck spray bottles and atomizer containers
  • Cosmetic serum bottles and essential oil dropper bottles equipped with standard pump heads or collar caps

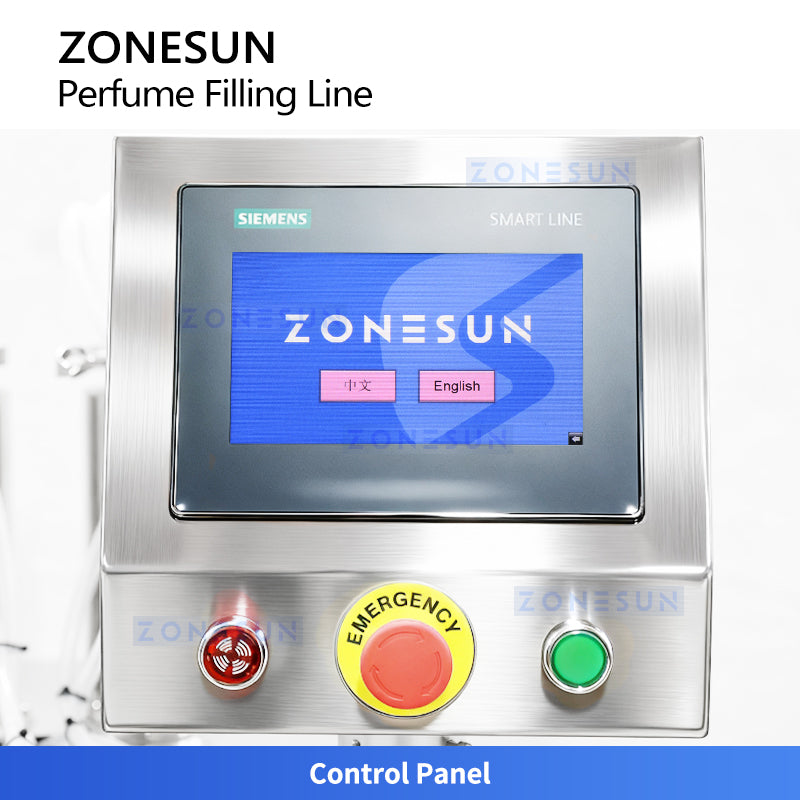

CONTROL PANEL

  • Integrated Operations: Seamlessly coordinates liquid filling, capping, and automatic bottle transfer.
  • Real-Time Monitoring: Precise parameter adjustment and live status tracking via an intuitive touchscreen interface.
  • Enhanced Safety: Built-in emergency stop functionality to ensure maximum operational safety.

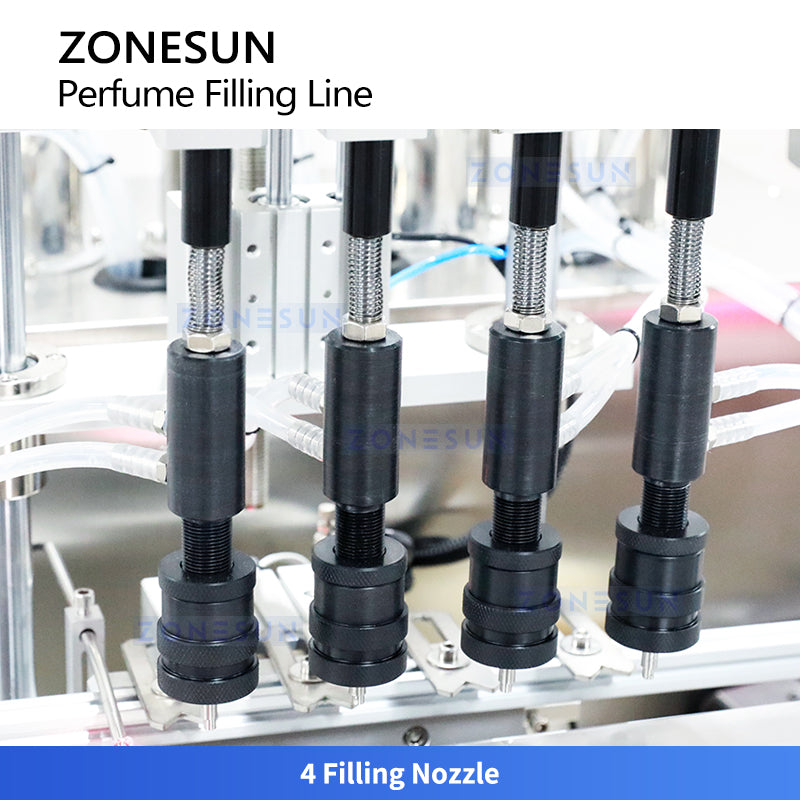

4 FILLING NOZZLES

  • High Precision & Consistency: Delivers precise, synchronized liquid dosing to maintain uniform volume across every bottle.
  • Pneumatic Performance: Powered by pneumatic filling nozzles for smooth, reliable, and continuous operation.
  • Automated Efficiency: Streamlines the perfume bottling process, significantly raising productivity for liquid packaging lines.

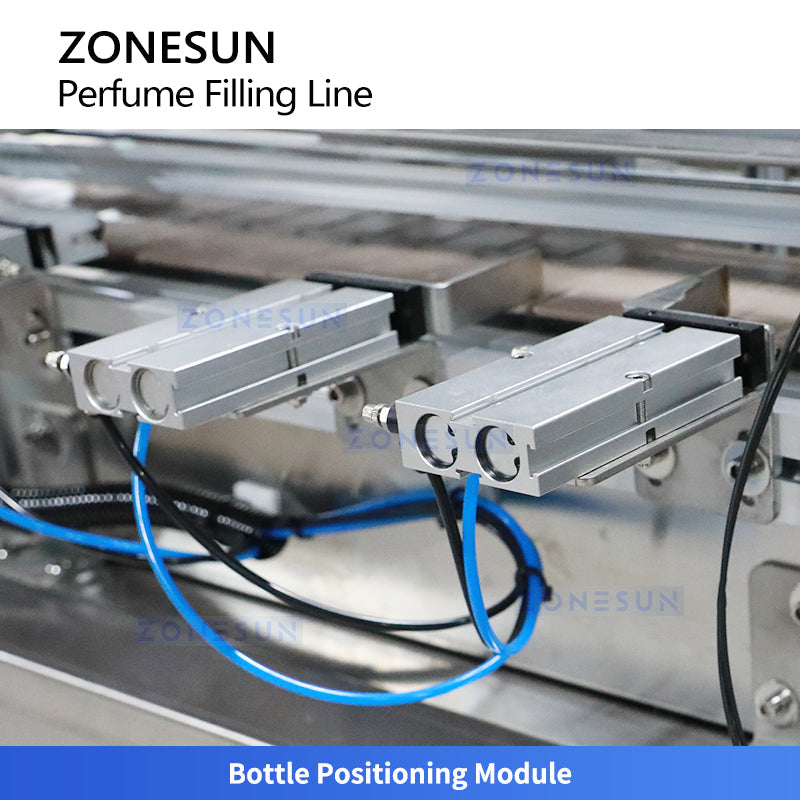

BOTTLE POSITIONING

  • Accurate Alignment: Synchronized actuator control aligns each bottle perfectly for precise filling and capping.
  • Pneumatic Clamping: Securely stabilizes bottles during operation to eliminate displacement and liquid spillage.
  • Consistent Production: Enhances overall line accuracy and operational stability for high-speed automated packaging lines.

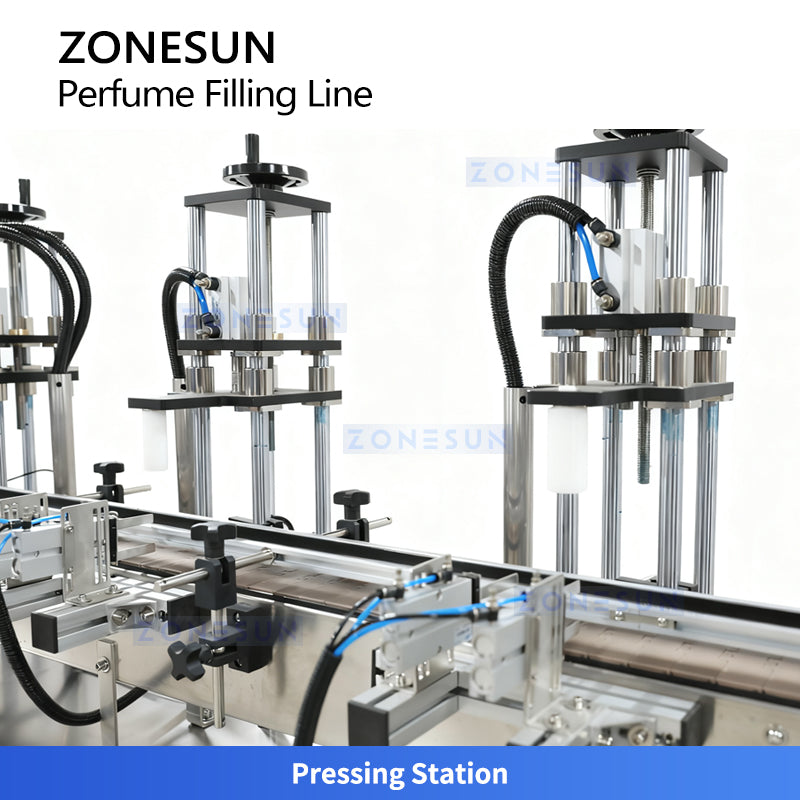

PRESSING STATION

  • Airtight Sealing: Delivers controlled downward force to firmly secure perfume pump heads and collar caps onto bottles.
  • Vertical Precision: High-precision alignment eliminates tilt and damage to pump components during pressing.
  • Leak-Proof Protection: Ensures consistent, reliable seals to protect perfume quality and prevent leakage during transport.

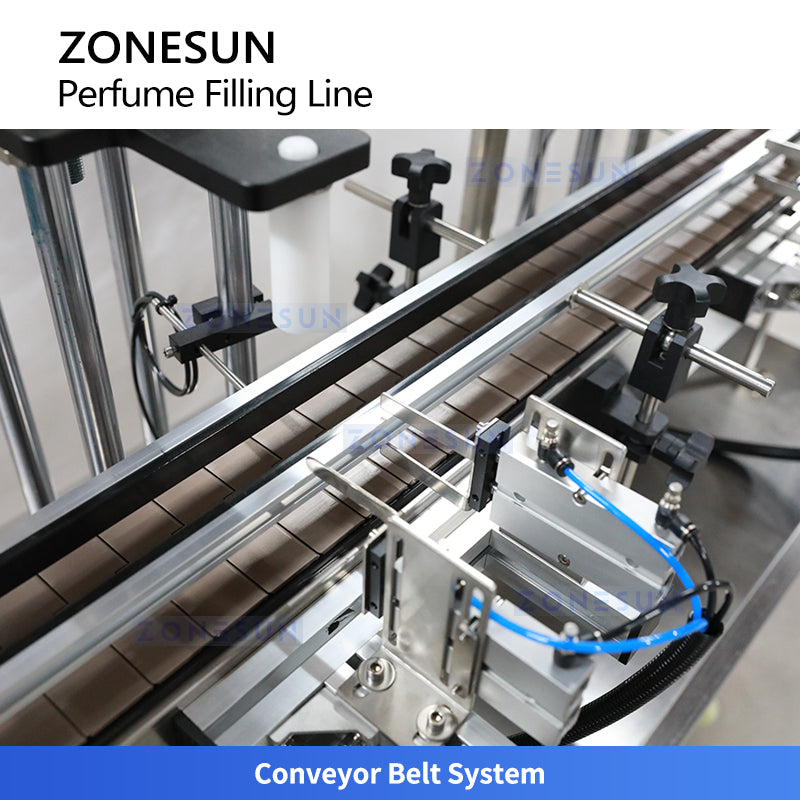

CONVEYOR BELT

  • Seamless Transport: Moves bottles continuously and efficiently through each stage of the packaging line.
  • Precision Spacing & Alignment: Maintains consistent bottle gaps and stable positioning to eliminate jams or tipping.
  • Line Integration: Optimizes workflow and increases total production efficiency for automated filling and capping.
