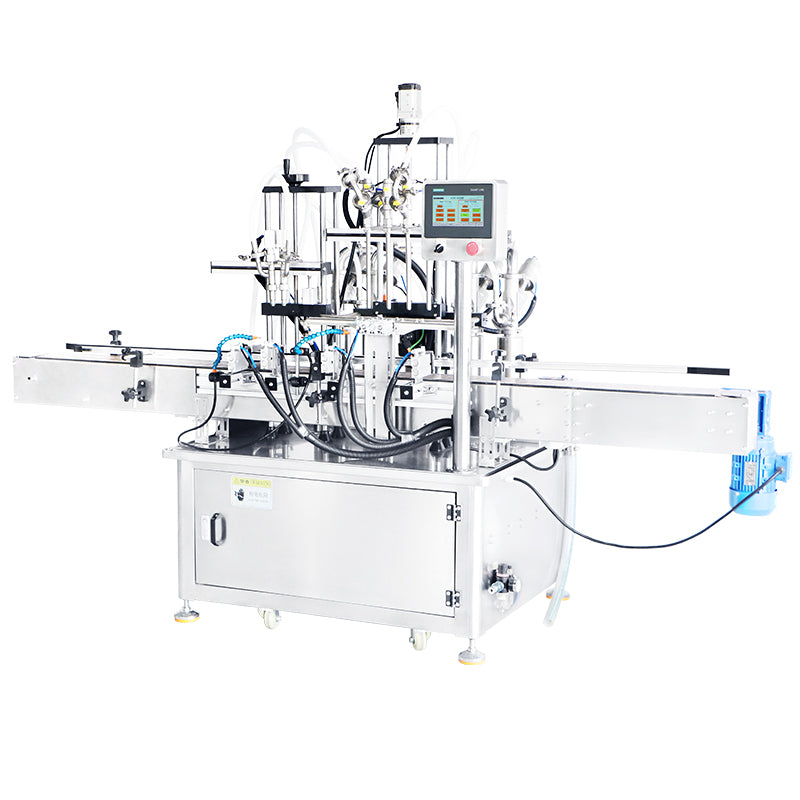

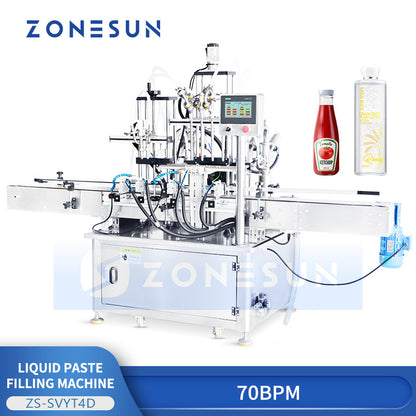

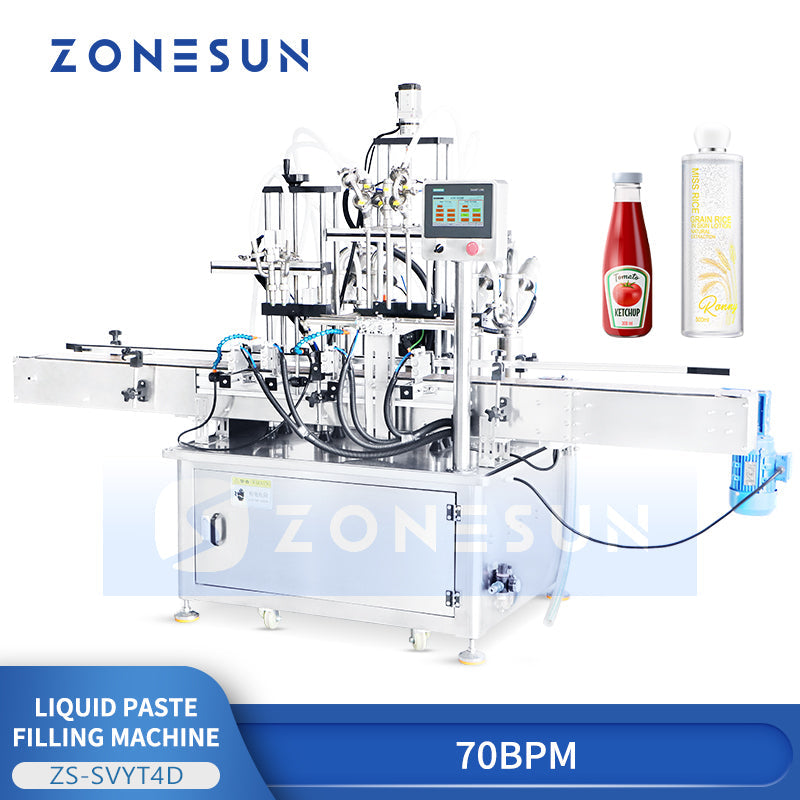

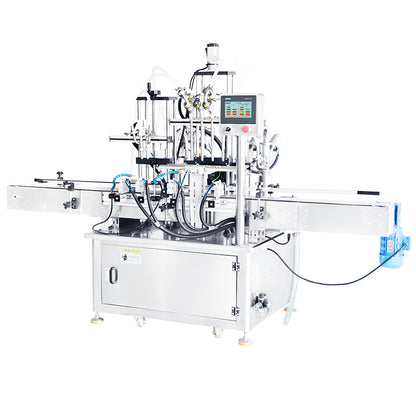

ZONESUN ZS-SVYT4D Automatic Dual-System Liquid & Paste Filling Machine

ZONESUN ZS-SVYT4D Automatic Dual-System Liquid & Paste Filling Machine

通常価格 $11,999.00 USD
通常価格 セール価格 $11,999.00 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。
Voltage

Description

The Zonesun ZS‑SVYT4D is a cutting-edge dual-system filling machine engineered to handle both liquids and pastes with unmatched precision. Combining a magnetic pump system for liquid products and a piston pump system for thicker substances, it offers versatile performance for diverse production needs. Its user-friendly design, durable build, and seamless integration into packaging lines make it the ideal choice for boosting productivity and maintaining consistent, high-quality output.



PARAMETER

Machine Model ZS-SVYT4D
Machine Voltage 110/220 V 50–60 Hz 4 kW
Filling Pump
Piston Pump | Magnetic Pump
Filling Nozzle Quantity
2 | 4
Filling Range 50–1000 ml (customizable)
Working Capacity About 20–70 BPM
Filling Accuracy ±1%
Air Pressure 0.5–0.8 MPa
Machine Size About 2500 × 915 × 1720 mm
Package Size About 2140 × 1000 × 1920 mm
Package Weight About 480 kg



Zonesun ZS-SVYT4D Dual System Filling MachineZonesun ZS-SVYT4D Dual System Filling Machine Application

Applications

  • Cosmetics & Personal Care: Ideal for facial serums, toners, essential oils, shampoos, body lotions, hair conditioners, and creams. The anti-drip nozzles and smooth pump transition help keep bottle necks clean and minimize product waste across formulas of different viscosities.
  • Food & Beverages: Suitable for fruit juices, sauces, syrups, honey, ketchup, chili paste, salad dressings, and cooking oils. Food-grade contact parts support hygienic filling and straightforward cleaning between production runs.
  • Household & Daily Chemicals: Works well for dishwashing liquids, laundry detergents, glass cleaners, disinfectants, and liquid soaps, supporting efficient bottling for both thin liquids and heavier formulations.
  • Automotive & Industrial Fluids: Can be used for lubricants, motor oil additives, waxes, and polishes where consistent filling volume (±1% accuracy) and reliable batch repeatability matter.
Zonesun ZS-SVYT4D Dual System Filling Machine ParameterZonesun ZS-SVYT4D Dual System Filling Machine Control Panel

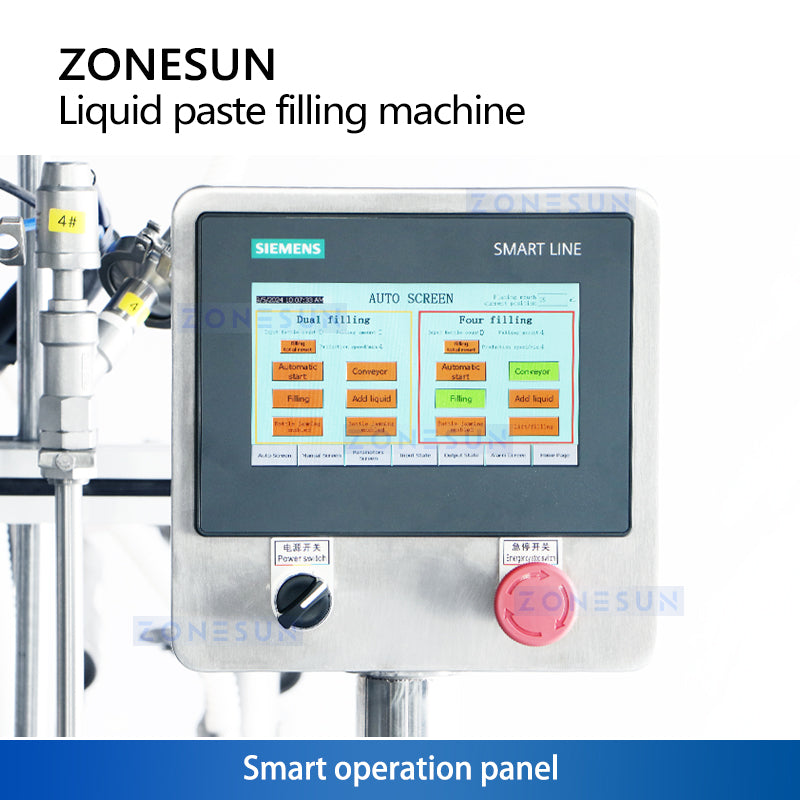

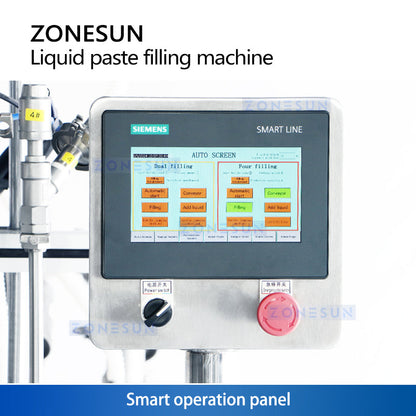

CONTROL PANEL

  • Direct Filling Volume Setup on HMI: Industrial SMART LINE touch screen lets operators set and adjust filling volumes directly with one-touch mode selection.
  • Customizable Interface for Simplified Operation: Features a customizable interface alongside tactile power and emergency-stop switches to simplify daily machine operation.

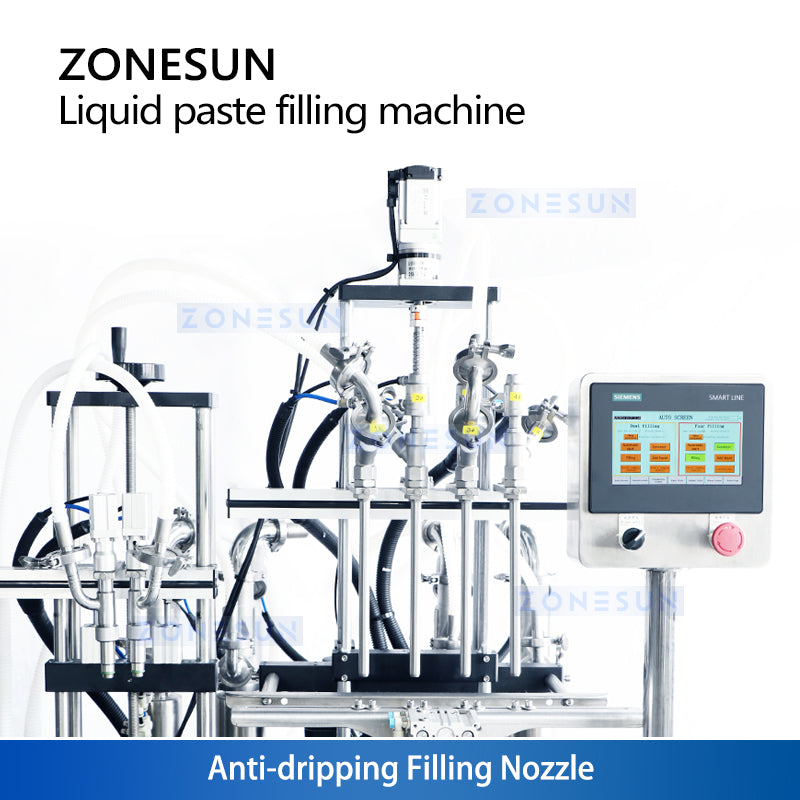

Zonesun ZS-SVYT4D Dual System Filling Machine Filling Head

FILLING NOZZLE

  • Servo-Controlled Nozzle Lift for Paste: Top servo motor precisely controls the up-and-down movement of the paste filling nozzles for smooth bottom-up diving fills.
  • Prevents Material Spraying & Keeps Bottles Clean: Eliminates splashing and prevents viscous paste from spraying out, ensuring clean bottle necks and accurate dosing.
Zonesun ZS-SVYT4D Dual System Filling Machine Pump

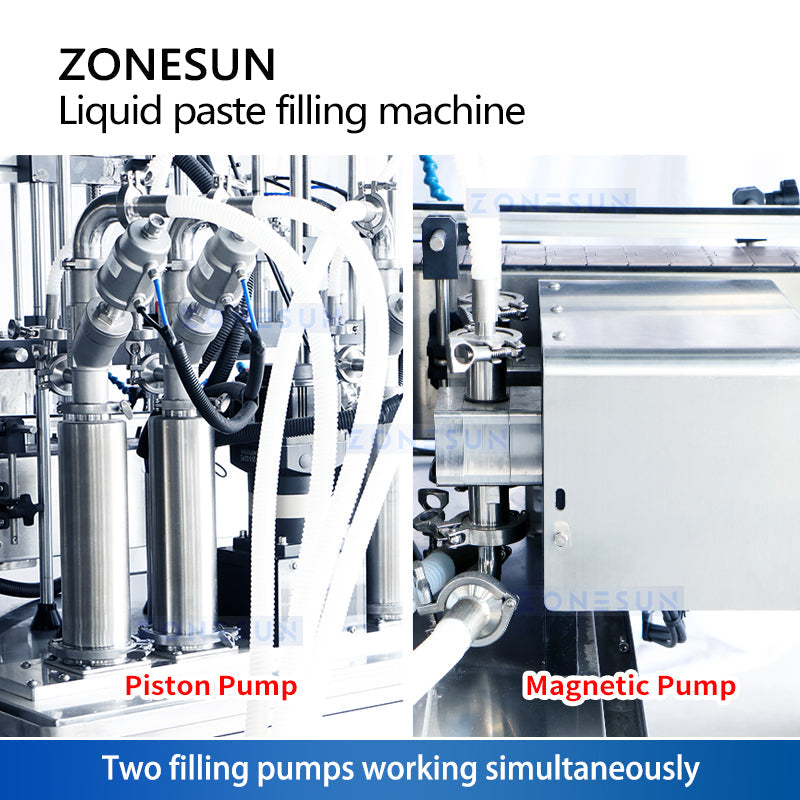

FILLING PUMP

  • Dual Magnetic & Piston Pump Integration: Equipped with both a sanitary magnetic pump and a piston pump simultaneously for accurate filling of both thin liquids and thick pastes.
  • On-Demand Pump Selection for 2-in-1 Versatility: Easily choose either pump system to work during filling based on product viscosity—maximizing line flexibility while saving floor space.
Zonesun ZS-SVYT4D Dual System Filling Machine Servo Motor

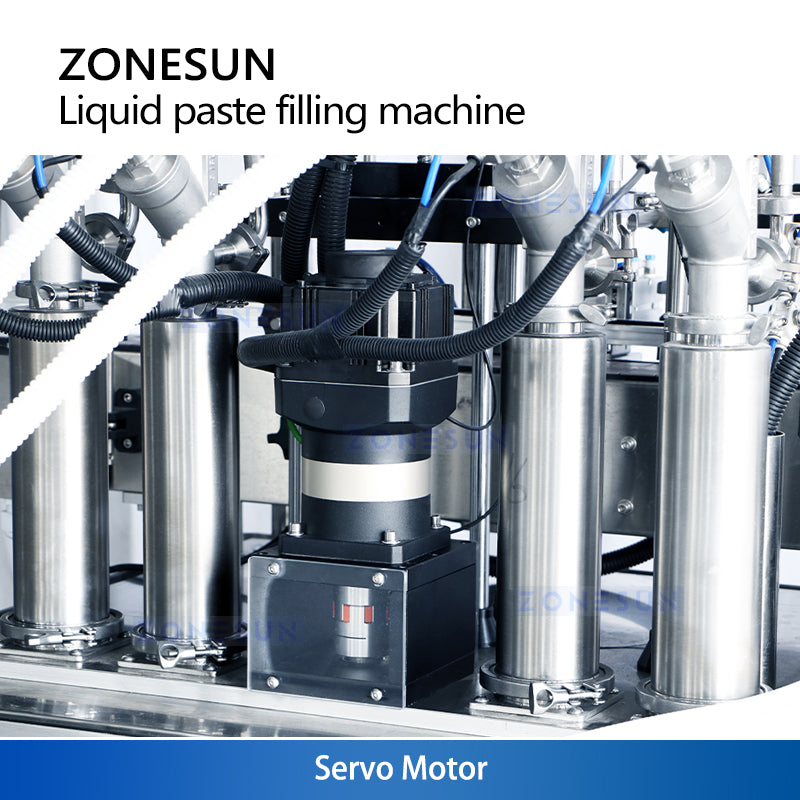

SERVO MOTOR

  • More Convenient Digital Operation: Industrial servo motor replaces manual mechanical stroke adjustments with direct touch-screen volume control, making machine operation far more convenient.
  • Improved Filling Accuracy: Closed-loop servo drive ensures smooth, repeatable piston motion that significantly improves filling accuracy across every batch.
Zonesun ZS-SVYT4D Dual System Filling Machine Conveyor

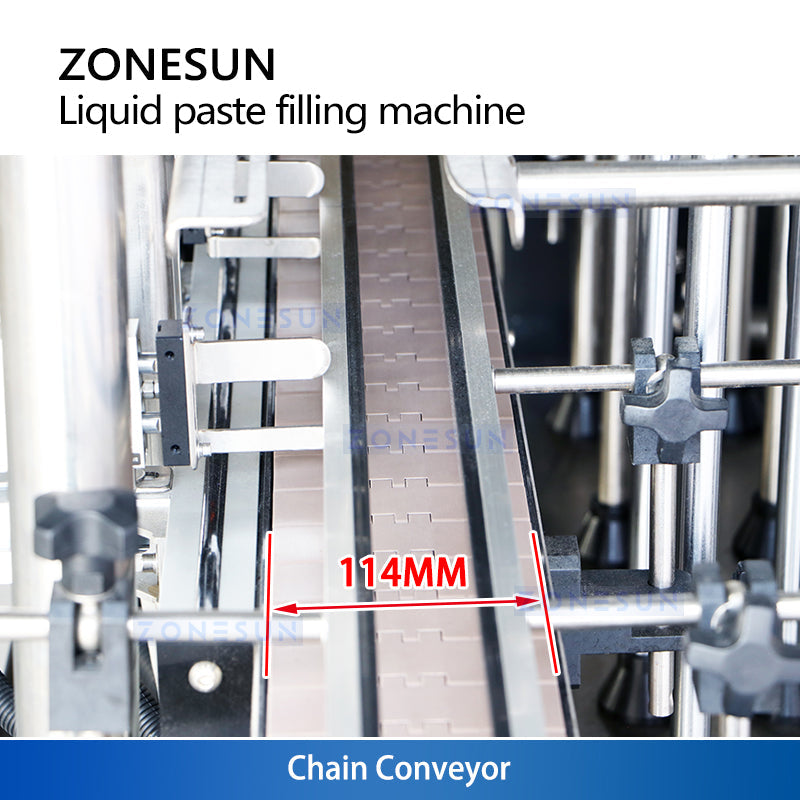

CHAIN CONVEYOR

  • Higher Weight Capacity for Heavy Containers: Heavy-duty chain conveyor (114mm standard width) with adjustable stainless steel guide rails provides higher weight capacity for smooth, stable bottle transport.
  • Customizable Conveyor Length & Width: Both conveyor length and width can be customized as needed to seamlessly match your bottle sizes and production line layout.
Zonesun ZS-SVYT4D Dual System Filling MachineZonesun ZS-SVYT4D Dual System Filling Machine
