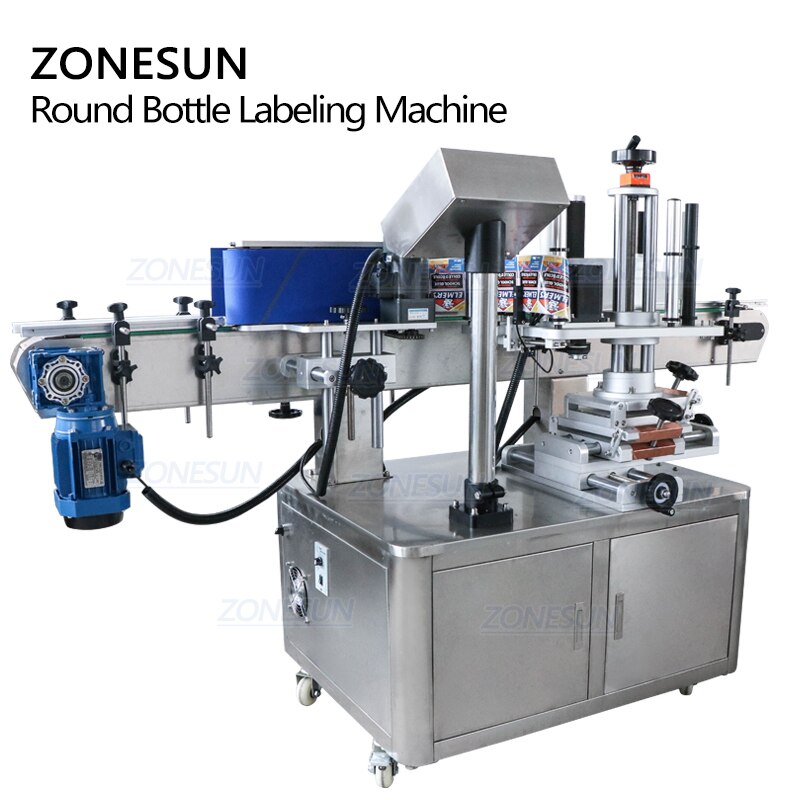

ZONESUN ZS‑TB200 Automatic Round Bottle Labeler with Date Coding

ZONESUN ZS‑TB200 Automatic Round Bottle Labeler with Date Coding

通常価格 $4,399.00 USD
通常価格 セール価格 $4,399.00 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。
Type
Voltage

Description

The ZONESUN ZS‑TB200 is a fully automatic round bottle labeling machine engineered for single‑side label application. It automatically transfers bottles, separates labels, and applies them with ±1 mm accuracy. The system can be equipped with a date printer to mark production dates, batch numbers, or expiration dates during labeling — completing both processes in one pass to maximize efficiency. Adjustable conveyor and bottle‑separating devices ensure smooth, bubble‑free application on bottles with diameters from 20 mm to 120 mm. Ideal for juice, water, toner, condiment, and other cylindrical containers in food, beverage, cosmetic, and chemical industries.



Parameter

Model

ZS-TB200

Label length

30~300MM

Label width

30~150MM

Suitable bottle diameter

φ20~120mm

Outside diameter of standard roll

φ280MM

Inside diameter of standard roll

φ76MM

Labeling accuracy

±1.0MM

Machine Weight

About 250KG

Frequency

50HZ

Voltage

220V

Power

1100W

Conveying speed

16m/min

Marking speed

5~19m/min

Labeling speed

30~160 PCS/min

Dimensions

About 2000*900*1500mm



全自动单面贴标机_01全自动单面贴标机_02

全自动单面贴标机_04全自动单面贴标机_05全自动单面贴标机_06全自动单面贴标机_07全自动单面贴标机_08
