ZONESUN ZS-FAL180C4 Desktop Liquid Filling Capping Labeling Machine

ZONESUN ZS-FAL180C4 Desktop Liquid Filling Capping Labeling Machine

정가 $7,148.99 USD
정가 할인가 $7,148.99 USD
할인 품절
배송료는 결제 시 계산됩니다.

Description

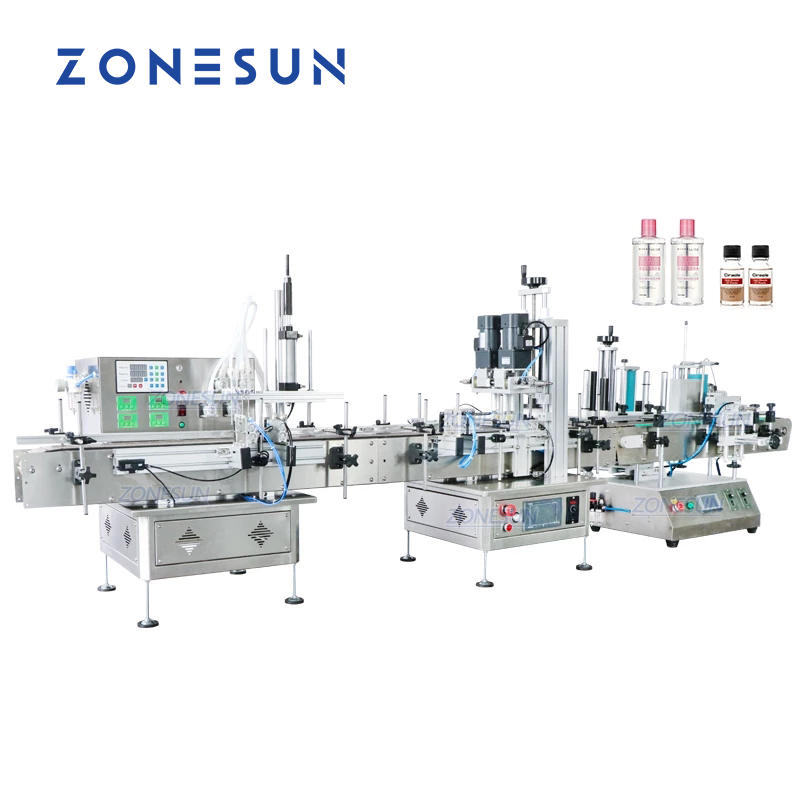

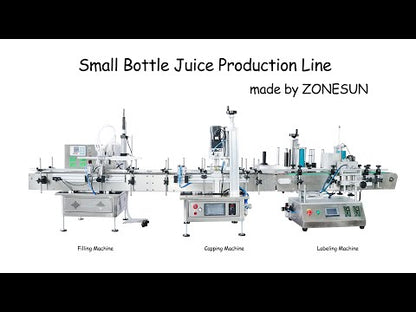

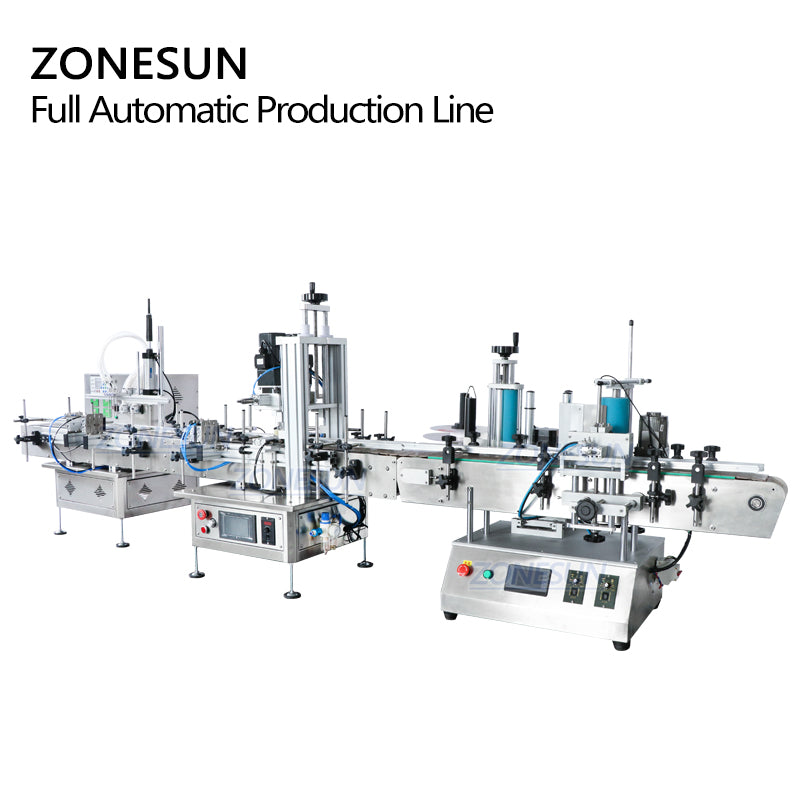

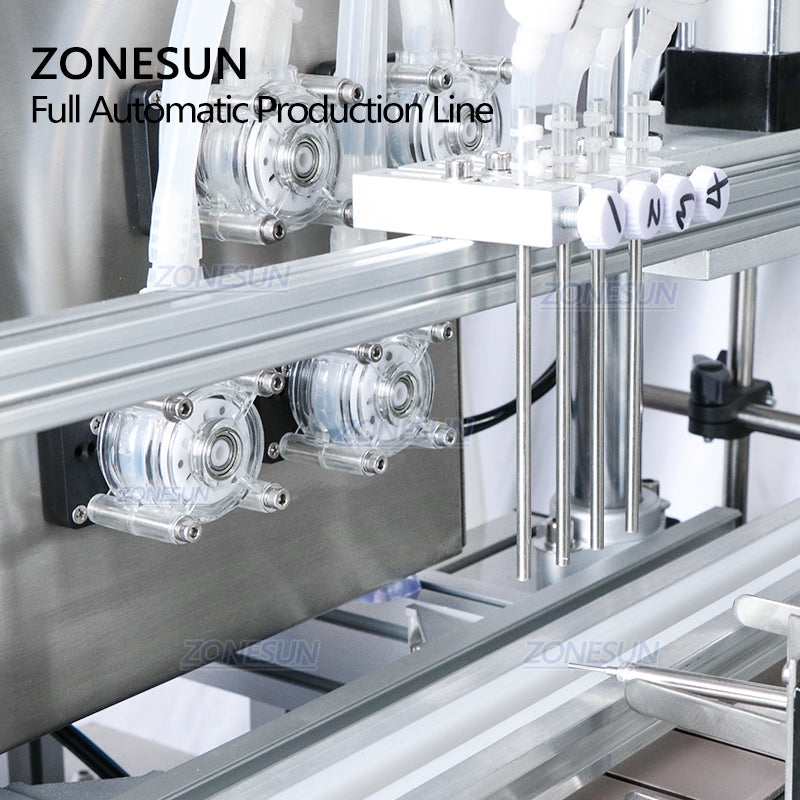

The ZONESUN ZS-FAL180C4 is a compact, fully automatic desktop production line designed for efficient liquid packaging. It integrates a peristaltic pump filling machine, capping unit, and round bottle labeling system—making it ideal for juice, beverages, essential oils, and cosmetic liquids. The four filling nozzles can be controlled independently, allowing flexible operation and precise dosing. The positioning labeling machine supports both single-side and double-side labeling, ensuring accurate label placement. Widely used in pharmaceutical, cosmetic, beverage, and daily chemical industries, this machine helps reduce labor costs and significantly improves productivity.

Notice

This machine can work with bottle unscrambling machine and bottle sorting machine, realizing automated production. And it can be customized according to customers' need. Please contact us if you need this. Thank you!



Parameter

Item Specification
Machine model ZS-DTPP4M
Power supply AC110V/220V 50Hz-60Hz 60W×4
Filling Range ≤50ml
Maximum flow 650ml/min for each nozzle
Filling nozzles 4 (We can customize the nozzles based on your demands)
Working speed 20–40 bottles/min (based on bottles and liquids)
Air pressure 0.3–0.4MPa
Filling accuracy ≤±1% (For water)
Diameter of filling nozzle 4mm
Delay range 0.01–999.9s
Conveyor belt length 1m
Size of air compressor connector OD8mm
Package size About 1185×710×795mm
Net weight/Gross weight About 50kg/79kg
