ZONESUN ZS-AFC15 Automatic Peristaltic Pump Filling Capping Machine
ZONESUN ZS-AFC15 Automatic Peristaltic Pump Filling Capping Machine
정가
$6,499.00 USD
정가
할인가
$6,499.00 USD
단가
단위
배송료는 결제 시 계산됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.
DESCRIPTION

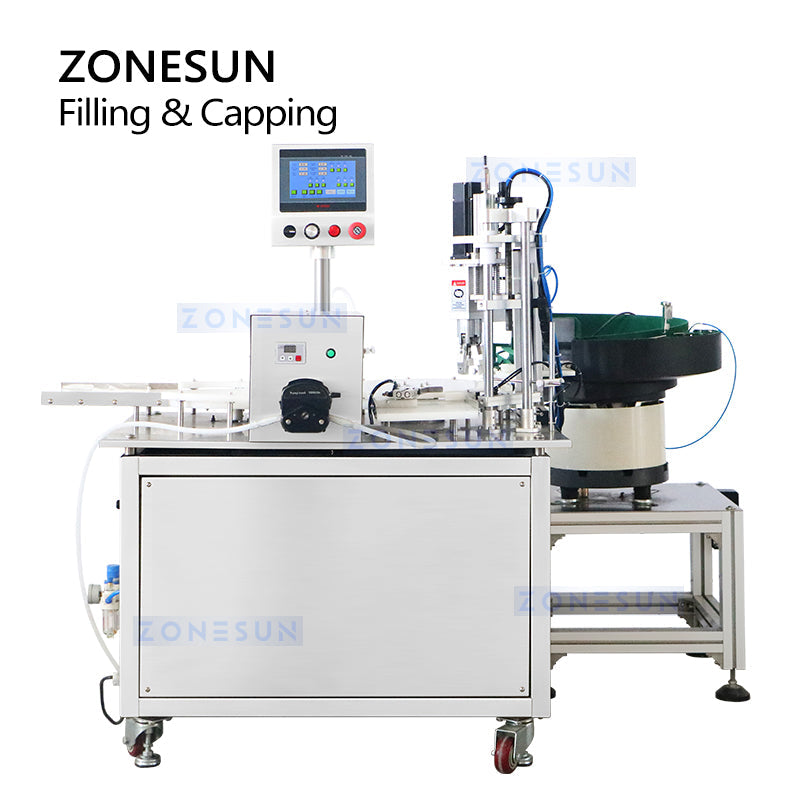

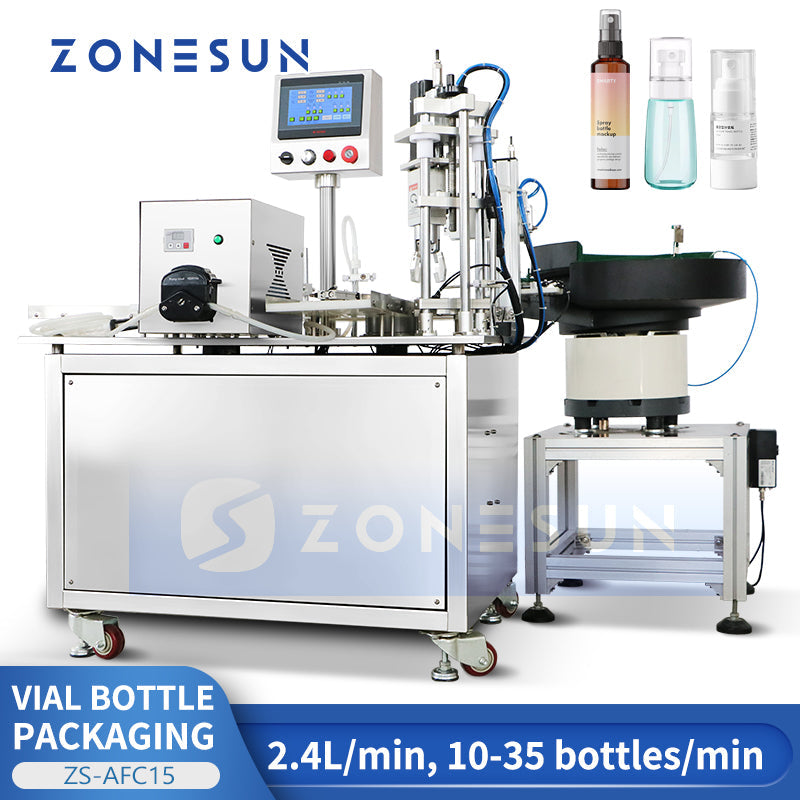

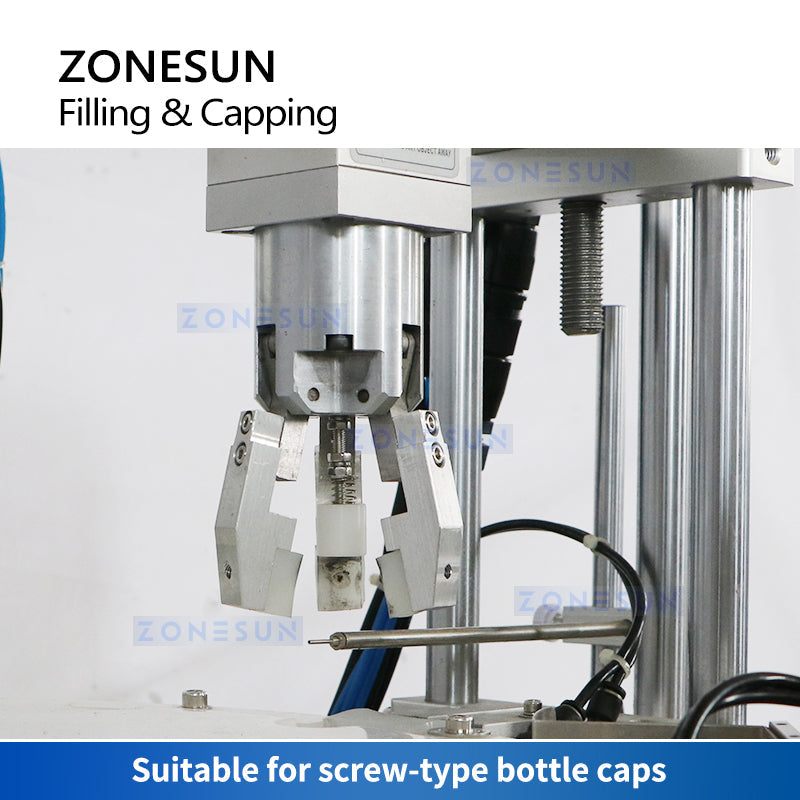

The ZONESUN ZS-AFC15 Automatic Peristaltic Pump Liquid Filling Capping Machine is a high-precision packaging solution that integrates filling and capping in one compact system. Featuring a peristaltic pump for accurate and consistent liquid dosing, it ensures product quality and reduces waste. The capping station is equipped with a servo motor-driven gripper for secure, efficient sealing. Ideal for precision manufacturing and packaging lines that demand reliability, speed, and consistent performance.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
| Parameter | Specification |
|---|---|
| Product Model | ZS-AFC15 |
| Voltage | 220V – 60Hz |
| Power | 1000W |

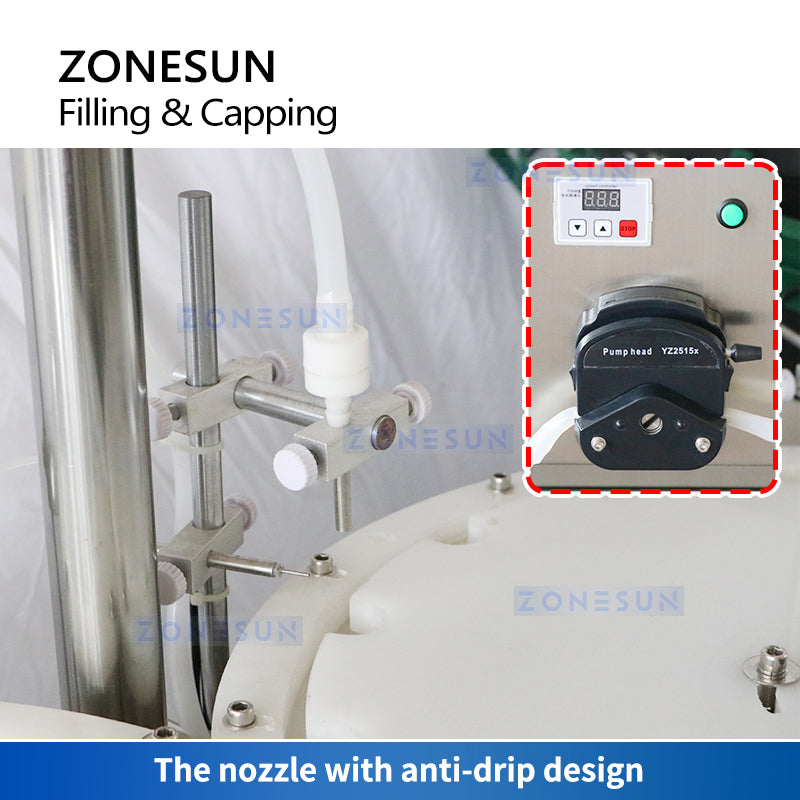

| Filling Pump | Peristaltic pump |
| Max Flow Rate | 2.4 L/min |
| Working Speed | 10–35 bottles/min (based on 50 ml liquid) |
| Working Pressure | 4–6 Kg/MF |
| Max Suction Lift | 2 m |
| Repeat Error | ±0.5% |
| Power-off Memory | Yes |
| Discharge Leakage Prevention | Yes |

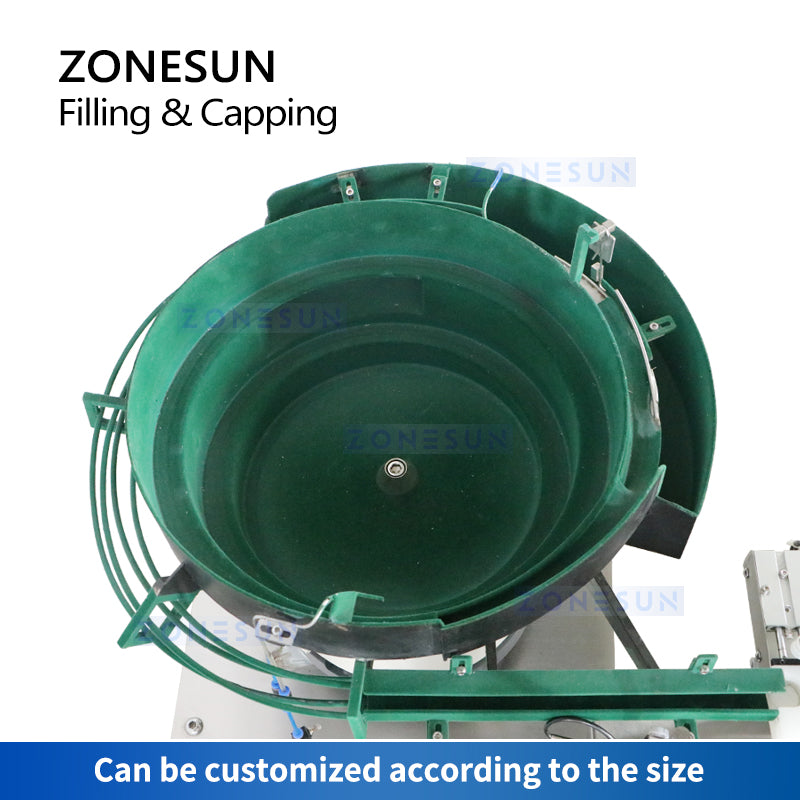

| Vibration Bowl Sorter Size | ~600 × 600 × 1000 mm |
| Machine Size | ~1210 × 830 × 1360 mm |
