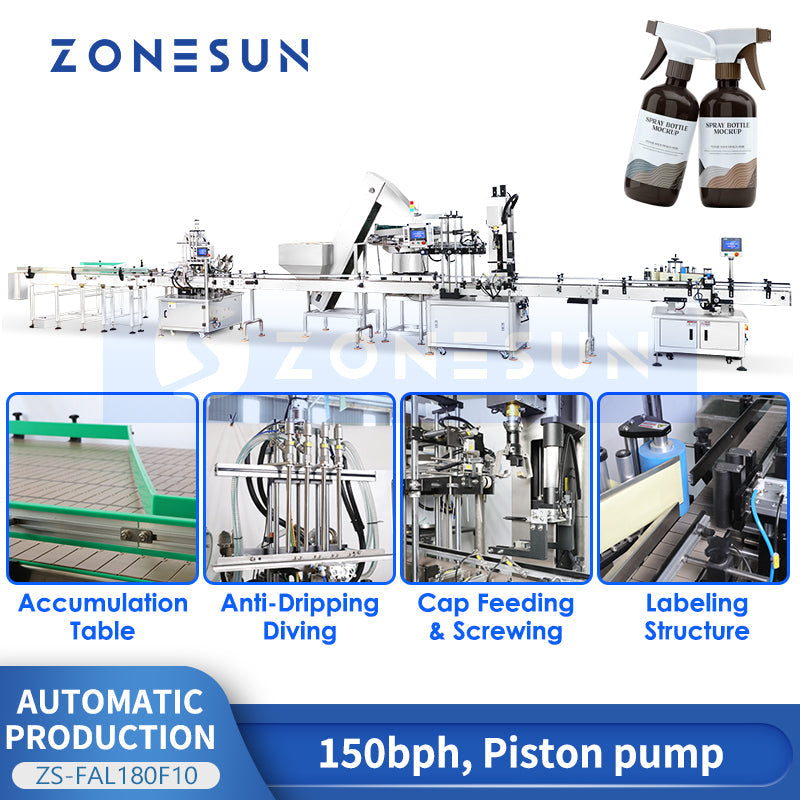

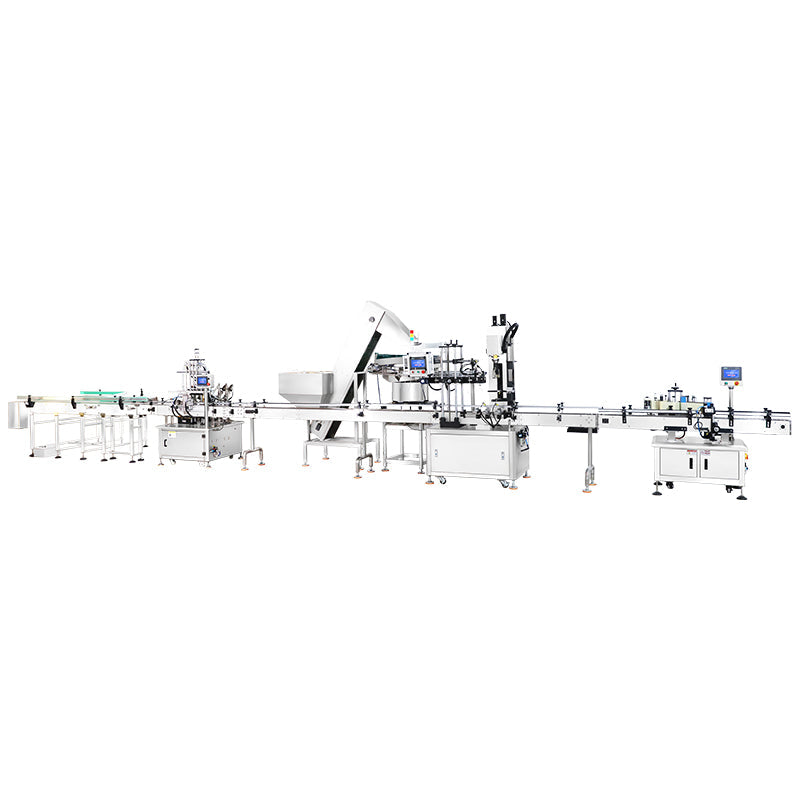

Zonesun ZS‑FAL180F10 Automatic Trigger Spray Bottling Production Line
Zonesun ZS‑FAL180F10 Automatic Trigger Spray Bottling Production Line
정가
$30,399.00 USD
정가
할인가
$30,399.00 USD
단가
단위
배송료는 결제 시 계산됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.

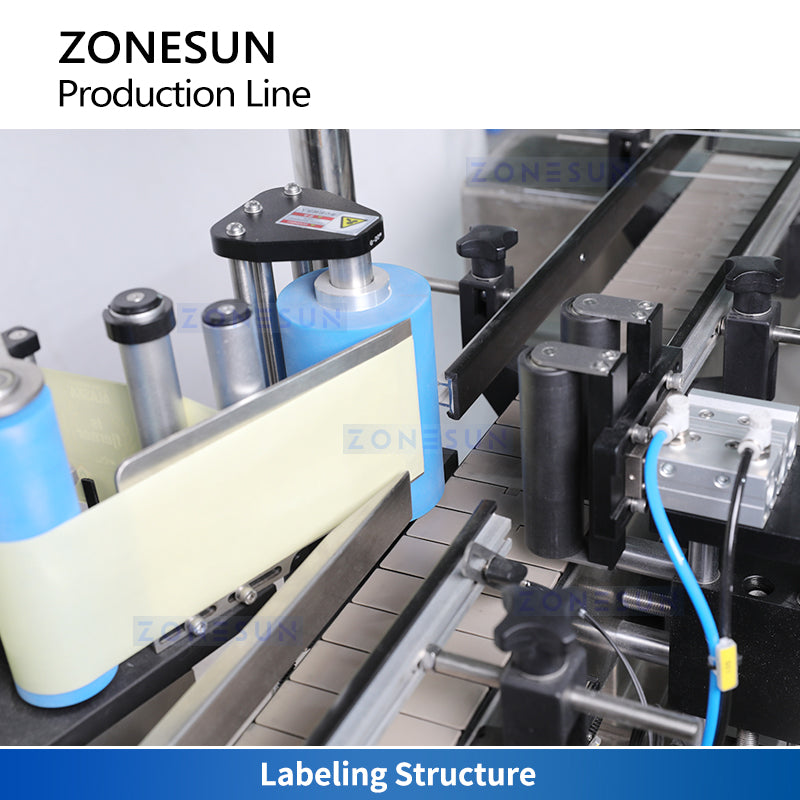

The Zonesun ZS‑FAL180F10 Trigger Spray Bottling Line integrates bottle conveying, precision filling, secure capping, and fast labeling into one efficient system. Designed for maximum productivity and minimal downtime, it delivers consistent, high‑quality results while reducing labor costs. Built from durable, food‑grade materials and engineered to meet strict safety and hygiene standards, it’s the perfect solution for businesses seeking to streamline operations and enhance product presentation.

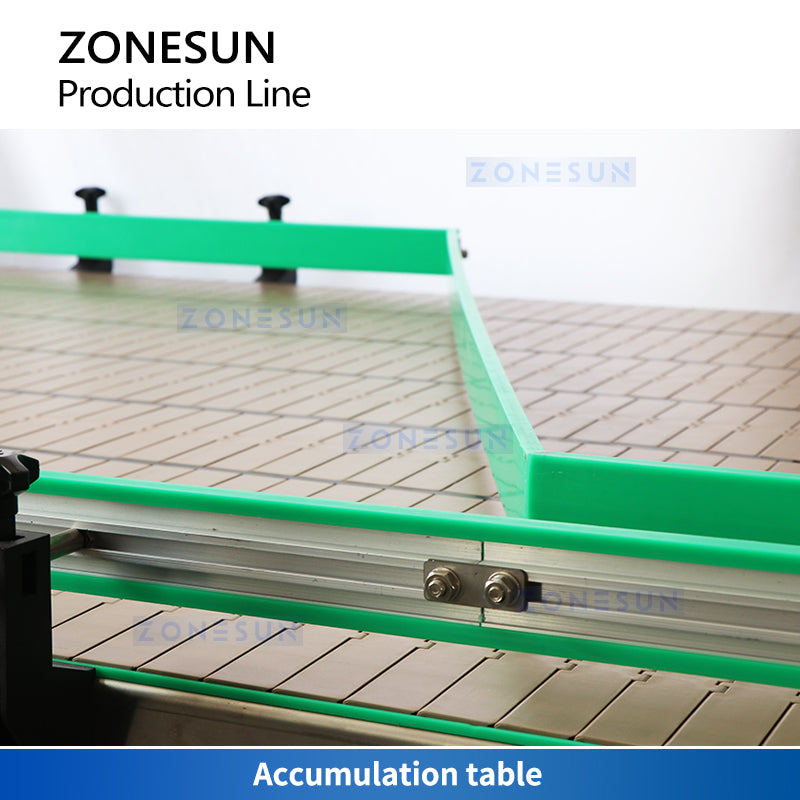

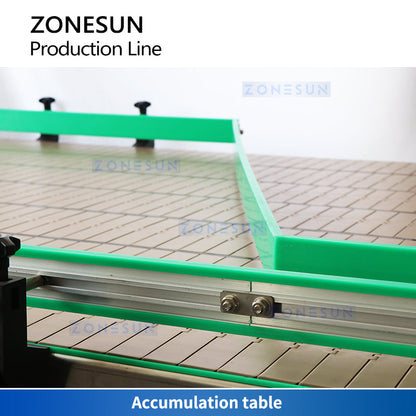

| ACCUMULATION TABLE | |
|---|---|
| Machine Model | ZS‑CB190 |
| Machine Power | 1.5 kW |
| Conveyor Size | 1760 × 1425 mm + 960 × 190.5 mm |
| Conveyor Width | 190.5 mm (Single) |
| Working Speed | 0 – 20 m/min |
| Package Size | About 2050 × 1720 × 720 mm |
| Package Weight | About 276 kg |

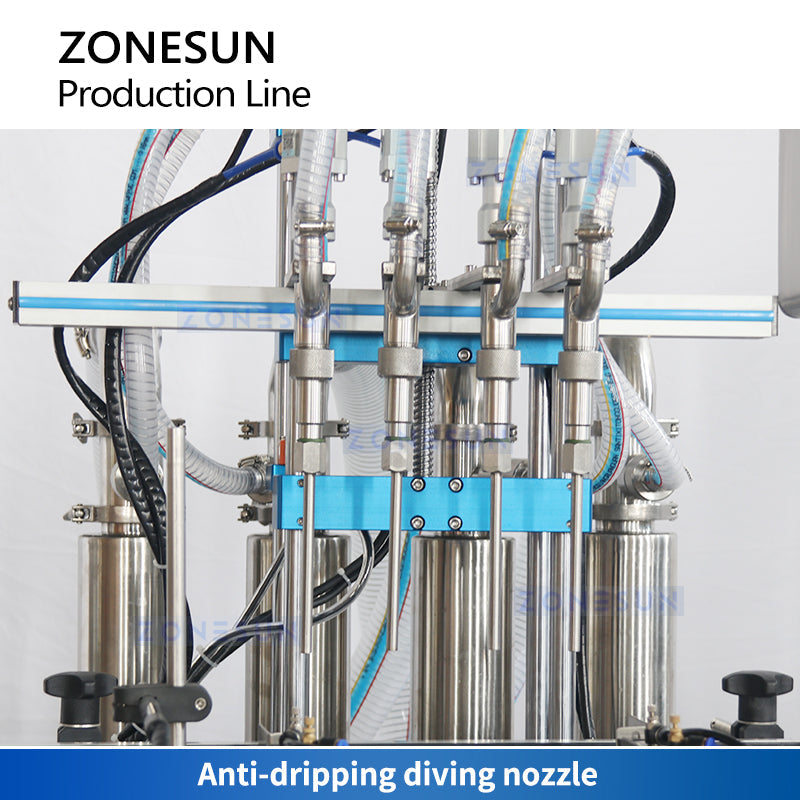

| FILLING MACHINE | |
|---|---|
| Model | ZS‑SV4HS |
| Machine Voltage | 110 / 220 V 50‑60 Hz |
| Power | About 6 kW |
| Filling Range | 100 – 1000 ml (customizable) |
| Filling Speed | About 30 – 70 bottles/min (depending on bottle size & material) |
| Filling Error | About ± 0.5 % |
| Air Pressure | 0.5 – 0.8 MPa |
| Conveyor Belt Size | About 114 × 2000 mm (W×L) |
| Machine Weight | About 130 kg |
| Package Size | About 2070 × 760 × 1670 mm |
| Package Weight | About 275 kg |

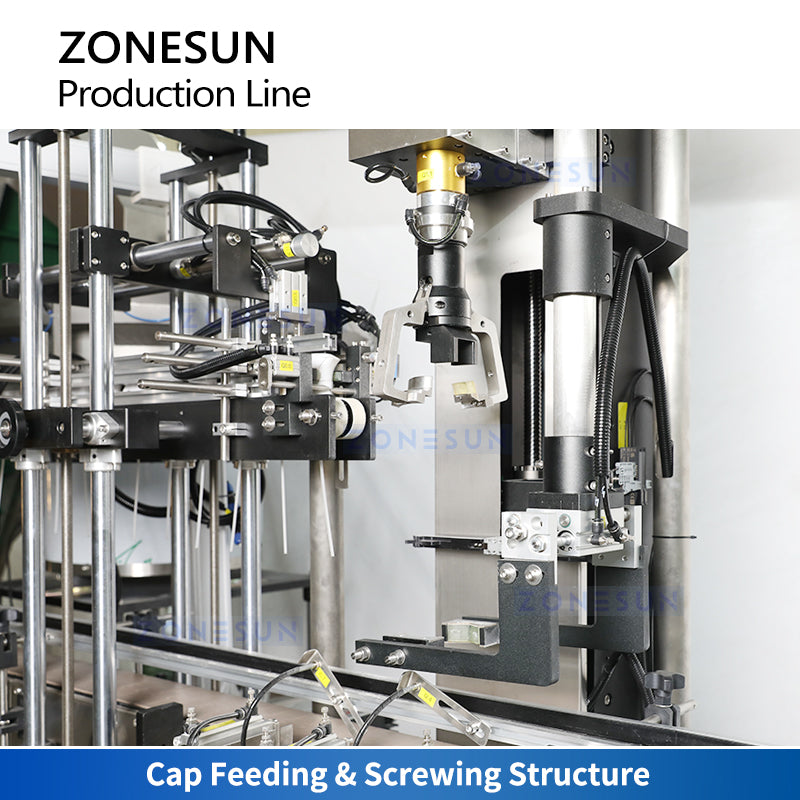

| TRIGGER PUMP CAPPER | |
|---|---|
| Machine Model | ZS‑XG445A |
| Voltage | 110 / 220 V |
| Power | 900 W |
| Capacity | 5 – 23 bottles/min (based on bottle and cap size) |
| Material | 304 SUS |
| Air Pressure | 0.6 – 0.8 MPa |
| Suitable Bottles | Customized according to sample |

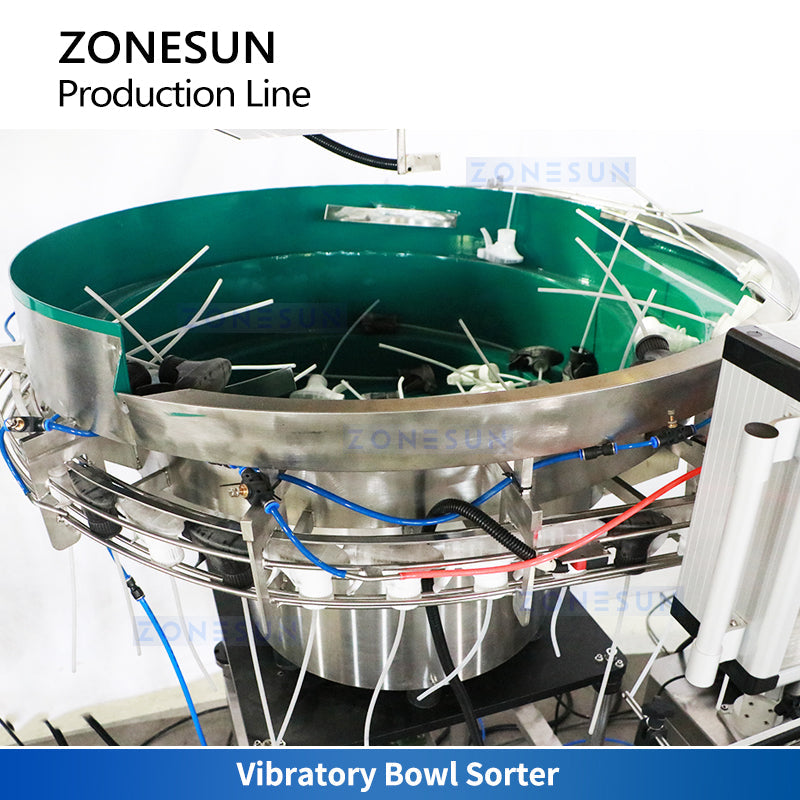

| Cap Feeding Way | Pneumatic fetch |
| Capping Way | Servo‑drive screw capping |
| Machine Size | About 4520 × 1480 × 2400 mm |
