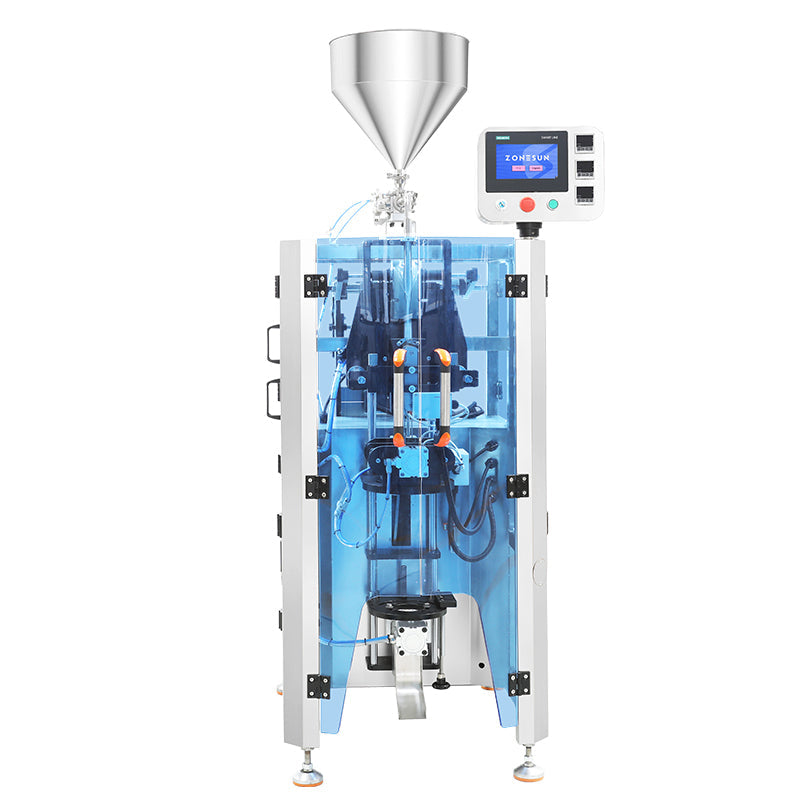

ZONESUN ZS-FS120H Automatic Vertical Liquid Stick Packing Machine VFFS Sachet Filling Sealing Equipment

DESCRIPTION

The ZS-FS120H is a fully automatic liquid packaging machine designed for efficient, high-accuracy filling and sealing. As a vertical form fill seal machine (VFFS), it handles the full process — bag forming, filling, sealing, cutting, and counting. Compatible with BOPP/PE, PET/PE, PET/AL films, it supports various cutting styles like straight, pattern, and round corner. Ideal for liquid products such as sauces, cosmetics, and cleaning solutions. Features include servo control, dual sensors, and intelligent temperature control for stable performance.



Parameter

• Model: ZS-FS120H
• Packaging speed: 30–40 bags/min
• Measuring range: 5–50 ml
• Bag size: (L) 40–170 mm; (W) 20–50 mm
• Applicable film thickness: 0.08–0.12 mm / Max roll diameter: 320 mm
• Packaging material: Composite film (BOPP/PE, PET/PE, PET/AL, etc.)
• Total power: 2000 W
• Net weight: 200 kg
• Power supply voltage: 220V / 50Hz
• Dimensions: 1050 × 800 × 1920 mm
