ZS‑TB802 Desktop Flat Surface Label Applicator for Accurate Labeling
ZS‑TB802 Desktop Flat Surface Label Applicator for Accurate Labeling
정가
$1,999.00 USD
정가
$0.00 USD
할인가
$1,999.00 USD
단가
단위
배송료는 결제 시 계산됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.

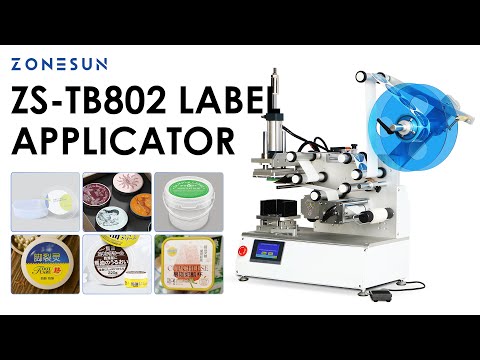

The Zonesun ZS‑TB802 Flat Surface Label Applicator is a compact, efficient desktop solution for precision labeling of flat products. With a simple foot pedal activation, the label is dispensed to the applicator head, held securely in place by vacuum suction and an air‑vent system for optimal adhesion. A pneumatic cylinder applies the label with pinpoint accuracy, then retracts for easy product removal. All functions are operated through an intuitive touchscreen interface, making it a reliable, user‑friendly choice for boosting both labeling speed and accuracy.
| Model | ZS‑TB802 |
|---|---|
| Voltage | 110V/220V, 50/60 Hz |
| Labeling Accuracy | ±0.5 mm |
| Throughput | 15 pieces/minute |
| Applicable Product Size | 20 mm – 200 mm × 20 mm – 150 mm × 0.2 mm – 120 mm (L × W × H) |
| Applicable Label Size | Length: 15 mm – 150 mm; Width (bottom paper width): 15 mm – 100 mm |
| Label Roll Size | Inner diameter: φ76 mm; Outer diameter: φ≤300 mm |
| Air Pressure | 0.4 – 0.6 MPa |
| Machine Size | 840 mm × 470 mm × 840 mm (L × W × H) |
| Net Weight | 48 kg |
| Packing Size | 92 cm × 52 cm × 89 cm |
| Gross Weight | 78 kg |
