ZONESUN ZS-FAL180Z4 5L Oil Filling Capping Double Labeling Line
ZONESUN ZS-FAL180Z4 5L Oil Filling Capping Double Labeling Line
Regular price
$31,327.00 USD
Regular price
Sale price
$31,327.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION

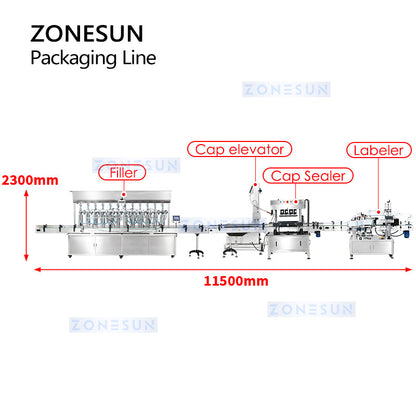

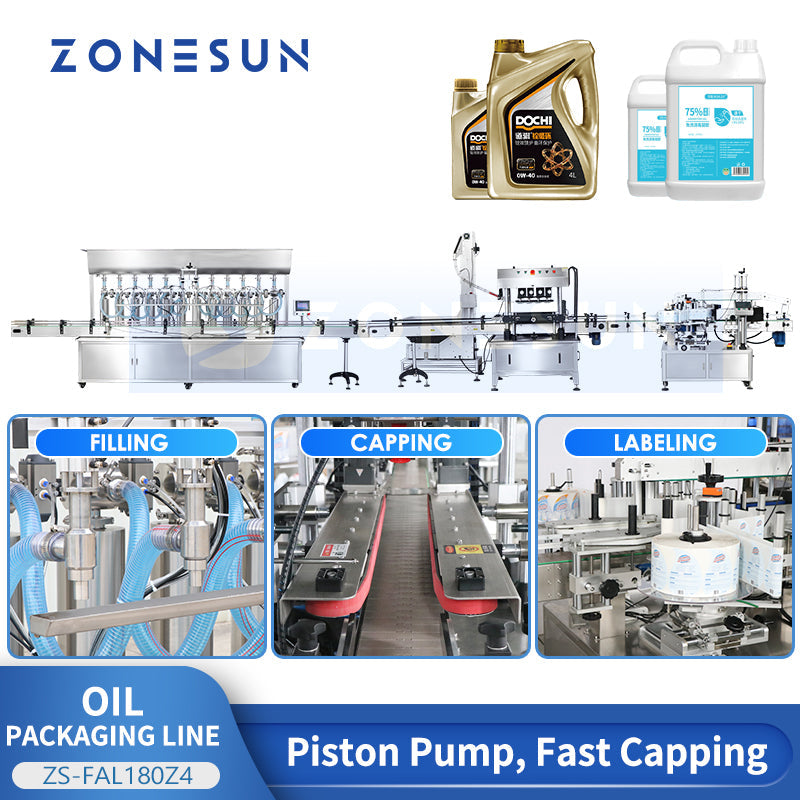

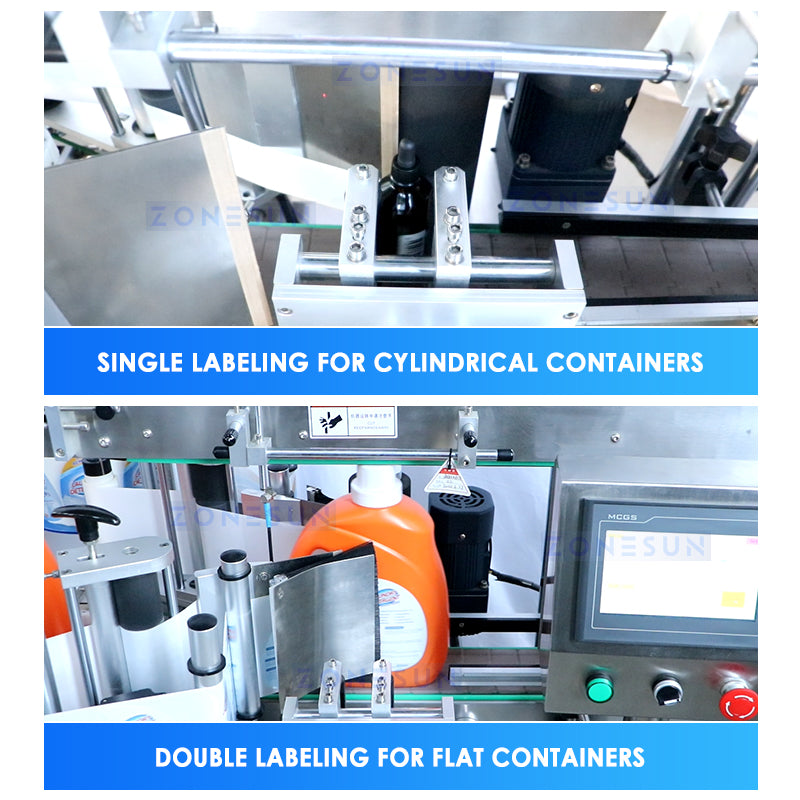

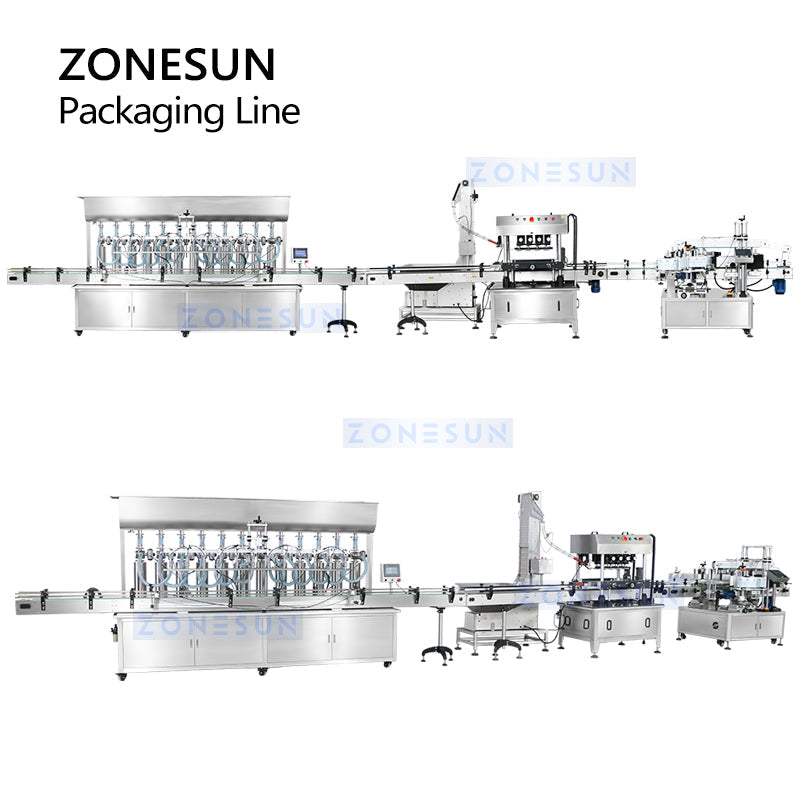

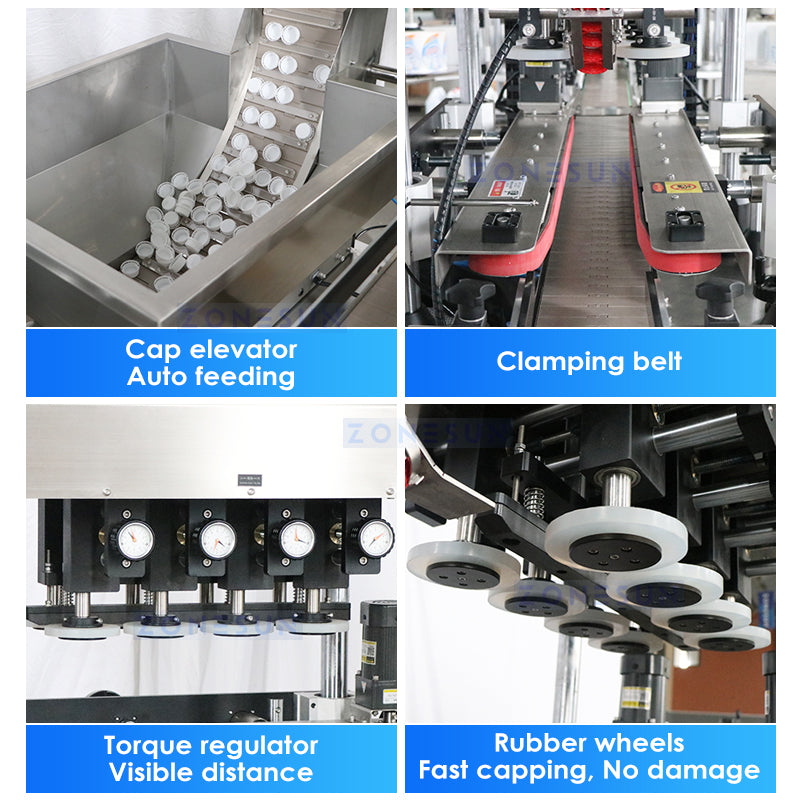

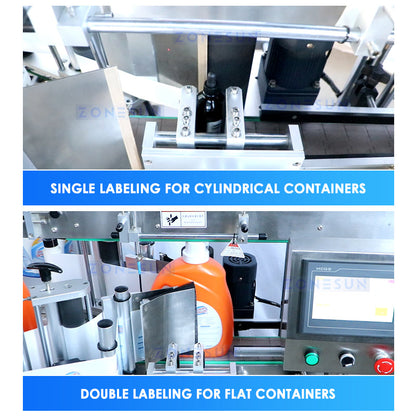

The ZONESUN ZS-FAL180Z4 5L Oil Filling Capping Round Flat Bottle Double Labeling Production Line is a high-efficiency packaging solution designed for large-volume oil products. Equipped with piston pumps, it accurately fills 5-liter bottles, while an elevator automatically feeds caps to the capping station. Featuring 8 rubber wheels, it delivers fast and secure capping. Compatible with both round and flat bottles, it supports single or double labeling, making it ideal for versatile, high-output production in the food and chemical industries.
Parameter
| Item | Specification |
|---|---|
| Machine Model | ZS‑YT12T‑12PX |
| Voltage | 110 / 220 V 50–60 Hz 1 kW |
| Filling Range | 1000 – 5000 ml (Customizable) |
| Working Speed | 24 – 36 bottles/min (based on 5000 ml) |
| Hopper | Approx. 300 L |
| Air Pressure | 0.6 – 0.8 MPa |
| Filling Nozzle | 12 |

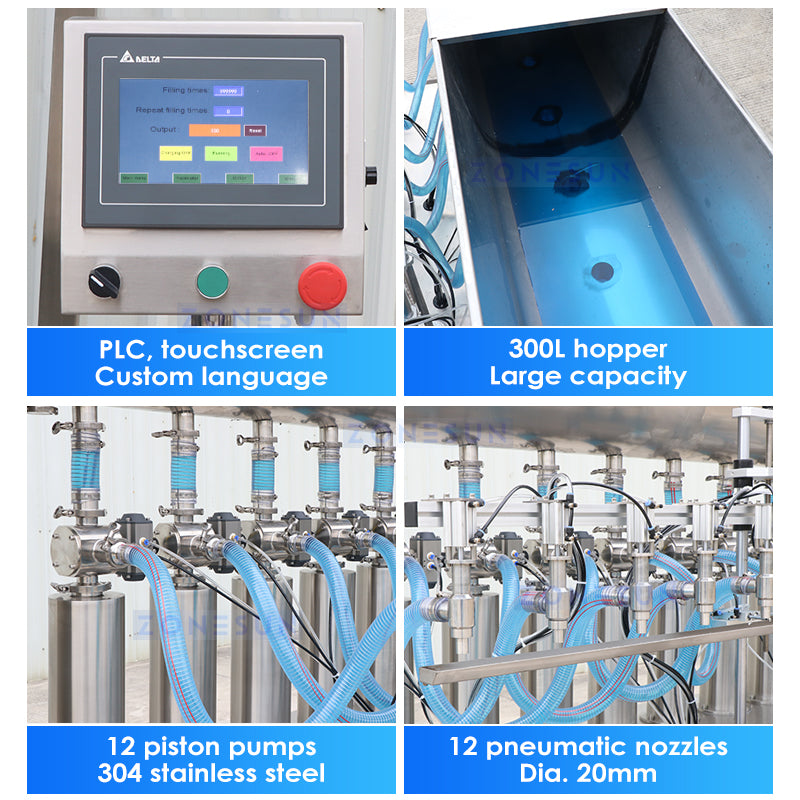

| Pump | 12 Piston pumps, 304 stainless steel |
| Conveyor | Length: 4 m, Width: 152 mm |

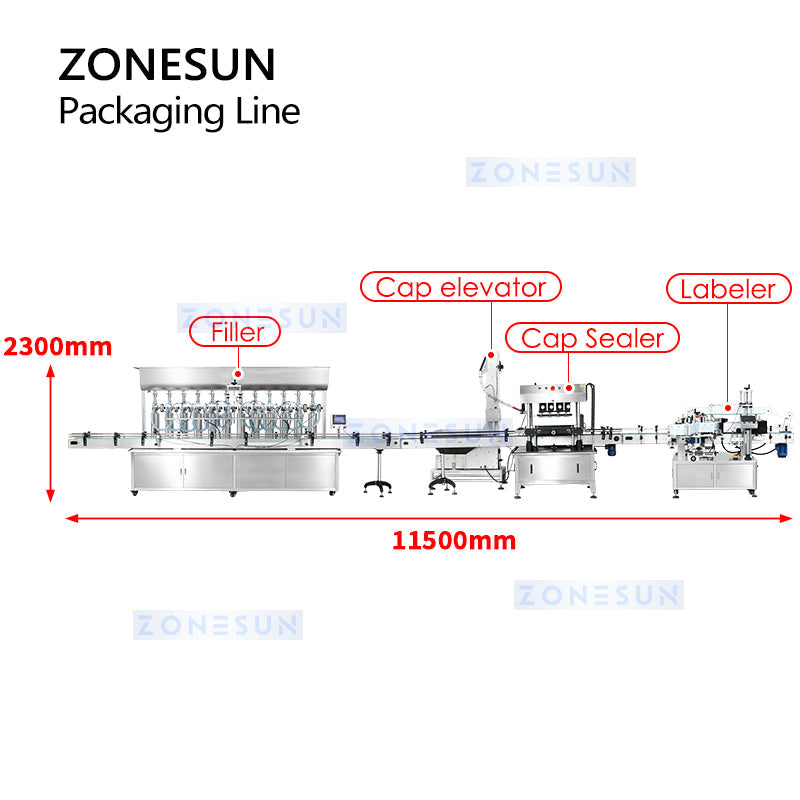

| Machine Size | Approx. 5300 × 2100 × 1480 mm (L × W × H) |
