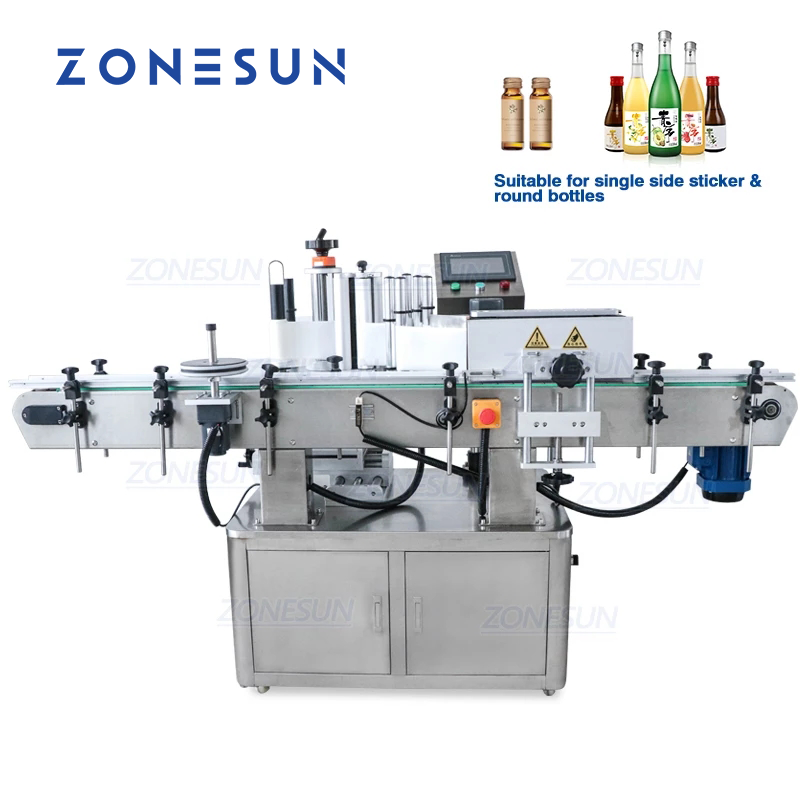

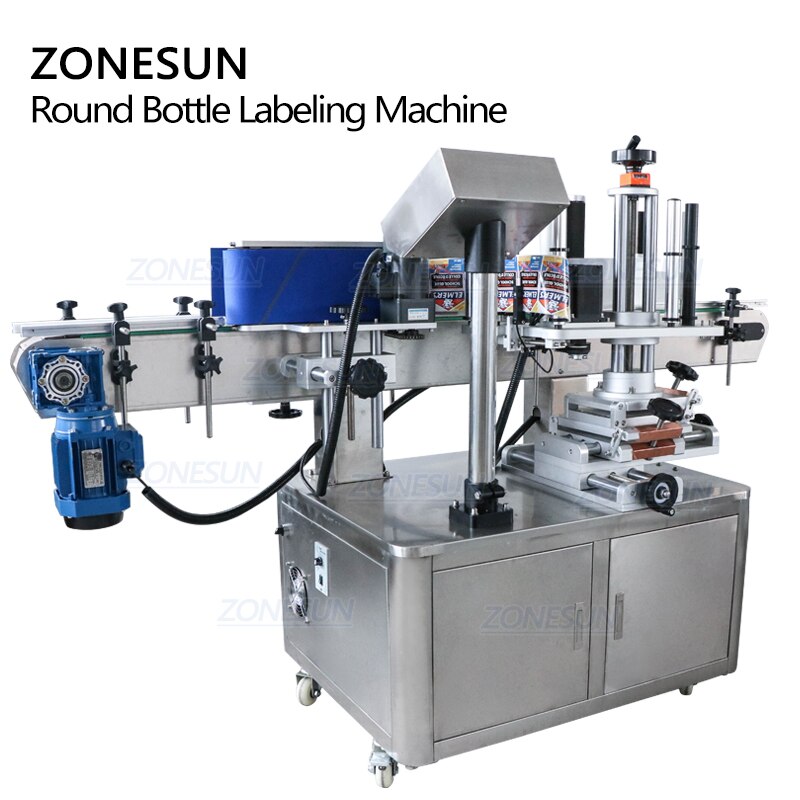

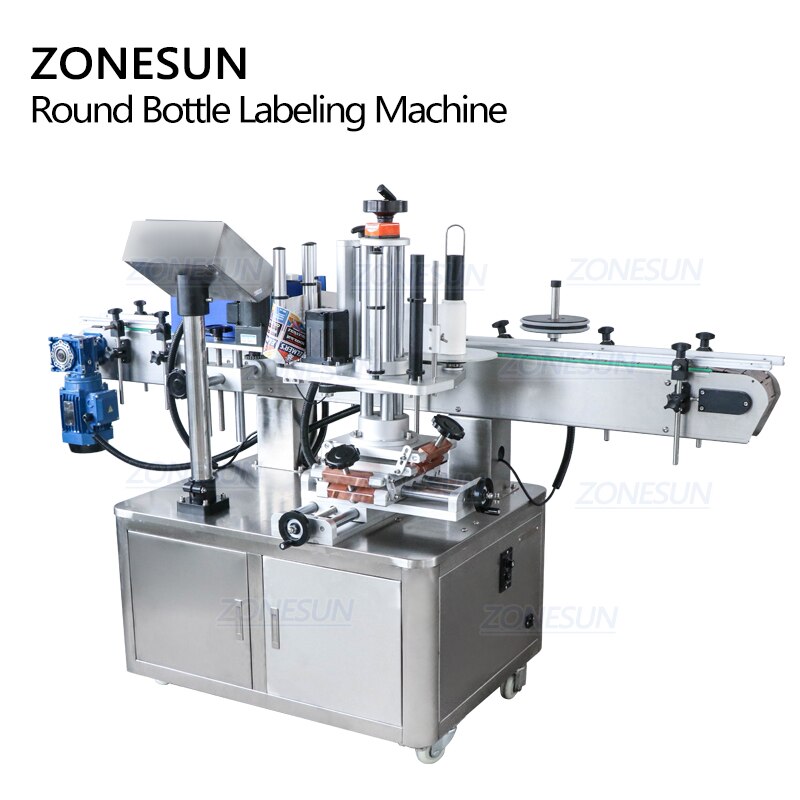

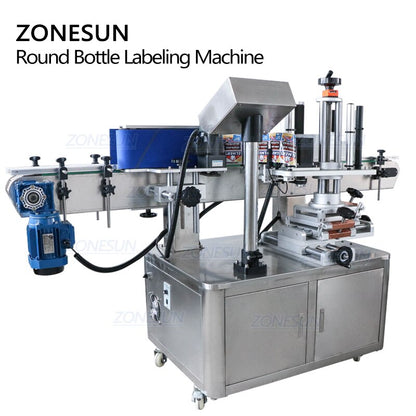

ZONESUN ZS‑TB200 Automatic Round Bottle Labeler with Date Coding

ZONESUN ZS‑TB200 Automatic Round Bottle Labeler with Date Coding

Regular price $4,399.00 USD
Regular price Sale price $4,399.00 USD
Sale Sold out
Shipping calculated at checkout.
Type
Voltage

Description

The ZONESUN ZS‑TB200 is a fully automatic round bottle labeling machine engineered for single‑side label application. It automatically transfers bottles, separates labels, and applies them with ±1 mm accuracy. The system can be equipped with a date printer to mark production dates, batch numbers, or expiration dates during labeling — completing both processes in one pass to maximize efficiency. Adjustable conveyor and bottle‑separating devices ensure smooth, bubble‑free application on bottles with diameters from 20 mm to 120 mm. Ideal for juice, water, toner, condiment, and other cylindrical containers in food, beverage, cosmetic, and chemical industries.



Parameter

Model

ZS-TB200

Label length

30~300MM

Label width

30~150MM

Suitable bottle diameter

φ20~120mm

Outside diameter of standard roll

φ280MM

Inside diameter of standard roll

φ76MM

Labeling accuracy

±1.0MM

Machine Weight

About 250KG

Frequency

50HZ

Voltage

220V

Power

1100W

Conveying speed

16m/min

Marking speed

5~19m/min

Labeling speed

30~160 PCS/min

Dimensions

About 2000*900*1500mm
