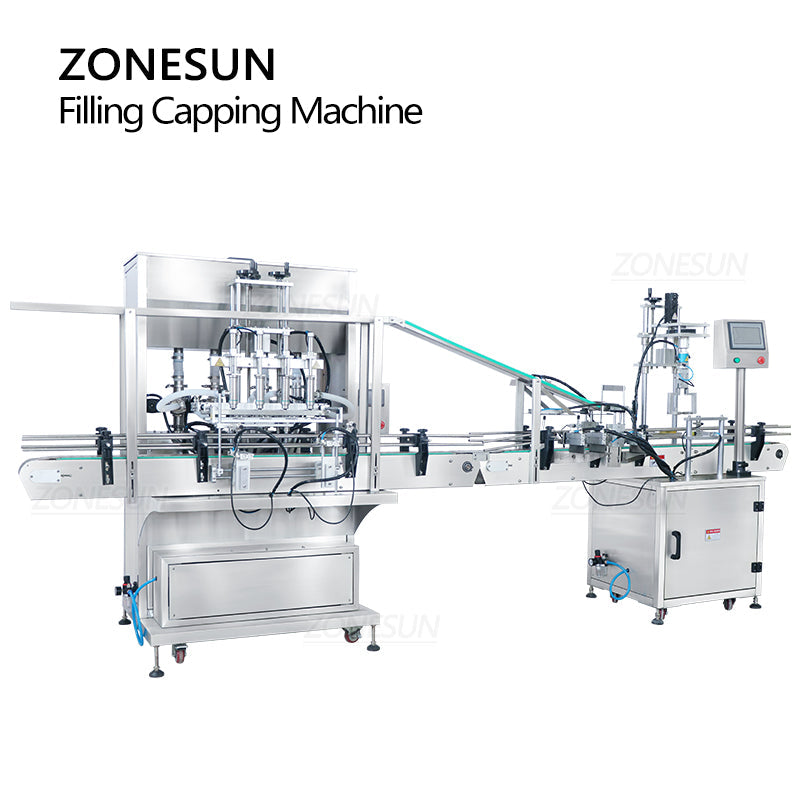

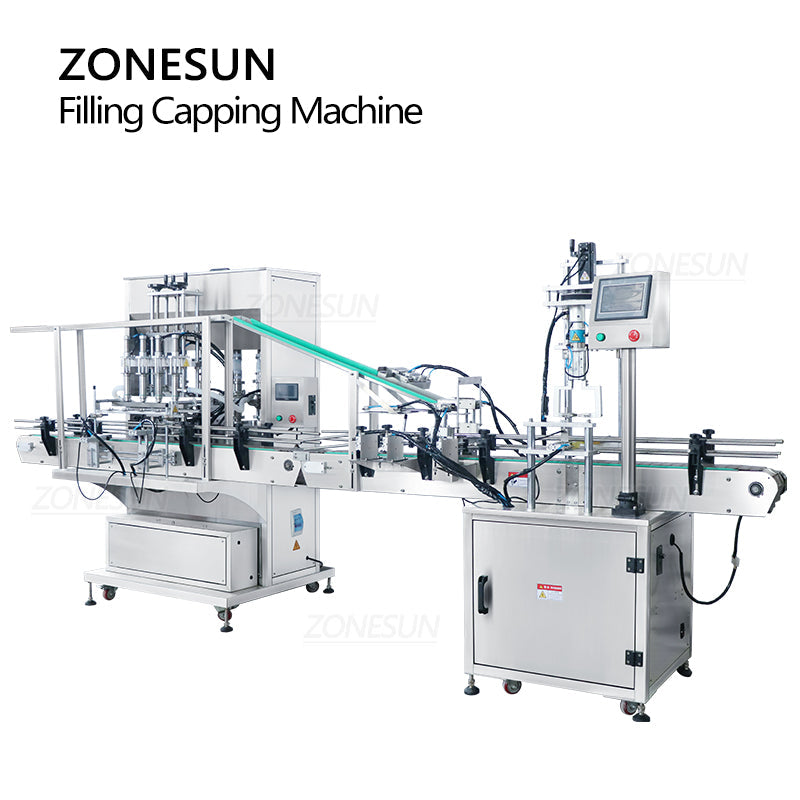

ZONESUN ZS-FAL180A9 4-Nozzle Paste Liquid Filling&Bottle Capping Line
ZONESUN ZS-FAL180A9 4-Nozzle Paste Liquid Filling&Bottle Capping Line
Couldn't load pickup availability
DESCRIPTION

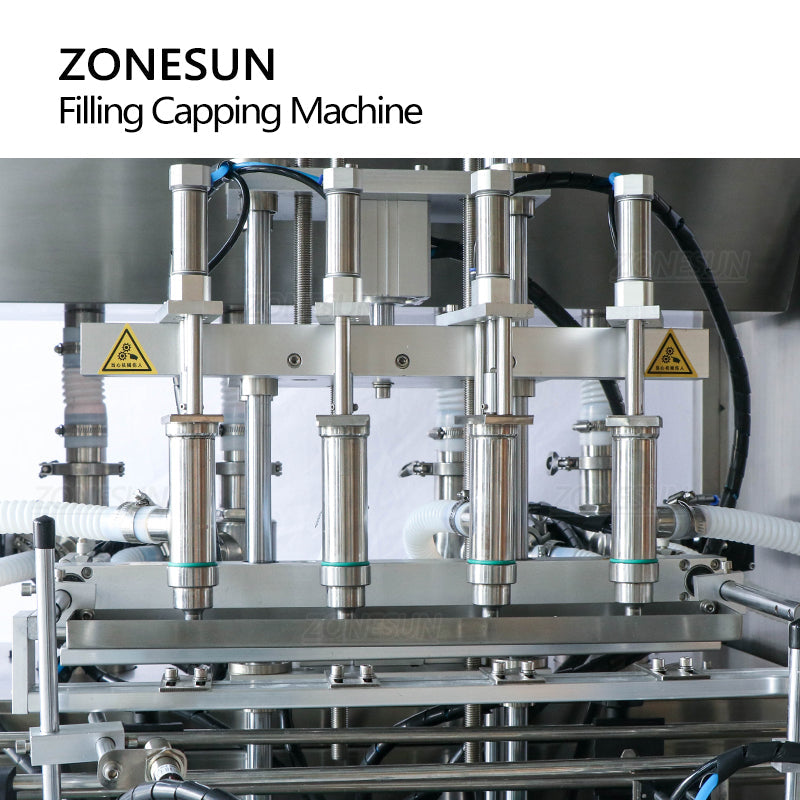

The ZONESUN ZS-FAL180A9 Customized 4 Nozzles Paste Liquid Filling and Irregular Bottle Caps Capping Machine Production Line is designed for efficient filling and capping of customized bottles. Equipped with four filling nozzles, it handles both paste and liquid products such as laundry detergent, shampoo, honey, juice, and milk. This system is capable of capping irregular bottle shapes and can be integrated with a labeling machine to form a fully automated production line. Widely used in food, beverage, daily chemical, and cosmetics industries, it offers a reliable and flexible solution for modern packaging needs.
PARAMETER
- Filling Machine
|
Model |
ZS-SV4GB |
|
Voltage |
110/220V 50-60HZ |
|
Filling Range |
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/ 1000-5000ml |
|
Working Speed(base on water) |
20-80 bottles/min |
|
Filling Accuracy |
≤2% |
|
Conveyor size |
2000*100mm(L*W) |
|
Size of filling nozzle |
OD15mm |
|
Size of air compressor connector |
Φ8mm |
|
Power of whole machine |
800W |
|
Machine size |
About 2000*1100*1750mm |
|
Package size |
About 1310*1140*2190mm |
|
Net weight/Gross weight |
About 270kg/347kg |
- Capping Machine
|
Model |
ZS-XG440F |
|
Machine Power |
About 800W |
|
Bottle Diameter |
About 30-100mm |
|
Bottle Height |
About 250mm |
|
Cap Diameter |
20-60mm |
|
Working Speed |
About 20-35 bottles/min(Depend on cap size and shape) |
|
Machine Size |
About 710*610*1750mm |
|
Machine Weight |
About 136kg |
|
Package Size |
About 1560*740*1890mm |
|
Package Weight |
About 210kg |
