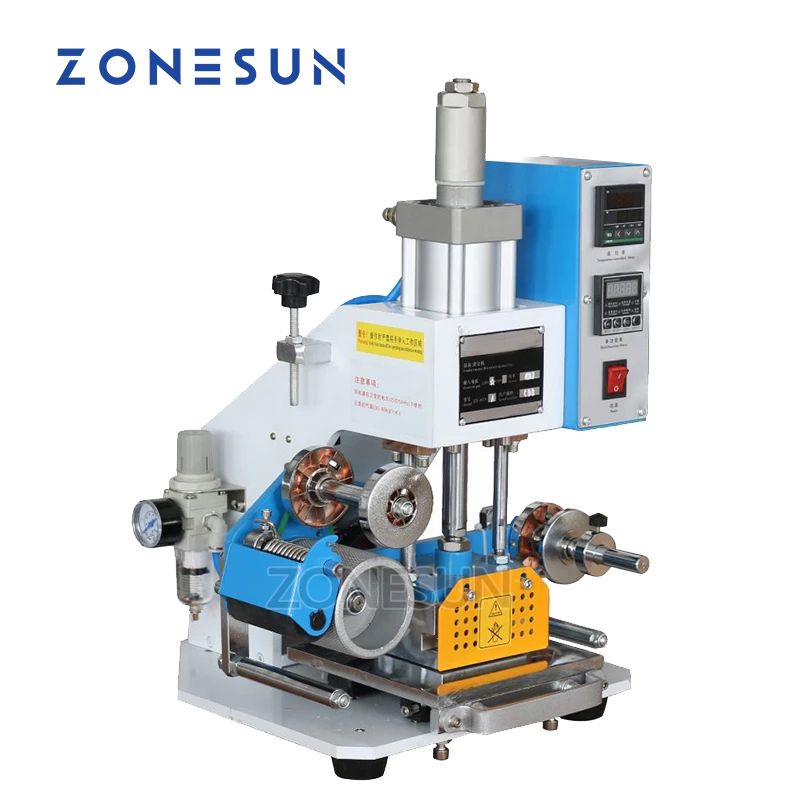

ZONESUN ZS-819A Pneumatic Stamping Machine



The ZONESUN ZS‑819A Pneumatic Stamping Machine operates on the principle of pneumatic automation, delivering consistent high‑pressure and high‑precision performance for hot stamping and indentation. Featuring a mechanical automatic take‑up system for foil feeding, it allows adjustable paper tape length to match different job requirements. With a working temperature range of 0–300 ℃ and a stamping speed of 10–50 cycles per minute, it is ideal for leather, paper, wood, plastic cards, and other flat materials. Its robust build, adjustable settings, and high degree of automation make it a reliable choice for industrial branding, decorative stamping, and packaging enhancement.





Item	Specification
Power Supply	220 V / 110 V · 50 Hz
Power	400 W
Operating Speed	10 – 50 times/min
Max Temperature	300 °C
Work Area	180 × 180 mm
Printing Center Distance	150 mm
Printable Area	80 × 90 mm
Working Surface Height	70 mm
Net Weight	38 kg
Gross Weight	42 kg
External Dimensions	370 × 345 × 600 mm
Package Size	420 × 395 × 660 mm
