ZONESUN ZS‑AFC30 Dual‑System Paste & Liquid Filler‑Capper
ZONESUN ZS‑AFC30 Dual‑System Paste & Liquid Filler‑Capper
Не удалось загрузить сведения о доступности самовывоза

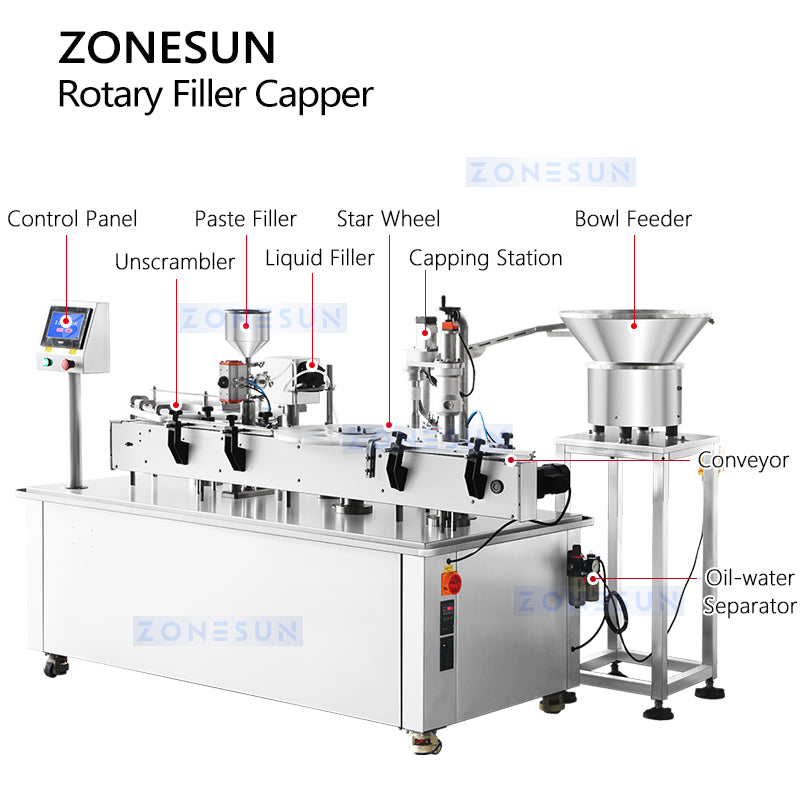

The ZONESUN ZS‑AFC30 Dual‑System Paste & Liquid Filler‑Capper is a versatile packaging solution for layered small bottle filling. Equipped with two dedicated filling systems — a piston pump for viscous pastes and a peristaltic pump for liquids — it adapts seamlessly to diverse product types. Bottles are efficiently oriented by the unscrambler, then transferred via conveyor to a star wheel turntable that integrates filling, capping, and sealing in one streamlined process. A vibratory bowl feeder ensures accurate cap delivery, while the servo‑motor capping head applies a secure, consistent seal. Ideal for food, cosmetics, and pharmaceutical industries seeking high precision and productivity in compact footprints.
| Machine Model | ZS‑AFC30 |
|---|---|
| Machine Voltage | 110 / 220 V 50‑60 Hz |
| Filling Pump | Liquid: Peristaltic pump / Paste: Ceramic piston pump |
| Filling Range | 4 mL (Customizable) |
| Filling Nozzle Quantity | 2 (Customizable) |
| Filling Accuracy | ± 1 % |
| Hopper Capacity | 2 L |
| Production | About 10 – 30 bottles/min |
| Machine Size (L × W × H) | About 2200 × 1400 × 1450 mm |
| Package Size | About 2430 × 1320 × 1620 mm |
| Package Weight | About 785 kg |
Note: This is a fully custom machine — the parameters can vary depending on the product it’s set up for.
