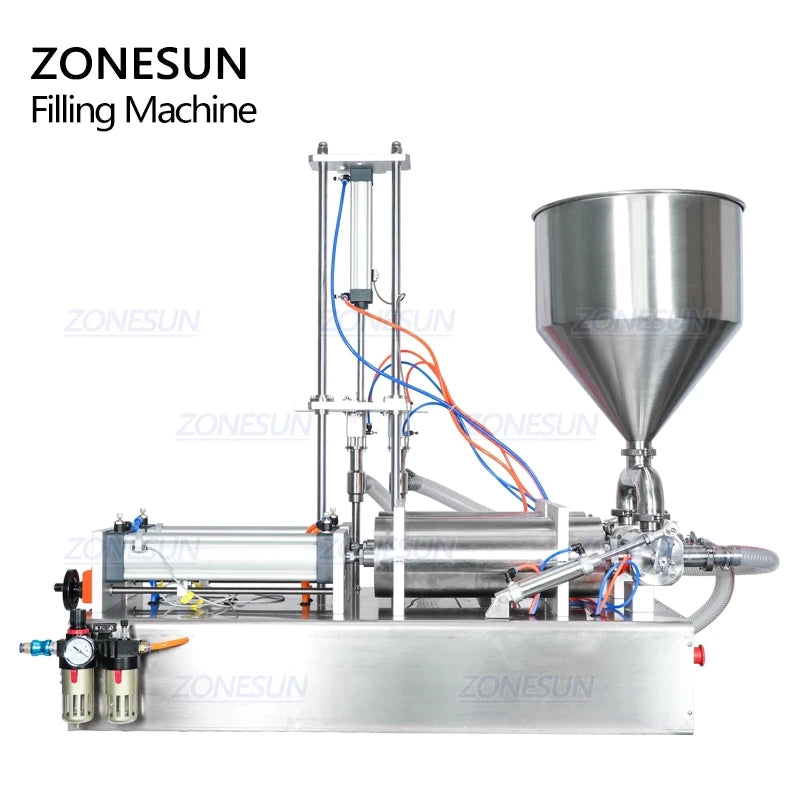

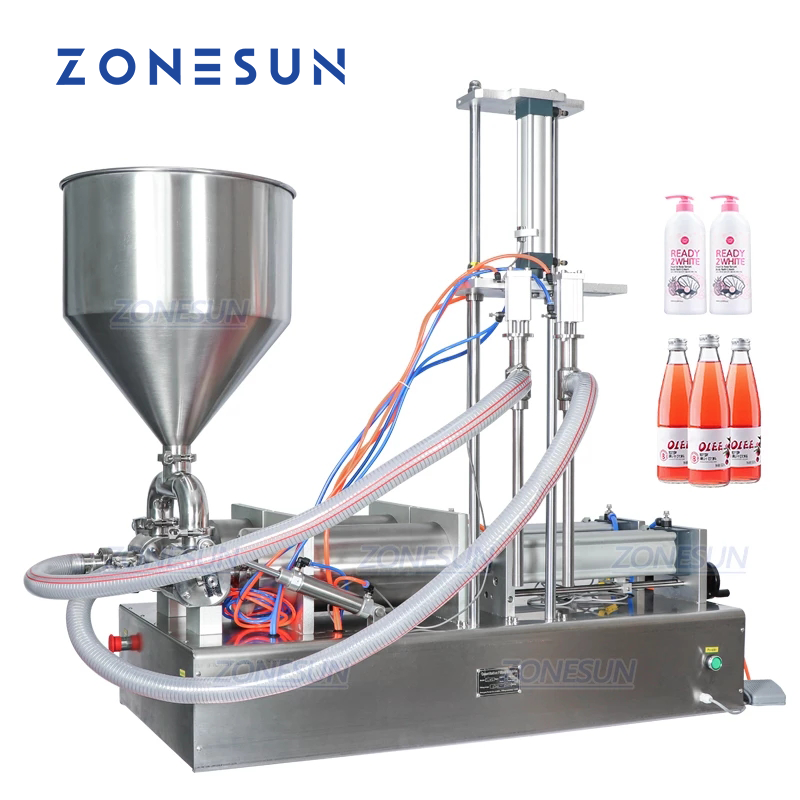

ZONESUN ZS-GTD2 Pneumatic Paste Filling Machine with 2 Diving Nozzles
ZONESUN ZS-GTD2 Pneumatic Paste Filling Machine with 2 Diving Nozzles
Не удалось загрузить сведения о доступности самовывоза
Description:
The ZONESUN ZS-GTD2 is a pneumatic piston filling machine equipped with two diving nozzles, designed specifically for foamy or viscous liquids. With an adjustable filling range of 1000–5000ml, it’s ideal for products like car washer fluid, shampoo, body wash, hand soap, and similar formulations. The diving nozzles automatically lift during operation to reduce foam and ensure clean, accurate filling. Filling speed and volume can be customized to meet production requirements, making it a reliable solution for daily chemical, cosmetic, and personal care industries.
Parameter
|
Model
|
ZS-GTD2
|
|||
|
Filling Range
|
5-100ML/10-200ML/50-500ML/100-1000ML/500-2500ML/1000-5000ML
|
|||
|
Power Supply
|
110V/220V 10W
|
|||
|
Filling Speed
|
0-50 bottles/min
|
|||
|
Filling Accuracy
|
±0.5%—±1%
|
|||
|
Hopper Size
|
30L
|
|||
|
Air Pressure
|
0.4-0.6Mpa
|
|||
|
Air Compressor Connector Size
|
OD10mm
|
|||
|
Machine Weight
|
90.5kg
|
|||
|
Machine Size
|
111*55*113cm
|
|||
|
Filling Nozzle Size
|
ID:15mm-OD:19mm-L:310mm(A)
ID: 18mm-OD:20mm-L:41mm(B)
|
|||
Note
If you need other filling range (5-100ML/10-200ML/50-500ML/100-1000ML/500-2500ML), please contact us.
