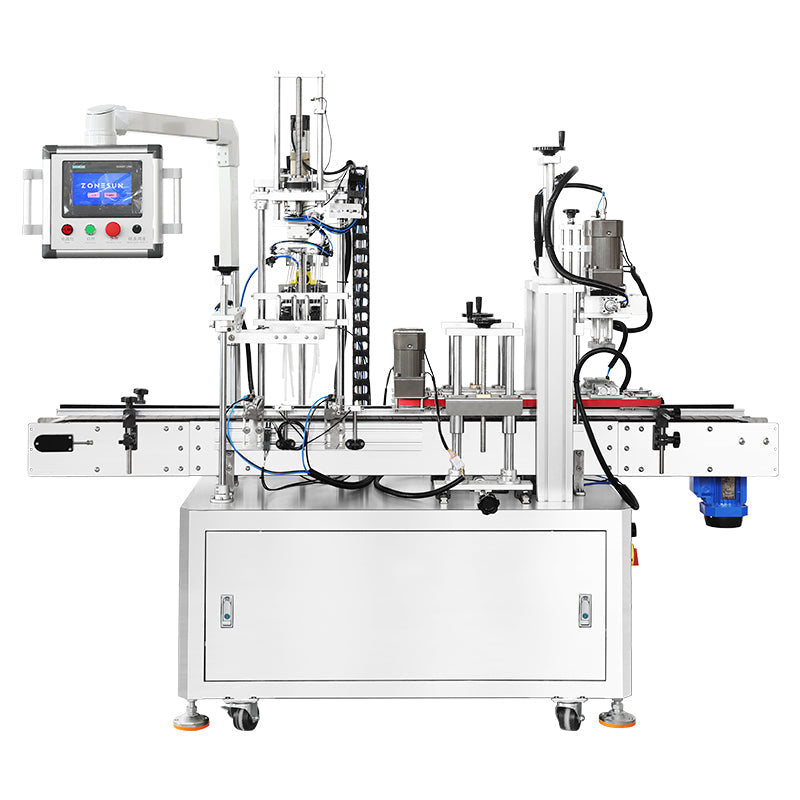

ZONESUN ZS-XG440D2 Servo Duckbill Pump Spray Cap Capping Machine

Description

The ZONESUN ZS-XG440D2 fully automatic Duckbill cap capping machine is designed for high-speed screw capping across cosmetic, pharmaceutical, personal care products and chemical industries. It supports a wide range of closures—including duckbill caps, pump heads, spray pumps, and trigger sprayers—without requiring part replacement. With simple adjustments, it adapts to various bottle formats and cap types within a diameter range of Φ18–70 mm. Integrating automatic cap sorting, placement, and servo-driven tightening, this machine delivers stable, efficient performance and is ideal for multi-format packaging lines.

Parameter

• Model: ZS-XG440D2
• Bottle Height: 60–300 mm
• Bottle Cap Diameter: Ø18–70 mm
• Working Speed: 20–40 bottles/min (depending on bottles and caps)
• Working Voltage: AC 220V / 110V, 50–60Hz
• Power: 2.2 kW
• Conveyor Length: 2200 mm
• Working Pressure: 0.5–0.7 MPa
• Machine Size: 2200 × 1520 × 1770 mm
• Gross Weight: 695 kg
