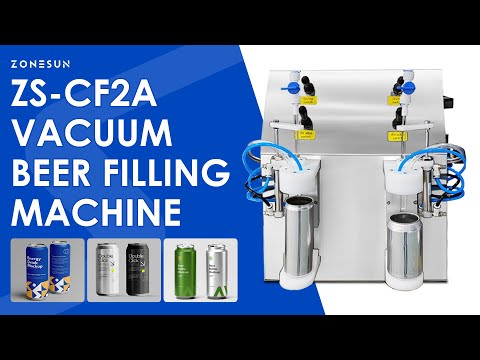

ZONESUN ZS-CF2A Vacuum Beer Filling Machine for Carbonated Drinks & Craft Breweries

DESCRIPTION

Introducing the ZONESUN ZS-CF2A dual-head vacuum beer filling machine, designed for precise and foam-free bottling of carbonated beverages. Each cycle begins with CO₂ pre-pressurization, which stabilizes internal pressure and minimizes oxidation. This is followed by vacuum-assisted filling through two independent nozzles, allowing simultaneous operation to boost efficiency. Constructed from food-grade stainless steel and silicone, the machine delivers ±1% filling accuracy with no electricity required, operating purely on compressed air. Ideal for craft breweries and beverage manufacturers seeking reliable, hygienic, and high-speed bottling performance.



Parameter

• Product Name: ZS-CF2A
• Filling Heads: 2 heads
• Filling Volume Range: 10ml – 250ml (customizable)
• Filling Speed: 20–40 bottles/min (depends on fluid viscosity)
• Filling Accuracy: ±1%
• Operation Mode: Automatic control / Foot pedal
• Drive Method: Pneumatic (requires external air compressor)
• Working Air Pressure: 0.4 – 0.6 MPa
• Applicable Media: Water-based liquids, essential oils, cosmetics, chemicals
• Contact Material: SUS 304 stainless steel / Food-grade silicone
• Power Requirement: No electricity required (purely air-powered)
• Machine Dimensions: About 95 × 58 × 70 cm
• Net Weight: About 55 kg

CONTROL SWITCHES

Equipped with dedicated "Driving Switch" and "Air Switch" controls, allowing operators to seamlessly initiate the filling cycle and activate precise CO₂ injection for optimum beverage preservation.

Optimized Infusion Tubing

Connects the upper supply system directly to the filling nozzles. Designed to seamlessly integrate with cooling systems or storage tanks, keeping beer fresh while maintaining consistent filling pressure for smooth operation

Dual-Head Filling System

Engineered with two independent filling heads, each equipped with its own dedicated nozzle and support bracket. This enables efficient simultaneous filling of two cans or bottles, significantly boosting your production output and workflow efficiency.

Air Source Filter Unit

Engineered to effectively filter out moisture, oil mist, and impurities from compressed air, delivering a clean and stable air supply to the system. This ensures maximum protection for pneumatic components and guarantees precise, smooth filling operation.
