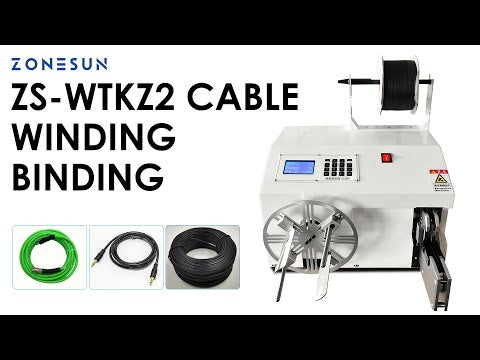

ZONESUN ZS-WTKZ2 Automatic Cable Winding and Binding Machine For USB AC/DC Cable

Description

The ZONESUN ZS-WTKZ2 is a fully automatic cable winding and binding machine designed for efficient bundling of various wire types. Supporting cable tie lengths from 60 to 260 mm, it integrates winding, inductive sensing, automatic tying, and real-time parameter control into one compact system. Equipped with a PLC-controlled interface and stainless steel winding reel, it ensures consistent bundling, reduced labor intensity, and compatibility with AC/DC power cords, data cables, headphone wires, and more. Ideal for electronics, wire harness production, and cable assembly lines.


Parameter

• Model: ZS-WTKZ2
• Power Supply: AC 220V, 50Hz / 60Hz
• Support Wire OD: Adjustable
• Winding Diameter: Adjustable (Max 220 mm)
• Winding Coil Number: Adjustable
• Winding Plate Diameter: 220 mm
• Winding Shape: Circle shape, 8-shaped
• Binding Wire OD: For φ5–35 mm
• Binding Wire Coil Number: Adjustable (suggested 3 circles)
• Cable Tie Length: 60–260 mm
• Machine Weight: 35 kg
• Machine Dimension (L×W×H): 405 × 320 × 320 mm
