Induction Sealing Machines
Explore induction sealing machines for applying aluminum foil liners to compatible plastic and glass containers. Compare handheld, tabletop and continuous inline models based on closure dimensions, liner specifications and production requirements.
Explore Induction Sealing Equipment
Compare portable sealers, tabletop units and continuous induction systems. Check the supported sealing diameter, container material, liner type and operating requirements for each model.

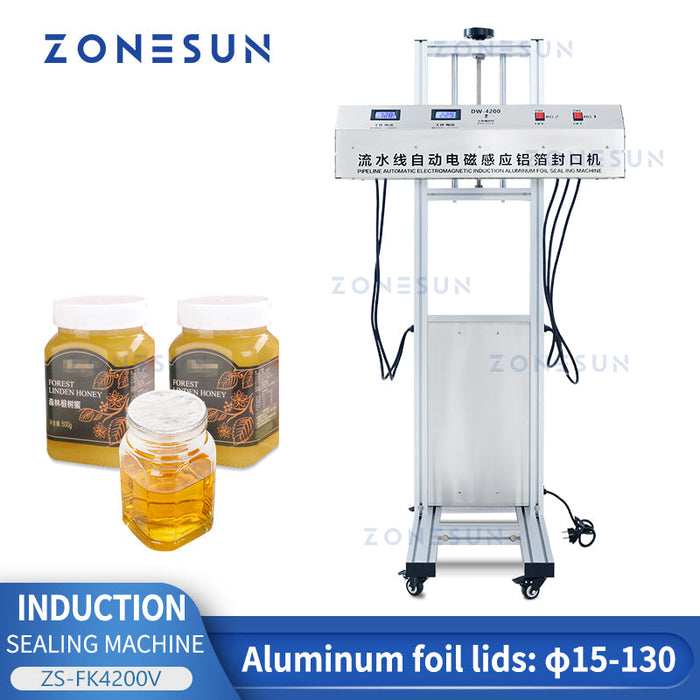

ZONESUN ZS-FK4200V Automatic Induction Aluminum Foil Sealing Machine
$1,799.00 – $1,960.00
View Machine
Commercial Induction Sealing Machines: Complete Configuration Guide
Protect product freshness, prevent leakage, and ensure tamper-evident security with high-efficiency electromagnetic induction sealers. Achieve high-speed, non-contact hermetic sealing tailored perfectly to your bottles and caps.

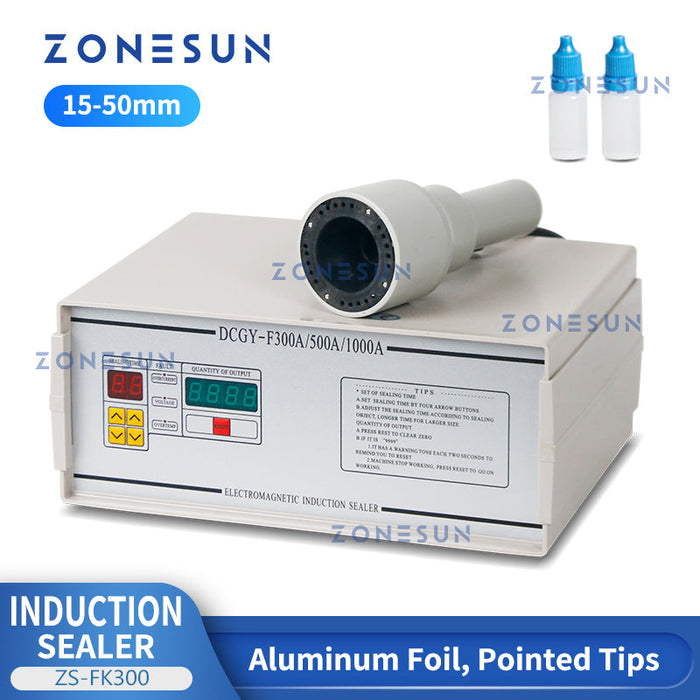

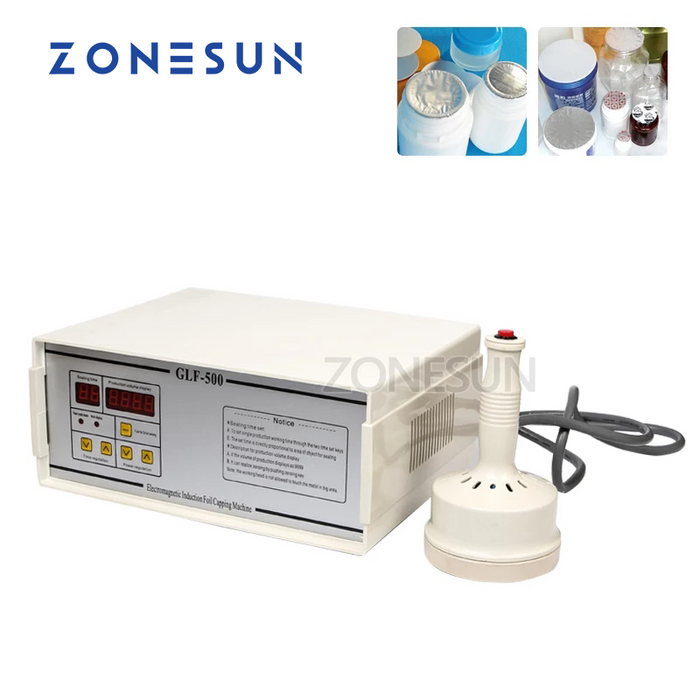

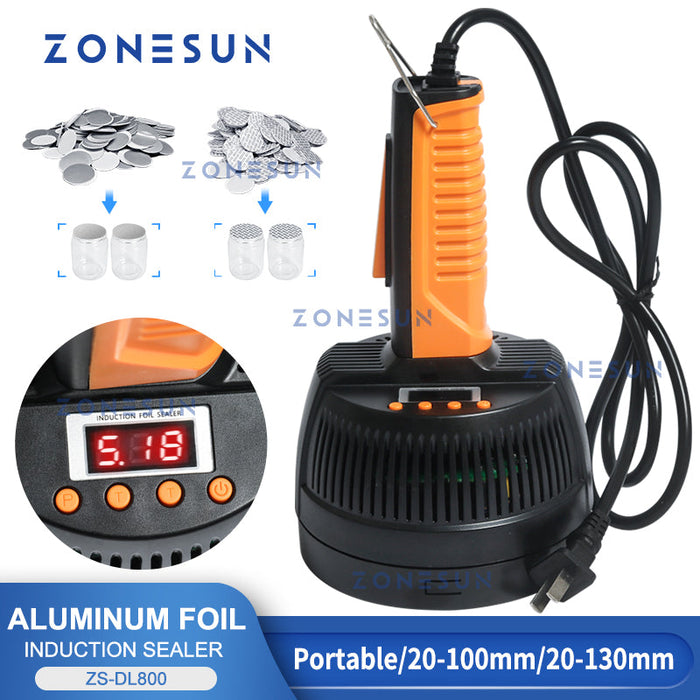

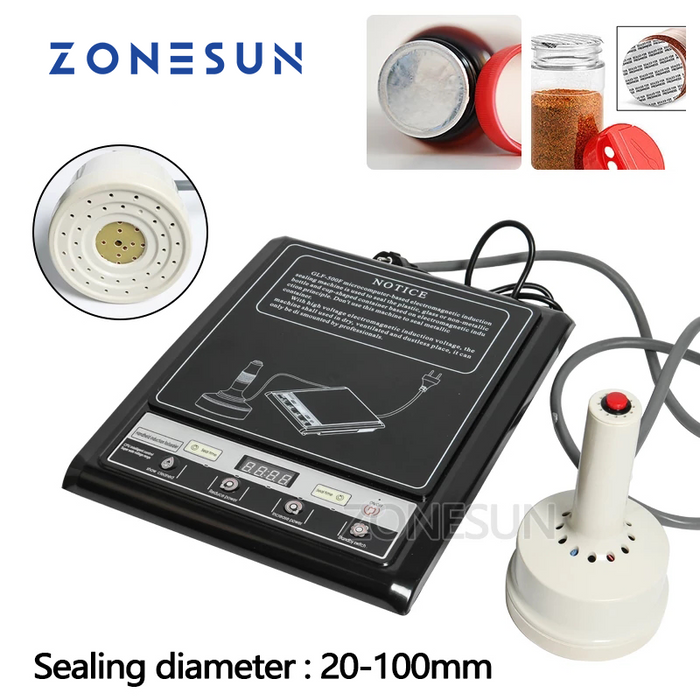

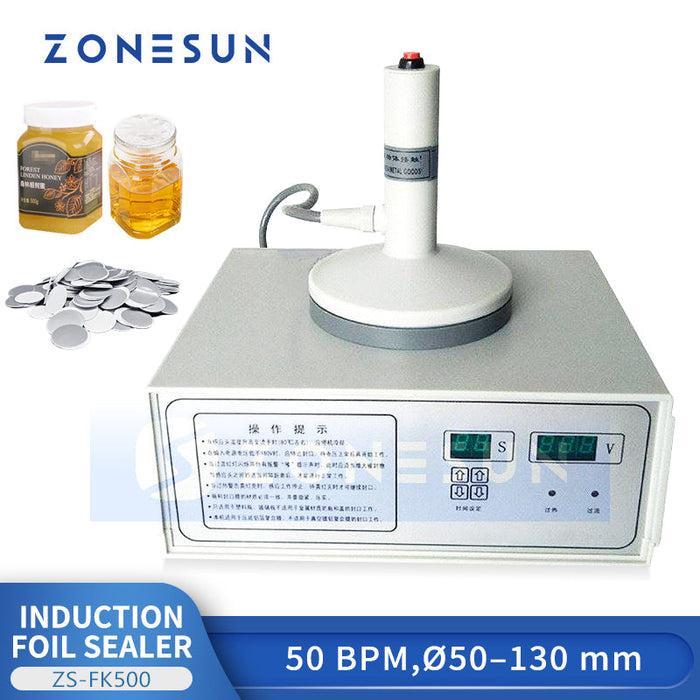

Handheld Induction Sealers
Portable, compact equipment engineered for small batches, manual laboratory testing, and flexible startup production. Operators manually place the sealing head onto the container cap and activate the induction cycle.

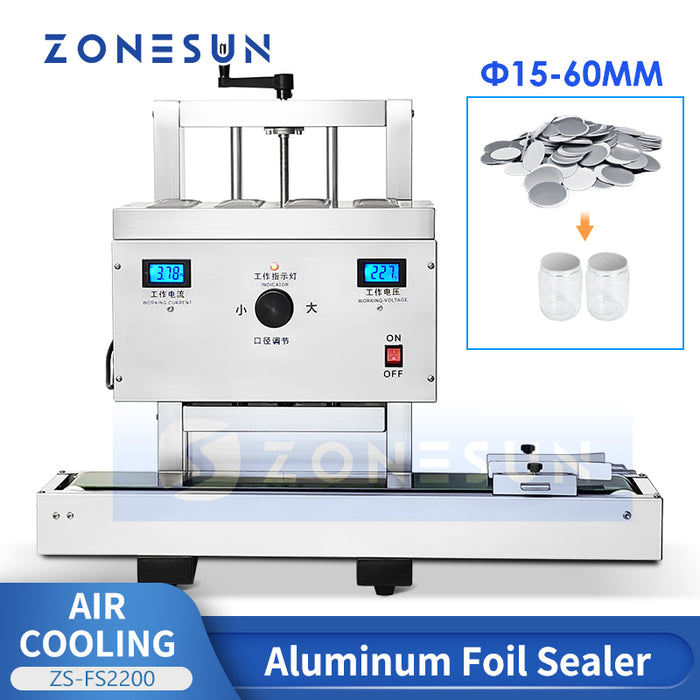

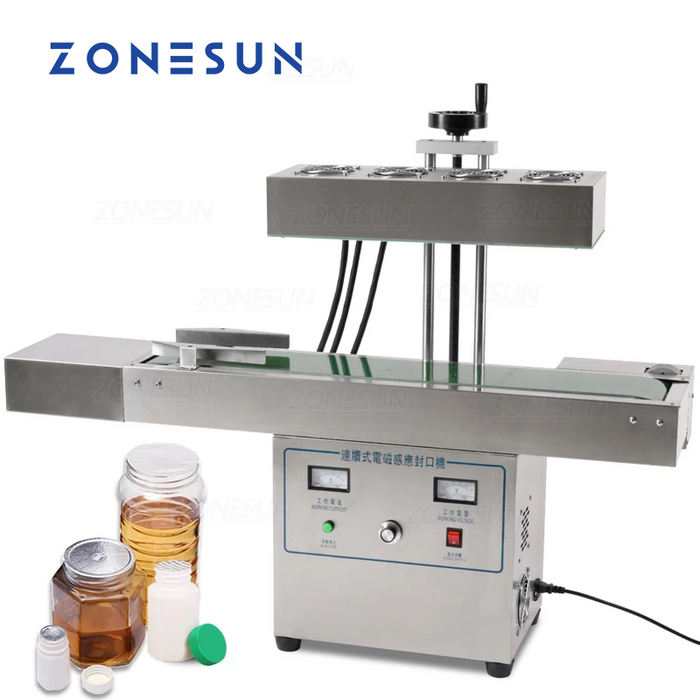

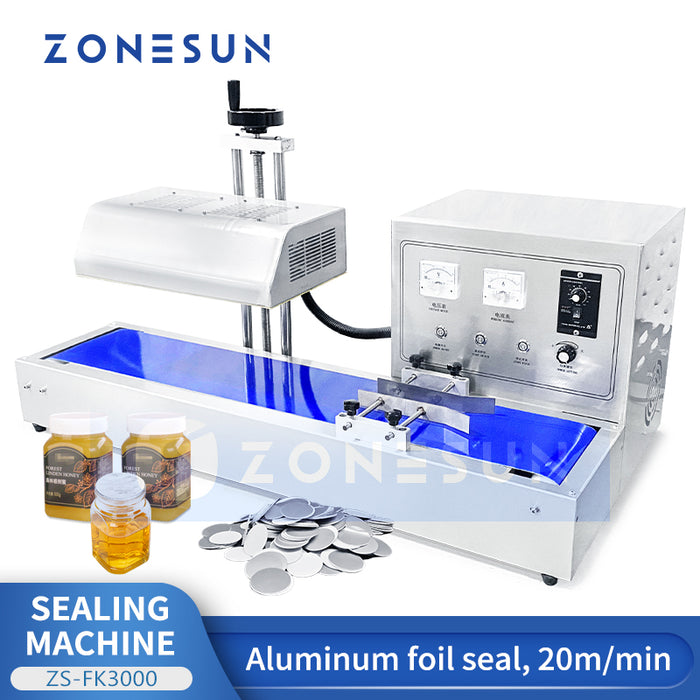

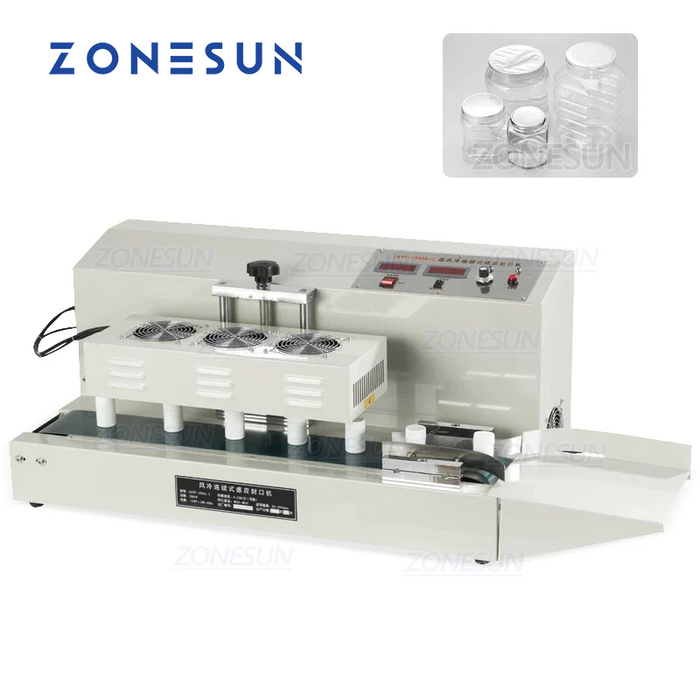

Tabletop Induction Sealers
An ideal semi-automatic solution for growing businesses with medium packaging outputs. These compact benchtop units feature adjustable guide rails for manual bottle feeding under a fixed induction head.

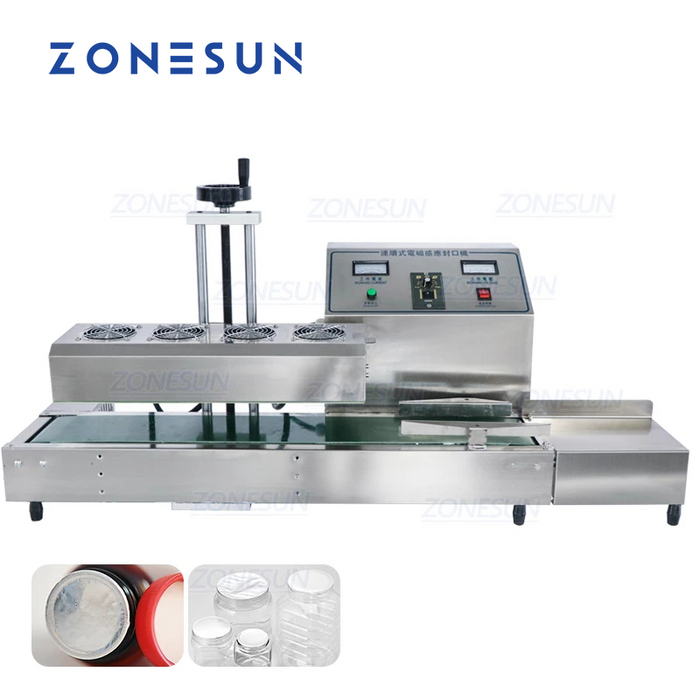

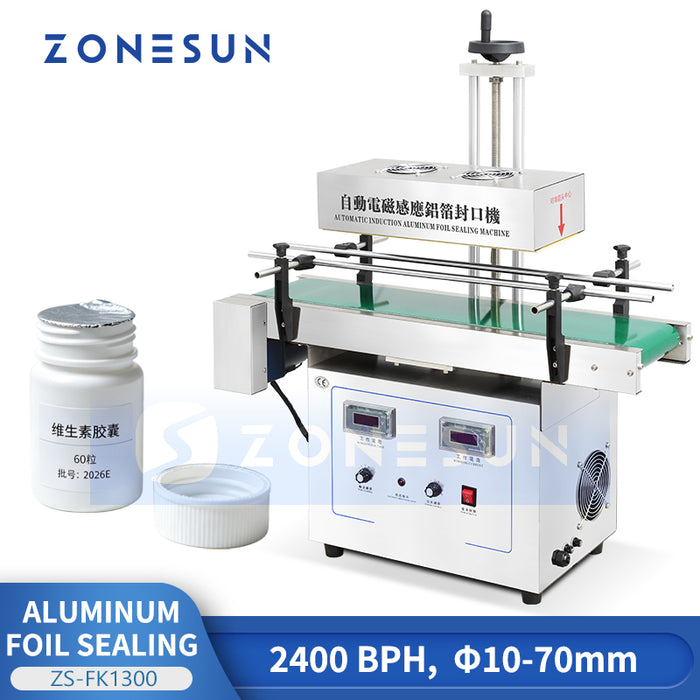

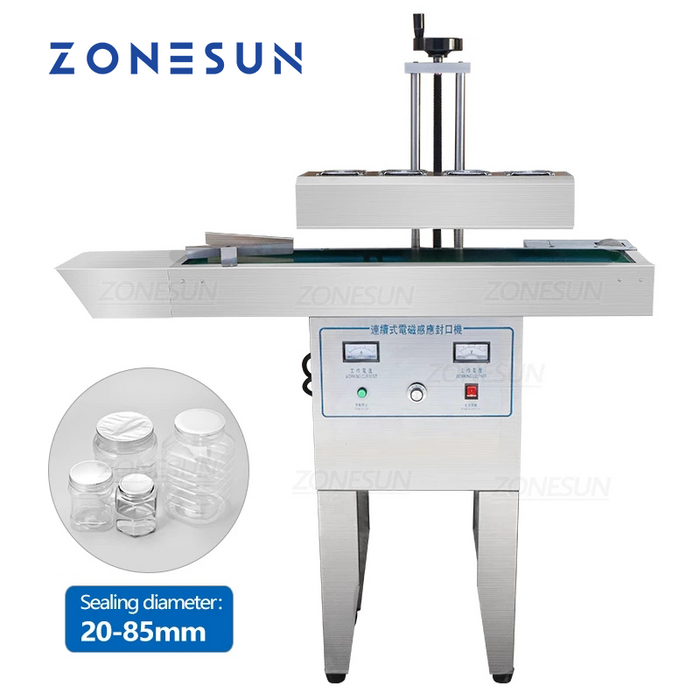

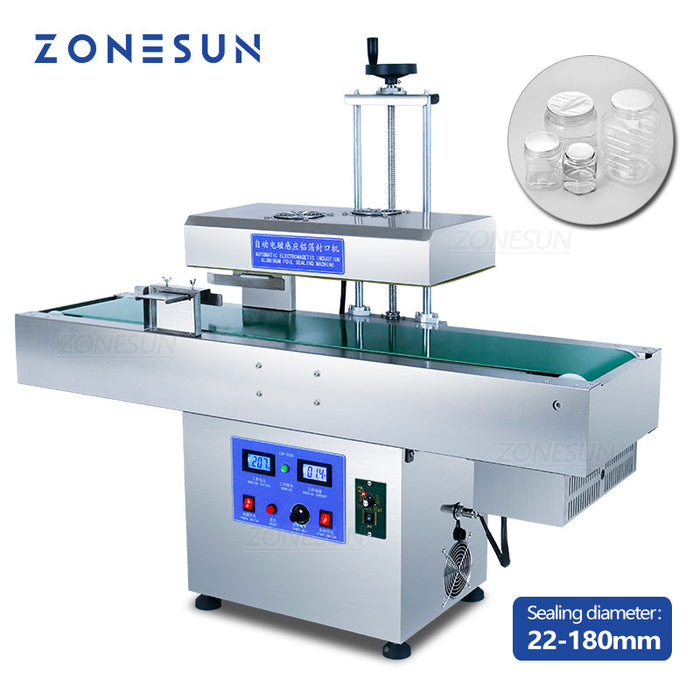

Continuous Inline Induction Sealers
High-speed, conveyor-based systems built for heavy-duty industrial automated packaging lines. Bottles move continuously beneath the tunnel-style induction head for instant, non-contact sealing without stopping the line.
Applications for Induction Foil Sealing
Induction sealing is commonly considered when a compatible foil liner is required to create a seal across a container opening. Confirm the full bottle, cap and liner combination before purchase.
Food & Beverage Bottles
Lock in flavor, prevent oxygen contamination, and eliminate shipping leaks. Perfect for sauces, honey, dairy products, juice bottles, condiments, and supplements. Ensures consumer trust with professional tamper-evident seals.
Cosmetics & Personal Care
Premium barrier protection for high-value formulations. Ideal for skincare creams, lotions, hair care products, essential oils, and luxury cosmetics. Prevents volatile ingredient evaporation and formula degradation.
Chemical & Industrial Products
Maximum spill protection for hazardous or aggressive substances. Highly recommended for agrochemicals, motor oils, lubricants, household detergents, and pharmaceuticals. Heavy-duty seals prevent dangerous leaks during transit.
How to Choose an Induction Sealing Machine
Review these six factors to narrow down suitable models and provide the information needed for a more accurate quotation.
1. Bottle Opening & Cap Diameter
Measure the exact outer diameter of your bottle mouth or the inner cap profile. Select an induction coil size (e.g., 20mm–120mm) that matches your cap range to guarantee uniform electromagnetic heating.
2. Bottle & Cap Materials
Induction sealing only works on non-metallic containers. Verify your bottle material (HDPE, PET, PP, PVC, or Glass). Note that glass bottles and metal caps require highly specialized liners and sealing setups.

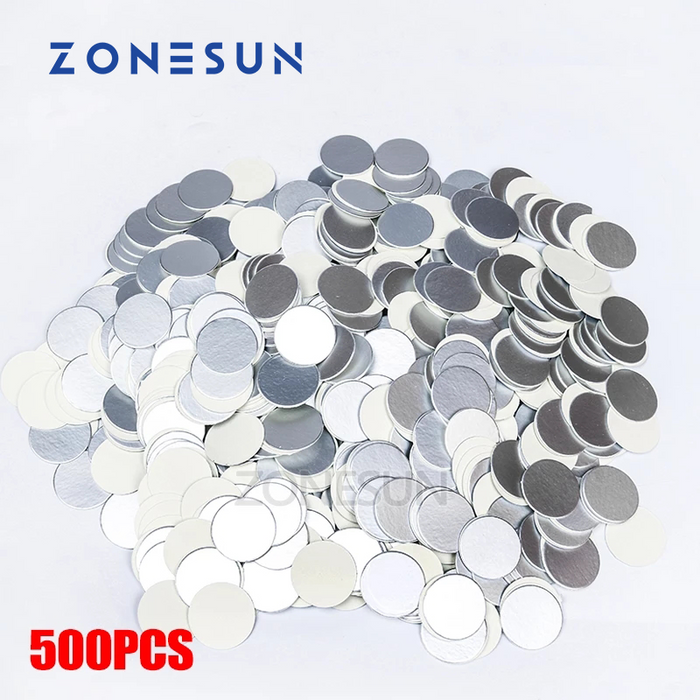

3. Aluminum Foil Liner
Ensure proper material bonding. Your liner structure (one-piece clean peel vs. two-piece wax-bonded pulp backing) must precisely match both your bottle material (e.g., PET-specific liners) and your product characteristics.
4. Production Speed
Determine your target workflow. Handheld or tabletop units are sufficient for under 20 bottles per minute. For high-speed lines, choose an inline conveyor system with automatic rejection sensors for unsealed caps.

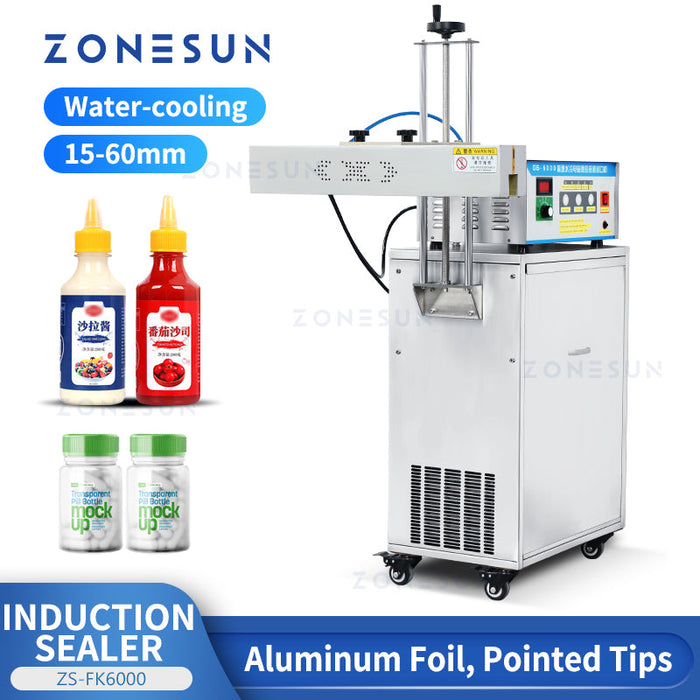

5. Air-Cooled or Water-Cooled
Match the cooling system to your duty cycle. Air-cooled sealers are low-maintenance and excellent for low-to-medium output. Water-cooled models are mandatory for continuous, multi-shift high-speed operations to prevent coil overheating.
6. Installation & Line Integration
Evaluate plant logistics. Check conveyor height adjustments, facility electrical constraints (110V/220V), and the physical footprint required to mount the sealer frame over your existing conveyor lines.
What to Prepare Before Requesting a Quote
Providing these details helps determine whether the machine and liner are suitable for your package.
✓
Bottle and cap samples Bottle and Cap Samples: Provide the exact material composition, neck diameter, and physical cap styles (provide 3D drawings or pictures if available).
✓
Liner specifications Liner Specifications: Share your liner type (e.g., peelable, foil-laminated, induction inner-seal) and backing material compatibility.
✓
Target output Target Output Speed: State your required sealing speed (bottles per minute or per shift) to help determine the correct generator power output.
✓
Installation conditions Installation Conditions: Confirm your available factory floor space, ambient operating temperature, and local power supply voltage.
Induction Sealing Machine FAQs
Find answers to common questions about induction sealing, container compatibility and machine selection.
What does an induction sealing machine do?
It utilizes an electromagnetic field to generate instant high heat on an aluminum foil liner inside a bottle cap. The heat melts the polymer coating, hermetically fusing the foil liner to the rim of the bottle opening.
Can an induction sealer work with plastic and glass bottles?
Yes. It works flawlessly with all common plastics (HDPE, PET, PP, PVC). It can also seal glass bottles, but glass requires a specific type of liner coated with an adhesive suitable for glass bonding.
Can one machine seal different cap diameters?
The supported diameter range varies by model. Check the machine specifications and confirm whether the intended cap sizes can be handled with the same setup.
How do I select the correct aluminum foil liner?
The liner's sealing layer must match your bottle material (e.g., an HDPE bottle needs an HDPE-compatible liner). You must also choose between a one-piece liner (leaves nothing in the cap) or a two-piece liner (leaves a cardboard backing inside the cap).
Should I choose a handheld or inline induction sealer?
Handheld models may suit smaller batches and flexible workstations. Conveyor-based inline systems are more suitable for continuous bottle handling when higher output and line integration are required.
What information should I provide for a recommendation?
Provide the bottle and cap dimensions, container material, liner specifications, required output, available power supply and installation conditions. Samples or clear photos can help verify compatibility.
