Cartoning Solutions
Cartoning Machines
Explore cartoning machines for different product formats, carton styles and production requirements. Compare machine configurations to find a suitable solution for your packaging process.
Explore Our Equipment
Cartoning Machines for Sale
Browse available machines and compare configurations for your packaging needs.
Explore Machine Categories
Choose by Cartoning Machine Type
Compare common cartoning configurations by loading direction and packaging workflow.
01

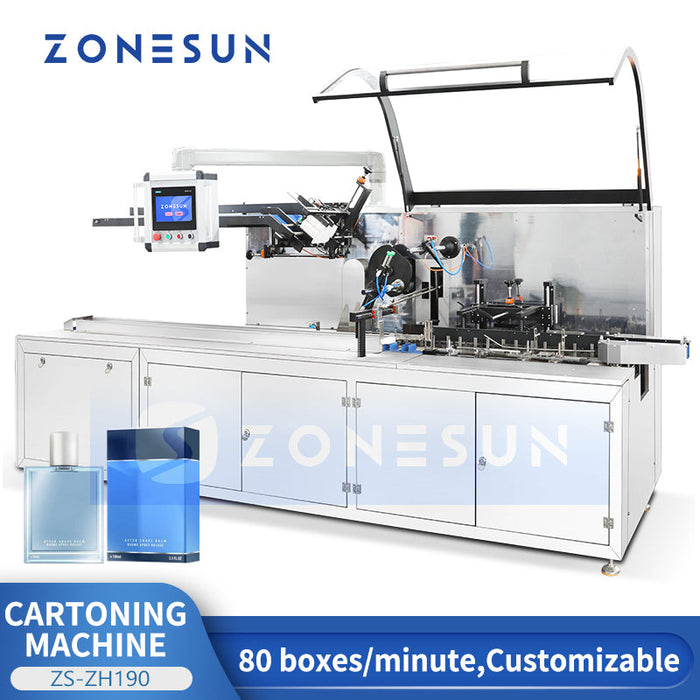

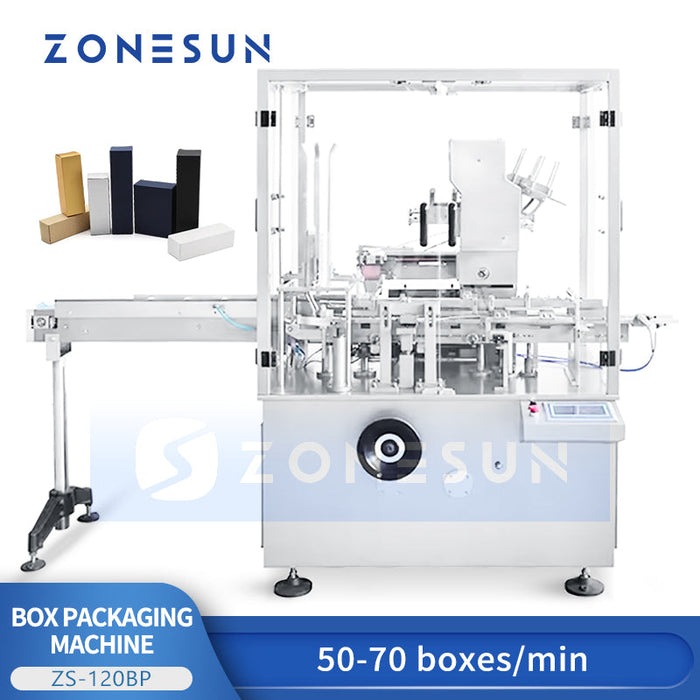

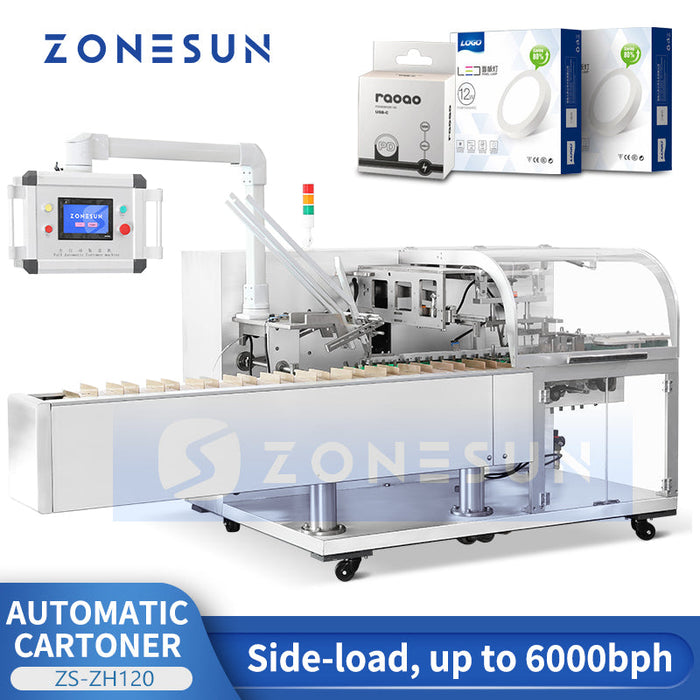

Horizontal Cartoning Machines
Best for pushing products horizontally into cartons. Ideal for regular-shaped items like blister packs, tubes, bottles, pouches, and bars.

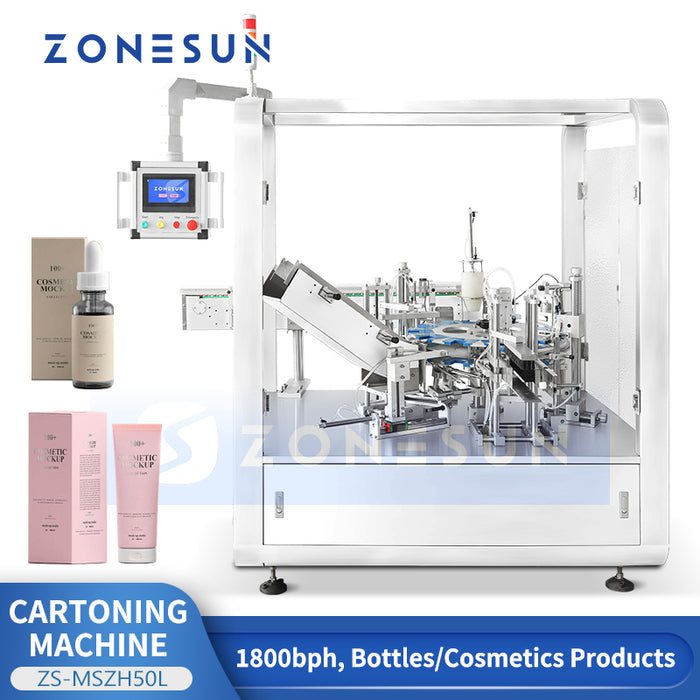

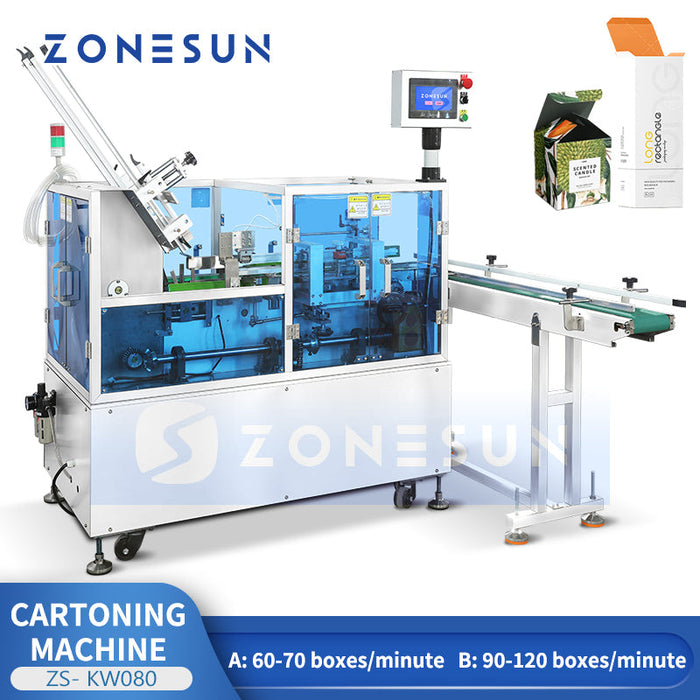

Browse machines → 02Top-Load Cartoning Machines
Best for dropping products vertically into open cartons. Ideal for irregular, heavy, multiple-grouped items, or fragile cosmetics and jars.

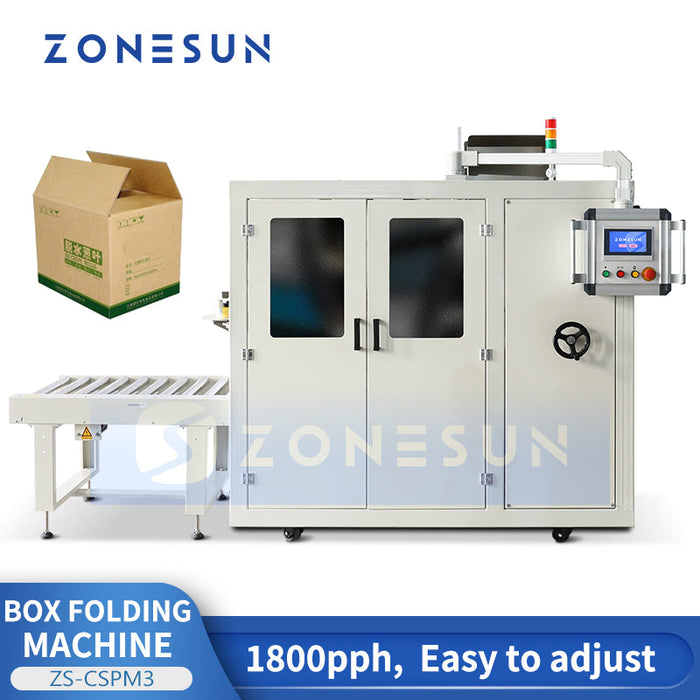

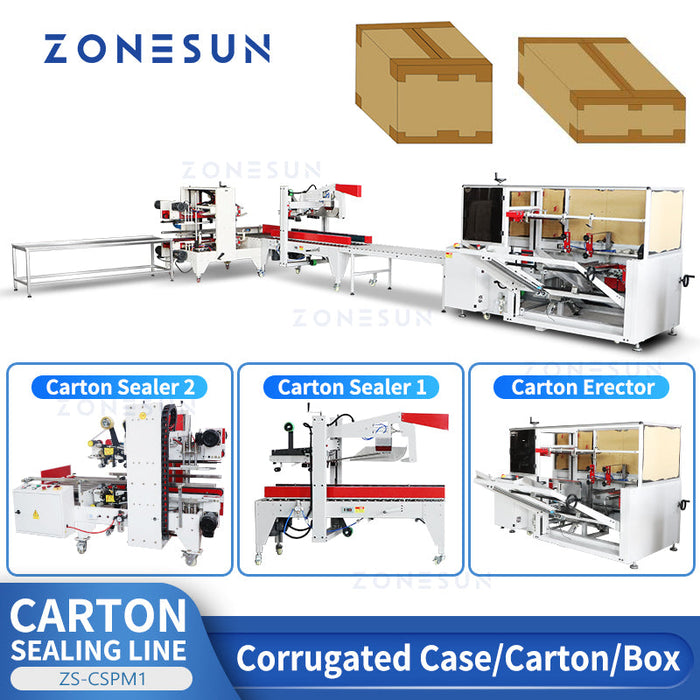

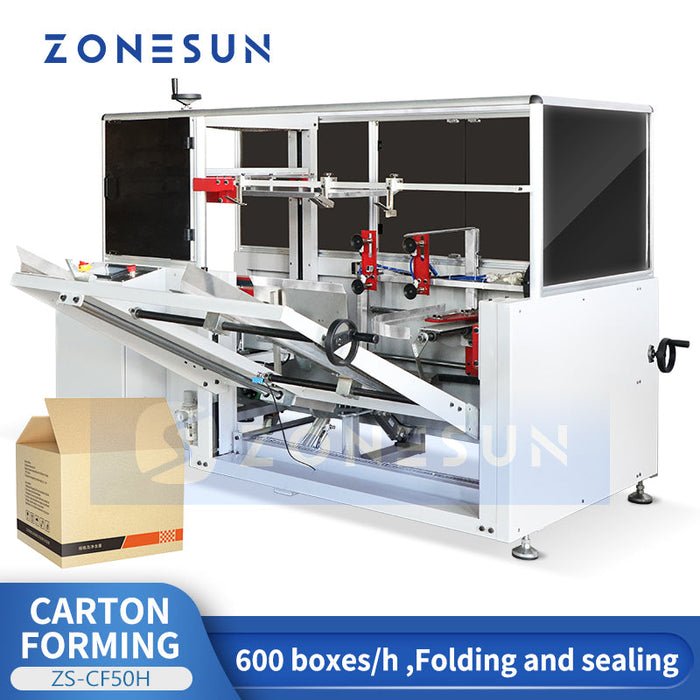

Browse machines → 03Carton Erectors
High-speed automated carton forming. Picks flat corrugated blanks, erects them into 3D shapes, and seals the bottom with tape or hot melt.

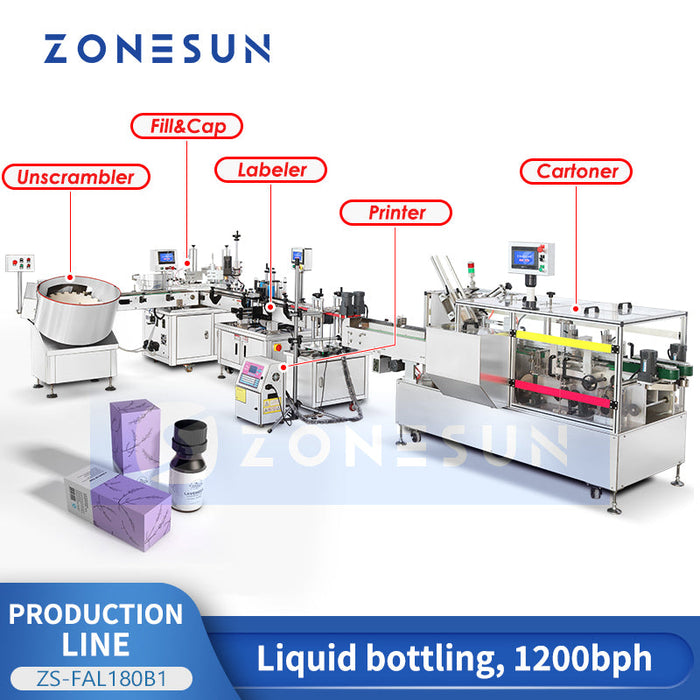

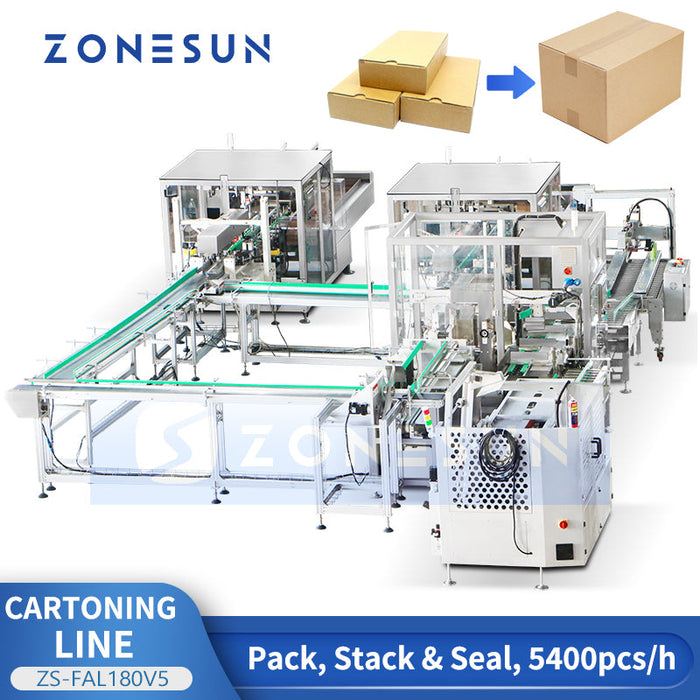

Browse machines → 04Integrated Cartoning Lines
Connects upstream processing seamlessly. Integrates feeding, orientation, leaflet insertion, cartoning, case packing, and palletizing.
Browse machines →These are general configuration categories. Confirm compatibility against your product, carton dimensions and required process.
Machine Selection Guide
How to Choose a Cartoning Machine
Start with your product and carton specifications, then match the loading method, output target and integration requirements to a suitable machine configuration.
01
Carton & Product Requirements
Confirm carton dimensions and product characteristics before selecting the machine.
Carton Specifications
- Carton Blueprints & Material (Provide exact flat layout blueprints and pre-broken score lines. Specify paperboard thickness in gsm, board material quality, and gloss finish.)
- Dimensions & Sealing Style (Confirm precise carton length, width, and height with acceptable dimensional tolerances, and preferred closure requirements such as tuck-in flaps or hot-melt glue sealing.)
- Inserts & Leaflet Components (Specify any leaflets, instruction booklets, protective partitions, or other orientation components to be automatically loaded alongside the product.)
Product Specifications
- Product Form & Fragility (Consider product shape, size, state like powders, granules, liquids, solids, and physical fragility to determine the optimal machine handling system.)
- Weight & Dosing Accuracy (Confirm target product weight or volume range per pack, and required dosing, counting, or volumetric alignment tolerance requirements.)
- Infeed & Orientation Needs (Specify how products are positioned, product contact material compatibility, changeover frequency, and upstream feeding or conveyor integration.)
Tip: Prepare carton samples, product samples and dimension drawings. Testing with actual samples helps verify feeding, insertion and carton-closing performance.
02
Feeding & Cartoning Process
The feeding method should match product shape, presentation and loading direction.
Product Feeding
Products travel down an indexing belt or manual feeding infeed.
Rotary Opening & Pushing
Mechanical rotary cups vacuum-open the carton while a servo pusher smooths the product inside.
Flap Closing & Outfeed
Tuck-in folders or hot-melt glue guns seal the ends before final discharge.
Consider the complete workflow.
If your product comes from a filling, labeling or wrapping machine, share its discharge height, output speed and transfer method when discussing integration.
03
Speed, Closing Methods & Automation
Choose a configuration based on target output and actual carton-closing requirements.
Target Production Speed
Define your target Cartons Per Minute (CPM). Speed depends heavily on glue drying times and product pushing dynamics.
Carton Closing Method
Choose between mechanical tuck-in flap closing, hot-melt adhesive glue injection, or tamper-evident tape sealing.
Automation & Changeover
Select standalone semi-automatic units or fully automatic lines. Intelligent PLCs allow quick mechanical guide adjustments for multiple sizes.
Actual output depends on product stability, carton quality, feeding consistency, insertion steps and the selected configuration. Confirm the production target with the supplier.
04
Installation & Production Line Integration
Check site conditions and upstream/downstream connections before finalizing the machine layout.
Available Space
Share the installation area, operator access, maintenance clearance and product infeed/outfeed direction.
Utilities & Site Conditions
Confirm electrical supply, compressed-air availability where required, environmental conditions and site-specific safety requirements.
Line Connections
Provide connected equipment models, conveyor height, transfer direction and expected line speed to assess synchronization.
Testing & Change Parts
Ask which carton sizes are supported, what format parts are needed and whether product and carton samples can be tested before shipment.
Prepare for a Recommendation
What Information Should You Provide?
Share the following details so the team can evaluate a suitable machine configuration.
-
Product & Carton Blueprints
(Flat carton layout drawings and product outer dimensions) -
Bottle/Pouch Samples
(Actual physical product and box samples for factory calibration) -
Target Production Speed
(Your required output in Cartons Per Minute / CPM) -
Preferred Carton Closing Method
(Tuck-in flap closure or hot-melt glue spraying) -
Leaflet/Manual Insertion Requirements
(Whether an automatic leaflet folder is required inside the box)
Helpful Answers
Cartoning Machine FAQs
Review common questions before comparing machine configurations.
How do I choose the right cartoning machine?
Selection depends on your packaging direction (Horizontal for smooth items like blisters/tubes; Vertical for top-drop liquids/jars), carton size range, closing method, and target Cartons Per Minute (CPM).
Can one machine handle different carton sizes?
Yes. Equipped with digital scales, adjustable guiding rails, and an intelligent PLC recipe system, our cartoning machines allow a single operator to switch box dimensions completely within 15–20 minutes without tools.
Can a cartoning machine connect to an existing production line?
Integration may be possible when transfer height, line speed, product orientation, controls and available space are compatible. Share a layout drawing and details of connected equipment for assessment.
How can I confirm the expected production speed?
Share your target cartons per minute and actual product and carton specifications. Confirm expected output under representative operating conditions because feeding, insertion and closing requirements affect performance.
Can the machine use glue sealing or tuck-in carton closures?
We provide customized closing stations. A machine can be built purely with mechanical tuck-in folders for slots, or integrated with global premium Nordson hot-melt glue units for secure tamper-evident carton sealing.
What should I send when requesting a quotation?
Please send us your flat carton layout blueprints with score lines, exact dimensions of the items going inside, target speed requirements, and whether you need automated leaflet folding or batch date printing.
Machine Selection Support
Find a Cartoning Solution for Your Product
Share your product, carton dimensions and production target to discuss a suitable machine configuration.
