Test Tube Filling & Capping Machines
Explore automatic test tube filling and capping machines for liquid dosing, cap application and integrated packaging operations. Find equipment configurations to match your container specifications and production requirements.
Test Tube Filling & Capping Equipment
Compare available test tube filling, capping and integrated monoblock machines. Use the filters to narrow down equipment options.
Test Tube Packaging Process
A typical test tube packaging workflow moves through a series of coordinated operations, from empty tube feeding to finished product discharge.
01
Tube Feeding
Empty tubes are supplied and arranged for the production cycle.
02
Tube Orientation & Puck Loading
Automatically orient and load individual test tubes into custom pucks or carrier racks to ensure vertical stability.
03
Liquid Filling
The required liquid is dispensed into each tube.
04
Cap Placement & Torque Capping
Pick-and-place caps precisely onto tubes, followed by servo-driven torque control to prevent over-tightening or leakage.
05
Product Discharge
Finished tubes are transferred to the next stage. Labeling can be integrated in compatible configurations.
Test Tube Machine Configurations
Different machine layouts combine filling, capping and labeling operations according to container format and production needs.
CONFIGURATION 01

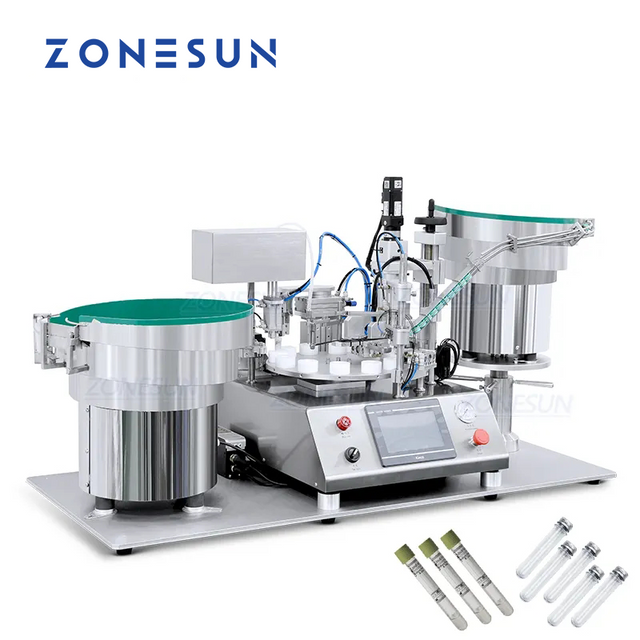

Test Tube Filling & Capping Monoblock
Designed for compact multi-functional lines. Integrates tube feeding, high-precision liquid dispensing, and cap torquing inside a single, small-footprint star-wheel station.
Explore ZS-AFC16 →
CONFIGURATION 02

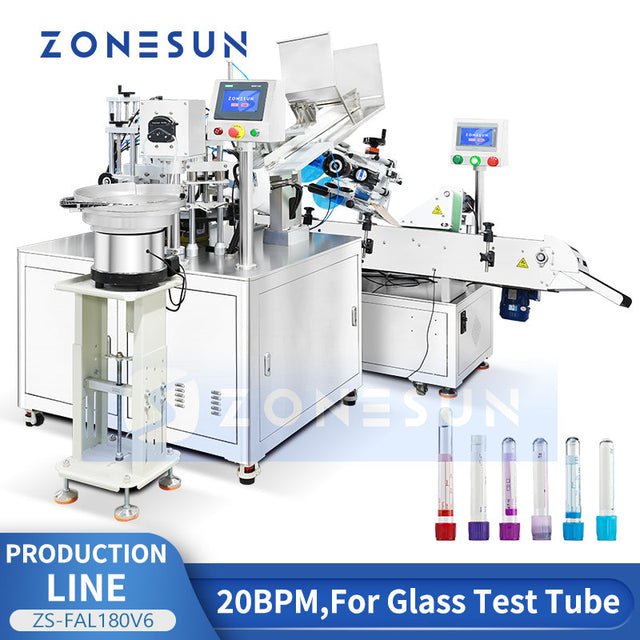

Filling, Capping & Labeling System
Designed for seamless full-line automation. Connects the core Monoblock unit with a downstream high-speed wrap-around labeling module for print-and-apply medical workflows.
Explore ZS-FAL180V6 →
CONFIGURATION 03

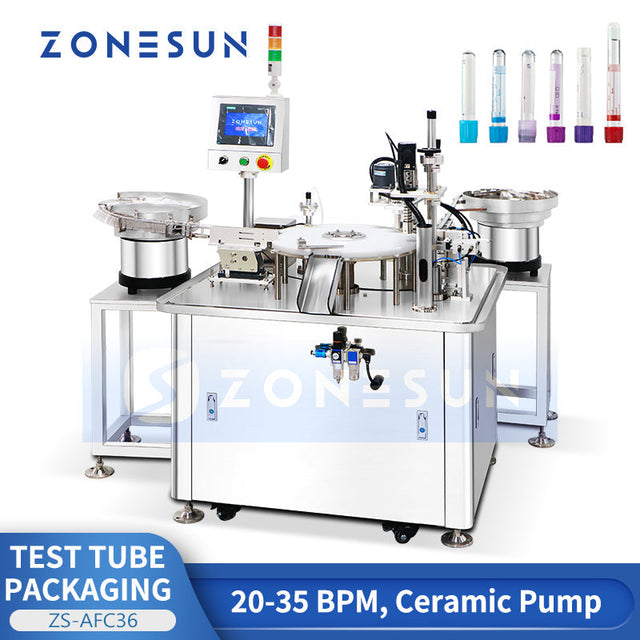

Cam System Test Tube Monoblock
Designed for high-speed mechanical synchronicity. Utilizes a heavy-duty mechanical cam design to ensure perfectly timed, micro-dose reagent filling and high-torque capping.
Explore ZS-AFC36 →
CONFIGURATION 04

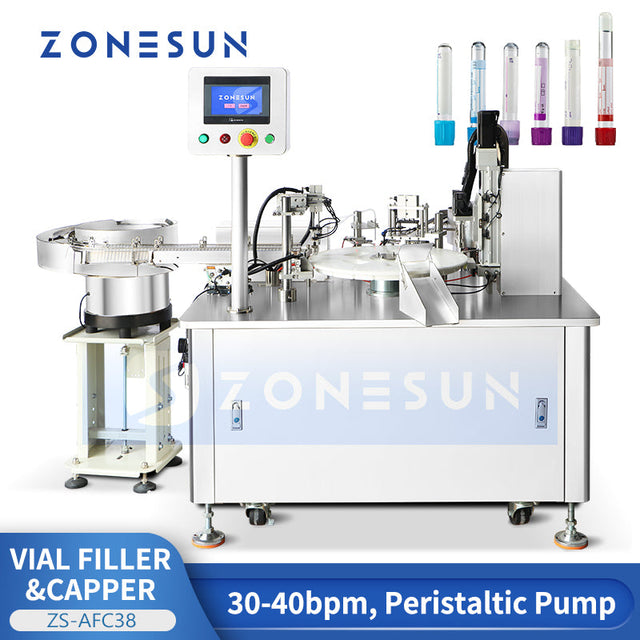

Vial & Test Tube Filling Equipment
Designed for laboratory/hybrid dual-use dual flexibility. Features interchangeable star-wheels and adjustable pucks to handle both self-standing glass vials and non-standing plastic test tubes
Explore ZS-AFC38 →Key Factors for Test Tube Automation
These technical requirements influence machine selection, component design and the overall automation configuration.
01 / FILLING
Filling Specifications
Fill volume, required dosing accuracy, liquid viscosity and product characteristics influence the filling system and dosing method.
02 / CLOSURE
Closure Compatibility
Cap dimensions, cap design and closing method help determine the cap feeding, positioning and capping configuration.
03 / LABELING
Labeling Requirements
Label dimensions, application position and tube surface affect the choice of labeling equipment and integration method.
04 / CAPACITY
Output & Automation Level
Target output, operator involvement and connections to upstream or downstream equipment influence the overall automation layout.
Test Tube Machine Selection Guide
Prepare the following product and production details to help evaluate a suitable machine configuration for your application.
Information to Prepare
- Test tube dimensions, material and a drawing or physical sample.
- Liquid name, properties, viscosity and required filling volume.
- Cap dimensions, closure design and a cap sample.
- Label dimensions, label position and whether labeling is required.
- Target production capacity and expected operating hours.
- Available floor space and any existing line equipment to connect.
How These Details Help
- Tube samples help assess feeding, holding and positioning requirements.
- Liquid information helps determine the suitable filling method and dosing components.
- Cap samples help evaluate cap handling and closing requirements.
- Label samples and placement details help define the labeling configuration.
- Output targets help estimate the required machine speed and automation level.
- Layout information helps assess machine arrangement and line integration.
Frequently Asked Questions
Find answers to common questions about test tube filling, capping and machine configuration.
What information is needed to select a test tube filling and capping machine?
Prepare the tube dimensions and material, filling product and volume, cap sample, labeling requirements and target production capacity. Drawings or physical samples are helpful for evaluating machine compatibility.
Can one machine handle different test tube sizes?
Some configurations may support multiple tube sizes with suitable change parts or adjustments. The supported size range depends on the machine design and should be confirmed using your tube specifications.
Can filling and capping be completed on the same machine?
Yes. Test tube monoblock machines can combine filling and capping operations. The suitable configuration depends on the tube format, liquid properties, cap design and required output.
Can a labeling unit be integrated with a test tube filling line?
Labeling can be integrated in compatible machine configurations or arranged as a separate downstream process. Label size, tube surface and label position should be evaluated before selecting the setup.
Can the same equipment process both vials and test tubes?
Certain machines may accommodate compatible vial and test tube formats. Compatibility depends on container dimensions, feeding and positioning methods, filling requirements and change-part design.
Can the machine be connected to other packaging equipment?
Line integration may be possible depending on the machine configuration, product transfer method, production speed and available space. Share your existing line layout and process requirements for evaluation.
Need Help Selecting a Test Tube Packaging Machine?
Share your tube samples, liquid specifications, cap details and production targets. Our team can help evaluate a suitable test tube filling and capping solution.
Discuss Your Application
