ZONESUN ZS-AFC42P Automatic Rotary Perfume Filling Machine Monoblock Negative Ion Rinsing & Vacuum Crimping
ZONESUN ZS-AFC42P Automatic Rotary Perfume Filling Machine Monoblock Negative Ion Rinsing & Vacuum Crimping
No se pudo cargar la disponibilidad de retiro
Description

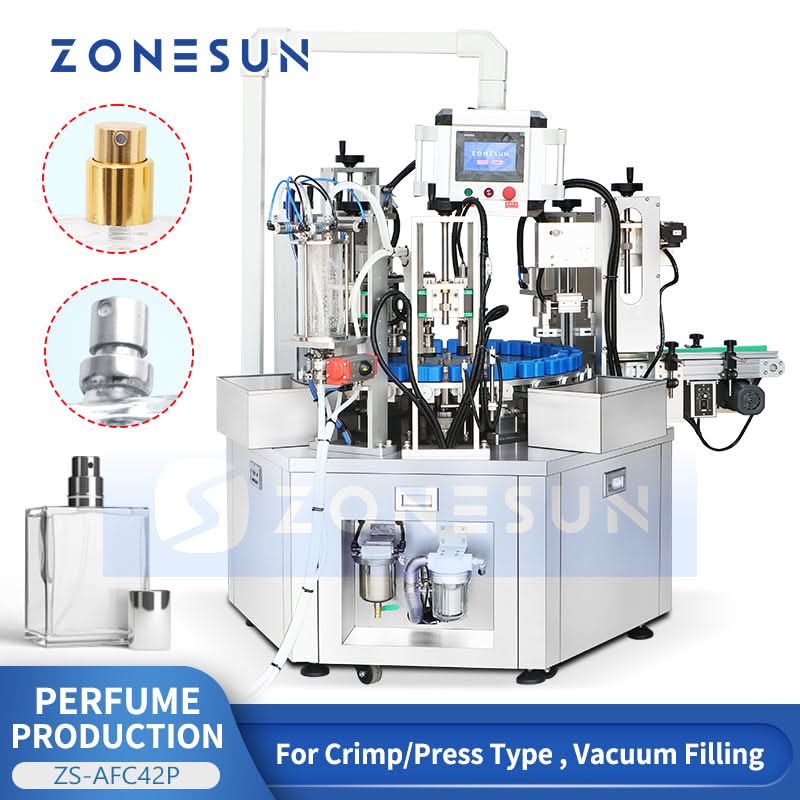

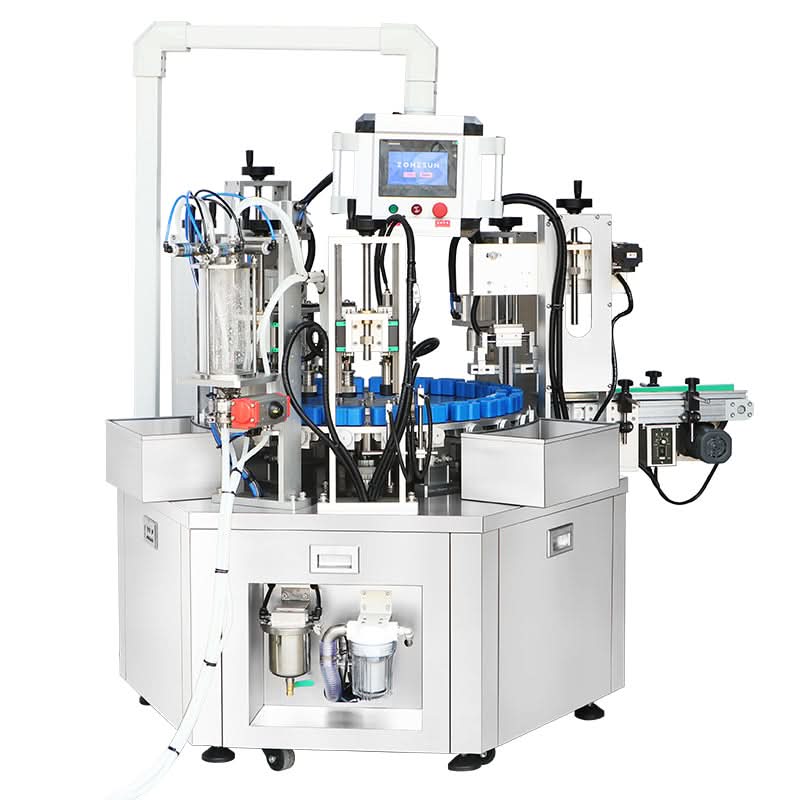

The ZONESUN ZS-AFC42P is a compact automatic monoblock machine designed for perfume and fragrance production. It integrates negative ion rinsing, vacuum filling, cap positioning & crimping, and cap pressing into one rotary station. Using vacuum filling technology for consistent liquid levels and a negative ion system for bottle cleaning, it delivers high-quality packaging for 3–100 ml perfume bottles at 20–30 bottles per minute. Built with 304 stainless steel, it is ideal for small to medium-scale cosmetic and fragrance manufacturers.
Technical Specifications
| Parameter | Value |
|---|---|
| Machine Model | ZS-AFC42P |
| Power Supply | 220 V, 50–60 Hz, 1.5 kW |
| Filling System | Vacuum Filling |
| Working Speed | 20–30 BPM |
| Filling Range | 3–100 ml (Customizable) |
| Filling Accuracy | ≤ ±1% |
| Bottle Diameter | Φ12–65 mm (Customizable) |
| Cap Size | Customizable |
| Air Pressure | 0.5–0.8 MPa |
| Machine Body | 304 Stainless Steel |
| Machine Dimensions | Approx. 1770 × 1408 × 1900 mm |
| Package Weight | Approx. 712 kg |
Applications
- Target Products: Perfumes, Eau de Parfum (EDP), Eau de Toilette (EDT), cologne, essential oil sprays, body mists, facial spritzers, and other light alcohol/water-based liquid cosmetics.
- Bottle & Cap Compatibility: Fits round, square, or custom glass perfume bottles (Φ12–65 mm diameter, 3–100 ml capacity) equipped with spray pumps, aluminum crimp caps, or press-fit decorative collar rings.
- Suitable Businesses: Ideal for small-to-medium cosmetic manufacturers, contract packagers (OEM/ODM), private label fragrance brands, and boutique scent studios looking to automate production with a compact footprint.

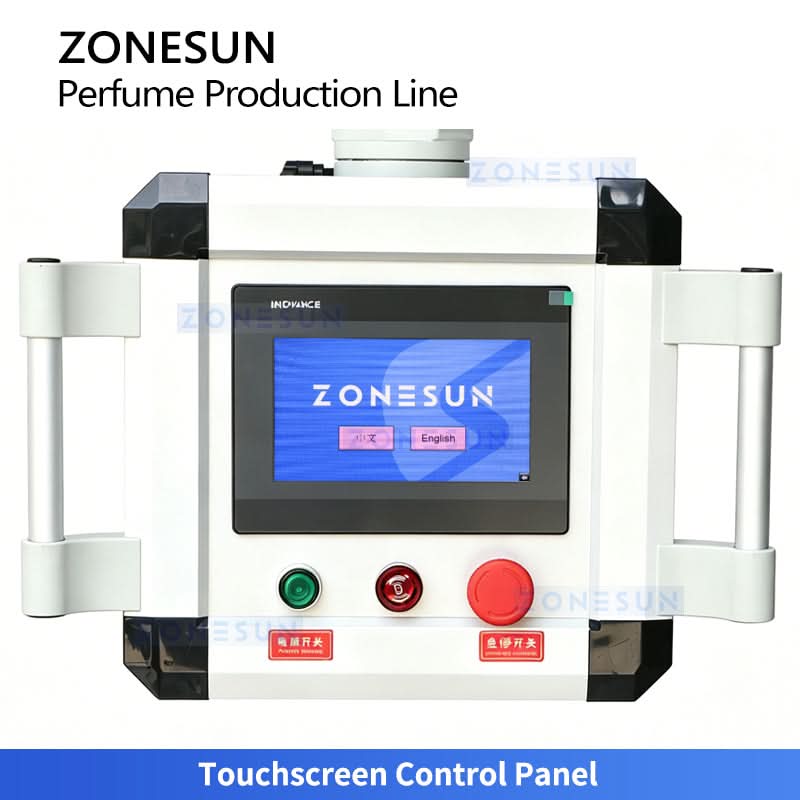

CONTROL PANEL
Allows operators to easily adjust filling parameters, monitor real-time machine status, and manage production settings via an intuitive touchscreen panel.

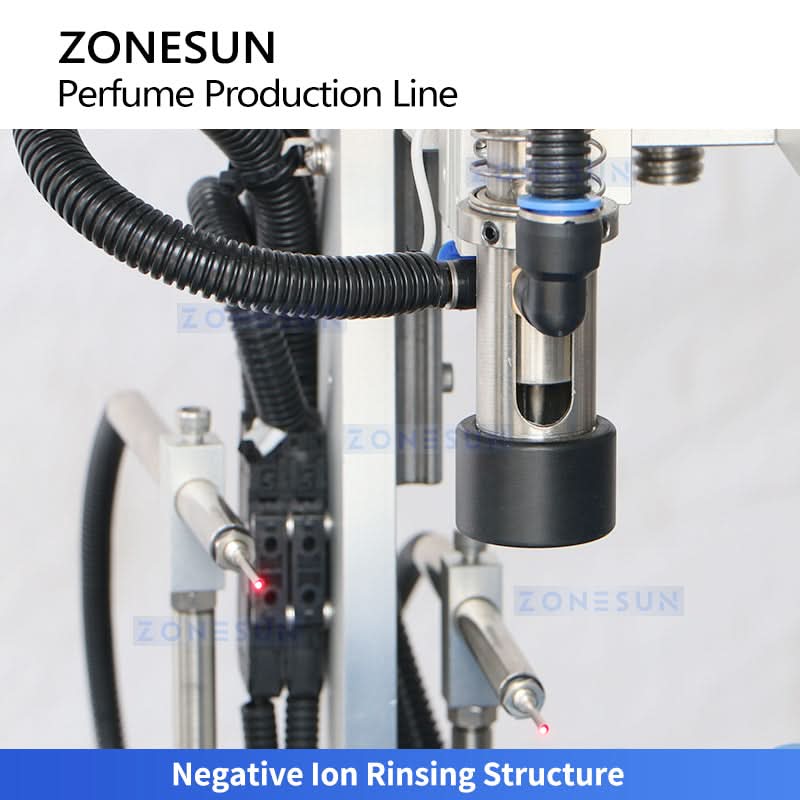

NEGATIVE ION RINSING
Equipped with a negative ion air cleaning system, the machine effectively removes dust and particles from the interior of bottles before filling.

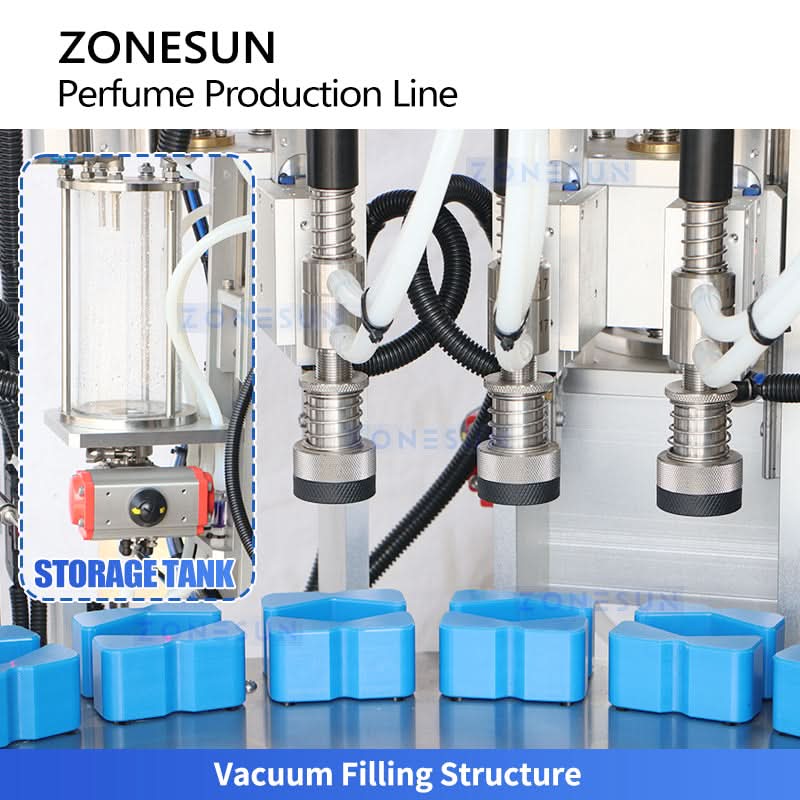

VACUUM FILLING
Maintains a consistent liquid level by automatically returning excess product to the storage tank, ensuring a uniform appearance across perfume bottles while minimizing waste.

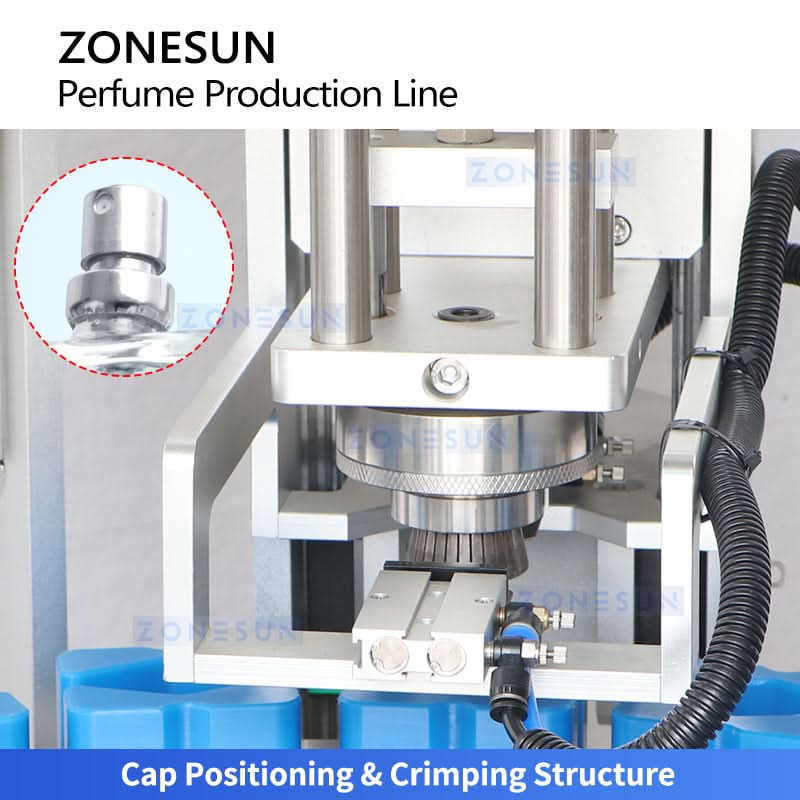

POSITIONING & CRIMPING
Ensures accurate cap alignment before crimping via customizable molds, achieving secure, consistent sealing across various perfume bottle and atomizer specifications.

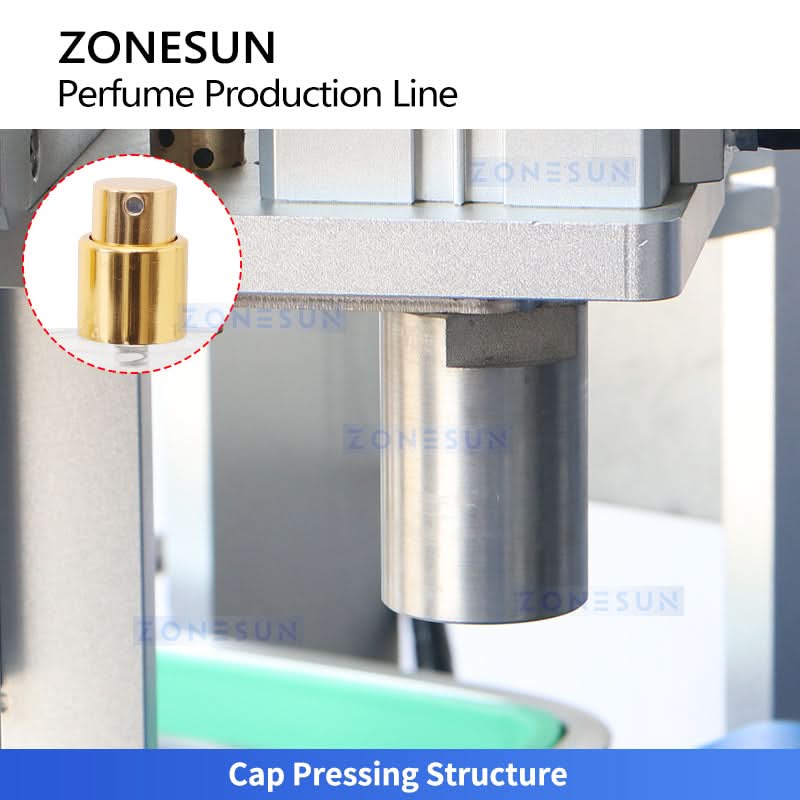

CAP PRESSING
Utilizes a pneumatic mechanism to deliver stable force for press-fit perfume caps and decorative collar rings, improving packaging quality without cap deformation.
PRODUCT OUTLET
Automatically transfers finished bottles onto the discharge conveyor via a mechanical gripper after packaging, reducing manual handling and improving production efficiency.
