ZONESUN ZS-AFK120 Automatic Vacuum & Nitrogen Can Seamer Machine for Milk Powder
ZONESUN ZS-AFK120 Automatic Vacuum & Nitrogen Can Seamer Machine for Milk Powder
No se pudo cargar la disponibilidad de retiro
Description

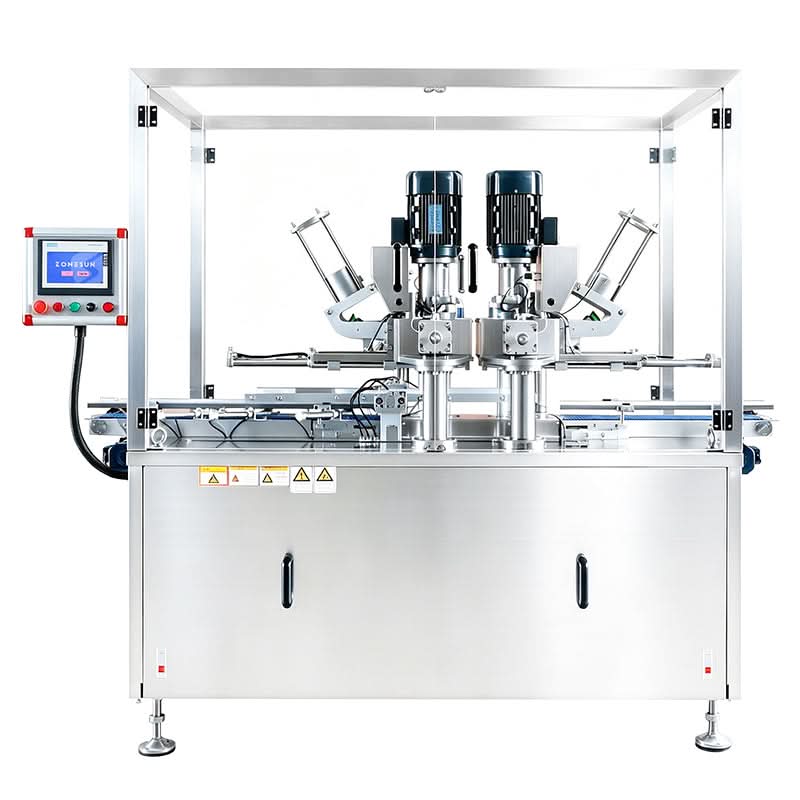

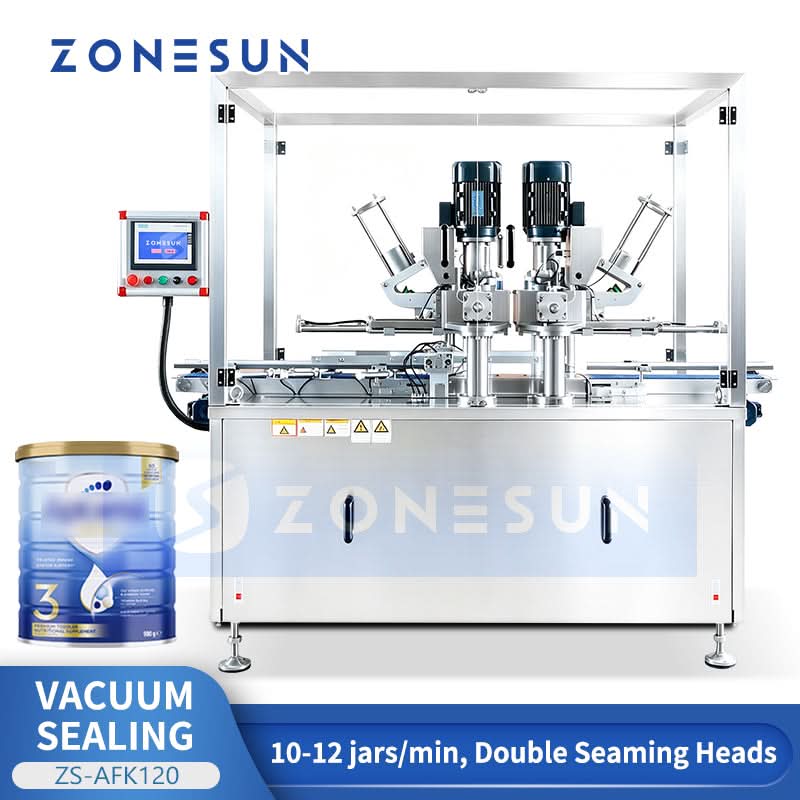

The ZONESUN ZS-AFK120 is an automatic vacuum can sealing machine designed for vacuuming and sealing cans of milk powder, nutrition powder, coffee powder, and other powdered products. Equipped with a double-head seaming system, automatic lid feeder, and precise can positioning, it ensures stable, high-quality sealing. The integrated vacuum and sealing process reduces residual oxygen to under 3%, improves airtightness, and extends shelf life. Featuring an intelligent control panel, customized conveyor, and SUS304 stainless steel hygienic construction, it is ideal for powder packaging lines requiring reliable sealing and high efficiency.
Key Features
- Intelligent Control Panel – Controls sealing speed, vacuum time, and other parameters for precise and stable operation.
- Double Lid Feeder – Stores up to 200 lids and feeds them continuously and accurately to the sealing station.
- Vacuum Sealing Chamber – Performs vacuuming and sealing simultaneously to achieve strong airtight seals and low residual oxygen.
- Can Positioning Device – Accurately positions and holds cans during vacuuming and sealing to prevent air leakage.
- Customizable Conveyor Belt – Transports cans smoothly and can be customized for different can sizes and production line configurations.
| Model | ZS-AFK120 |
|---|---|
| Voltage | 380V |
| Container Size | Sealing diameter Φ70–127 mm, jar height 100–200 mm |
| Lid Capacity | 200 lids |
| Operation Modes | Vacuum-nitrogen / Vacuum sealing |
| Vacuum-Nitrogen Mode | Residual O₂ < 3%, speed 10–12 jars/min |
| Vacuum Sealing Mode | Pressure 40–90 kPa, speed 12–15 jars/min |
| Conveyor Size | 1500 × 185 mm (L × W), height 900 mm |
| Material | SUS304 stainless steel |
| Total Power | 9.12 kW |
Applications
-
Dairy & Infant Nutrition: Specialized milk powders, infant formulas, whole/skim milk powders, goat milk powder, and whey protein.
-
Health & Nutritional Supplements: Protein powders, collagen powders, dietary fiber, probiotics, and sports nutrition supplements.
-
Coffee & Specialty Beverages: Ground coffee, freeze-dried instant coffee, instant tea powders, cocoa powders, and non-dairy creamers.
-
Food Ingredients & Dry Goods: Dehydrated vegetable powders, flavorings and seasonings, premium nuts/dried fruits, and other moisture- or oxygen-sensitive food products.
Component Details

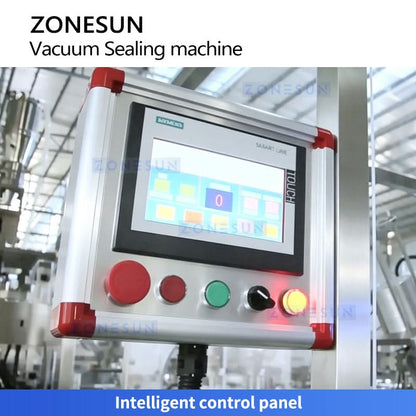

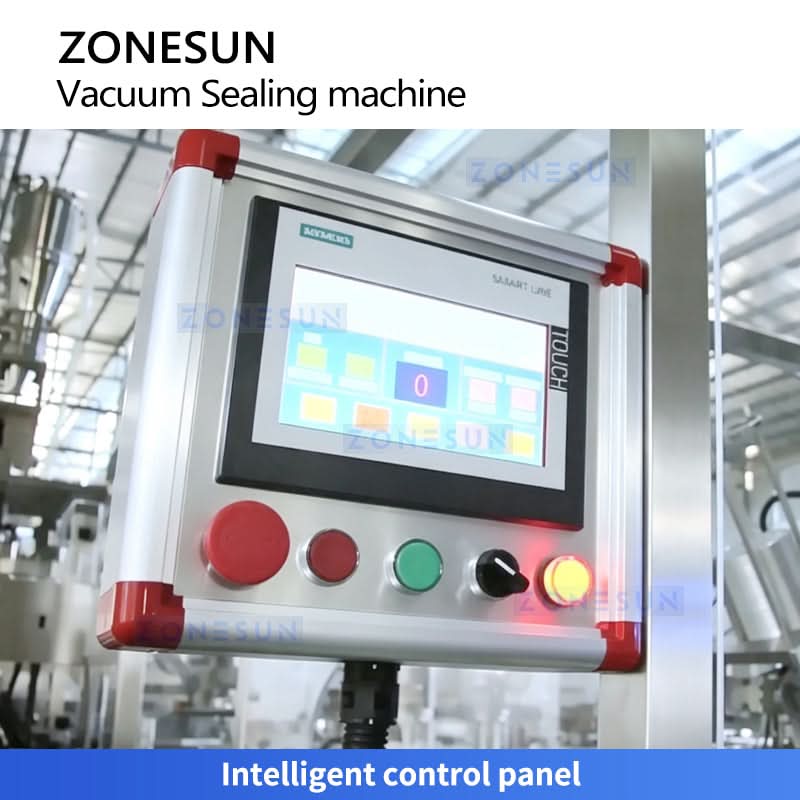

- Precise Parameter Tuning: Dedicated control for vacuum can seaming, allowing swift adjustments to sealing speed and vacuum time.
- Intuitive Touch Interface: Features an advanced touchscreen paired with physical emergency and switch buttons for flawless operation.

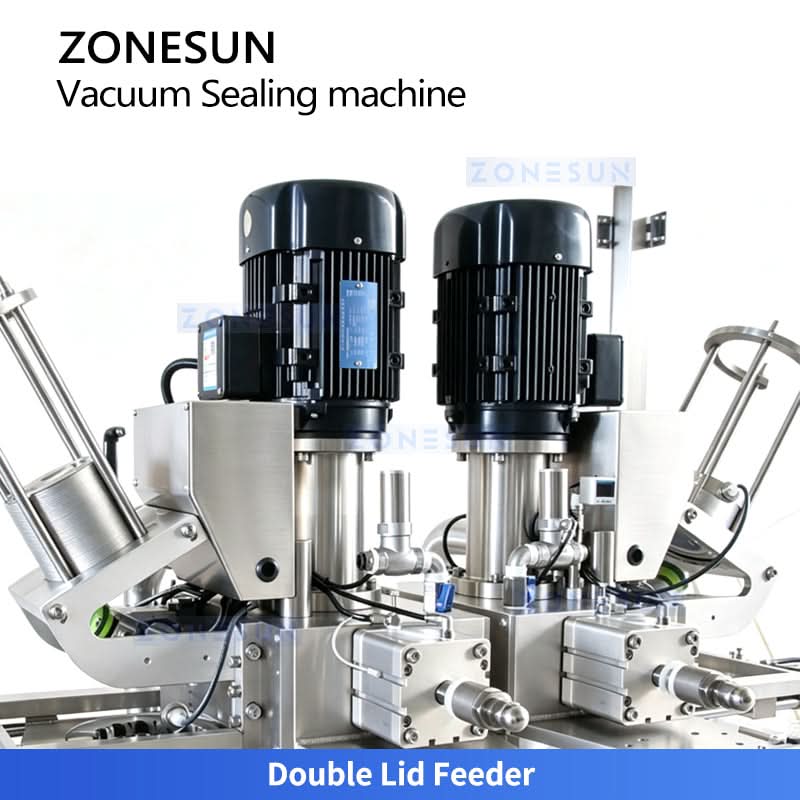

Double Lid Feeder
- Dual-Channel Sorting: Integrates lid storage, arranging, and separating into a dual-head mechanism to boost storage volume.
- Precise Lid Supply: Feeds lids to the sealing station with pinpoint accuracy, ensuring an uninterrupted flow without misses.

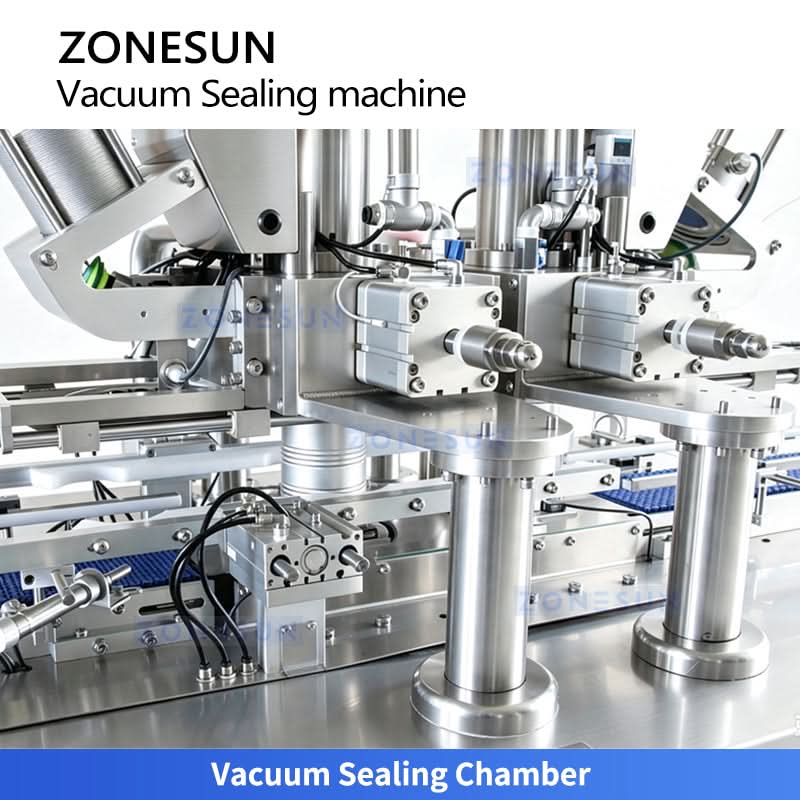

Vacuum Sealing Chamber
- Controlled Chamber Action: Executes vacuuming and sealing simultaneously within a tightly sealed chamber for maximum efficiency.
- Minimal Residual Oxygen: Extract air deeply to reduce residual oxygen inside the can, effectively extending product shelf life.

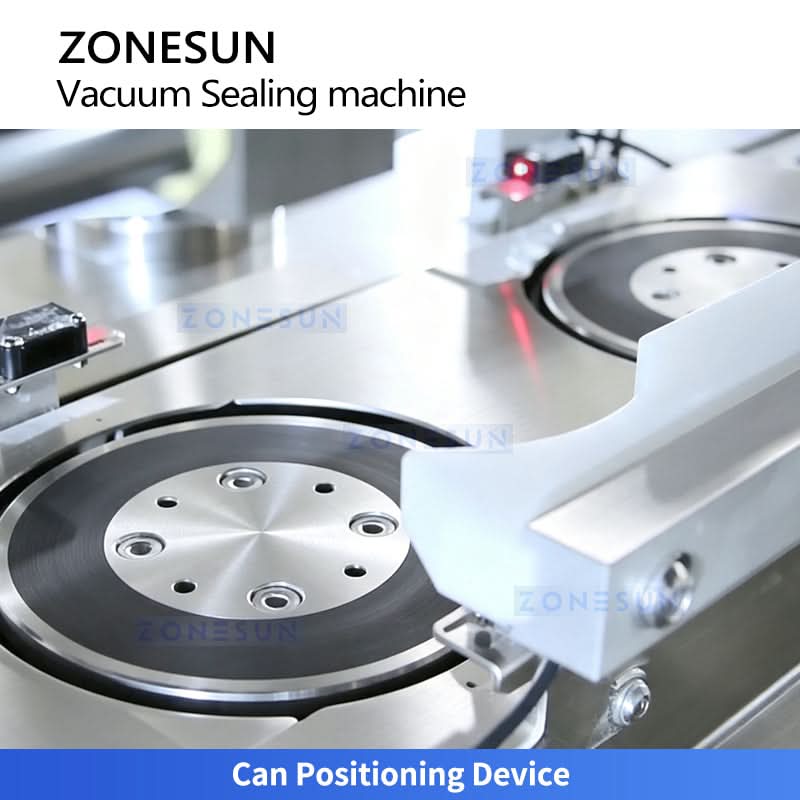

Can Positioning Device
- Accurate Holding: Securely positions and clamps cans during the vacuuming and sealing process to eliminate shifting.
- Air Leakage Prevention: Ensures flawless alignment between the can and the sealing head, completely preventing any vacuum loss.

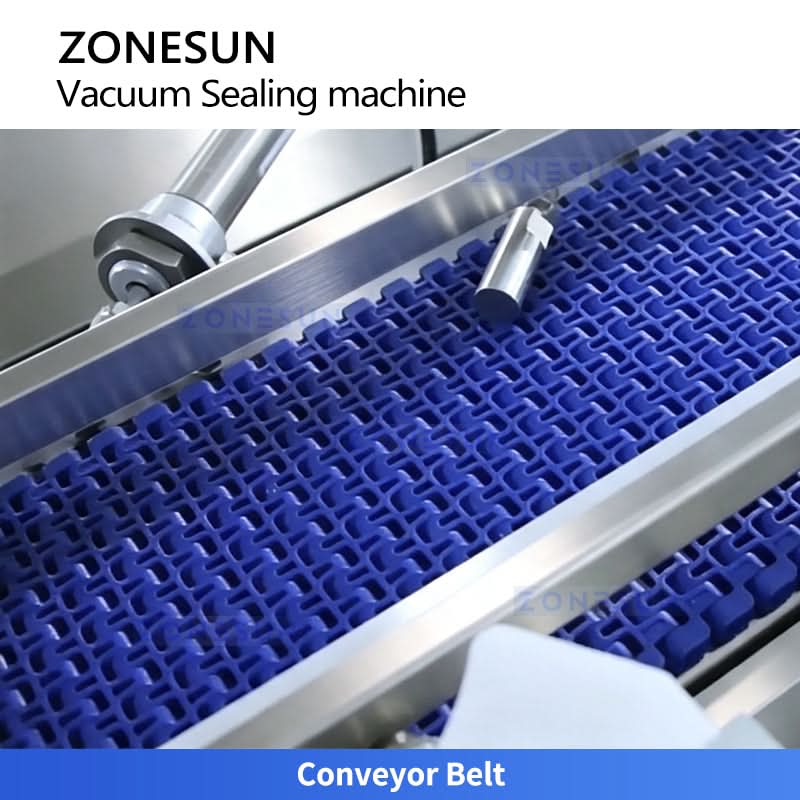

Conveyor Belt & SUS304 Construction
- Smooth Can Conveying: Smoothly and efficiently transports cans through the machine, eliminating tipping or jams.
- Tailored to Your Sizes: Can be fully customized according to different can sizes and dimensions to meet diverse packaging needs.
