ZONESUN ZS-AFS01P Automatic Linear 4-Head Cup Filling and Sealing Machine for Yogurt Pudding Jam
ZONESUN ZS-AFS01P Automatic Linear 4-Head Cup Filling and Sealing Machine for Yogurt Pudding Jam
No se pudo cargar la disponibilidad de retiro

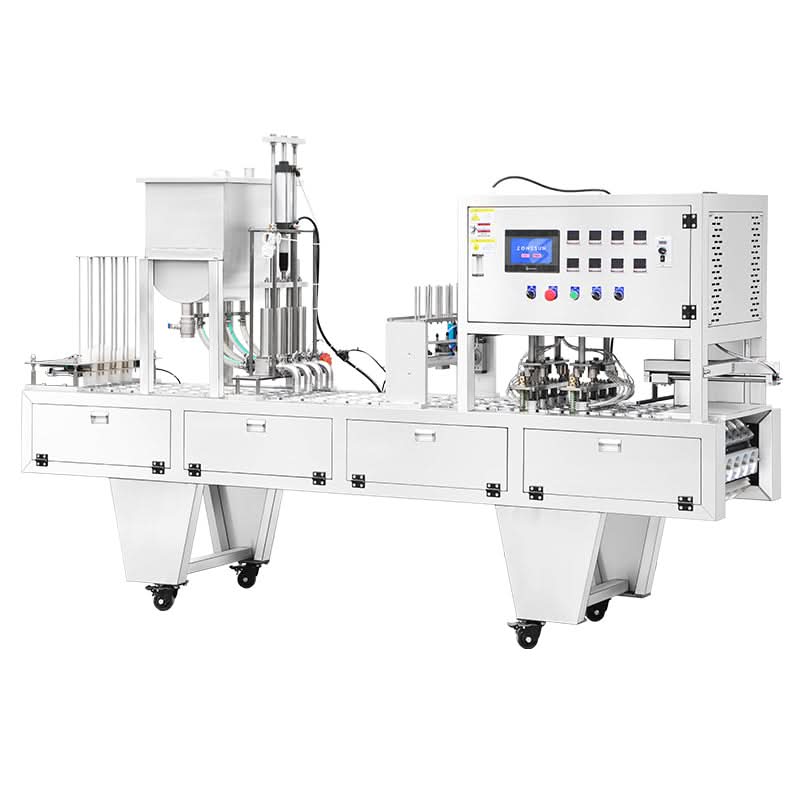

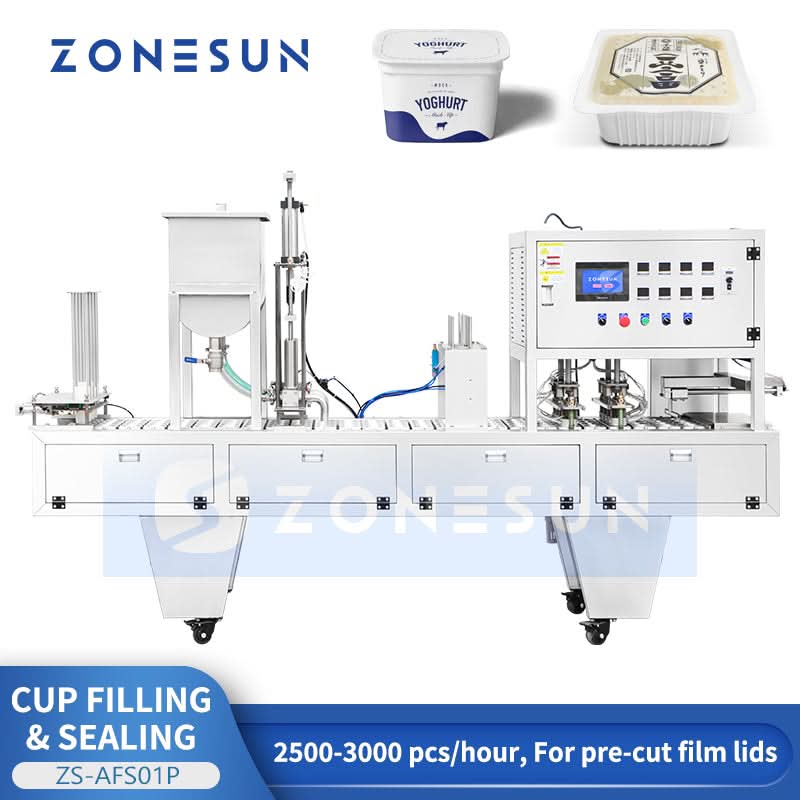

The ZONESUN ZS-AFS01P is an automatic linear 4-head cup filling and sealing machine designed for efficient packaging of yogurt, pudding, jelly, sauces, honey, and other liquid or viscous products. It automatically handles cup feeding, precise piston pump filling, pre-cut film lid placement, and heat sealing. With a production speed of 2500–3000 cups per hour and customizable cup sizes, it provides a reliable, hygienic solution for dairy, beverage, and food packaging lines.
Key Features
- Touchscreen Control Panel – Intuitive touchscreen monitors production status and allows easy adjustment of parameters for daily operation and troubleshooting.
- Cup Feeding Structure – Automatically feeds and positions cups into molds, with customizable design to accommodate various cup dimensions.
- Piston Pump Filling System – Robust 4-head piston pumps deliver accurate filling of liquids and high-viscosity pastes with customizable dosing ranges.
- Film Lid Feeding Structure – Pneumatic suction system accurately places pre-cut film lids onto filled cups.
- Sealing Structure – Dual sealing heads ensure secure, leak-proof seals with adjustable temperature to suit different film materials.
Technical Specifications
| Machine Model | ZS-AFS01P |
|---|---|
| Power Supply | 380V / 220V, 50–60 Hz, 3.2 kW |
| Working Speed | 2500–3000 pcs/hour (depending on filling volume and materials) |
| Filling Pump | Piston Pump |
| Filling Range | Customizable |
| Suitable Cup Size | Customizable |
| Hopper Size | Approx. 60 L |
| Air Pressure | 0.6–0.8 MPa |
| Machine Size | Approx. 2940 × 670 × 1800 mm |
| Machine Weight | Approx. 692 kg |
Applications
- Dairy & Desserts: Yogurt, Greek yogurt, pudding, custard, jelly, mousse, ice cream, sour cream, and butter cups.
- Sauces & Condiments: Tomato paste, ketchup, chili sauce, salad dressing, mayonnaise, garlic sauce, dipping sauces, and hummus.
- Sweeteners & Fruit Products: Natural honey, jam, fruit puree, marmalade, syrup, and peanut butter.
- Beverages & Specialty Liquids: Juices, fruit pulp drinks, coconut milk, instant tea/coffee cups, and liquid supplements.
- Chemical & Cosmetics (Optional): Face cream, lotions, cosmetic gels, and industrial samples requiring precise volumetric dosing.
Suitable Container Types: Works seamlessly with plastic (PP, PET, PS), paper, and aluminum foil cups or trays paired with pre-cut heat-sealing foil lids.

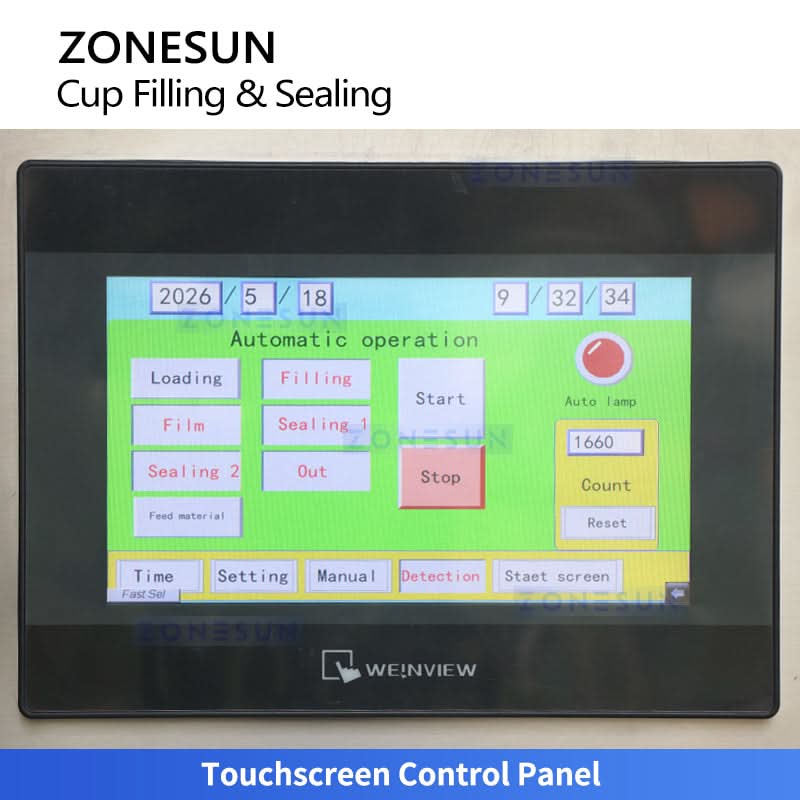

CONTROL PANEL
Monitors production statuses and system parameters in real time, allowing for effortless daily machine operations and quick technical debugging.

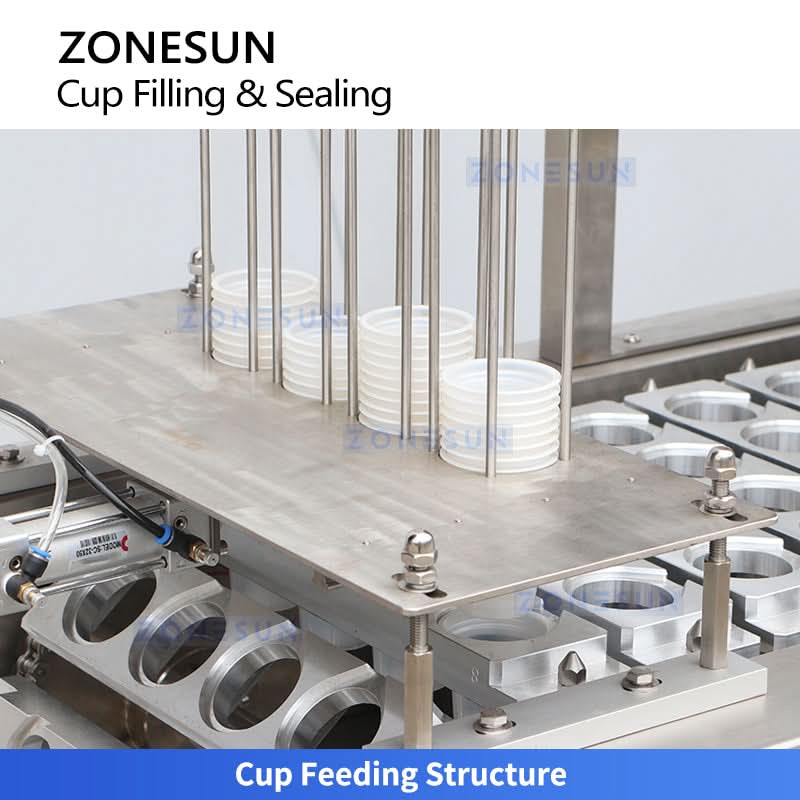

CUP FEEDING
Feeds and places cups into molds automatically, supporting customizable structural tailormade profiles to seamlessly adapt to various cup dimensions.

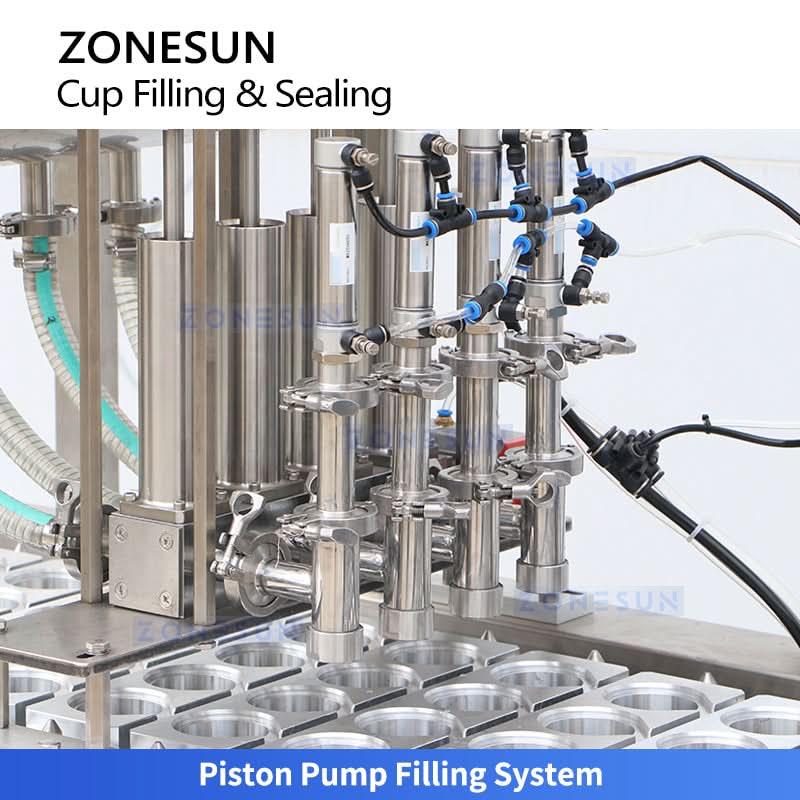

PISTON PUMP FILLING
Fills liquids or highly viscous pastes accurately via robust piston pumps, with customizable dosing ranges and total filling nozzle quantities.

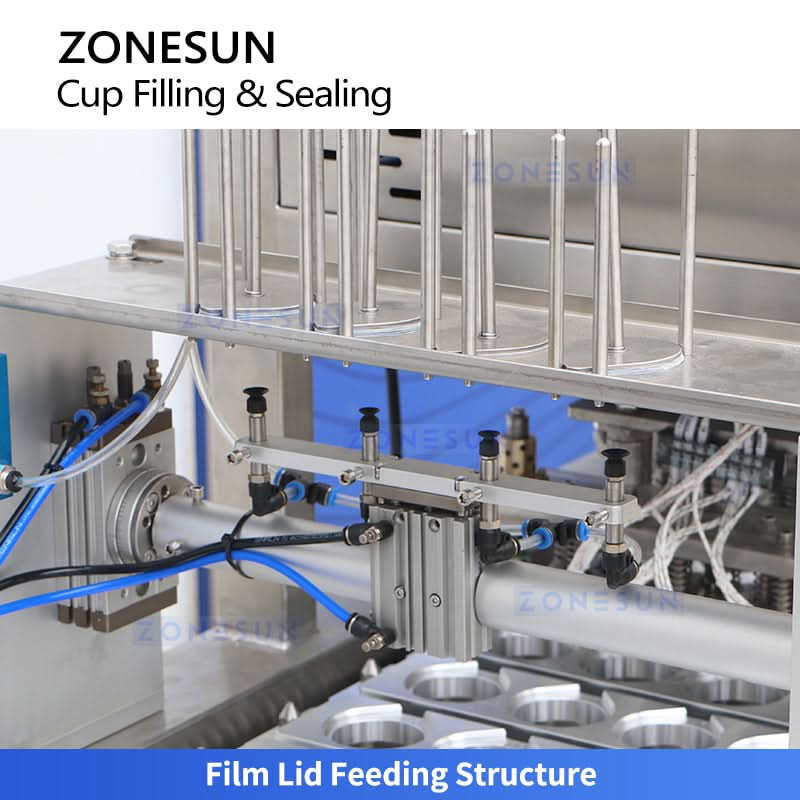

FILM LID FEEDING
Picks and transfers film lids onto cups accurately via pneumatic suction pads, supporting flexible structural upgrades to accommodate roll film systems as needed.

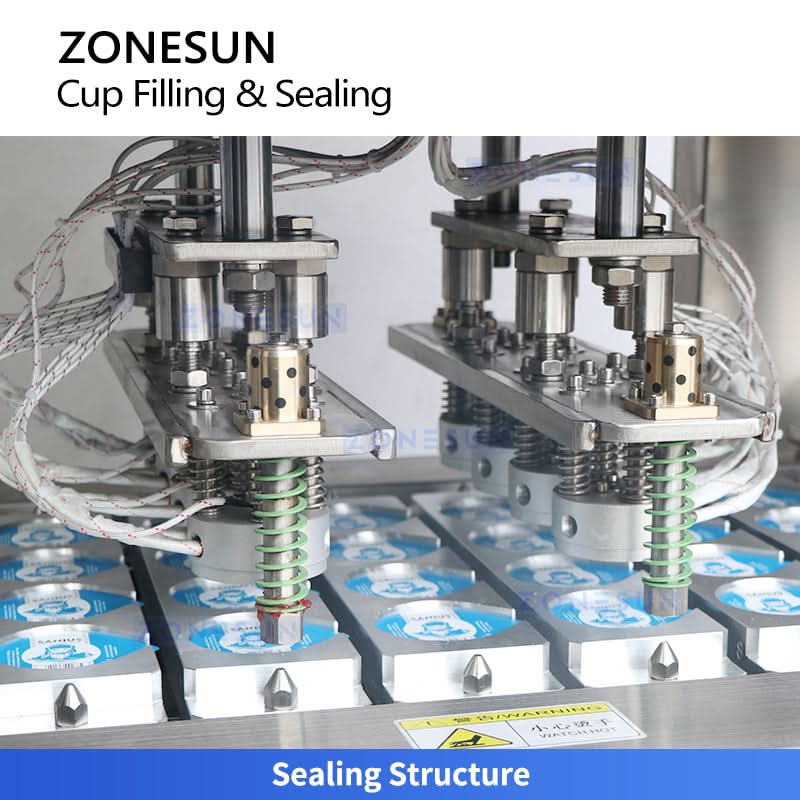

SEALING STRUCTURE
Seals containers securely via double sets of sealing heads to eliminate leakage risks, allowing precise adjustment of the sealing temperature to suit various film materials.
ELECTRICAL CONTROL
Coordinates filling and sealing motions precisely via centralized electrical components, ensuring stable automated production and system safety.
