ZONESUN ZS-CL6T Automatic 6-Head Magnetic Pump Liquid Filling Machine with Dust Cover, Servo Motor Bottle Filler for Cosmetics & Oils
ZONESUN ZS-CL6T Automatic 6-Head Magnetic Pump Liquid Filling Machine with Dust Cover, Servo Motor Bottle Filler for Cosmetics & Oils
No se pudo cargar la disponibilidad de retiro
The Zonesun ZS‑CL6T Automatic Liquid Filling Machine combines precision engineering with high‑efficiency operation for a wide range of liquid products. Featuring six independent servo‑driven magnetic pumps, each paired with a dedicated filling head, it delivers accurate, repeatable fills at high speeds. The upper material pump and automatically monitored storage tank maintain a constant, stable supply, while the servo‑controlled lifting heads ensure clean, splash‑free dispensing. A bottle stopper and gripper mechanism hold containers securely in place during filling, supported by a conveyor system for smooth, continuous production. Integrated PLC controls make fill volume adjustments simple, and the hygienic design includes a built‑in spray nozzle for fast cleaning and maintenance.
| Model | ZS‑CL6T |
|---|---|
| Filling Range | 500 – 5000 ml |
| Filling Heads | 6 heads, 8 mm each |
| Filling Pump | Magnetic pump, 45 L/min, servo‑motor driven |
| Capacity | Max 42 bottles/min (500 ml) |
| Accuracy | ≤ ±1 % |
| Applicable Bottle Size | Height ≤ 330 mm, Diameter ≤ 110 mm |
| Lifting Mechanism | Servo‑motor driven |
| Conveyor | Width 114 mm, Length 2422 mm |
| Storage Tank | 320 L |
| Overall Dimensions | 2615 × 1621 × 2153 mm |
| Weight | 752 kg |
Applications
- Premium Cosmetics & Personal Care: Ideal for the pictured luxury bottles of liquid soap, body wash, shampoo, hair conditioner, cleansing gel, skin toner, and serums.
- High-Value Essential Oils & Perfumes: The magnetic pump configuration provides milligram-level precision dosing for costly essential oils, fragrances, makeup remover oils, and body oils, eliminating product waste.
- Food, Beverage & Condiments: Suitable for fruit juices, liquid supplements, drinking water, cooking oils, soy sauce, vinegar, and various free-flowing syrups.
- Pharmaceuticals & Chemical Liquids: Perfect for liquid medicines, oral solutions, liquid alcohol sanitizers, fabric softeners, and other low-to-medium viscosity chemical products.

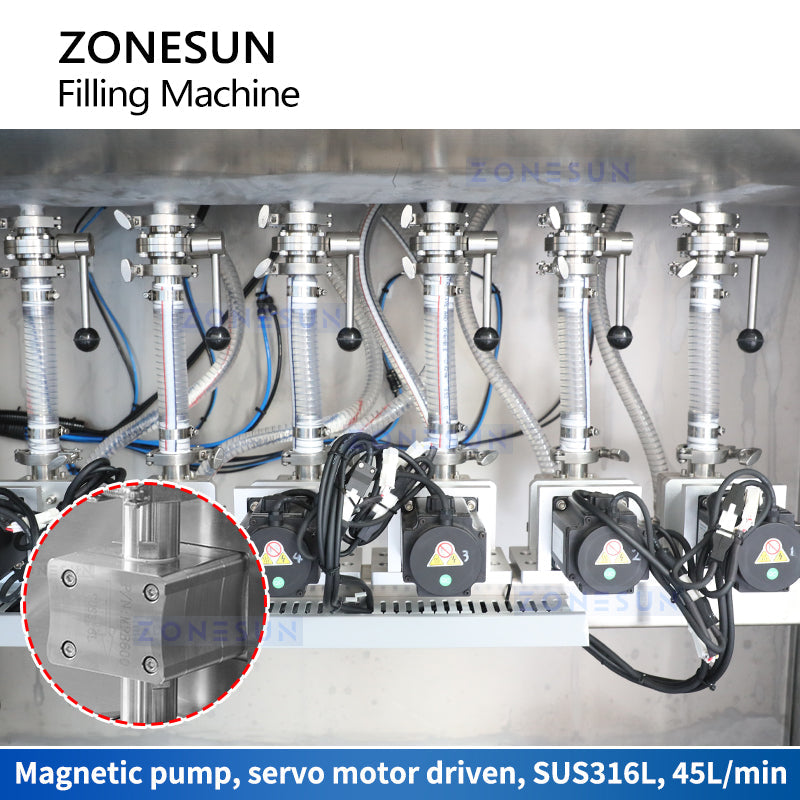

PUMP
- Independent Servo Precision: Each pump is coupled with a dedicated servo motor, delivering meticulous and individual control of the filling volume for each nozzle.
- Industrial-Grade 45L/min Flow Rate: Features a powerful pumping core that yields a massive output of up to 45 liters per minute, drastically optimizing cycle times.
FILLING
- Precise Servo Positioning: Driven by a high-torque servo motor for ultra-smooth vertical movement and flawless nozzle-to-bottle alignment.
- Anti-Splash & Anti-Foam: The diving nozzle design allows the filling heads to move up with the liquid level, minimizing foam and preventing spills.
- Consistent & Clean Cycles: Eliminates product dripping and waste, ensuring neat bottle necks and a highly hygienic working environment.
INDEXING
- Flawless Bottle Indexing: Automatic bottle stopper ensures micro-precise container alignment right beneath the nozzles, eliminating misplacement risks.
- Secure Neck Gripping: Heavy-duty gripper clamp locks the bottle neck firmly in place during high-speed filling to prevent tipping or unexpected shifting.
- Integrated Drip Tray Protection: Catches residual post-cycle droplets instantly, protecting the conveyor belt from contamination and maintaining a sterile workspace.
CLEANING
- 360° High-Pressure Spray: Features a precision-engineered spray matrix that delivers high-pressure water streams to scrub internal tank walls effortlessly.
- Thorough Sanitation: Eradicates liquid residues and microscopic contaminants after every batch, ensuring zero compromise on hygiene.
- Ultimate Product Quality: Meets rigorous industrial sanitary compliance, safeguarding your brand against cross-contamination and preserving absolute product freshness.
