ZONESUN ZS-EM2 300L Stainless Steel Emulsifying Mixing Tank with Platform | High-Speed Homogenizer & Rotor Pump
ZONESUN ZS-EM2 300L Stainless Steel Emulsifying Mixing Tank with Platform | High-Speed Homogenizer & Rotor Pump
No se pudo cargar la disponibilidad de retiro

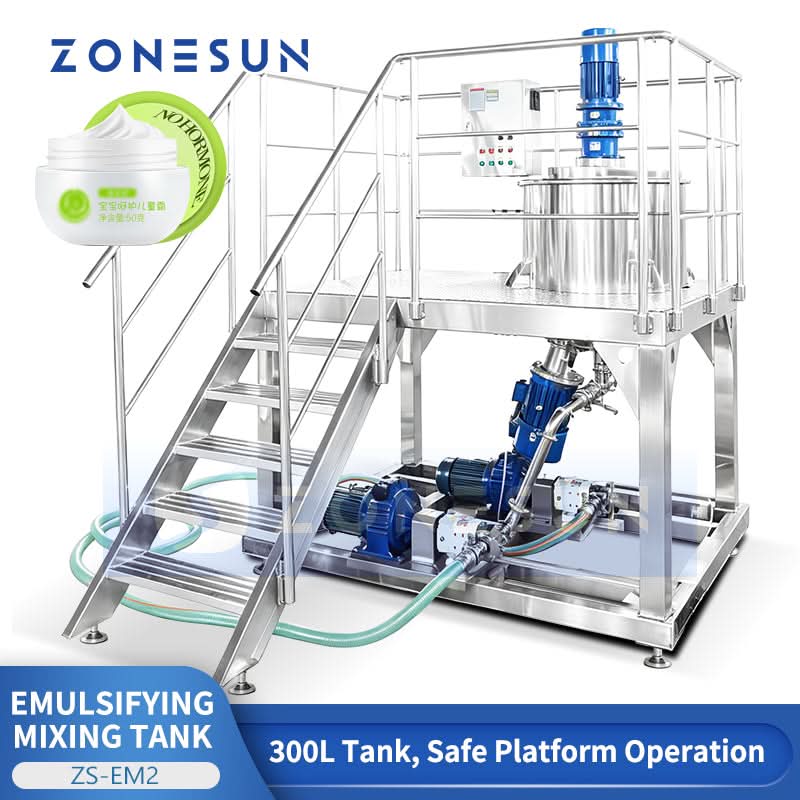

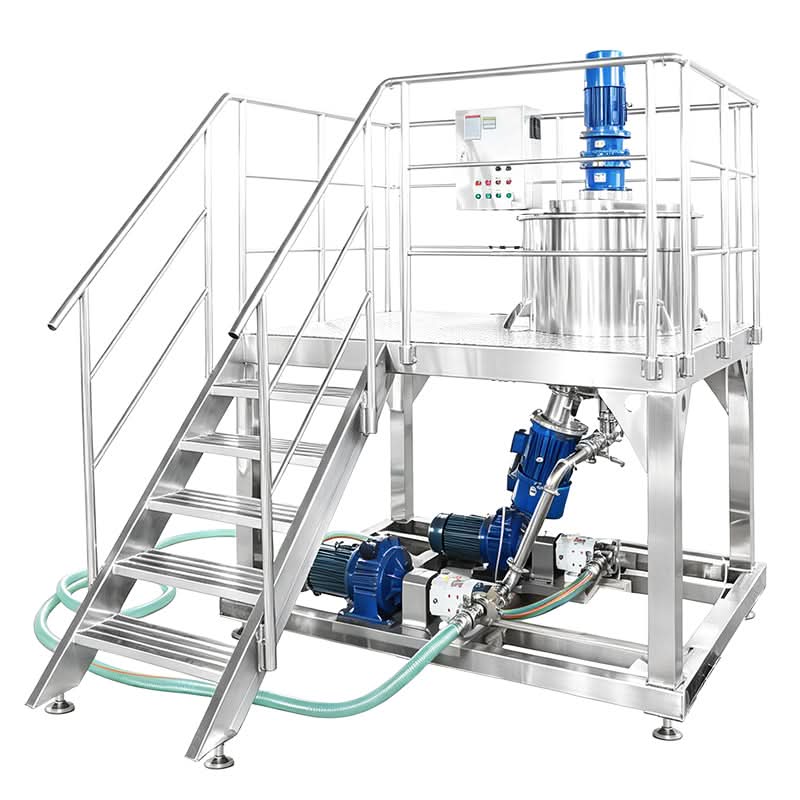

The ZONESUN ZS-EM2 is a 300L emulsifying mixing tank for efficient mixing, stirring, and emulsifying of liquid and paste materials. It features an anchor impeller with wall and bottom scrapers, a high-speed top emulsifier, dual discharge rotor pumps, and a stainless steel access platform for thorough blending and stable product uniformity. The two independent rotor pumps enable fast material transfer, with discharge controlled via valves and pump switches for smooth tank emptying. Widely used in food, cosmetics, daily chemical, and pharmaceutical industries for mixing and emulsification.
Features
- PLC Control Panel – Independent control panel manages mixing, emulsification, and pumping operations for easy operation and stable production.

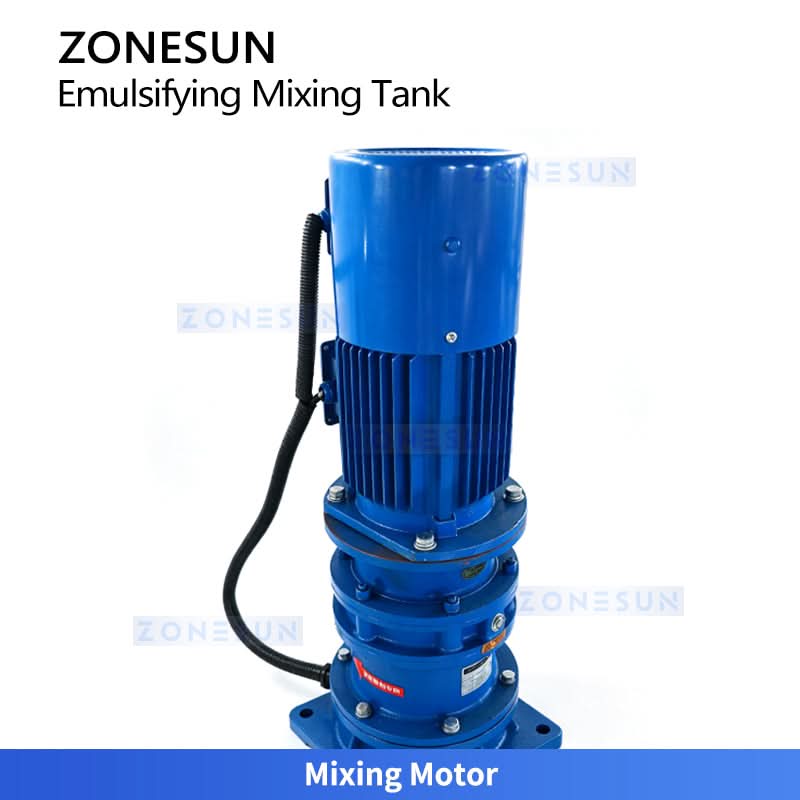

- Mixing Motor – Drives the mixing shaft and blades to evenly blend materials, preventing separation and ensuring consistent results.
- Mixing Emulsifying Tank – Main processing vessel made of stainless steel SUS316 with top flip-open lid and bottom dished head for corrosion resistance and hygiene.
- Double Discharge Rotor Pump – Dual rotor pumps ensure stable and efficient transfer of high-viscosity materials with smooth discharge performance.
- Stainless Steel Access Ladder & Platform – Provides safe and convenient access for inspection, operation, and maintenance.
- Circulating Cooling System – Maintains stable temperature control to prevent overheating and protect seals during extended operation.
Technical Specifications
| Model | ZS-EM2 |
|---|---|
| Voltage | 380V |
| Tank Capacity | 300 L |
| Tank Structure | Top flip-open lid, bottom dished head |
| Mixing Motor | 2.2 kW |
| Impeller Type | Anchor-type with wall and bottom scrapers |
| Mixing Speed | 0–80 RPM |
| Top Emulsifier | 5.5 kW, 2880 RPM |
| Tank Material | Stainless steel SUS316 (plate thickness 3 mm) |
| Platform Material | Stainless steel SUS201 |
| Platform Dimensions | 1500 × 2000 mm |
Applications
Ideal for mixing and emulsifying the following materials:
- Creams, lotions & facial care products
- Sauces, condiments & food pastes
- Daily chemical products & detergents
- Pharmaceutical liquids & semi-solid formulations
Widely used in cosmetics, food & beverage, daily chemical, and pharmaceutical manufacturing industries.
Component Details

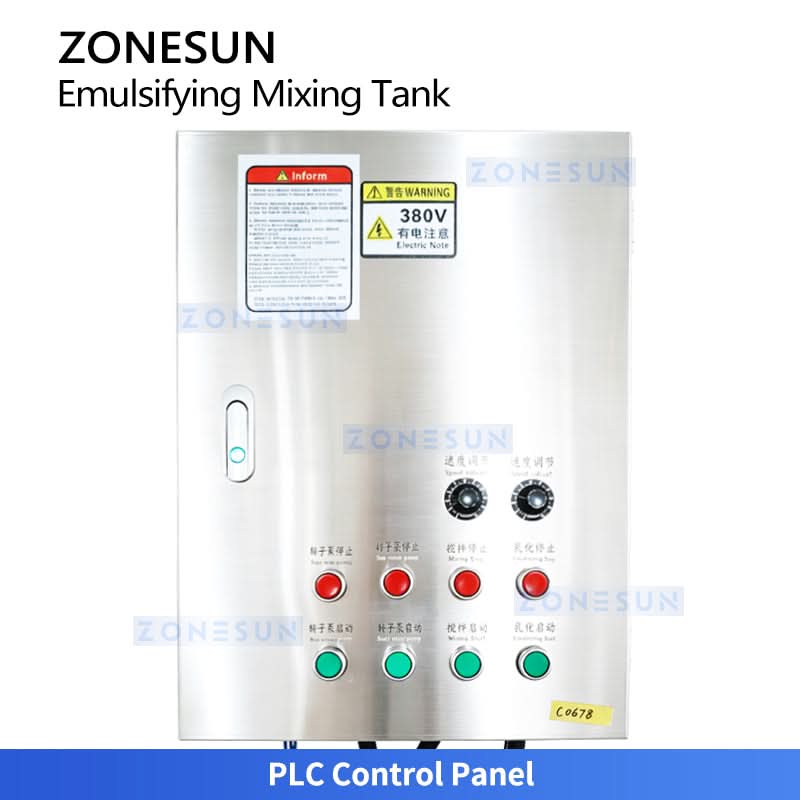

PLC Control Panel
Independent control panel manages mixing speed, emulsification, and dual rotor pump operations for easy, stable production control.
High-Speed Top Emulsifier
5.5 kW emulsifier running at 2880 RPM delivers powerful shear force for thorough emulsification of creams, lotions, and other high-viscosity formulations.
Anchor Impeller with Wall & Bottom Scrapers
Anchor-type impeller with wall and bottom scrapers ensures thorough mixing by continuously sweeping material from tank walls and base, preventing dead zones.

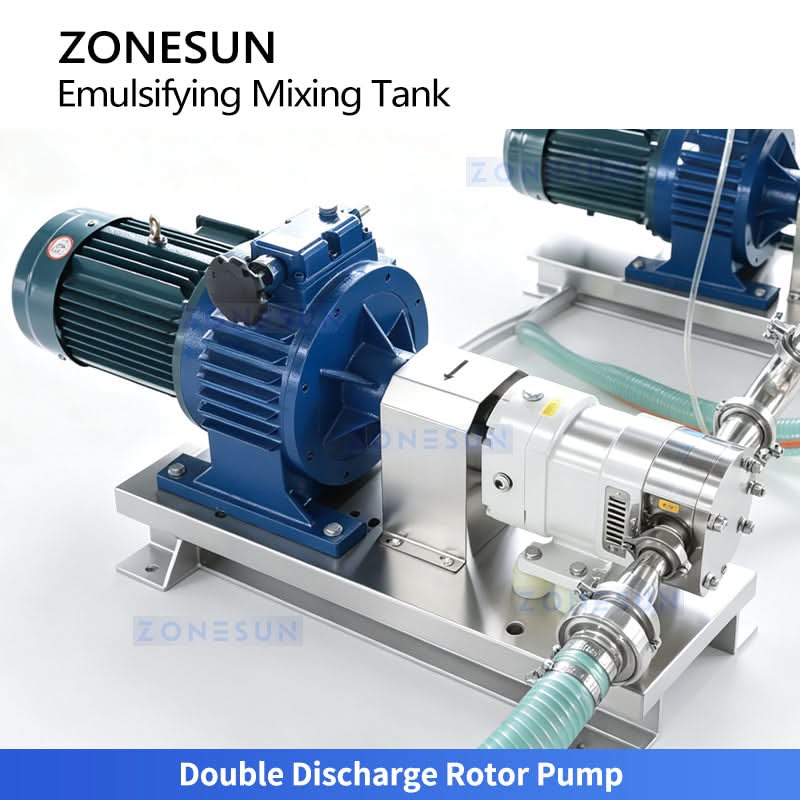

Double Discharge Rotor Pump
Dual independent rotor pumps enable fast, stable transfer of high-viscosity materials with smooth discharge controlled via valves and pump switches.

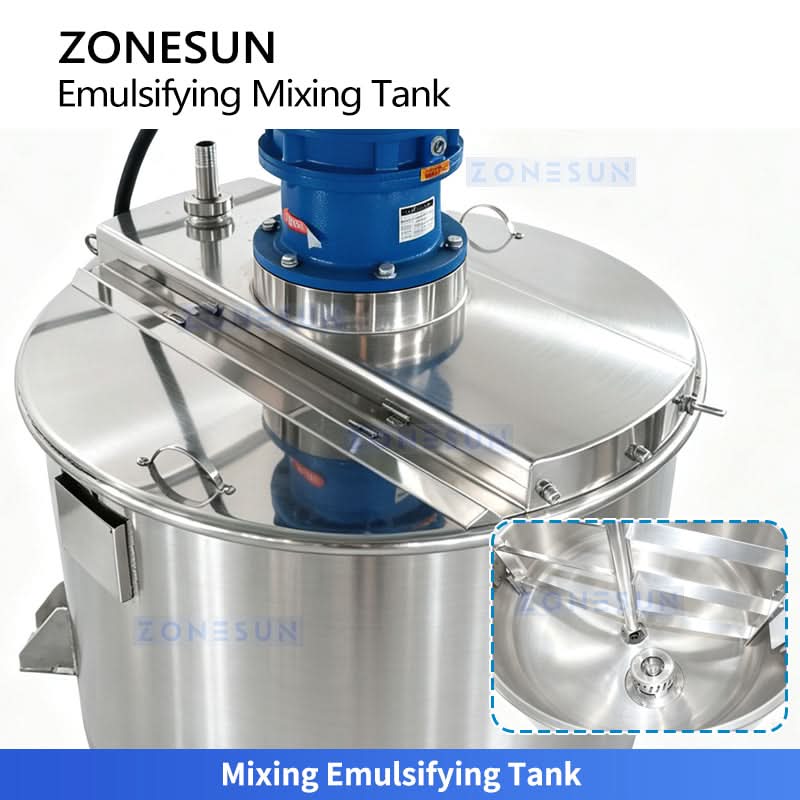

SUS316 Stainless Steel Tank
Main vessel constructed from 3mm SUS316 stainless steel with top flip-open lid and bottom dished head for corrosion resistance, hygiene compliance, and easy cleaning.

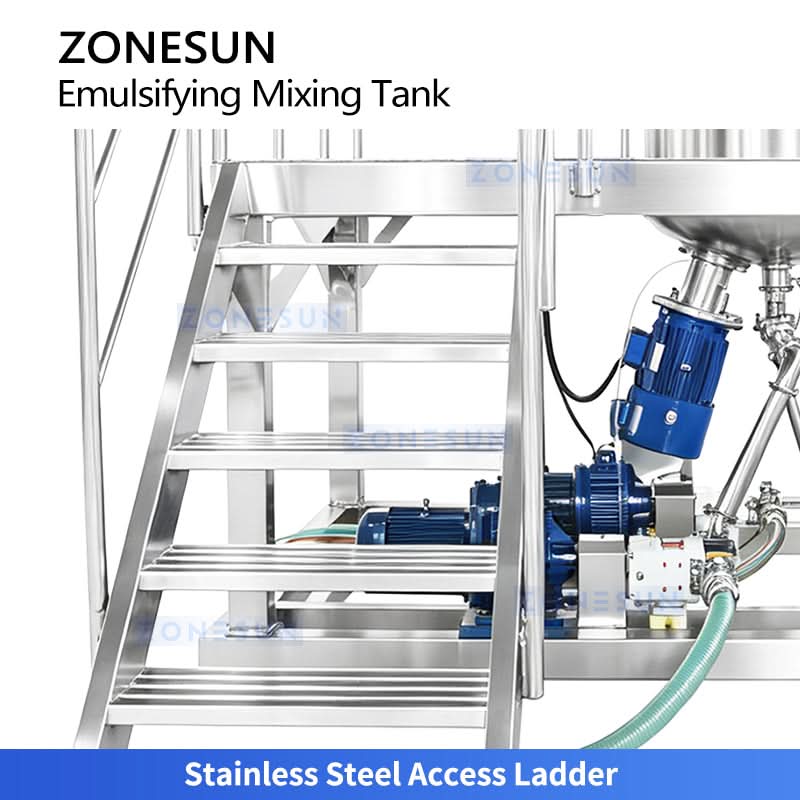

Stainless Steel Access Platform & Ladder
SUS201 stainless steel platform (1500 × 2000 mm) with access ladder provides safe, convenient access for inspection, loading, and maintenance operations.
Circulating Cooling System
Integrated cooling system maintains stable operating temperature during extended production runs, protecting seals and ensuring consistent emulsification quality.
