ZONESUN ZS-FS100L Automatic Small Sachet Powder Packaging Machine | Vertical Form Fill Seal (VFFS) Pouch Packing Equipment
ZONESUN ZS-FS100L Automatic Small Sachet Powder Packaging Machine | Vertical Form Fill Seal (VFFS) Pouch Packing Equipment
No se pudo cargar la disponibilidad de retiro
Description
The ZONESUN ZS-FS100L is a compact vertical form-fill-seal (VFFS) machine designed for precise powder dosing and automatic sachet packaging. It integrates film pulling, bag forming, auger filling, and heat sealing into a single streamlined unit. Operating at 30–50 sachets per minute, it supports a filling range of 5–100 ml with ±1% accuracy. Ideal for pharmaceutical, food, and chemical industries requiring efficient small-dose powder packaging in laminated film sachets.
Parameter
| Parameter | Specification / Value |
|---|---|
| Machine Model | ZS-FS100L |
| Working Speed | 30–50 bags/min |
| Filling Range | 5–100 ml |
| Filling Accuracy | ±1% |
| Bag Size Supported | Length 50–150 mm / Width 20–40 mm |
| Power Consumption | 4 kW |
| Voltage | 220V |
| Machine Weight | 340 kg |
| Machine Dimensions | 1080 × 790 × 1750 mm |
Applications & Compatible Materials
The ZONESUN ZS-FS100L is engineered for high-precision vertical packaging of dry, fine, free-flowing, and semi-free-flowing powders. It is widely used across multiple industries requiring hygienic, consistent, and compact small-sachet packaging (5–100 ml):
- Food & Beverage Industry: Ideal for packaging instant coffee powder, matcha green tea powder, milk powder, cocoa powder, spice mixtures, seasoning powders, sugar, salt, and food additives.
- Pharmaceutical & Nutraceutical: Perfect for single-dose medicinal powders, herbal extract powders, protein powder, collagen powder, vitamin powders, and dietary supplements.
- Cosmetic & Personal Care: Designed for facial mask powders, bath salts, talcum powder, enzyme wash powders, and beauty formula ingredients.
- Chemical & Agricultural: Suitable for detergent powders, disinfectant powders, pesticide powders, fertilizer additives, and industrial fine chemicals.
*Note: Not suitable for large granulates, liquid, or viscous pastes. For liquid or paste filling solutions, please contact our support team.
CONTROL PANEL
- Customizable Language Toggling: Supports seamless, one-touch multi-language options (Chinese/English) for hassle-free global onboarding.
- All-in-One Parameter Control: Allows instant, micro-level programming of sealing variables and speeds from a single touch interface.

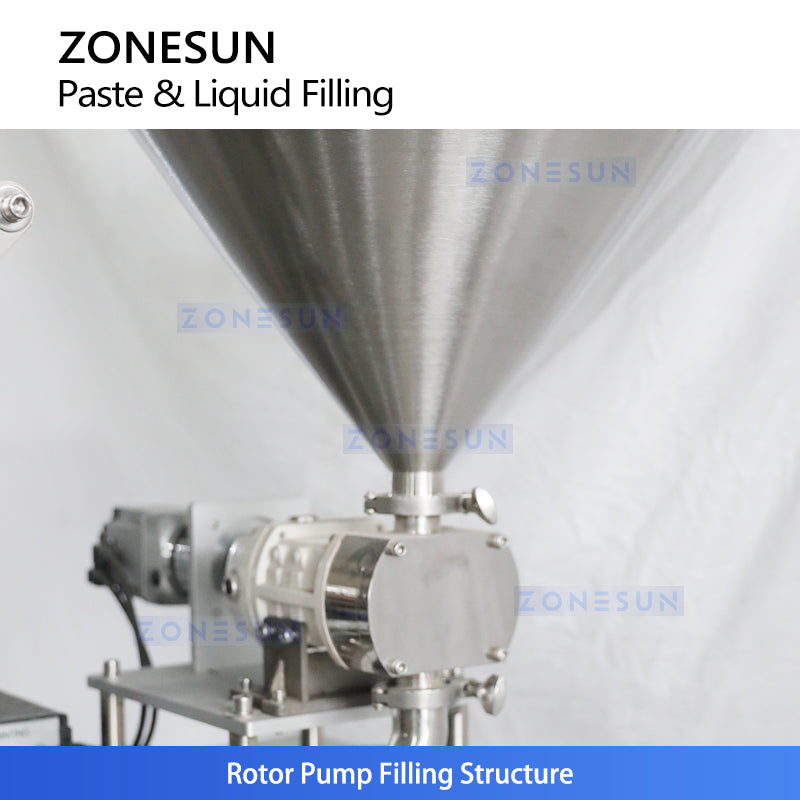

ROTOR PUMP FILLING STRUCTURE
- Engineered for Viscous Pastes: Perfectly handles heavy creams, gels, sauces, and high-viscosity liquids that traditional pumps cannot move.
-
Controlled Rotary Lobe Feeding: Features a powerful rotary lobe design that maintains unyielding, stable discharge pressure for exceptional filling consistency.
HEAT SEALING
- Synchronized Heat & Heavy Pressure: Distributes thermal energy and mechanical forces evenly to eliminate wrinkles, weak seals, or product micro-leakage.
- 100% Airtight Sachet Forming: Specially engineered to seal small pouches and stick packs firmly, locking out external air and moisture to preserve maximum freshness.
SACHET CUTTING
- Crisp & Clean-Cut Edges: Utilizes heavy-duty industrial blades to deliver sharp, smooth cuts, completely eliminating film stringing, fraying, or incomplete separation.
- Rigid Positioning Block Limits: Features a high-precision guiding block that firmly secures the film channel, preventing lateral drifting for dead-on cutting accuracy.
DATE CODER
- Multi-Line Data Printing: Effortlessly prints production dates, batch numbers, and expiration information onto each sachet with highly visible characters.
- Flawless Cycle Synchronization: Moves in perfect harmony with upstream sealing and film pulling to secure synchronized, dead-on print positioning.
