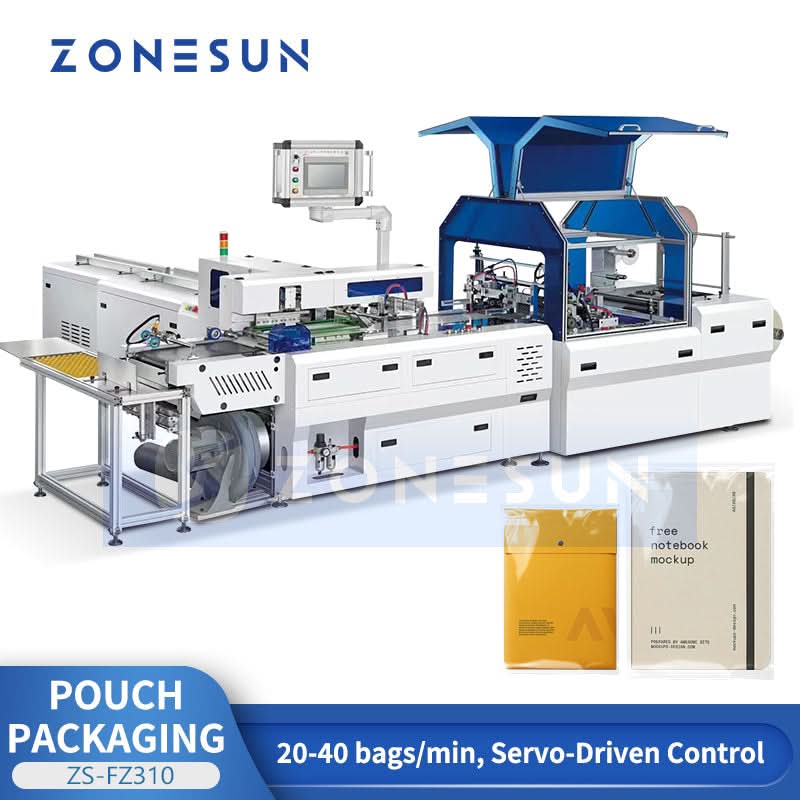

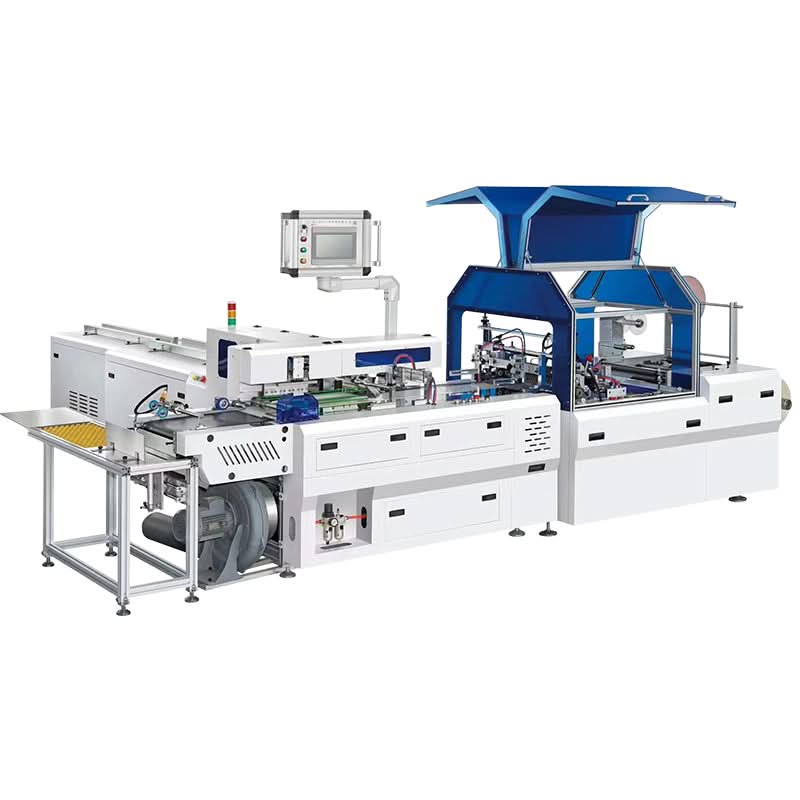

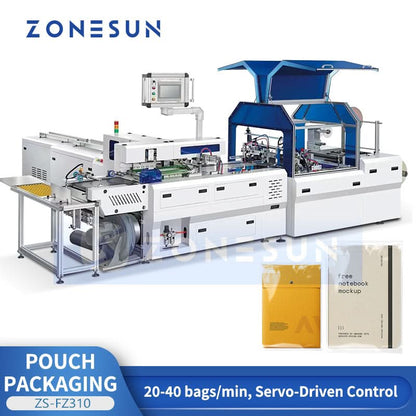

ZONESUN ZS-FZ310 Automatic Notebook Counting Filling Sealing Machine with Integrated Bundling System

Description

The ZONESUN ZS-FZ310 is a high-speed automatic paper counting and bagging machine designed for stationery, notebooks, exercise books, test papers, manuals, and other flat products. Operating at 20–40 bags/min, it integrates bag making, loading, sealing, stacking, and bundling into a fully automated workflow. Using roll film to form bags on demand, the machine eliminates the need for pre-made bags, significantly reducing material costs. Equipped with a PLC-controlled servo drive system, it ensures ultra-precise motion control, fast response, and stable long-term performance. With intelligent HMI operation, modular functional units, and a compact integrated structure, it delivers efficient, consistent, and professional packaging results for medium to large-scale production lines.

Parameter

• Model: ZS‑FZ310
• Production Speed: 20–40 bags/min (varies by product size)
• Power Supply: 220 V / 380 V, 50/60 Hz
• Max. Packaging Size: Approx. 210 × 320 mm (supports A4 size)
• Min. Packaging Size: Approx. 80 × 80 mm
• Packaging Thickness: 2–30 mm
• Total Pocket Width (Both Sides): ±7–8 mm
• Control System: PLC control with servo motor drive
• User Interface: Intelligent HMI touch screen
• Packaging Material: OPP, PE, or other heat‑sealable films
• OPP Film Size: 220 × 320 mm – 88 × 80 mm
• Motor Power: 8 kW
• Machine Weight: 2200 kg
• Machine Dimensions (L×W×H): 4500 × 3300 × 1650 mm

Applications

This equipment is specially engineered for the automatic counting, form-fill-seal packaging, and bundling of paper products, printed materials, and stationery, perfectly serving the following items:

• Festive & Cultural Items: Bulk packaging for red envelopes (Hongbao), festive cards, and traditional paper decorations.
• Office & School Stationery: Ideal for spiral notebooks, exercise books, journals, memo pads, and loose-leaf binders.
• Business & Printed Media: Perfect for packing award certificates, corporate envelopes, presentation folders, and tender documents.
• Gifts & Greeting Cards: Suitable for birthday cards, postcards, event invitations, board game cards, and collectible trading cards.
• Anime Merchandise & Publications: Excellent for thin artbooks, anime collectibles, fashion magazines, brochures, and promotional leaflets

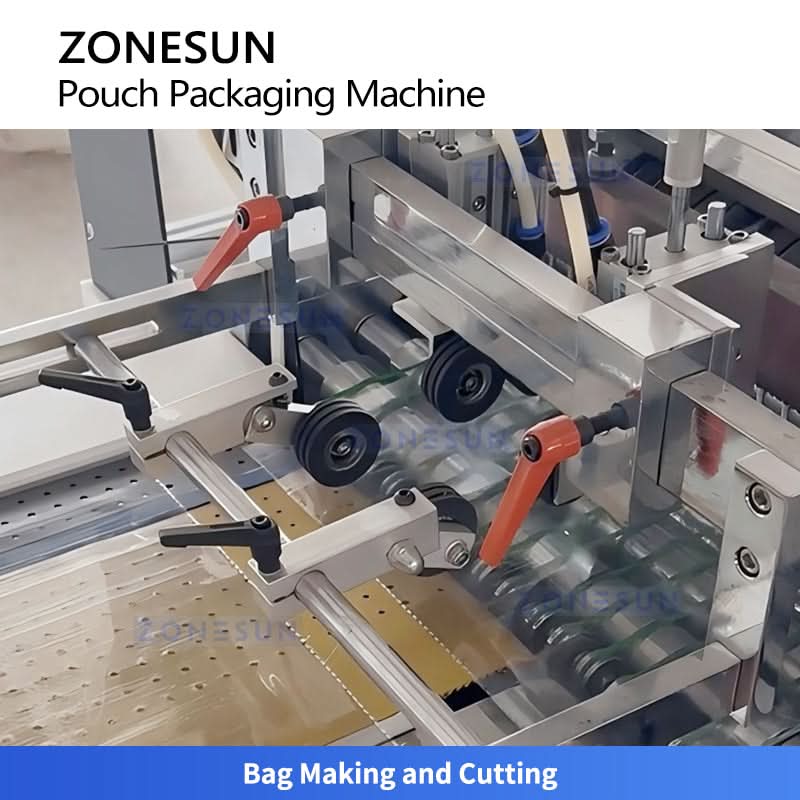

MAKING & CUTTING Automatically forms and cuts bags directly from tubular roll film, enabling on-demand pouch sizing while reducing material waste and production costs.

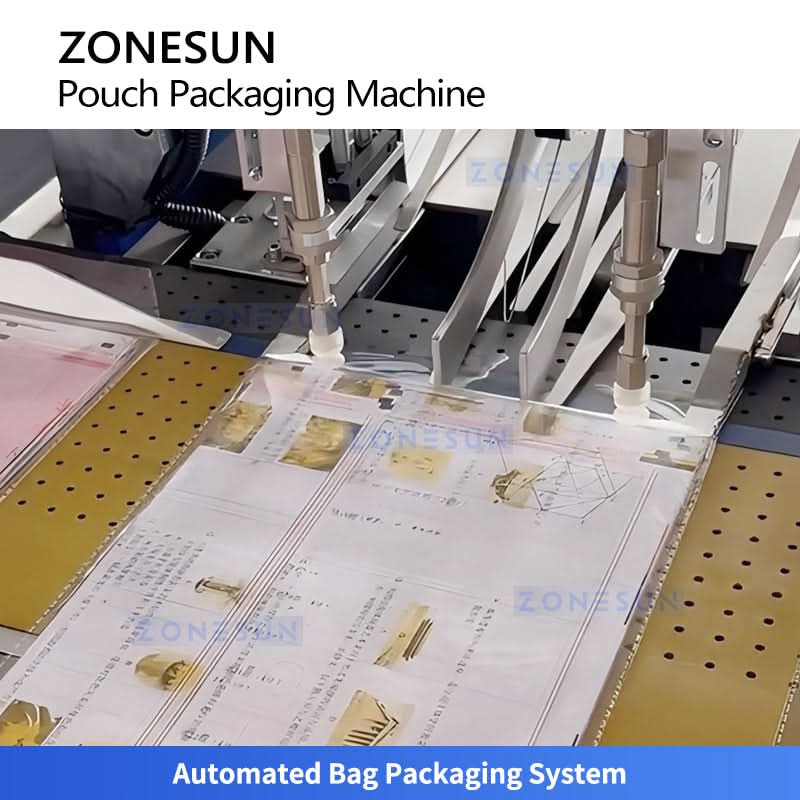

PNEUMATIC BAG OPENING & PRODUCT INSERTION Employs vacuum suction and pneumatic pushers to automatically open pouches and insert products smoothly, ensuring fast and reliable loading cycles.

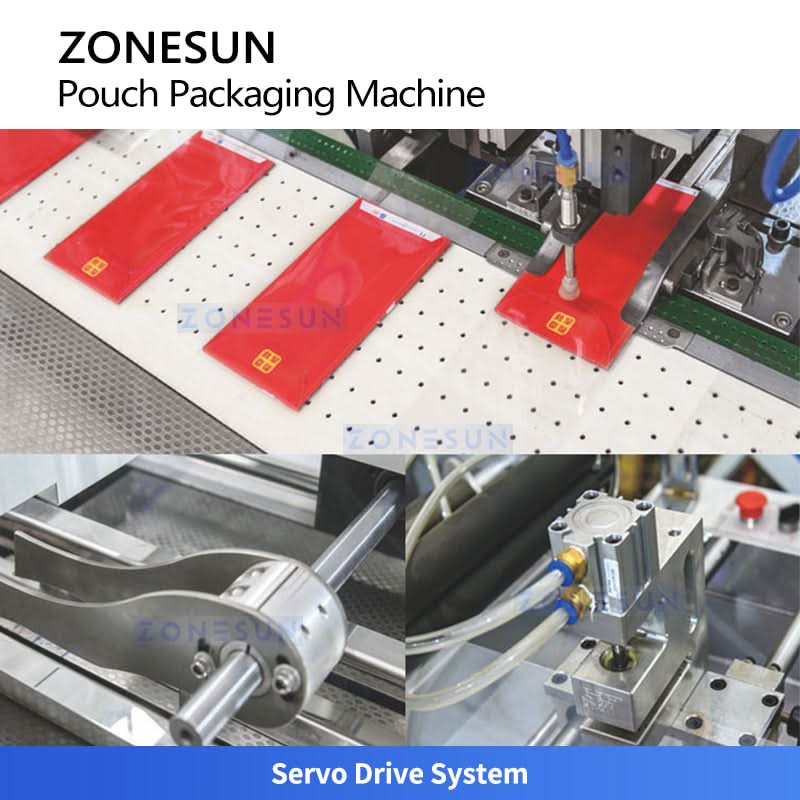

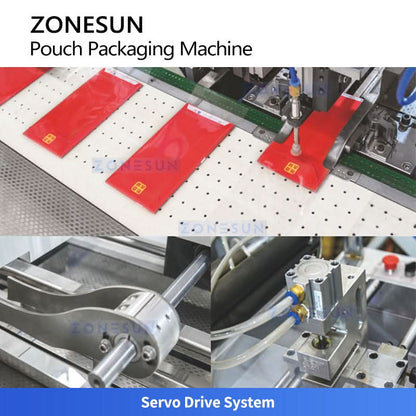

PLC-INTEGRATED SERVO DRIVE SYSTEM Features high-precision servo-driven motion control integrated with PLC architecture for rapid response times and consistent, long-term operational stability.

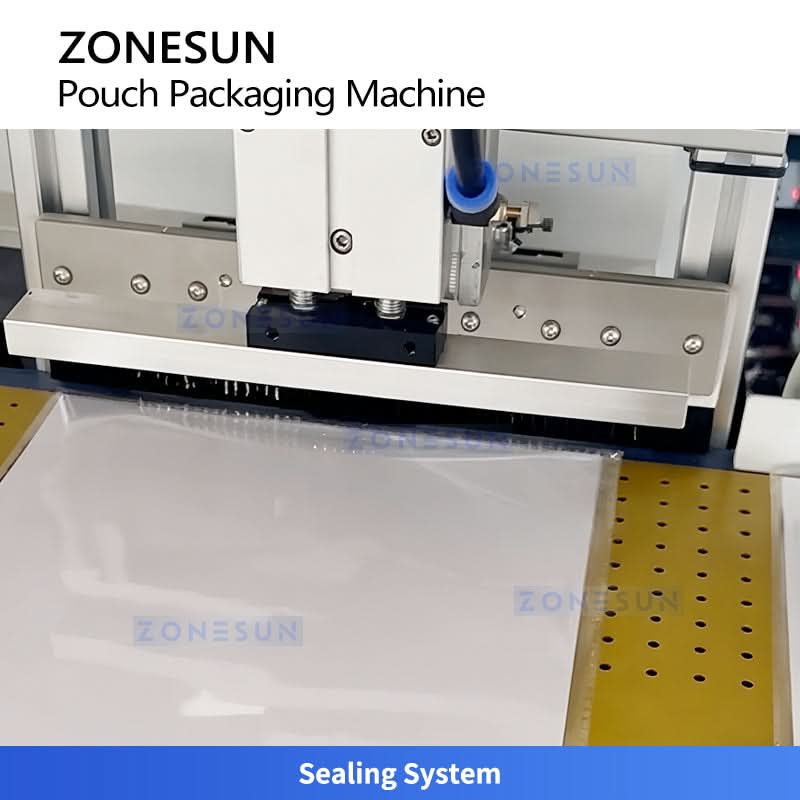

HIGH-PRECISION HEAT SEALING MECHANISM Utilizes constant-temperature heating jaws to create strong, airtight, and visually clean seals during continuous high-speed production.

AUTOMATIC STACKING & ACCUMULATION UNIT Neatly aligns and stacks finished pouches, ensuring seamless transfer to the downstream bundling system without manual intervention.

AUTOMATIC BANDING & BUNDLING UNIT Applies tight paper or film tape around stacked packages, securing uniform bundles for efficient handling, storage, and final distribution.
