ZONESUN ZS-GW260D Automatic Premade Pouch Packing Machine with 10-Head Multihead Weigher for Snacks, Pet Food & Granules

Description

The ZONESUN ZS-GW260D is an automatic bag-feeding packaging machine equipped with a high-precision 10-head combination weigher. Running at 10-50 bags per minute, it handles 50 g to 5 kg of powders and ultra-fine powder materials such as milk powder, feed, rice flour, sugar, MSG, solid beverages, and glucose. With a horizontal linear layout and Siemens PLC control, it ensures stable operation, accurate weighing, and efficient bag handling across pickup, opening, filling, sealing, and outfeed. It also provides excellent compatibility, adapting to irregular bag shapes and allowing quick format changes without additional accessories.



Features

• Bag Arranging & Inserting Unit： Automatically arranges and inserts bags neatly into master bags (200–300 pcs). For special shaped bags such as spout bags, the conveyor assists in smooth handling.
• Bag Clamping Device： Clamps the bag from bottom to top inside the bag slot, then transfers it to the coding machine for accurate date printing.
• Code Printer： Prints date information using Arabic characters; special characters can be customized as needed.
• Bag Opening Device： Uses an air pressure pump to activate suction cups, automatically holding and opening the bag to prepare for filling.
• Feeding System： Equipped with three servomotors for automatic bag detection, nobag nofill protection, and precise feeding. Packing accuracy is within ±0.5–2 g.
• Sealing Device：Uses sealing rods for heat sealing at 100–190 °C. Special products may require secondary sealing to ensure strong and reliable closure.
• 10 Head Combination Weigher：Accurately weighs materials with ten independent heads and autocombines optimal weight values for highspeed, precise filling.
• Feeding Elevator：Lifts materials steadily to the combination weigher, ensuring continuous, stable feeding and preventing material interruption.







Specifications

• Main Machine (ZSGW160D)
• Voltage: 220 V / 380 V ±10%, 50/60 Hz
• Filling Speed: 10–50 bags/min
• Weighing Range: 50 g – 5 kg
• Weighing Accuracy: ±0.3–1.5%
• Filling Method: Auger (screwtype rotary filling)
• Hopper Capacity: 10–100 L (customizable)
• Max Packaging Volume: 2500 mL
• Bag Size: 100–260 mm (W) × 110–500 mm (L)
• Sealing Temperature: 100–190 °C
• Main Machine Power: 3.5 kW
• Filler Power: 2.5 kW
• Air Pressure: 0.6 MPa
• Air Consumption: 0.7 m³/min
• Material: 304 stainless steel
• Dimensions: 2450 × 1200 × 1200 mm
• Weight: 1100 kg
• 10Head Combination Weigher
• Weighing Range: 10 g – 1 kg
• Accuracy: 0.1–1.5 g
• Max Speed: Up to 120 bags/min
• Hopper Capacity: 1.6 L
• Power: 1.5 kW
• Mixing Capability: Up to 4 materials
• Material: 304 stainless steel
• Touch Screen: 7 / 9.7 inches
• Voltage: AC 220 V ±10%, 50/60 Hz
• Dimensions: 1720 × 1100 × 1100 mm
• Weight: 450 kg



Applications

• Stand-Up Pouches (Doypack):With or without reclosable zippers, perfect for retail display.
• Flat Pouches & 3-Side/4-Side Seal Bags: Ideal for single-serve packs or face masks.
• Gusseted Bags & Flat Bottom Pouches: Suitable for heavy coffee bags or premium pet food.
• Special-Shaped Pouches: Supports custom die-cut contours and cartoon-shaped bags for creative branding.
• Pouches with Hanging Holes: Ready for pegboard retail racks.

• Kraft Paper Laminates: Ideal for organic, natural, or tea-based products looking for an earthy aesthetic.
• Clear & Frosted Plastic Films: Perfect for showcasing the fresh ingredients inside (e.g., dried fruits, nuts).
• High-Barrier Foil & Metallized Films: Provides maximum light and moisture protection for coffee, snacks, and pet treats.
• Glossy & Matte Printed Composites: Delivers vibrant, high-end visual appeal for modern retail brands.

• Food & Snacks: Nuts, dried fruits, candy, popcorn, chips, beef jerky, cereal.
• Pet Care: Crunchy kibble, freeze-dried treats, pet organic snacks.
• Tea & Coffee: Loose-leaf tea, herbal infusions, whole bean or ground coffee.
• Daily Chemical & Beauty: Sheet face masks, travel-size wipes, powder packets.



ARRANGING & INSERTING

Puts bags neatly into master bags (200-300 bags). For special-shaped bags such as spout bags, completes the operation with the conveyor belt.





CLAMPING DEVICE

Clamps the bag from bottom to top inside the bag slot, then transfers it to the coding machine for accurate date coding.





CODE PRINTER

Prints the date on the bag using Arabic characters; Should be customized when special characters are required.





OPENING DEVICE

Bag opening device through the air pressure pump device,so that the suction cup automatically hold the bag, so as to complete the bag opening operation process.





FEEDING SYSTEM

The machine has 3 servomotors built-in, automatic induction bag, no bag filling,accurate feeding, Packing precision error is less than ±0.5-2g.

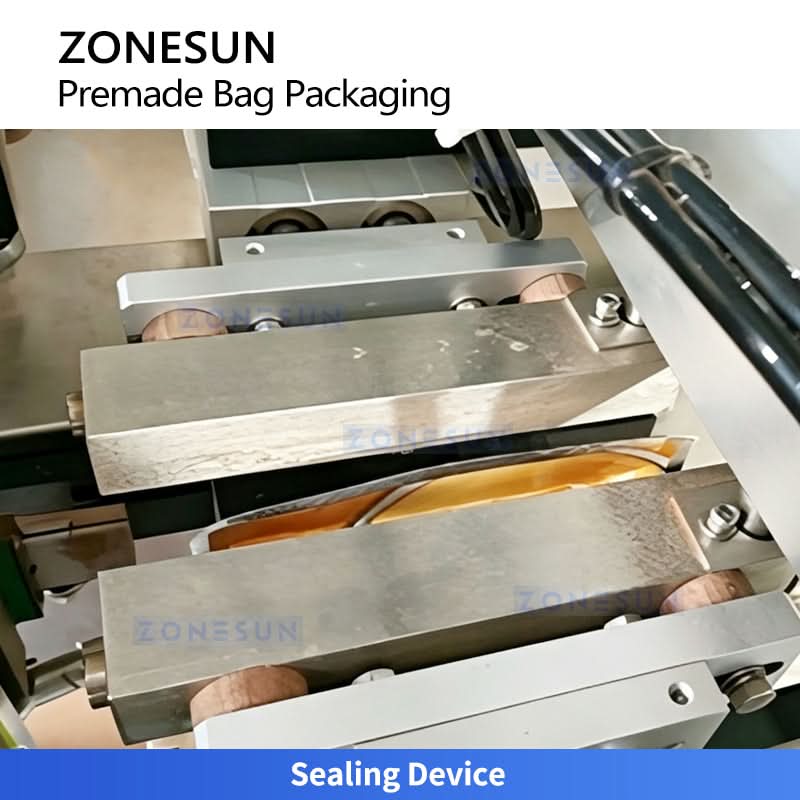

SEALING DEVICE

Uses sealing rods for heat sealing at 100-190 °C; special products may require secondary sealing to ensure tight and durable closure.





COMBINATION WEIGHER

Accurately weighs materials with ten heads, auto-combines optimal weights for precise, high-speed filling.





FEEDING ELEVATOR

Lifts materials steadily to the combination weigher, ensuring continuous, stable feeding and preventing material interruption during high-speed packaging.
