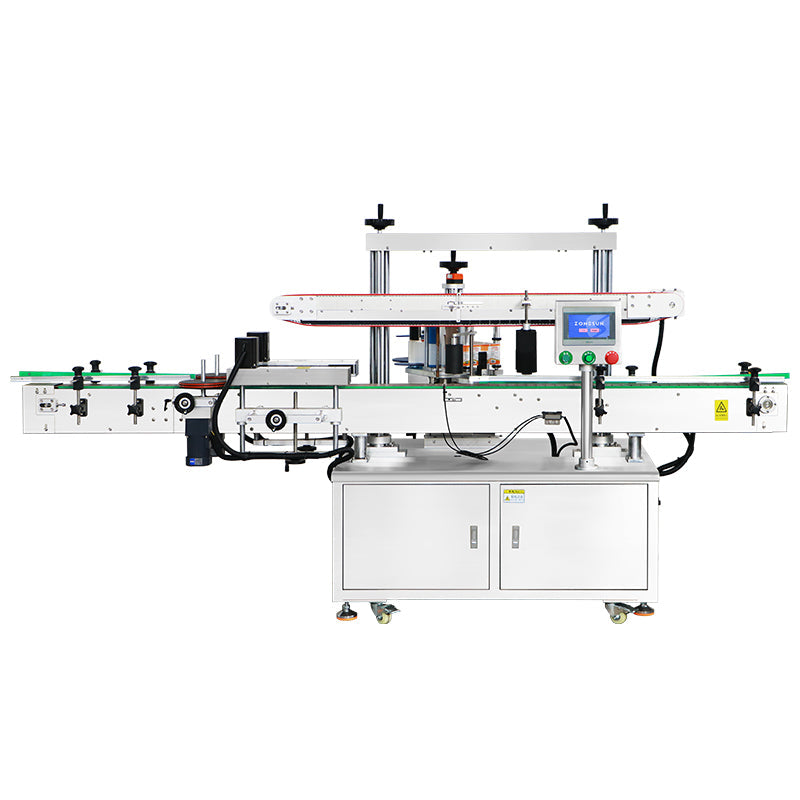

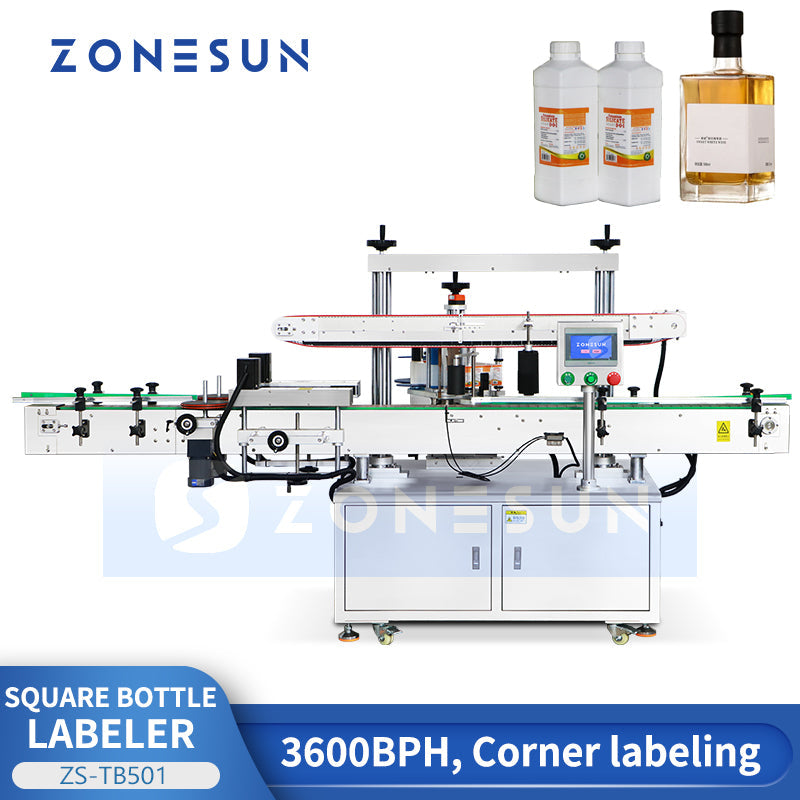

ZONESUN ZS-TB501 Automatic Corner Labeling Machine for Square Bottles & Three-Side Wrap-Around Labeled Containers
ZONESUN ZS-TB501 Automatic Corner Labeling Machine for Square Bottles & Three-Side Wrap-Around Labeled Containers
Precio habitual
$9,299.00 USD
Precio habitual
$0.00 USD
Precio de oferta
$9,299.00 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Description
The ZONESUN ZS-TB501 is a high-speed corner labeling machine designed for square and rectangular bottles. It applies self-adhesive labels to two adjacent sides—typically the front and side—for a clean, professional appearance. Ideal for packaging perfume, juice, whisky, and other liquid products, this machine integrates seamlessly with existing filling and capping systems. Key features include dual-side labeling, optional date coding for batch tracking, and support for fully automated production lines.
| Technical Parameter | |
|---|---|
| Model | ZS-TB501 |
| Voltage | 110V / 220V, 50–60Hz |
| Label Width | 20–120 mm |
| Label Height | 15–160 mm |
| Suitable Bottle Size | (L) 20–100 mm × (W) 30–100 mm × (H) 60–280 mm (customizable) |
| Standard Roll Diameter (Outer) | Ø300 mm |
| Standard Roll Diameter (Inner) | Ø76 mm |
| Labeling Accuracy | ±1.0 mm |
| Labeling Speed | 20–60 bottles/min |
| Machine Size (L×W×H) | Approx. 3120 × 1200 × 1650 mm |
| Machine Weight | Approx. 300 kg |
| Packaging Size (L×W×H) | Approx. 3240 × 1350 × 1740 mm |
| Package Weight | Approx. 601 kg |
Applications
1. Cosmetics & Luxury Fragrances
- Perfume & Cologne Bottles: Seamlessly applies self-adhesive labels across adjacent corners (front, side, and back) of square glass perfume bottles for a luxurious, retail-ready finish.
- Skincare & Essential Oil Containers: Ideal for square dropper bottles, cream jars, and serum packaging that require precise dual-side alignment and clean aesthetic wrapping.
2. Food & Beverage Packaging
- Specialty Juices & Gourmet Sauces: Perfect for square or rectangular glass/plastic bottles containing premium fruit juices, organic syrups, and artisan salad dressings.
- Spirits & Liquor: Commonly used for high-end whisky, gin, and liquor bottles where corner labels serve both as decorative branding and tamper-evident security seals.
3. Chemical & Pharmaceutical Industries
- Chemical Containers: Applies durable warning and product labels around the corners of square industrial or household chemical containers.
- Medicine & Health Supplement Bottles: Ensures precise label placement on square pharmaceutical packaging, facilitating regulatory compliance and batch tracking with optional date coders.

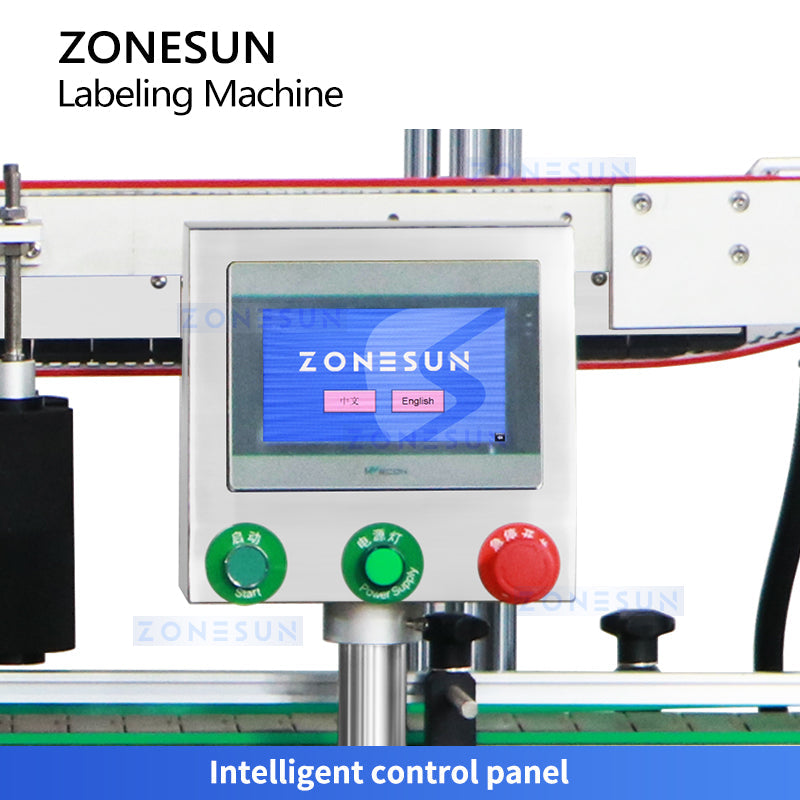

CONTROL PANEL
- Multi-Language Interface: The system supports fully customizable operating languages (such as seamless Chinese/English switching) for worldwide accessibility.
- Smart Touchscreen Control: Sensitive and interactive touch interface simplifies machine operation with highly intuitive parameter settings.

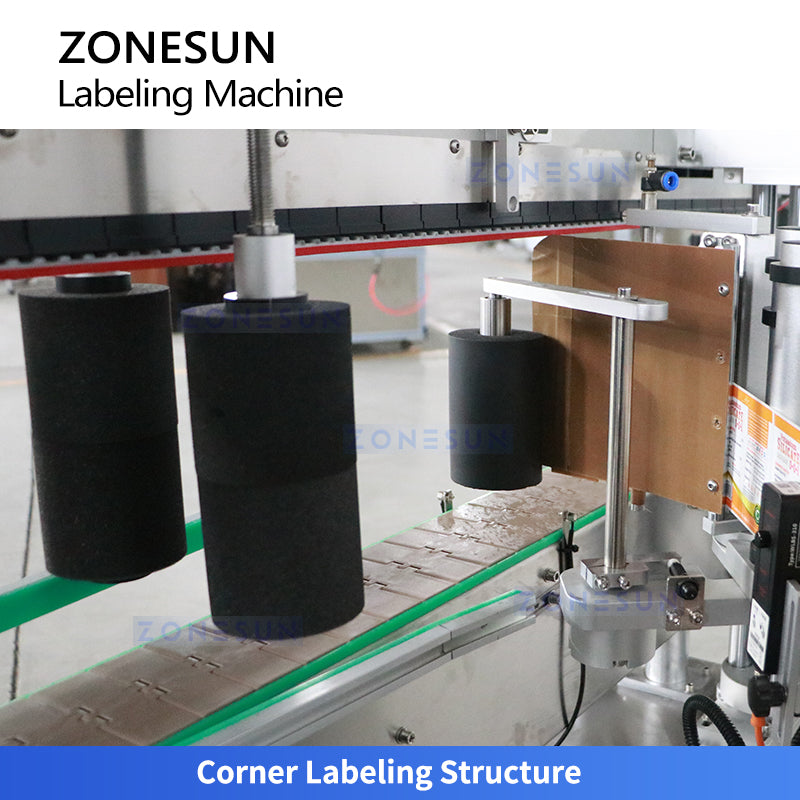

CORNER LABELING
- Designed for Square Bottles: Specially tailored for the corner and right-angle labeling of square or multi-faceted bottles, eliminating wrinkles on edges.
- Top Conveyor Stabilization: Features a synchronized top hold-down conveyor belt to stabilize bottle tops, ensuring zero shifting during high-speed transit.

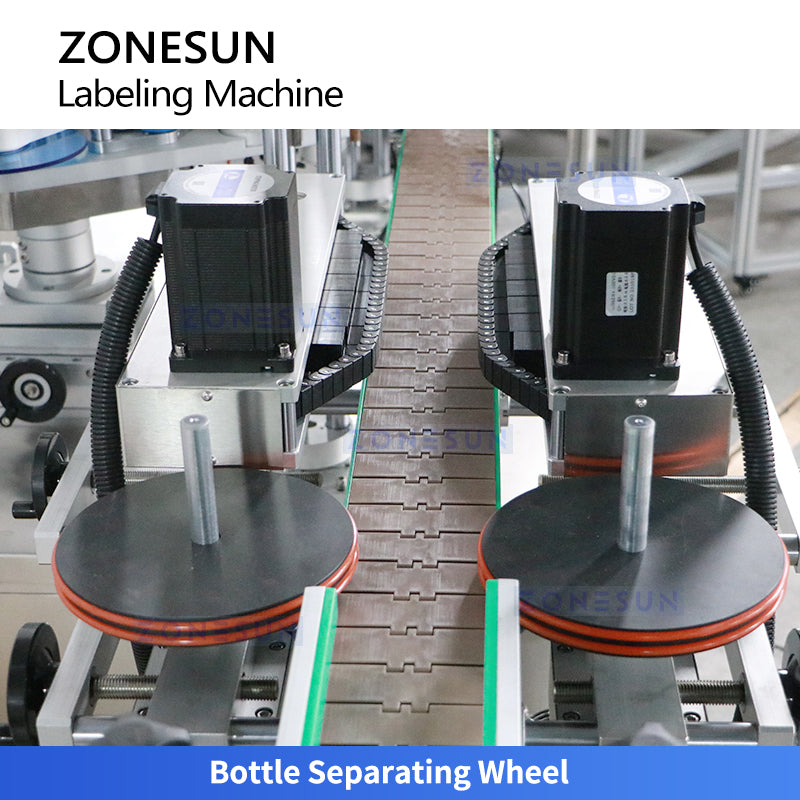

SEPARATING WHEEL
- Even Bottle Spacing: Highly synchronized rotating wheels space out bottles evenly, creating perfect intervals for subsequent labeling or filling.
- Guaranteed Line Stability: Prevents containers from crowding or bumping on the conveyor, ensuring the machine works stably and seamlessly.

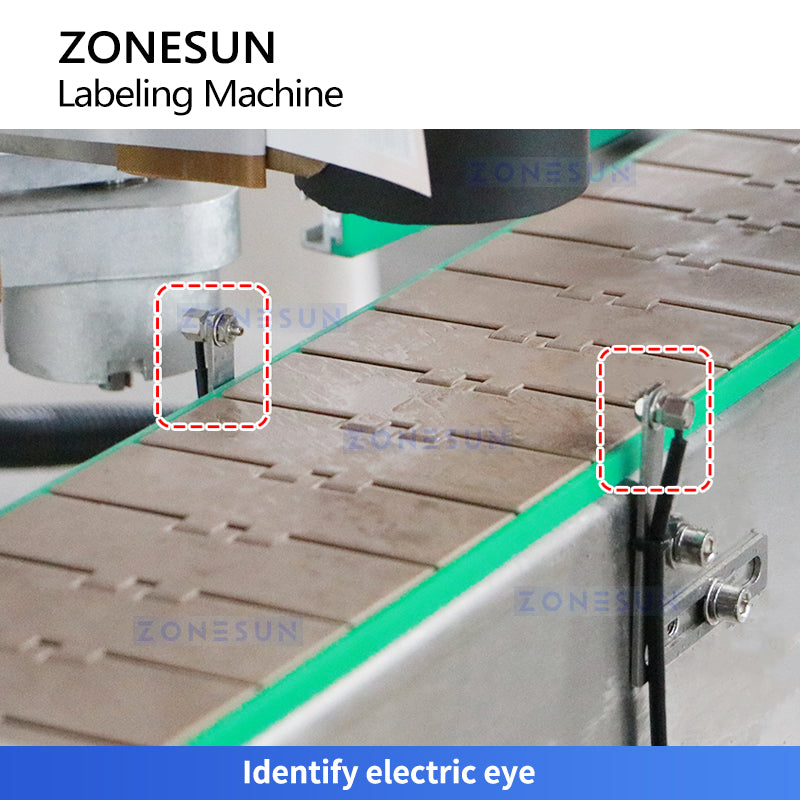

ELECTRIC EYE
- Smart Flow Detection: Purpose-built for detecting passing-by bottles on the conveyor, capturing targets in real time for fluent operation.
- Fully Automated Production: Delivers precise signal synchronization to realize seamless, fully automated production, minimizing labor dependency.

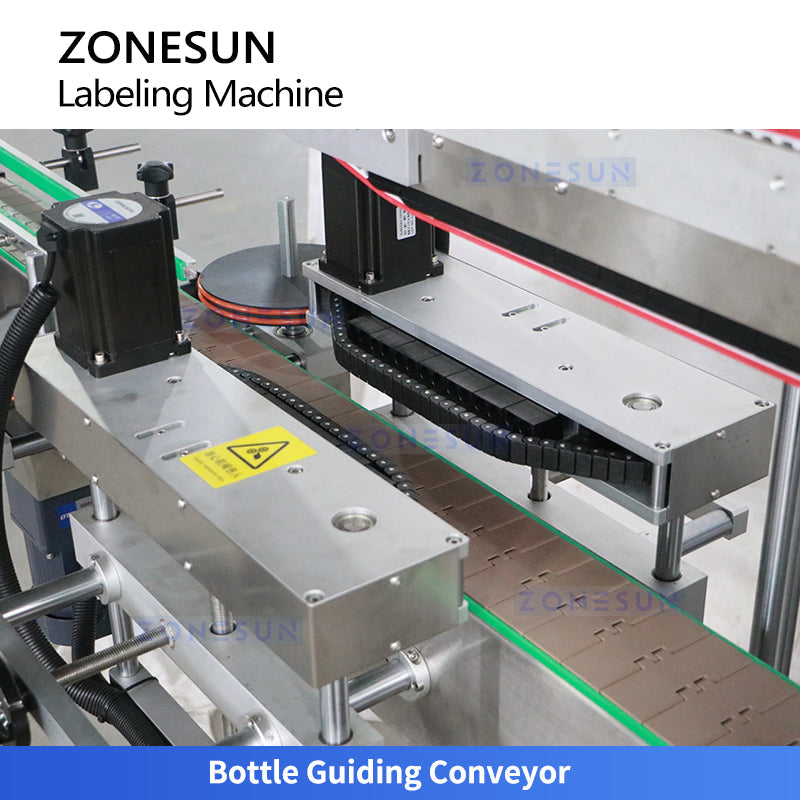

GUIDING CONVEYOR
- Smooth Container Transit: Equipped with a professional side guiding mechanism to ensure bottles are conveyed smoothly along the production line.
- Anti-Tipping Protection: Features stable dual-sided limit guards to securely hold containers and prevent bottles from falling down or slipping.
