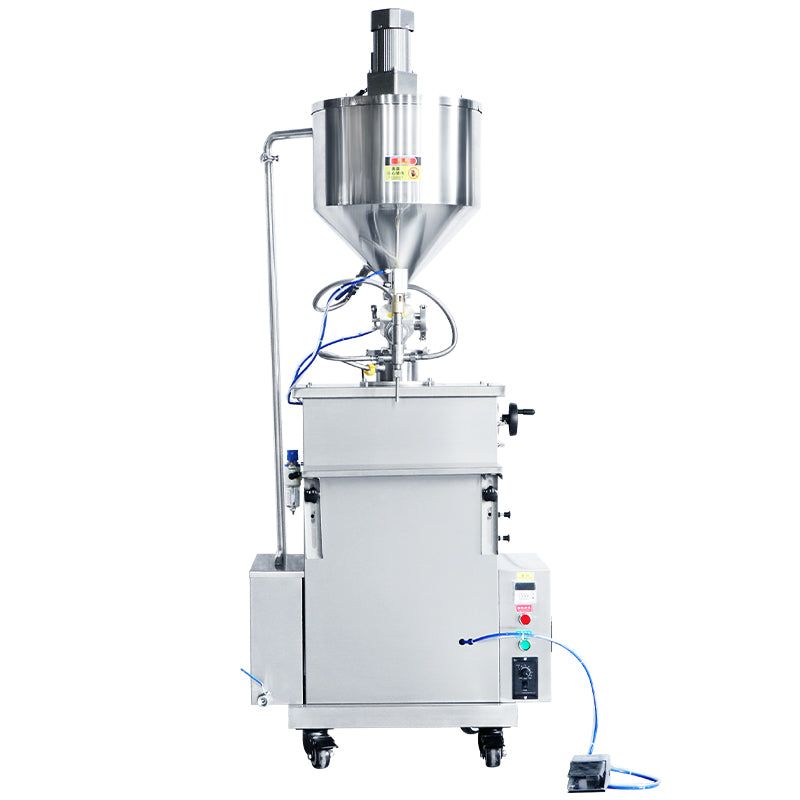

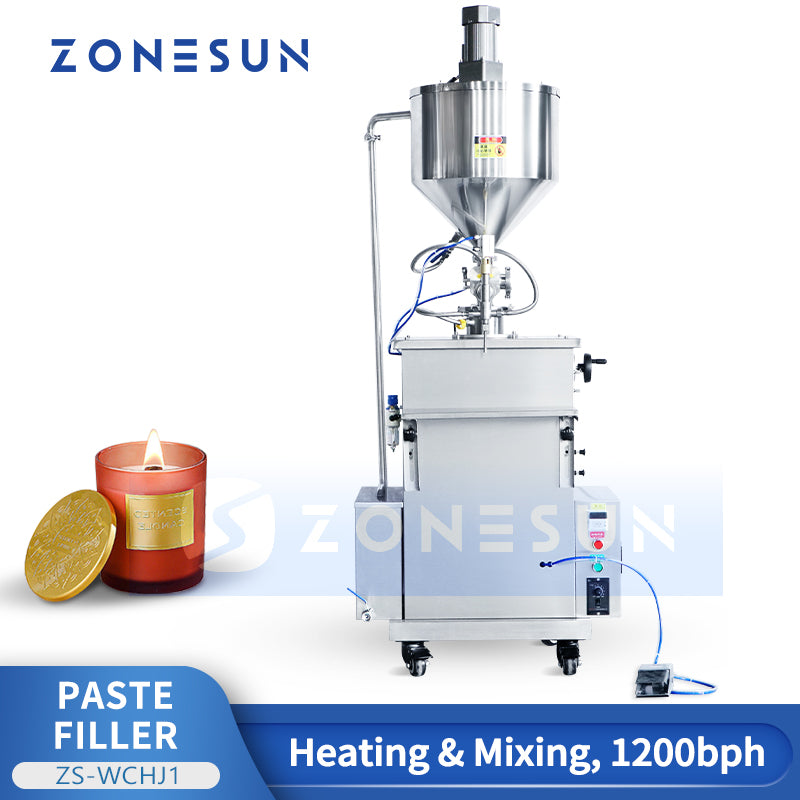

Zonesun ZS-WCHJ1 Semi-automatic Candle Wax Filling Machine with Heating & Mixing
Zonesun ZS-WCHJ1 Semi-automatic Candle Wax Filling Machine with Heating & Mixing
Precio habitual
$1,599.00 USD
Precio habitual
$0.00 USD
Precio de oferta
$1,599.00 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Description
The paste filling machine adopts a double-layer structure design, and the hot water is circulated and heated to maintain a constant temperature. Equipped with a piston pump, it is suitable for liquids or pastes with high viscosity and easy to solidify, such as Vaseline, wax products, lipstick, etc. The machine has a stirring function, which can ensure that the material is mixed evenly before filling. The machine is widely used in cosmetics, daily chemicals, food and other industries
PARAMETER
Machine Model
ZS-WCHJ1
Voltage
220V/50Hz
Power
3.2kW
Filling Speed
About 20-40 bottles/min (depending on material and bottle size)
Filling Range
30-300ml / 50-500ml / 100-1000ml / 200-2000ml / 300-3000ml / 500-5000ml (Can be chosen)
Filling Accuracy
±1%
Hopper Capacity
30L
Heating Temperature
90-95°C
Mixing Speed
0-35r/min
Air Consumption
0.05m³/min
Machine Material
Stainless Steel

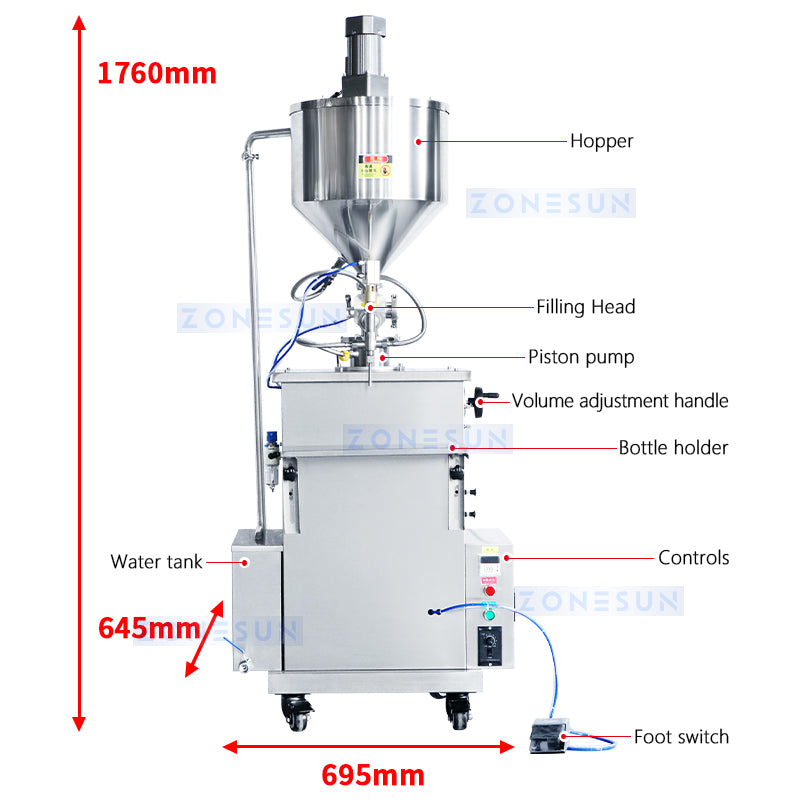

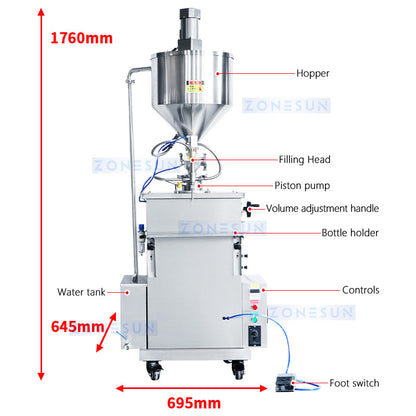

Machine Size
About 695*645*1760mm (L*W*H)
Package Size
About 770*630*1930mm (L*W*H)
Gross Weight
About 129kg
Applications
- Scented Candles & Wax: Perfect for pouring scented jar candles, tealights, beeswax, and soy wax crafts. The constant heating keeps the wax liquid for flawless pouring without air bubbles.
- Skincare Balms & Gels: Ideal for packaging thick cosmetics like cleansing balms, petroleum jelly (Vaseline), and solid lip balms that require melting during the filling process.
- Cosmetic Creams & Lotions: Excellent for filling heavy beauty products, including face creams, moisturizers, mud masks, and hair conditioners, keeping the formula evenly mixed.
- Industrial & Home Care Pastes: Suitable for non-cosmetic items such as shoe polish, car wax, solid air fresheners, and paste deodorants that need temperature-controlled handling.

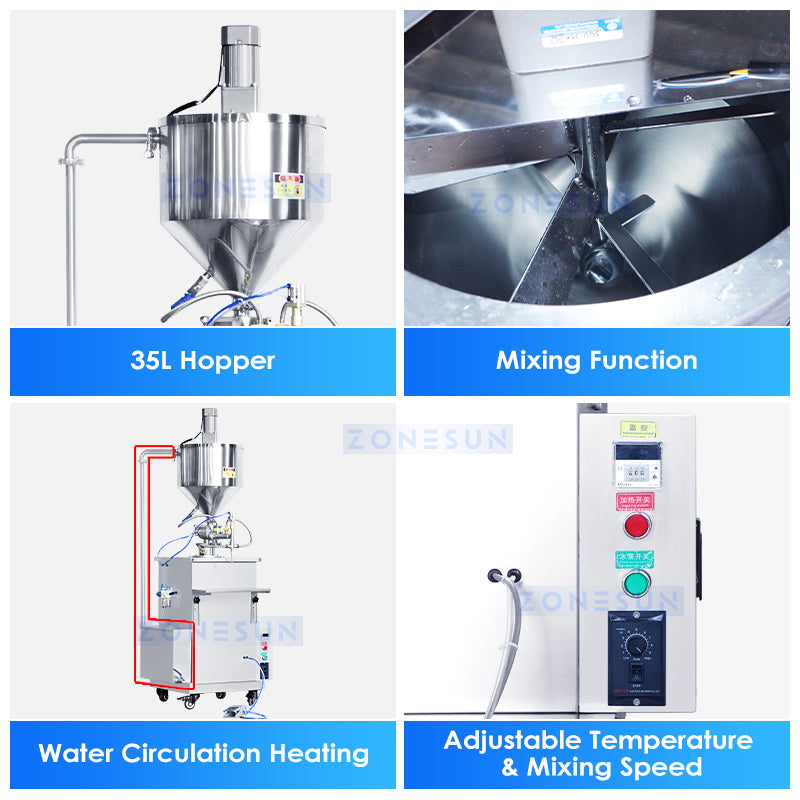

- 35L Heavy-Duty Hopper: The premium stainless steel 35L Hopper minimizes reloading frequency, effortlessly sustaining continuous high-volume and mass production runs.
- Dynamic Homogeneous Mixing: Features a robust Mixing Function with active paddles to prevent product sedimentation or separation, ensuring your mixture remains perfectly uniform before dispensing.
- Constant Water Circulation Heating: The advanced Water Circulation Heating system uses a hot-water jacket to deliver even thermal distribution, effectively preventing pastes, waxes, or thick creams from cooling and hardening.
- Dual Digital Micro-Tuning: Outfitted with an Adjustable Temperature & Mixing Speed interface. Armed with a dedicated temperature controller, heating switch, and water pump switch, operators can precisely tailor settings to match any fluid characteristics.

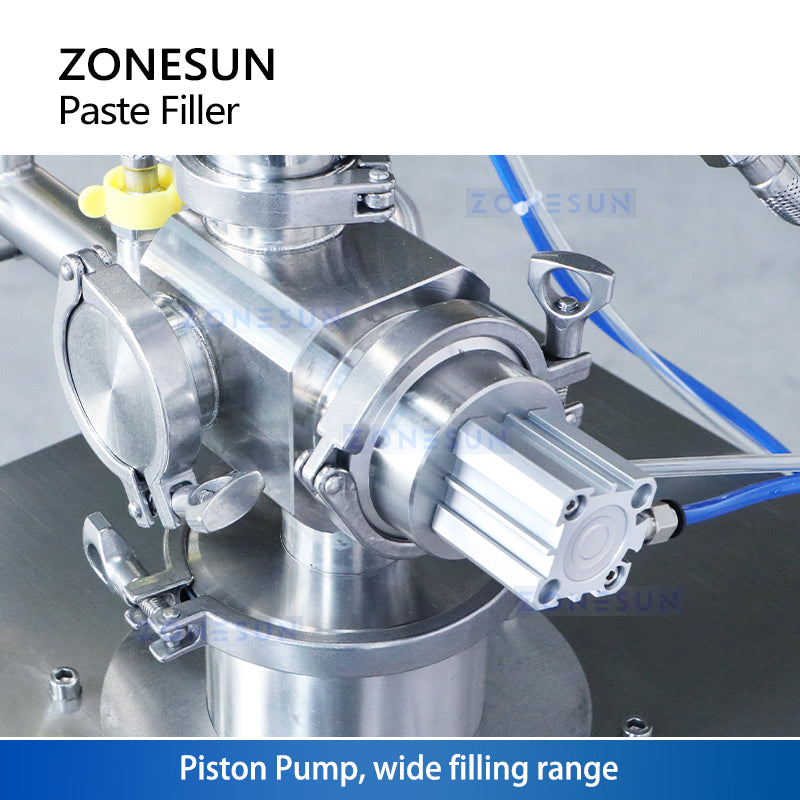

PUMP
- Precise & Highly Consistent Filling: The volumetric displacement design ensures that each and every fill cycle delivers exceptional accuracy and flawless repeatability, minimizing product weight variations.
- Broad Viscosity Compatibility: Boasting robust mechanical thrust and superior sealing, it is well-known for its exceptional suitability for a wide range of viscosities, shifting seamlessly from thin liquids to ultra-thick pastes.

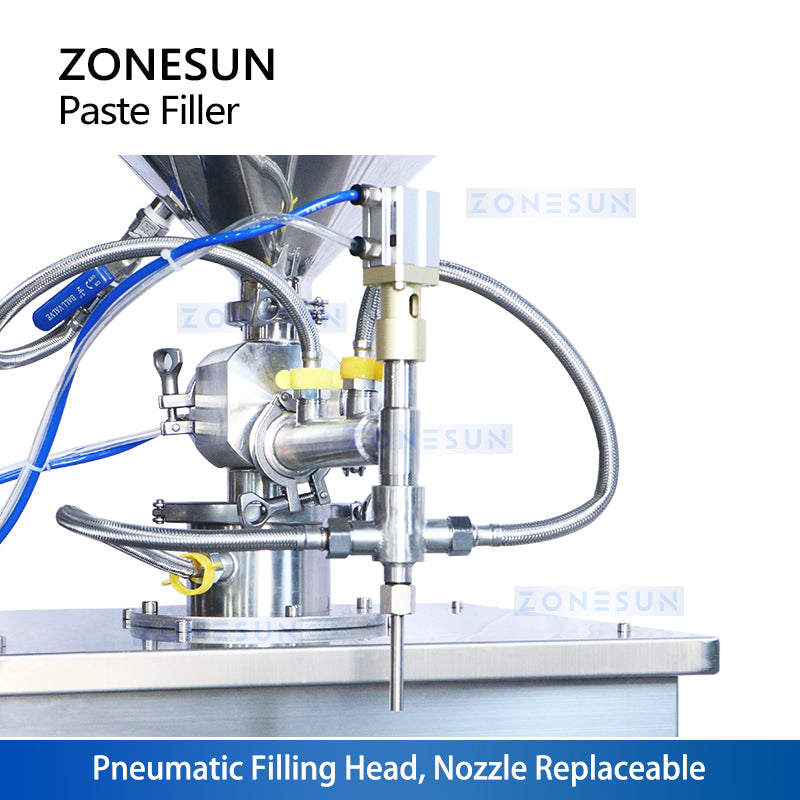

FILLING
- Pneumatic High Efficiency: Operates seamlessly using compressed air, maintaining an ultra-stable drive to deliver consistently efficient and uniform filling performance across massive batch runs.
- Precise Process Control: Provides a granular, highly responsive control mechanism over the entire filling process, paving the way for ultra-accurate dosing and high volumetric precision.

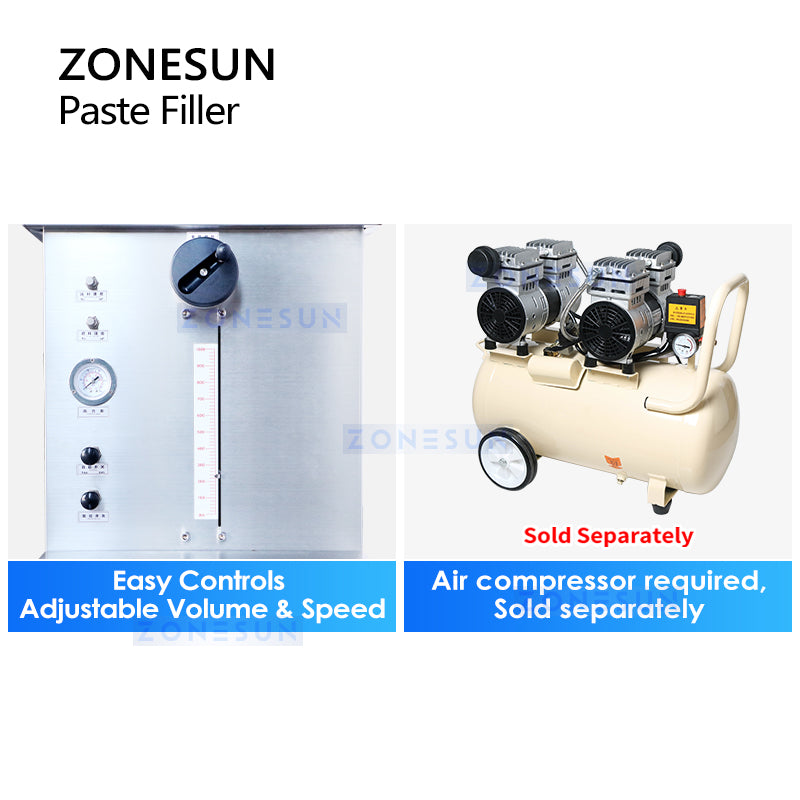

- Adjustable Volume & Speed: Outfitted with dedicated "Feeding Speed" and "Filling Speed" tuning knobs alongside a high-visibility 100ml-1000ml volumetric scale, allowing operators to instantly adjust dosage volumes and fluid flow rates based on product viscosity.
- Air Source Compatibility Note: To sustain its rugged mechanical drive, an air compressor is required to power this machine. Please note that the air compressor is sold separately. If you prefer a complete, turn-key setup with a matching compressor, please contact our team directly.
