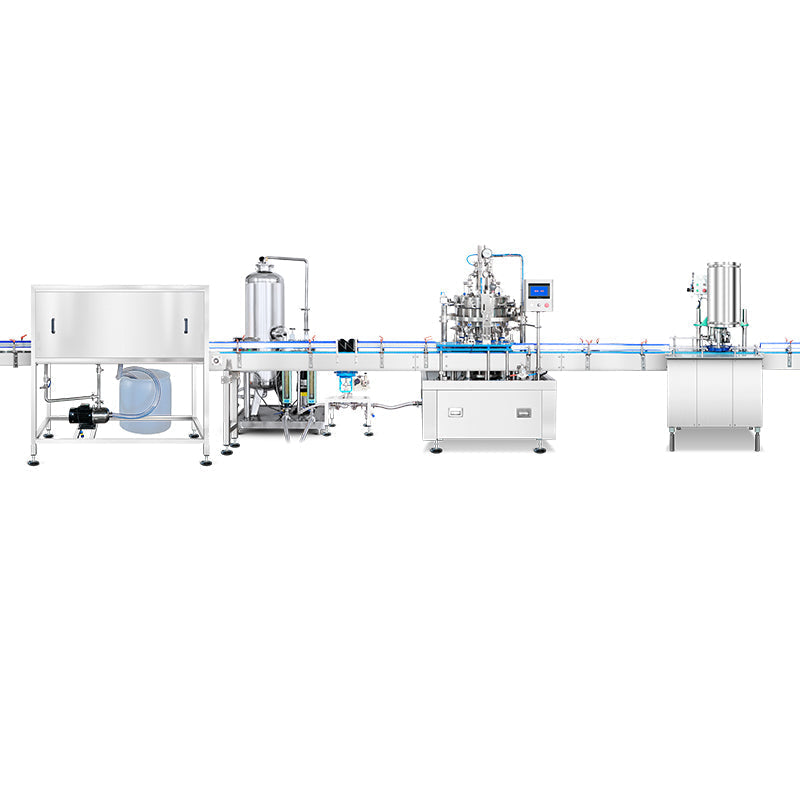

ZONESUN ZS-FAL180A11 Automatic Isobaric Can Filling & Seaming Machine Line
ZONESUN ZS-FAL180A11 Automatic Isobaric Can Filling & Seaming Machine Line
No se pudo cargar la disponibilidad de retiro
Description

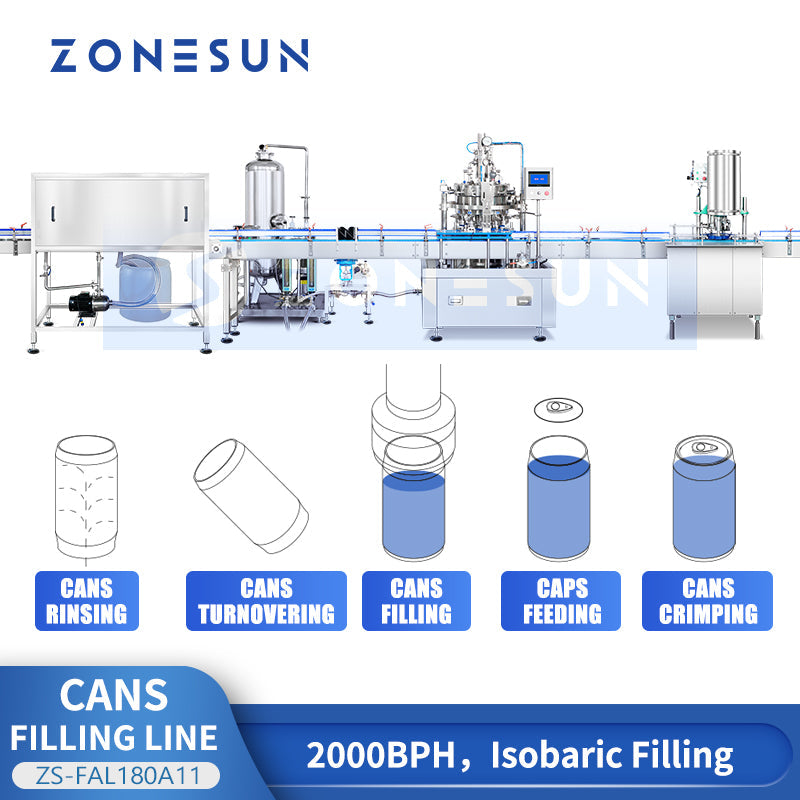

The ZONESUN ZS‑FAL180A11 is an automatic isobaric filling and packaging line designed for carbonated beverage cans, integrating can rinsing, turnover conveying, isobaric filling, cap positioning, and magnetic torque capping into a streamlined high-speed workflow. Operating at up to 2000 cans per hour, the system uses specialized diaphragm valves, automatic liquid-level control, and no-can-no-fill protection to ensure accurate filling, hygienic processing, and stable sealing performance. Suitable for soda, sparkling water, flavored drinks, beer, energy drinks, and other CO₂ infused beverages
Specifications
Bottle Rinsing Machine (ZS-WBC1)
- Type: Bottle Rinsing Machine
- Voltage: 110/220V/380V 50–60Hz (customizable)
- Power: 0.45 kW
- Working Capacity: 1000–2000 BPH
- Suitable Can Size: Customizable
- Machine Size: 2500 × 600 × 1650 mm
- Package Size: 2210 × 970 × 1850 mm
- Package Weight: About 370 kg
Isobaric Filling Machine (ZS-AFI12)
- Voltage: 380V / 50Hz
- Power: 1.1 kW
- Production Capacity: 1000–2000 BPH
- Suitable Can Diameter: φ40–80 mm (specify one size)
- Suitable Can Height: 50–150 mm (specify one size)
- Machine Size: 1200 × 1100 × 1600 mm
- Machine Weight：About 700kg
- Package Size: 1460 × 1310 × 2210 mm
- Package Weight: About 1005 kg
Can Seaming Machine (ZS-AFK300S)
- Power: 0.75 kW
- Capping Heads: 1 (customizable)
- Production Capacity: 2000 BPH
- Suitable Can Diameter: φ40–80 mm (specify one size)
- Suitable Can Height: 50–150 mm (specify one size)
- Machine Size: 3910 × 700 × 1820 mm
- Package Size: 1060 × 960 × 1880 mm
- Package Weight: About 340 kg
APPLICATIONS
1.Suitable Beverage Types
- Craft Beer & Hard Seltzers: Maintains precise CO2 levels without excess foaming, preserving taste, head retention, and shelf life.
- Carbonated Soft Drinks (CSD): Ideal for automated canning of sodas, colas, carbonated juices, and sparkling lemonades.
- Sparkling Water & Tonic: Ensures bubble integrity and stable pressure sealing for carbonated or flavored waters.
- Energy & Functional Drinks: Built to handle high-speed production demands for caffeinated, isotonic, and vitamin-infused drinks.
- Kombucha & Fermented Beverages: Safely cans naturally or force-carbonated fermented teas with controlled counter-pressure filling.
- Container Types: Standard aluminum cans, slim cans, sleek cans, and tinplate beverage cans.
- Can Sizes: Suitable for diameters of 40mm to 80mm and heights of 50mm to 150mm (customized per user specifications).
- Cap Types: Standard aluminum easy-open ends (EOE) and pull-ring lids.

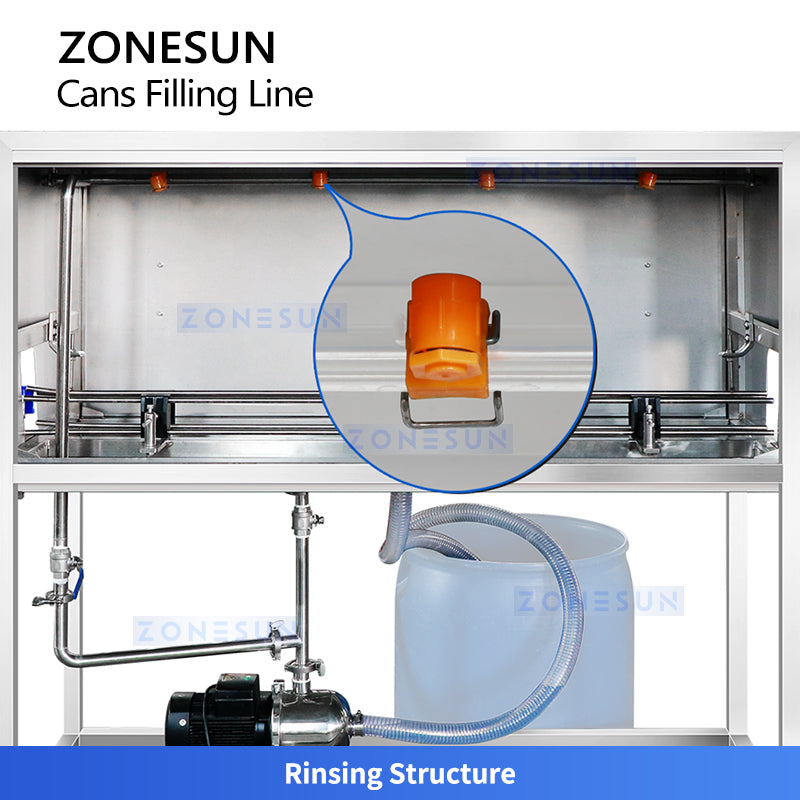

Rinsing Structure
Rinsing inverted cans to remove dust and residues before filling, ensuring hygiene and product safety.

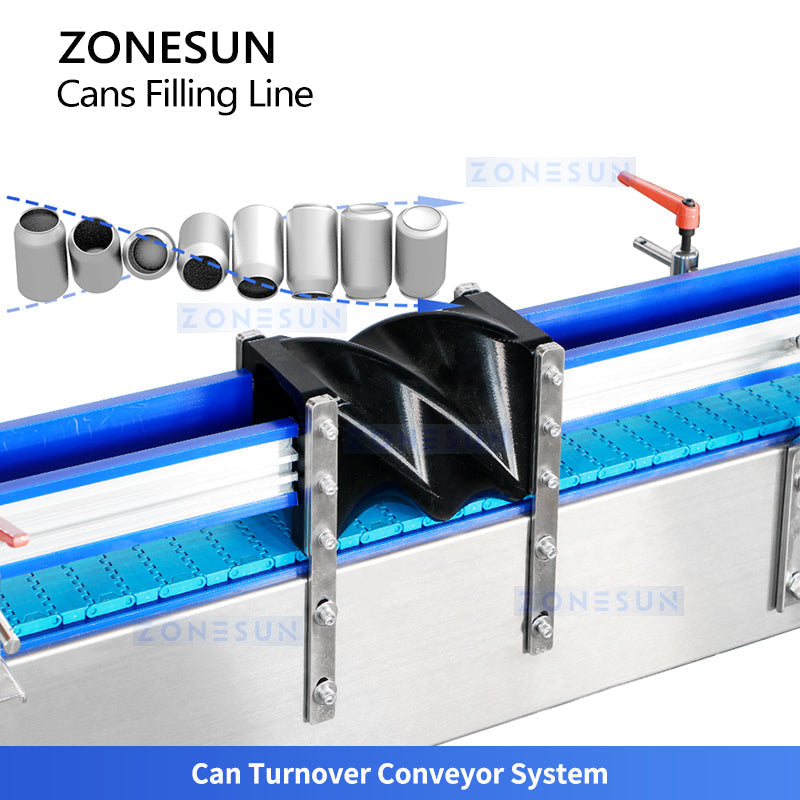

Can Turnover Conveyor System
Flipping cans automatically to achieve the required orientation for smooth downstream processing.

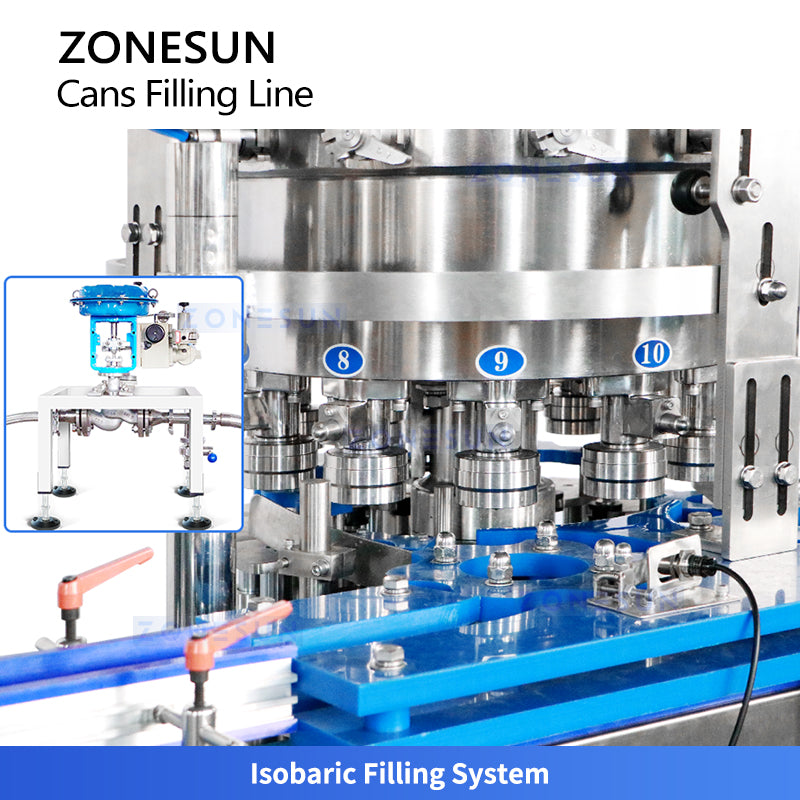

Isobaric Filling System
Using specialized diaphragm valves to deliver accurate isobaric filling and maintain stable liquid levels throughout the process.

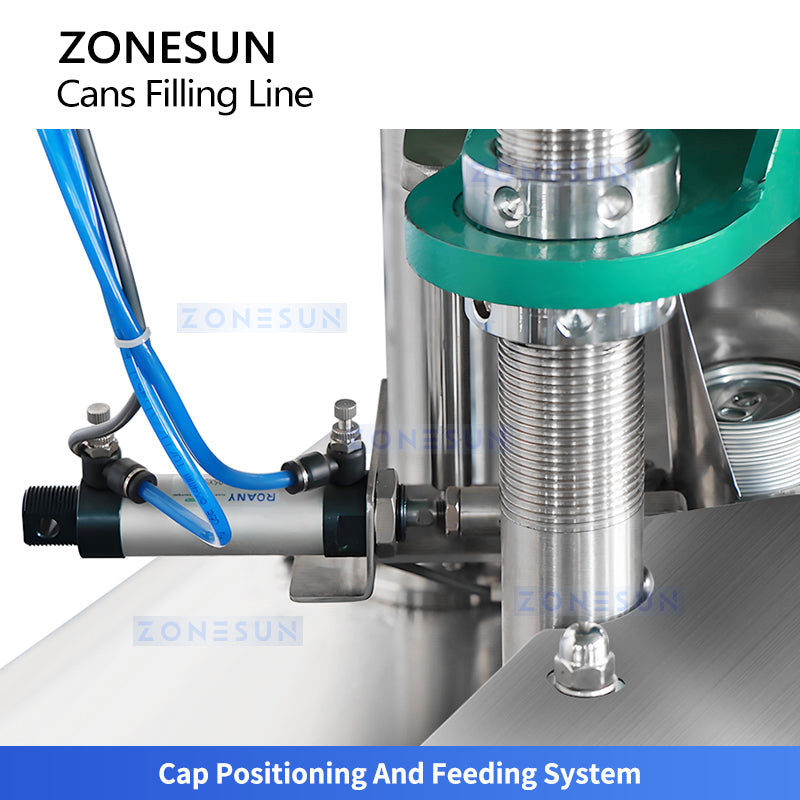

Cap Positioning And Feeding System
Positioning and feeding caps with high accuracy while incorporating protective mechanisms to support smooth, reliable, and continuous production.

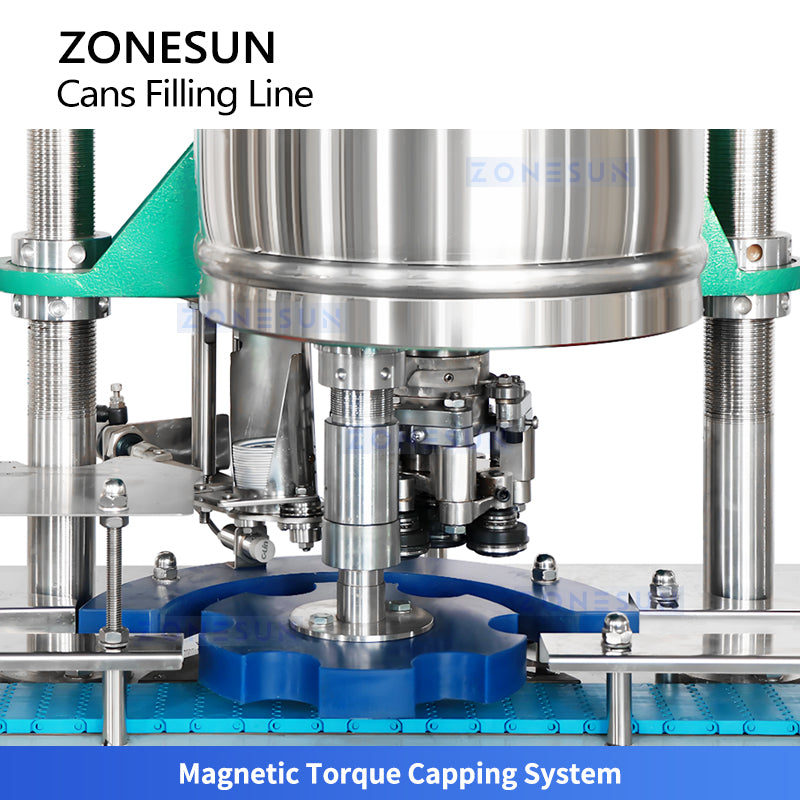

Magnetic Torque Capping System
Applying constant magnetic torque during capping to achieve secure sealing while preventing cap or can damage.
