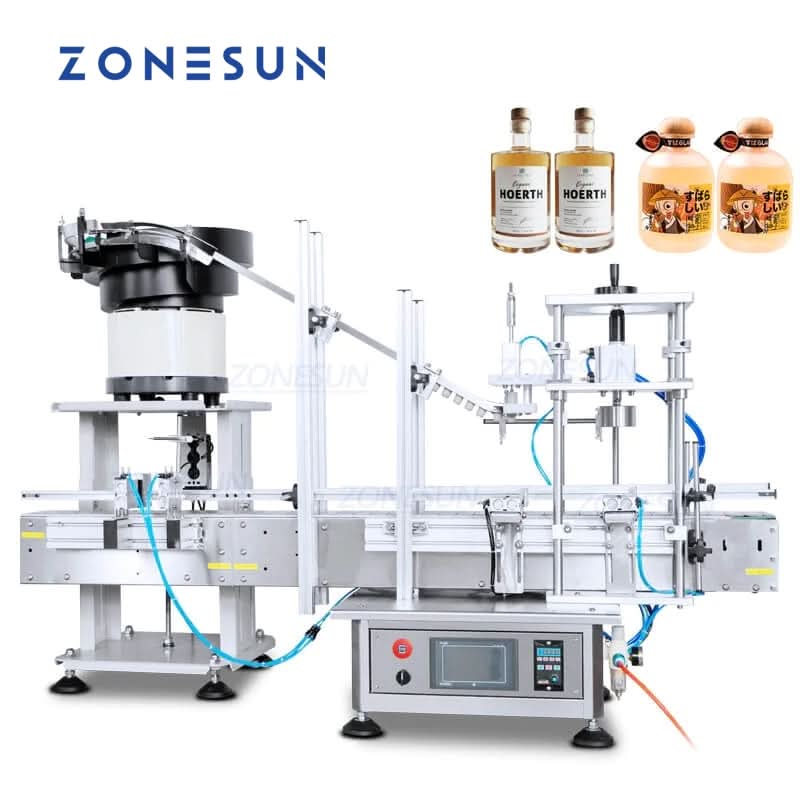

ZONESUN ZS-XG1870D2 Automatic T-Cork Capping Machine with Vibratory Bowl Cap Sorter for Bottle Bottling Line
ZONESUN ZS-XG1870D2 Automatic T-Cork Capping Machine with Vibratory Bowl Cap Sorter for Bottle Bottling Line
Couldn't load pickup availability
Equipped with caps vibrating bowl sorter, this desktop capping machine is suitable for bottles with press type caps. It is often used for t-cork bottles. The capping chuck can be customized according to your need. It can work as one part in liquor filling line and help you save labor and time,help you improve working efficiency.
Parameter
Vibrating Machine
- Machine Power:110/220V 50-60HZ 300W
- Material:Stainless Steel
- Suitable Caps Diameter:Customized
- Working Speed:Customized
- Machine Size:Customized
Bottle T-corking Machine
- Machine model:ZS-XG1870D2
- Working voltage:AC220V/110V 50-60HZ 300W
- Bottle height:60-270mm
- Bottle caps diameter:customize(≤130mm)
- Working speed:20-40 bottles/minute(depending on bottle and caps)
- Working pressure:0.4-0.6 MPa
- Size of air compressor connector:OD 8mm
- Conveyor length:115mm(W)*1020mm(L)
- Package size:About 1240*1120*1250mm(capping machine)
- About 610*620*1450mm(vibrating feeder)
- Package weight:About 148kg (capping machine)
- About 96kg (vibrating feeder)

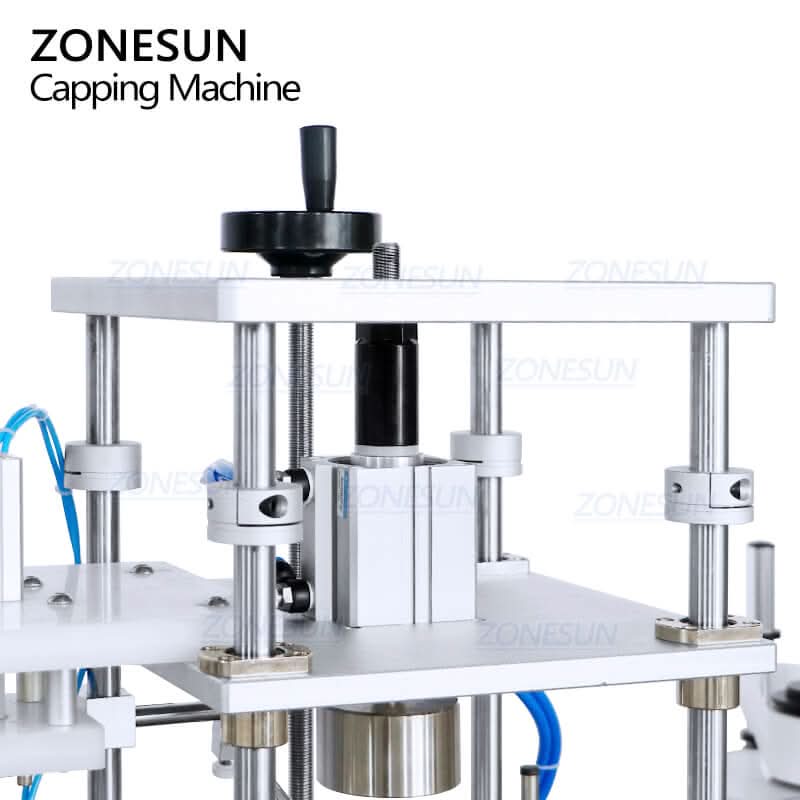

ADJUSTABLE CAPPING HEIGHT
The capping assembly height can be adjusted to accommodate bottles of different heights.
The working height of the machine is adjustable,it is suitable for 60-270mm height bottles,this help to widen the application.

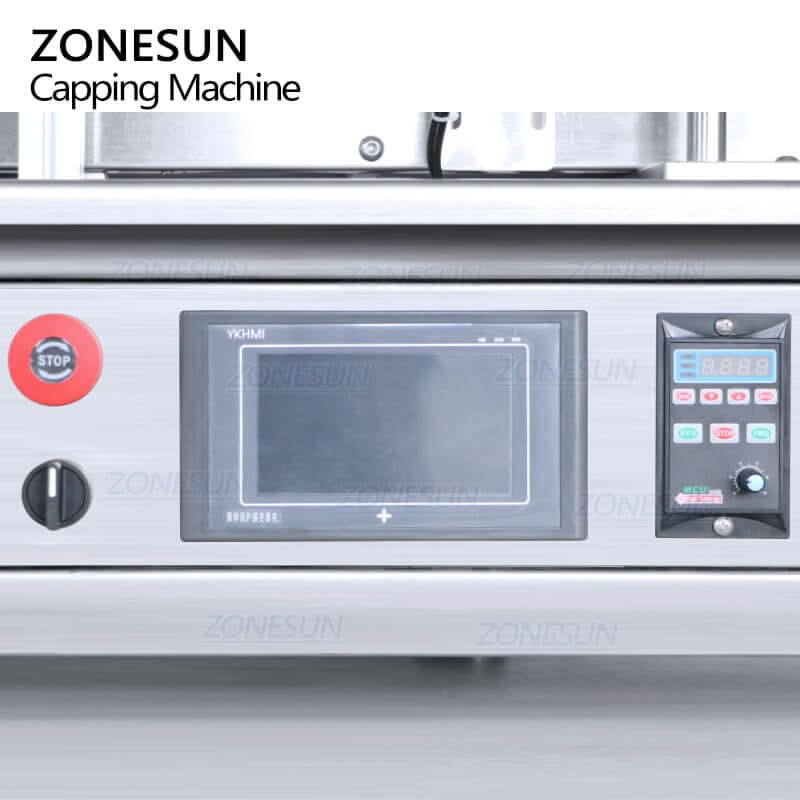

CONTROL PANEL
The control panel is used to set operating speed and machine parameters.
Simple control panel,the working speed and working data can be adjusted easily,help you control the machine faster and easier.

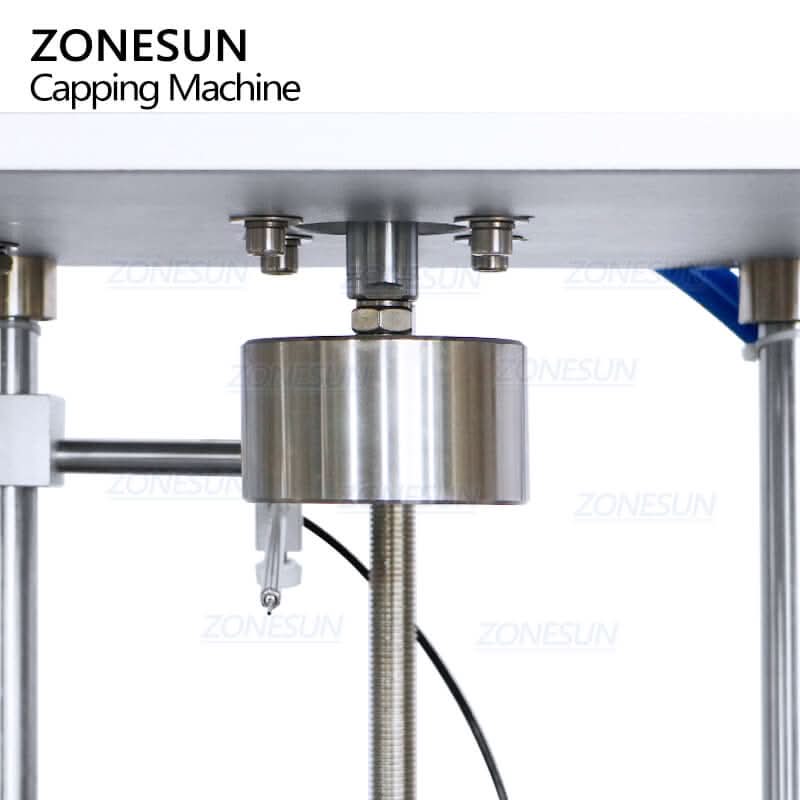

T-CORK PRESSING HEAD
The capping head presses T-corks into the bottle and can be customized for the required cap size.
The capping chuck will start to work automatically once it detect the bottle,it should be customized according to bottle cap size.This is suitable for cap pressing,it can help you save labor.

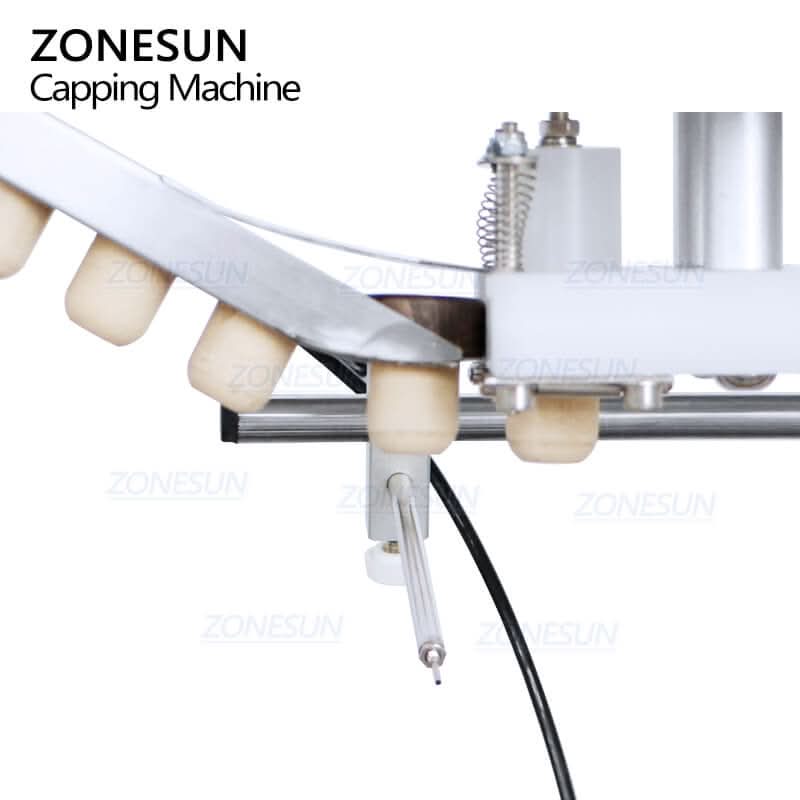

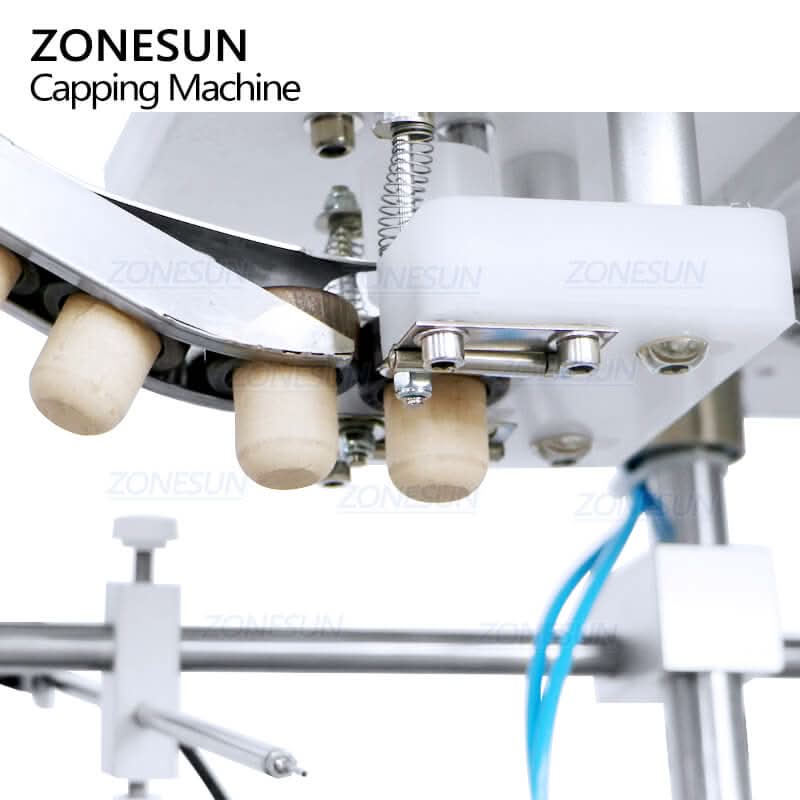

CAP TRANSFER MECHANISM
The transfer mechanism guides corks from the feeder toward the capping position.
With cap feeder,it can arrange bottle caps and make the production be in order.The cap feeder will be customized according to your material,this ensures it can work with your caps well.
CAP POSITIONING
The cap-positioning mechanism presents each cork for the pressing cycle.
This machine is equipped with electric eyes to detect bottles and achieve automatic working mode,this can prevent from missing bottles and reduce working error.

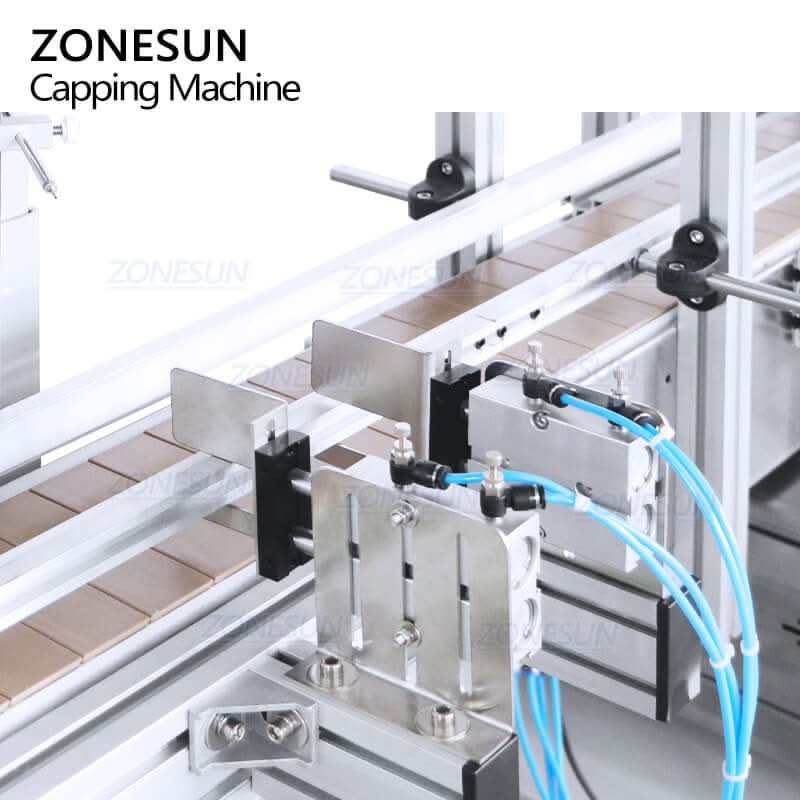

BOTTLE DETECTION
Sensors detect bottles at the workstation to coordinate automatic capping and help reduce missed containers.
High quality conveyor,the working speed can be controlled according to operation panel.It can help to transfer and separate bottle,improve working efficiency.

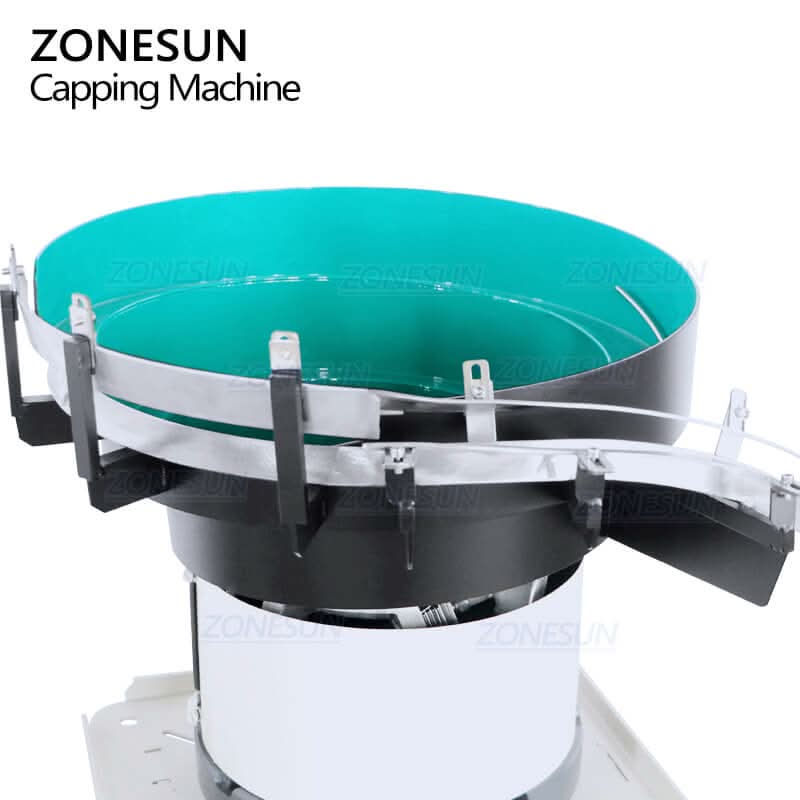

VIBRATORY CAP FEEDER
The vibratory bowl sorts and supplies T-corks continuously for automatic production.
The machine will be customized according to bottle cap size,makes sure the cap can be transported in order.This machine can feed bottle caps in time which can help you reduce labor cost.
