ZONESUN GFK-160 Diaphragm Pump Water Oil Liquid Filling Machine
ZONESUN GFK-160 Diaphragm Pump Water Oil Liquid Filling Machine
Couldn't load pickup availability
Description

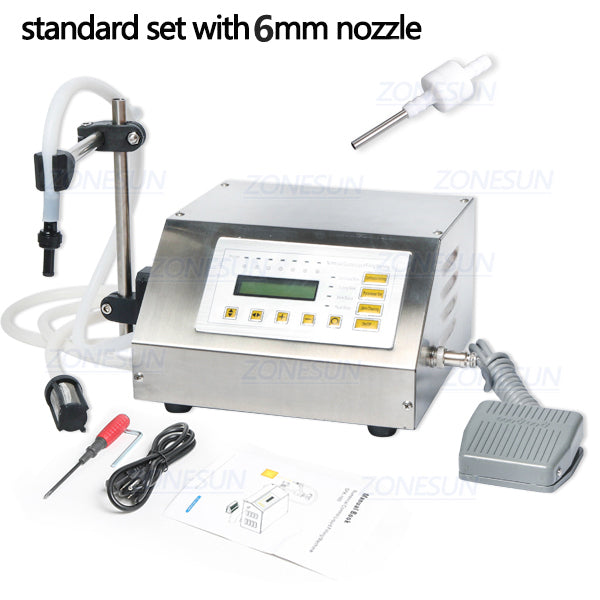

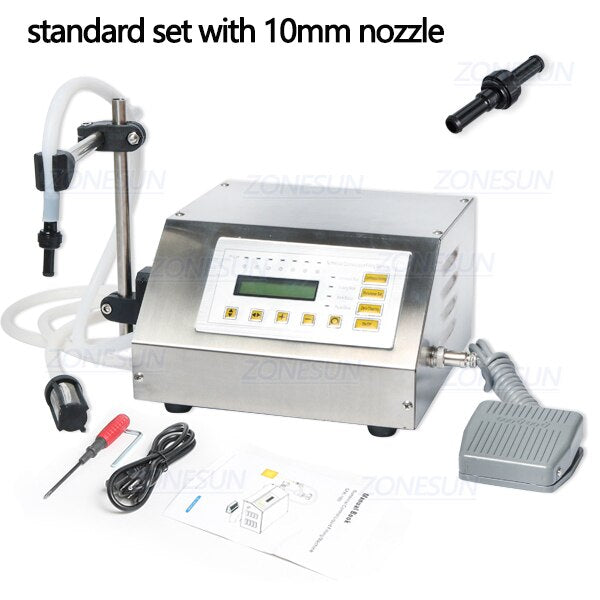

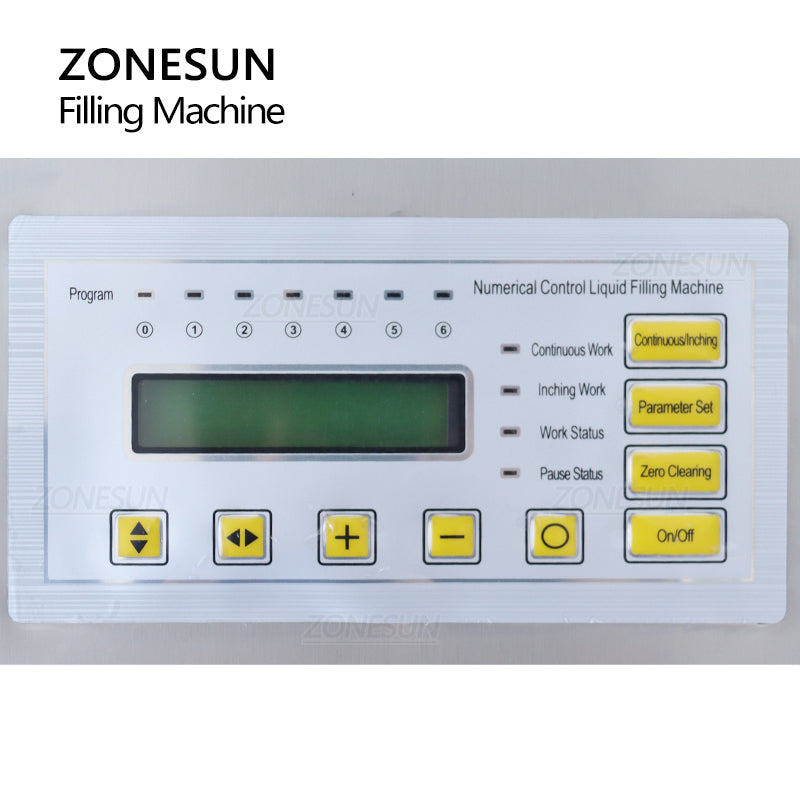

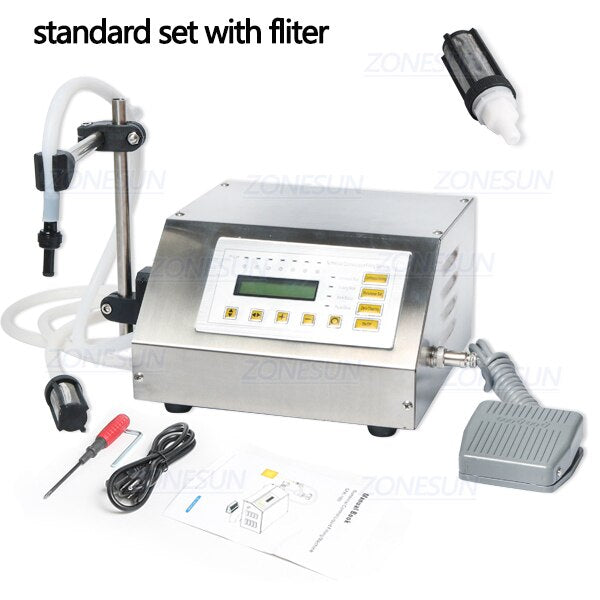

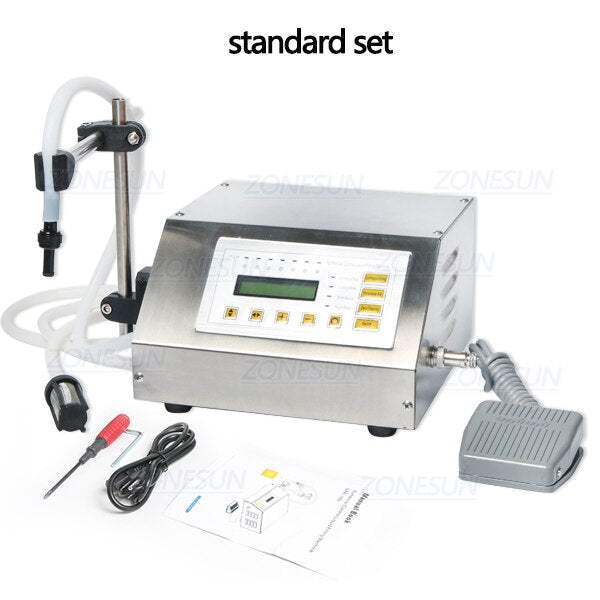

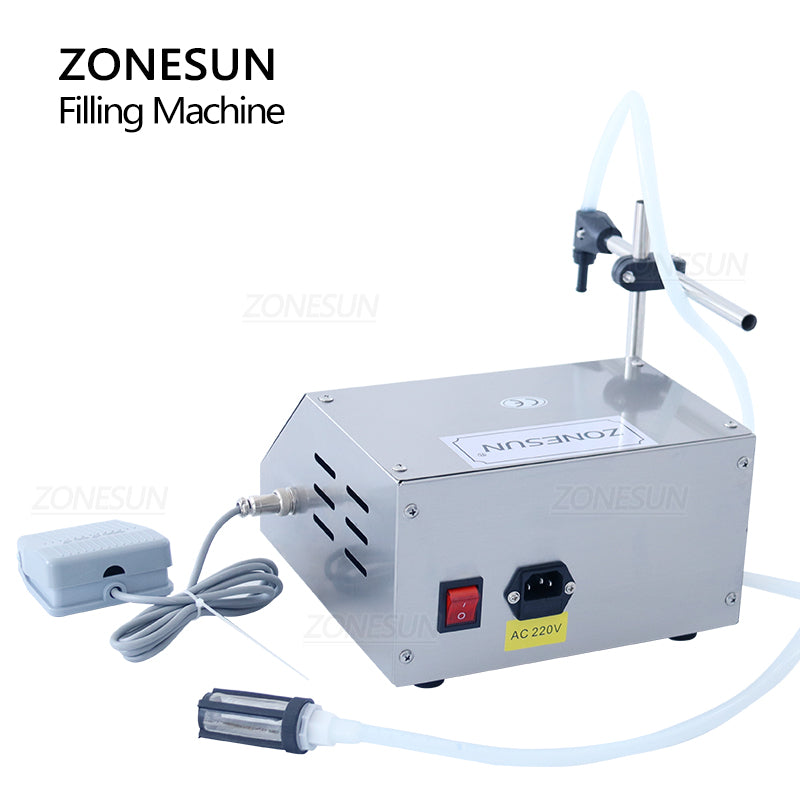

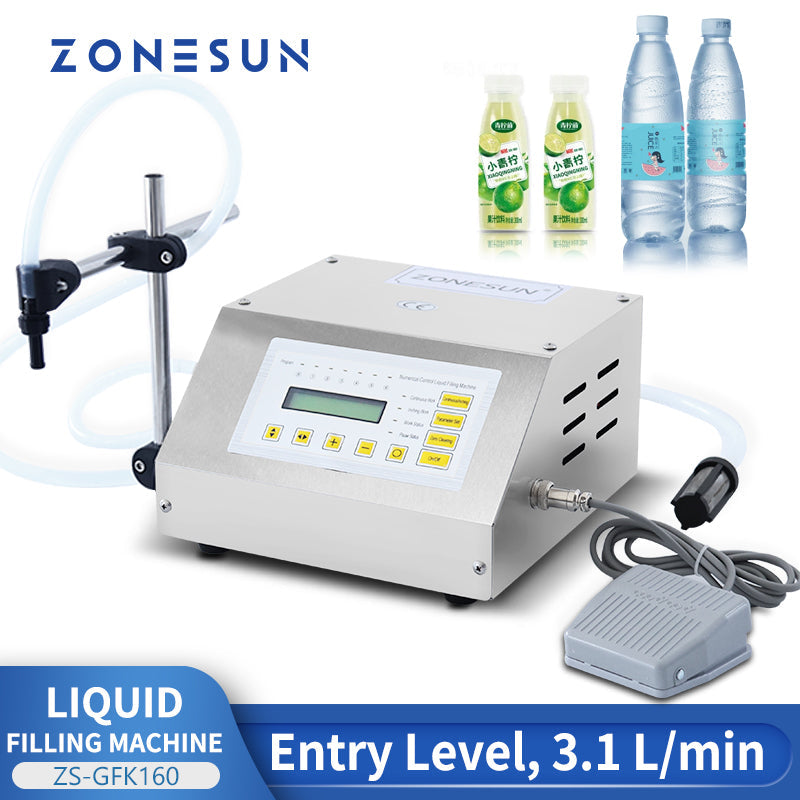

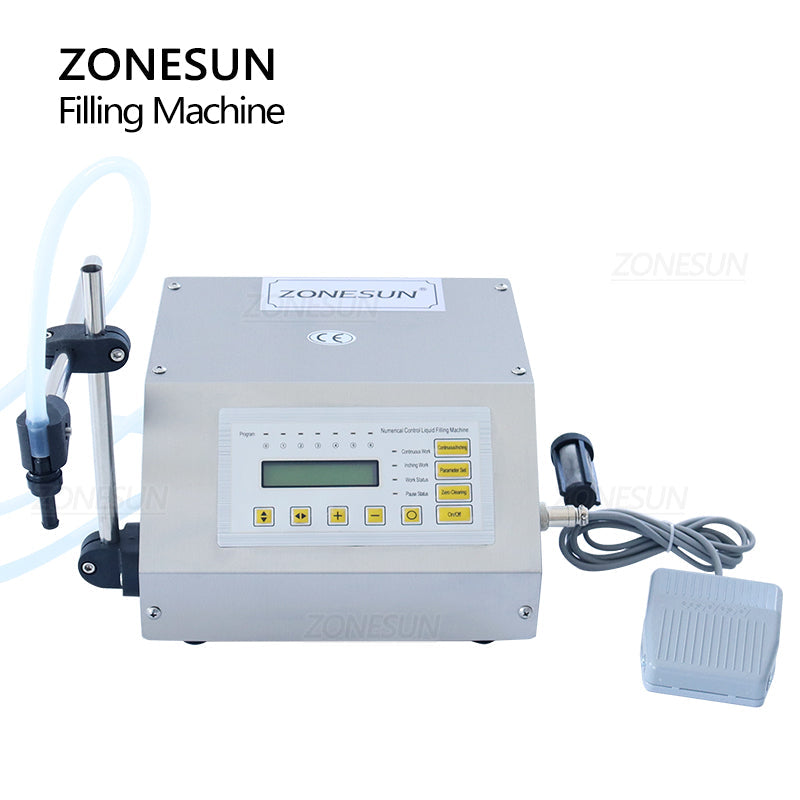

The ZONESUN GFK‑160 is a compact, portable numerical control liquid filling machine designed for precision and ease of use. Its stainless steel casing ensures durability and easy cleaning, while the self‑priming diaphragm pump draws liquid directly from your container and dispenses it through the nozzle. Ideal for low‑viscosity, particle‑free liquids such as water, wine, olive oil, fuel, vinegar, milk, and other clear solutions. Not suitable for thick liquids (e.g., sauces, detergents) or those containing solids.
Parameter
|
Model |
ZS-GFK160 |
|
Voltage Power |
AC 220V,110V 50/60Hz 40W |
|
Filling Range |
≤500ml |
|
Max Flow Rate |
3.1L/min (water) |
|

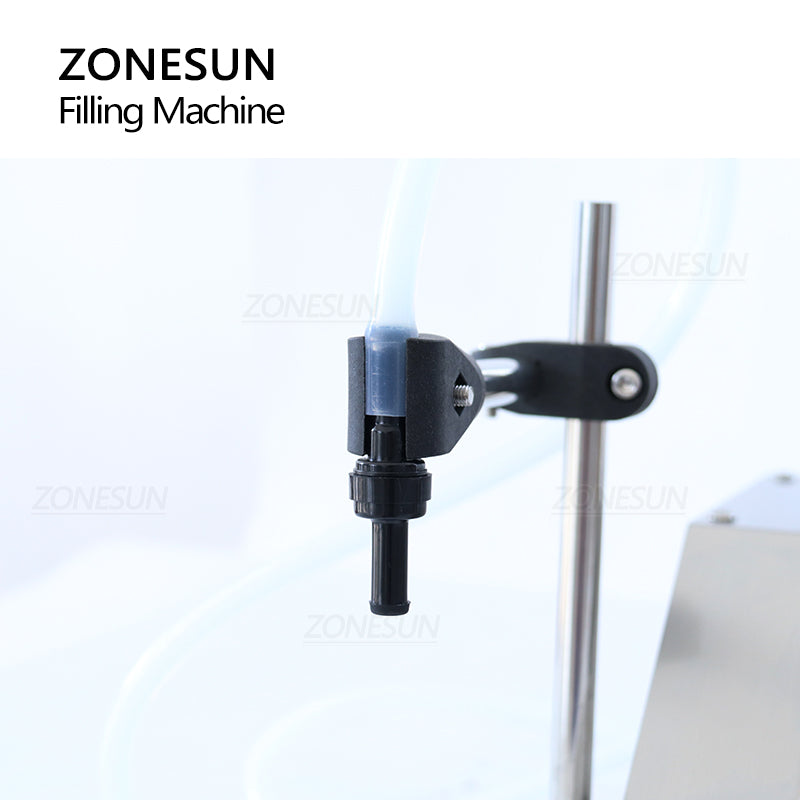

Diameter of Filling Nozzle |
Φ8mm |
|
Max Suck Distance |
2m |
|
Repeat Error |
±≤0.5% |
|
Anti-dripping Function |
Available |
|
Memory Function Without Electricity |
Available |
|
Suitable Soft Tube |
17#(interior diameter: 6.4mm, thickness: 1.6mm) |
|
Packing Size |
325*275*180 |
|
Gross Weight |
2.75kg |
Attention

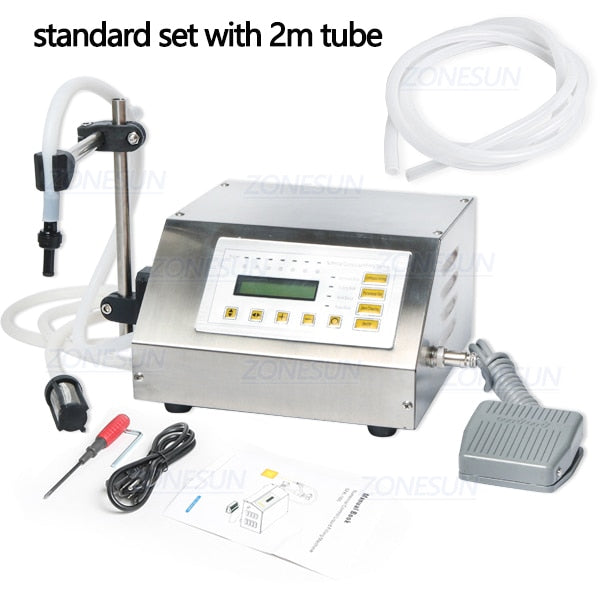

1. Different liquid needs to choose different material of tube. The tube provided by us is silicone tube.
2.We will test all of the filling machine before send out , so it’s normal that the machine pump and tube with water inside when you receive it.
