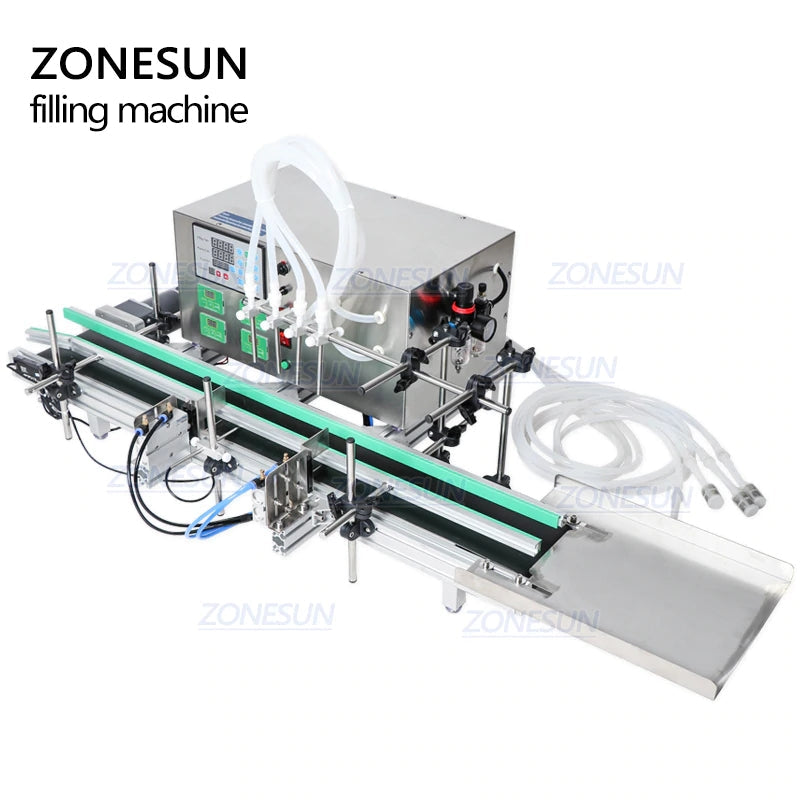

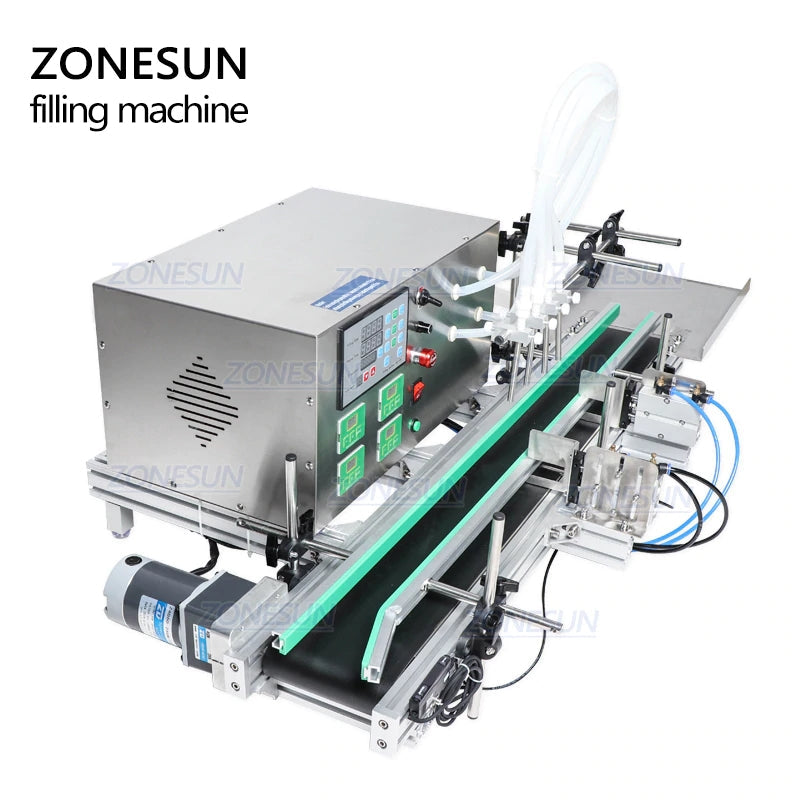

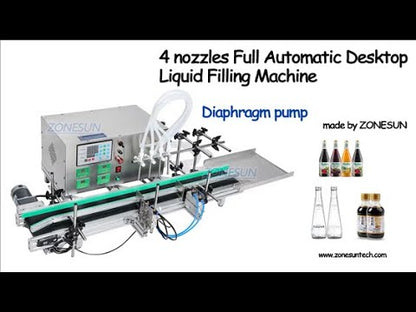

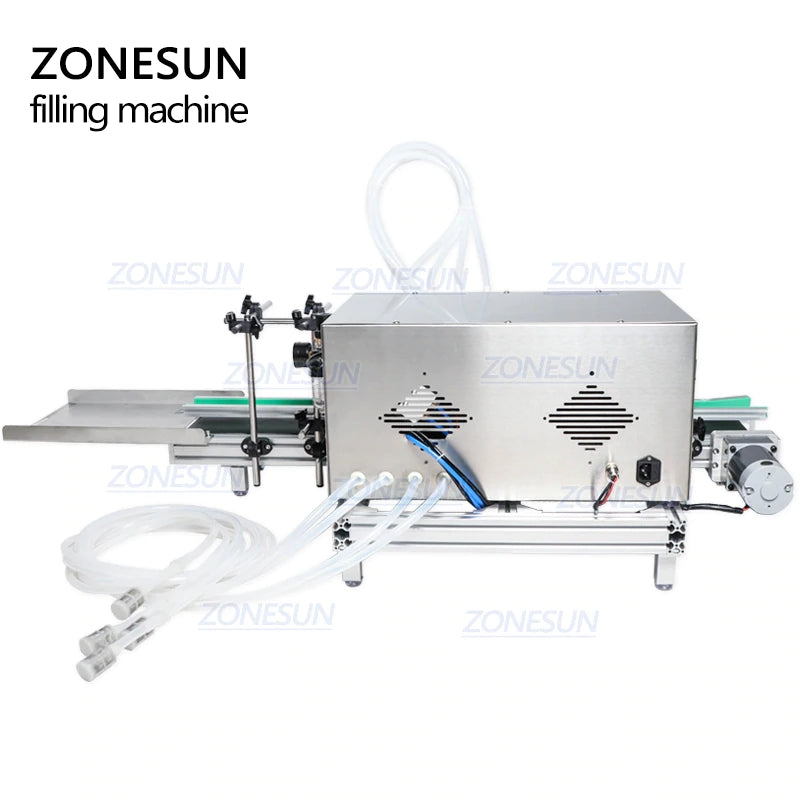

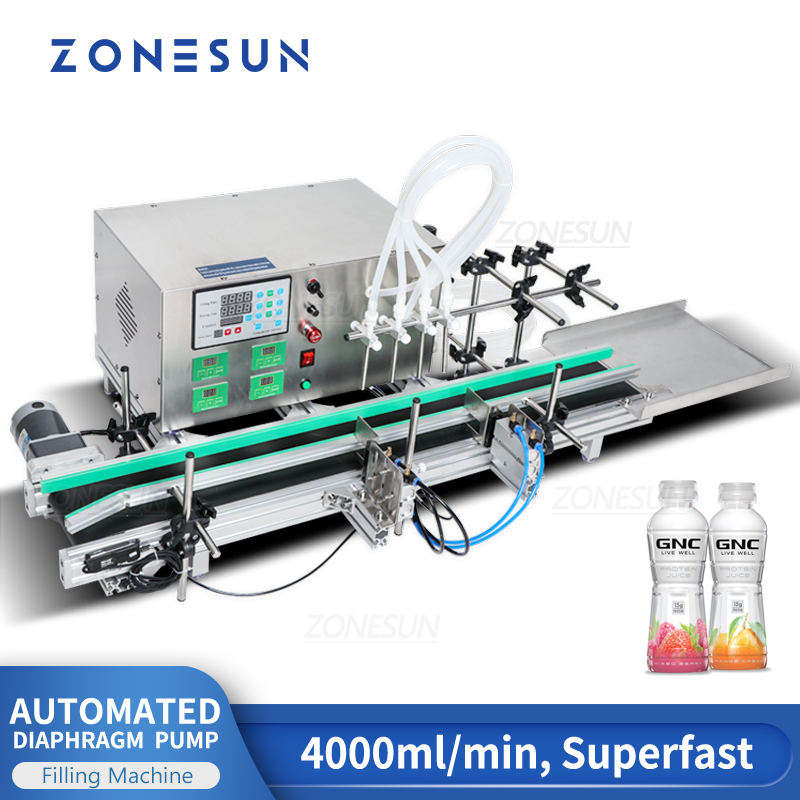

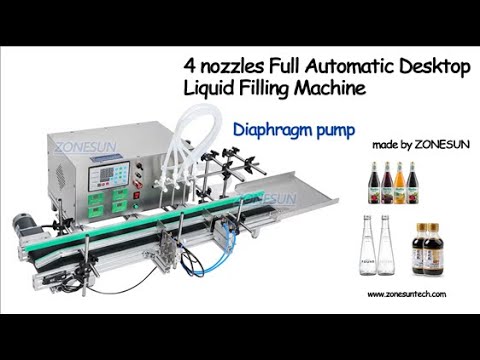

ZONESUN ZS‑DTDP4 Auto-Desktop 4‑Nozzle Diaphragm Pump Liquid Filler
ZONESUN ZS‑DTDP4 Auto-Desktop 4‑Nozzle Diaphragm Pump Liquid Filler
Couldn't load pickup availability
Description

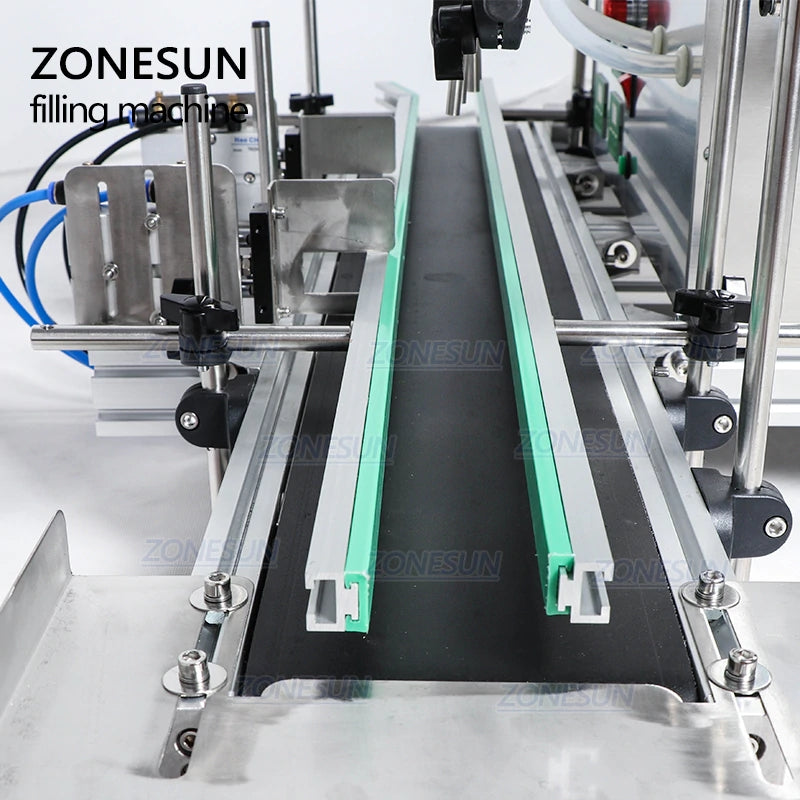

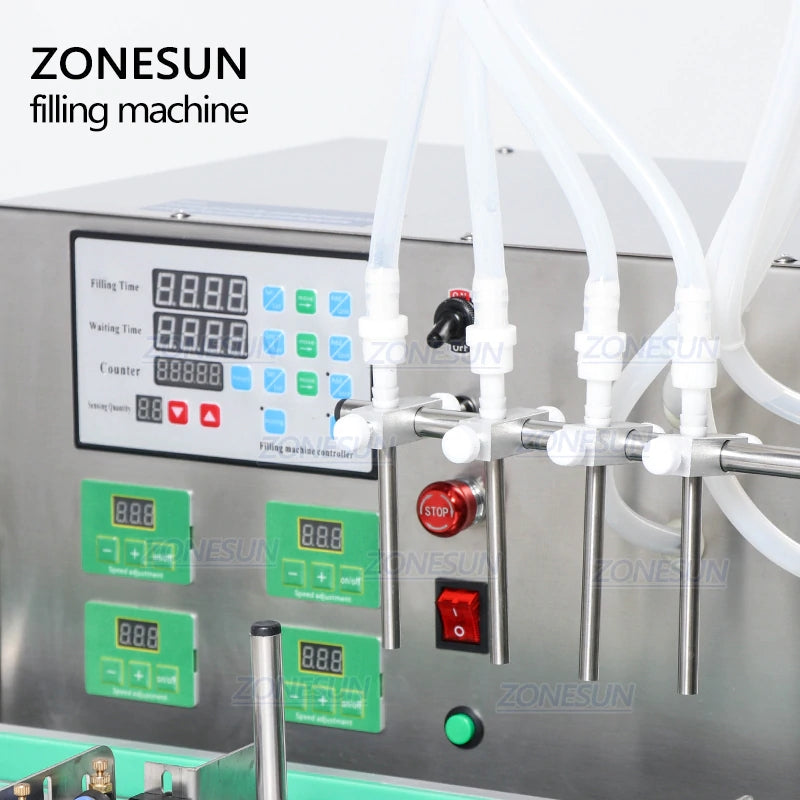

The ZONESUN ZS‑DTDP4 Automatic Desktop Liquid Filling Machine combines the convenience of a compact design with the efficiency of a full‑automatic system. Featuring four diaphragm‑pump nozzles—each independently controllable—it delivers precise, hygienic filling for water, beverages, cosmetics, and other low‑viscosity liquids. The integrated conveyor streamlines container handling, while adjustable filling time and interval settings allow easy customization for different production needs. Stainless steel construction ensures durability and easy cleaning, making it ideal for small to medium scale food, beverage, cosmetic, and chemical operations.
Application
This machine can be used for filling a variety of liquids, such as water, milk, toner and so on. It is widely used in food, cosmetics and tablet industries.
Parameter
| Item | Specification |
|---|---|
| Power Supply Voltage | 110 / 220 V · 50‑60 Hz |
| Power | 250 W |
| Maximum Flow Velocity | 4000 ml/min (each nozzle, based on water) |
| Working Speed | 1500 – 3000 bottles/hour (depends on bottle size & liquid) |
| Air Pressure | 0.3 – 0.4 MPa |
| Filling Accuracy | ≤ ± 1 % (for water) |
| Diameter of Filling Nozzle | 6 mm / 8 mm |
| Delay Range | 0.01 – 999.9 s |
| Count Range | 1 – 9999 times |
| Package Size | 1100 × 650 × 420 mm |
| Gross Weight | 46.5 kg |
| Filling Volume | 3 – 1000 ml (220 V) · 3 – 500 ml (110 V — lower power, recommended per nozzle) |
| Air Compressor Connector | OD 8 mm |
